8) Benchmarking of the trapping for Qs=1/1000 in 5 10^5 turns
The eighth step is to benchmark the trapping of 1 test particle during
5 10^5 turns when the synchrotron tune which produces
one synchrotron oscillation in 1000 turns.
The parameters used are those of the
step 7,
The test particle has the following initial coordinates:
x = 5mm, px = y = py = 0 and z = 2.5 sigma_z, pz = 0.
We compare the trapping by plotting the evolution of
the single particle emittance
e_x = bet_x px^2 + 2 a_x x px + gamma_x x^2
of the test particle
(normalized with the initial value) vs. number of turns.

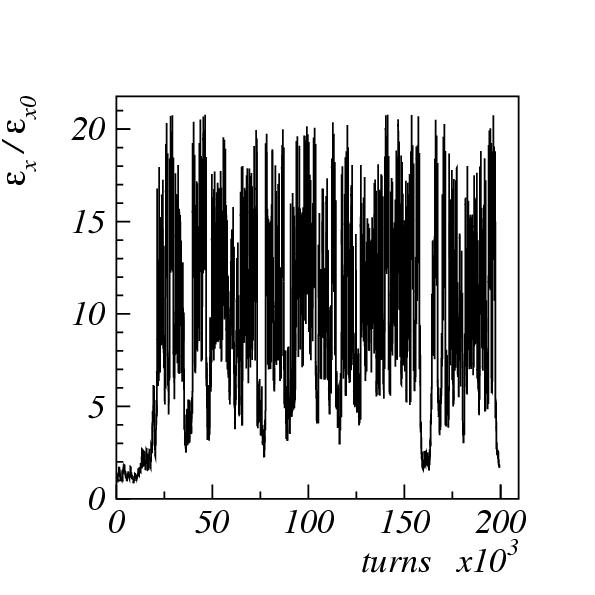

MICROMAP

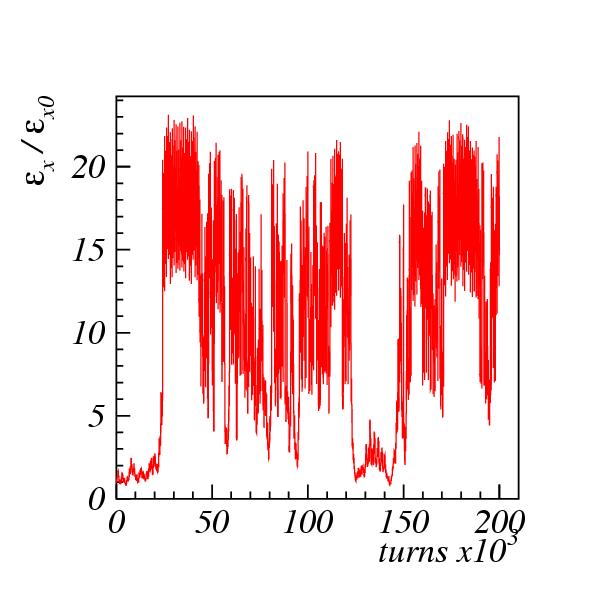

SIMPSONS
