Energy spectra of ²⁴¹Am Source

Resolution at 5.4 MeV

Threshold = 08 and Gain(Shaper) = 2

BIAS = - 40 V

DE/E = 0.62 % (Average value)

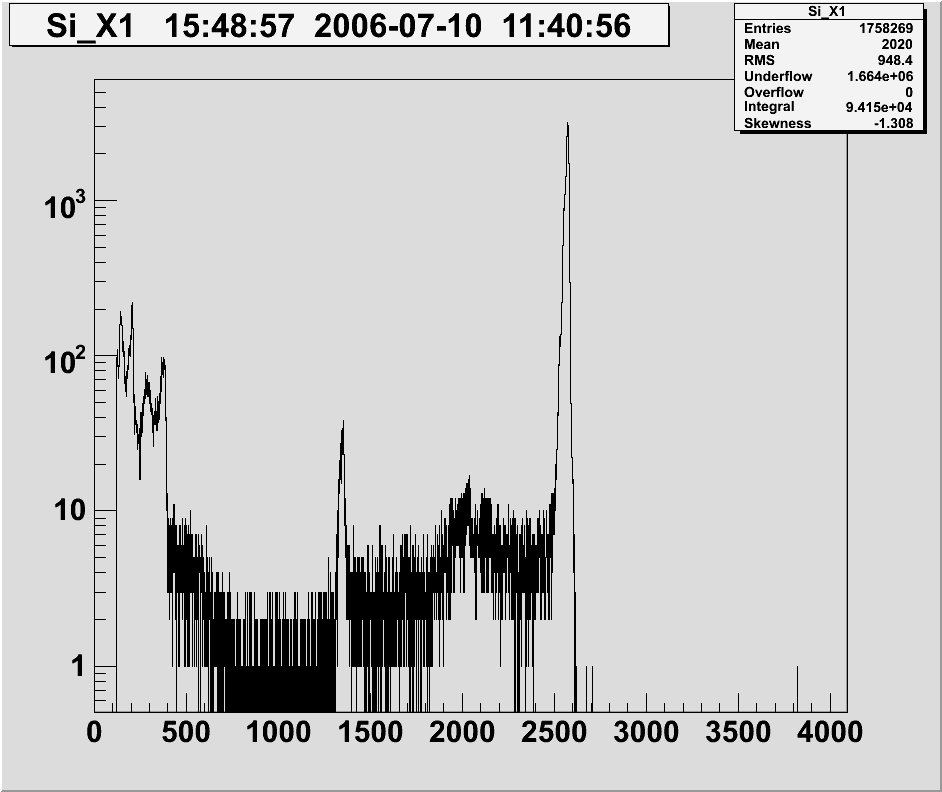

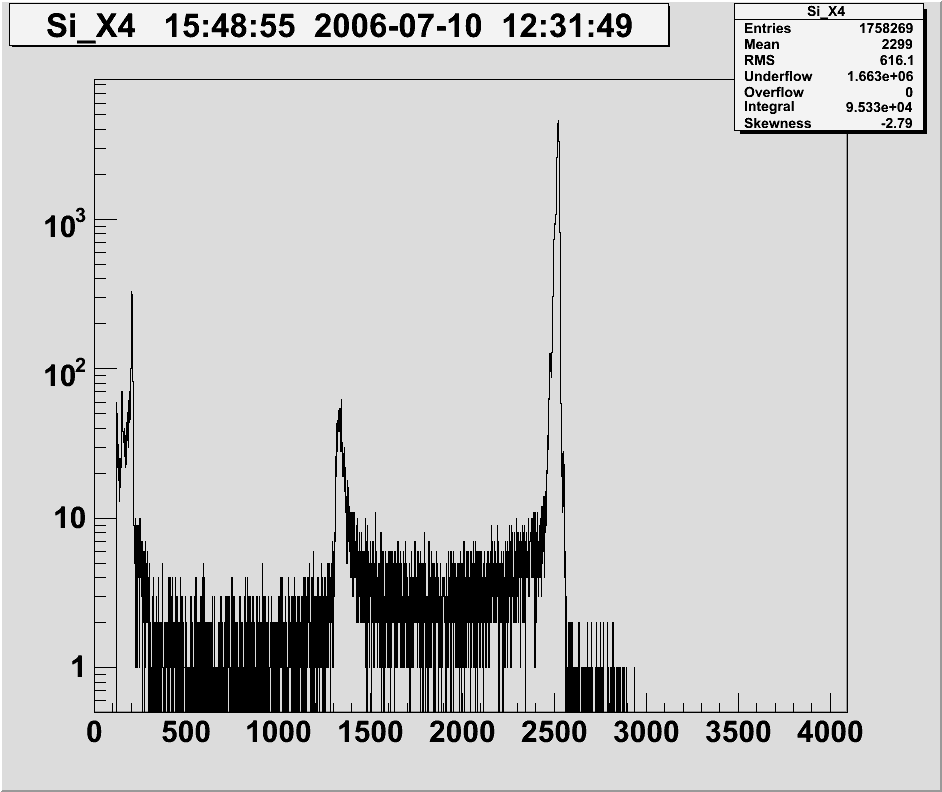

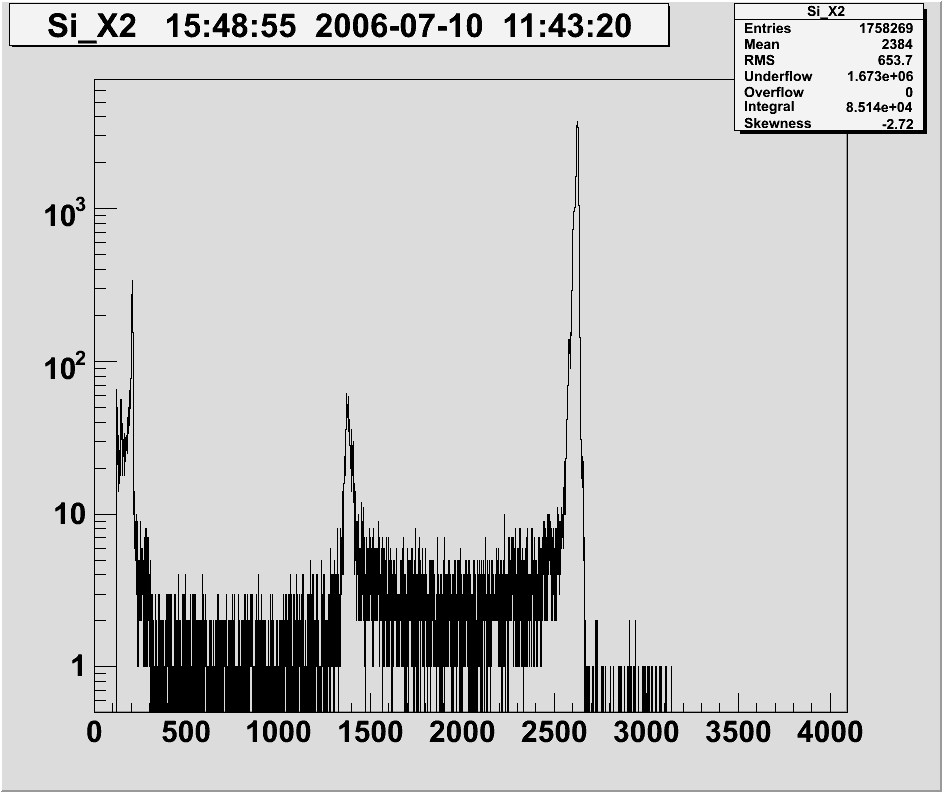

STRIP 1,  RESOLUTION 0.78 % view spectrum	STRIP 2,  RESOLUTION 0.63 % view spectrum	STRIP 3,  RESOLUTION 0.61 % view spectrum	STRIP 4,  RESOLUTION 0.60 % view spectrum

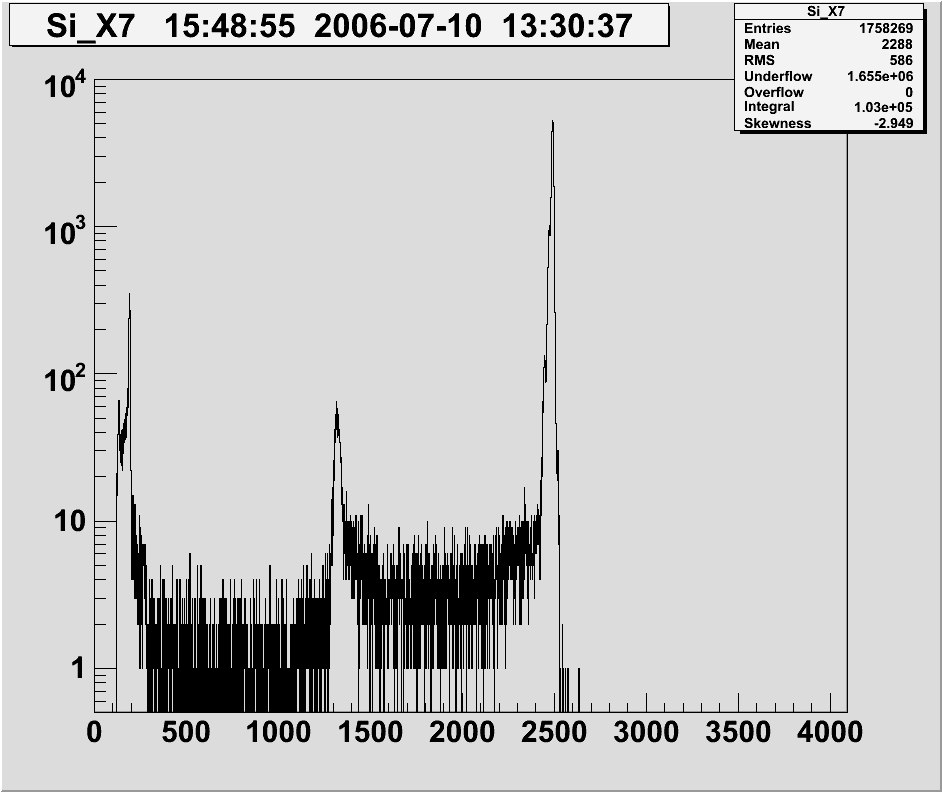

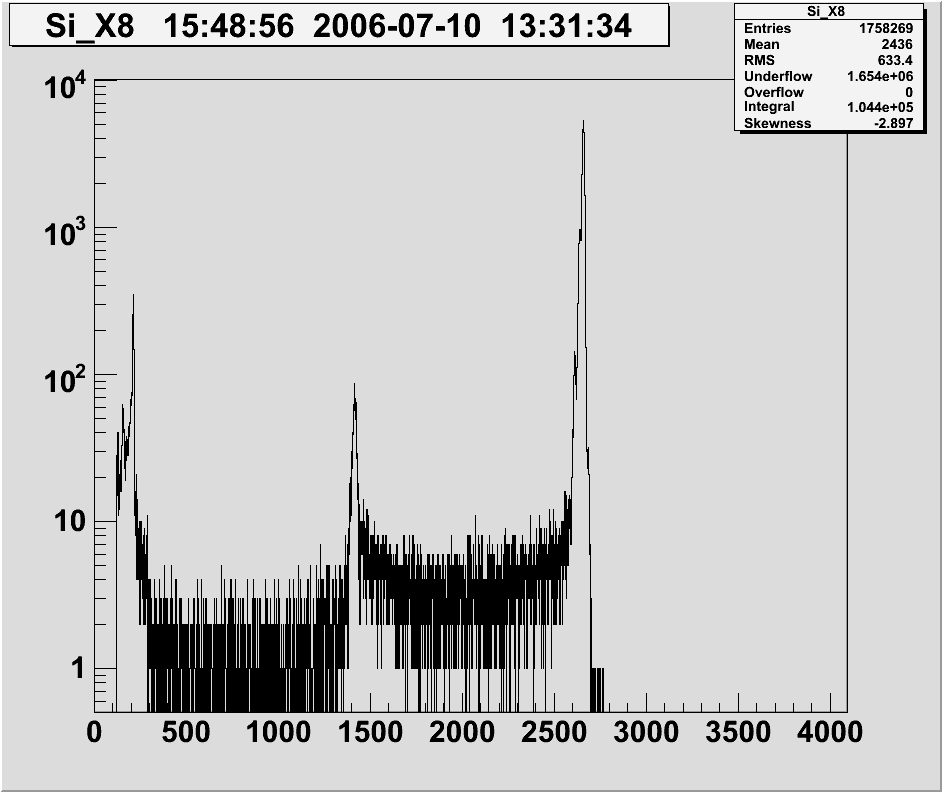

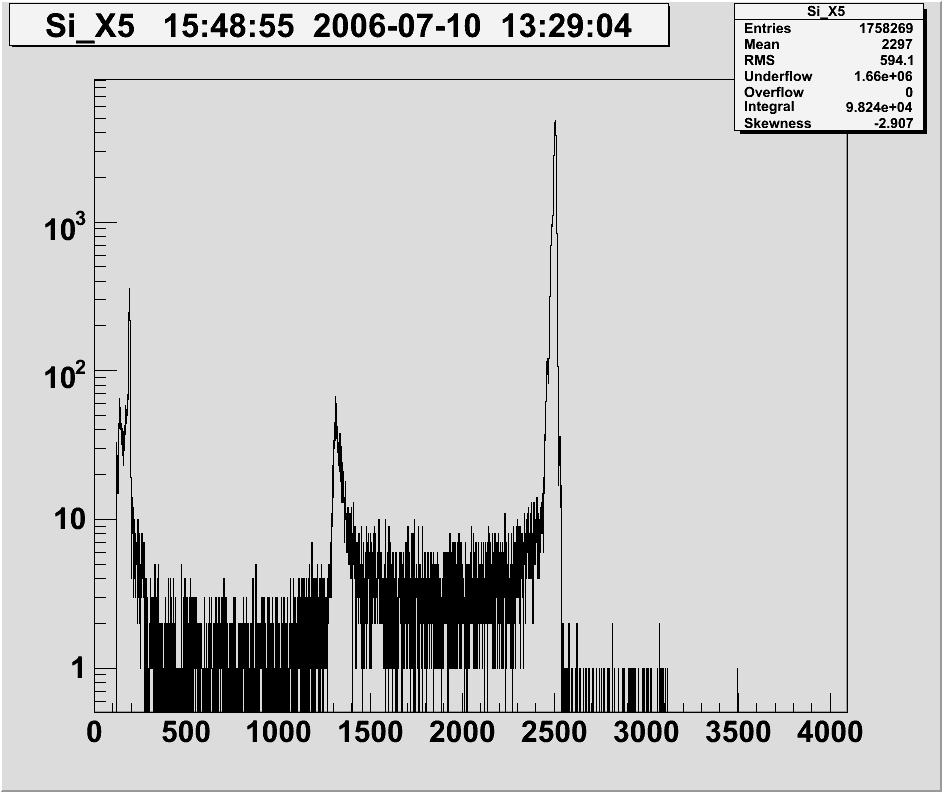

STRIP 5,  RESOLUTION 0.59 % view spectrum	STRIP 6,  RESOLUTION 0.58 % view spectrum	STRIP 7,  RESOLUTION 0.57 % view spectrum	STRIP 8,  RESOLUTION 0.54 % view spectrum

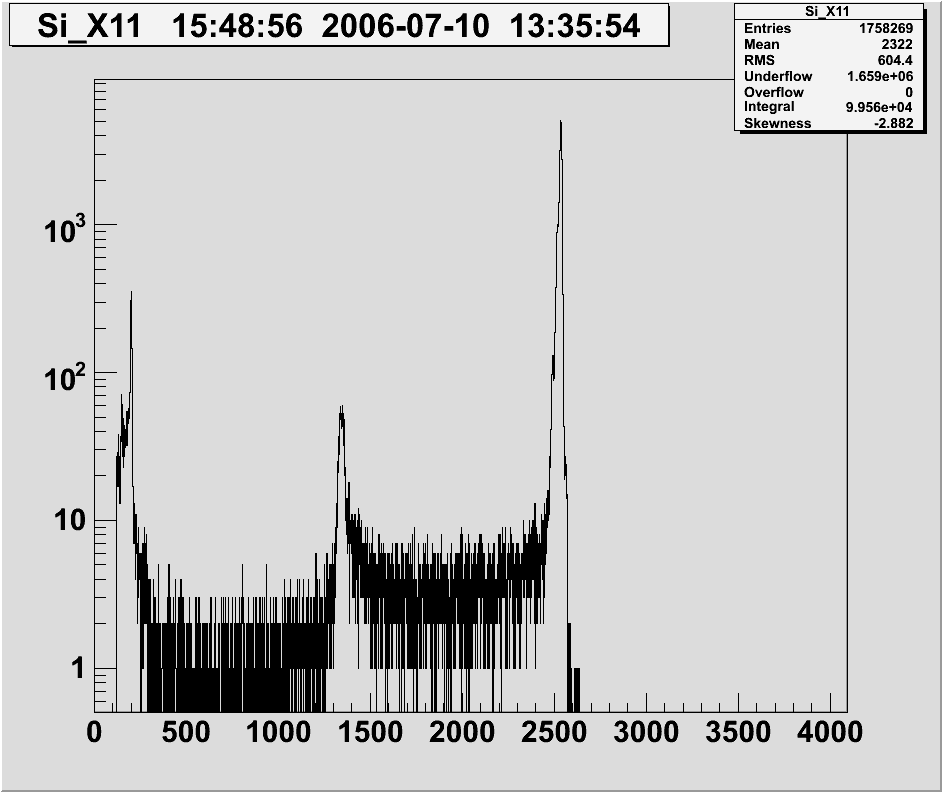

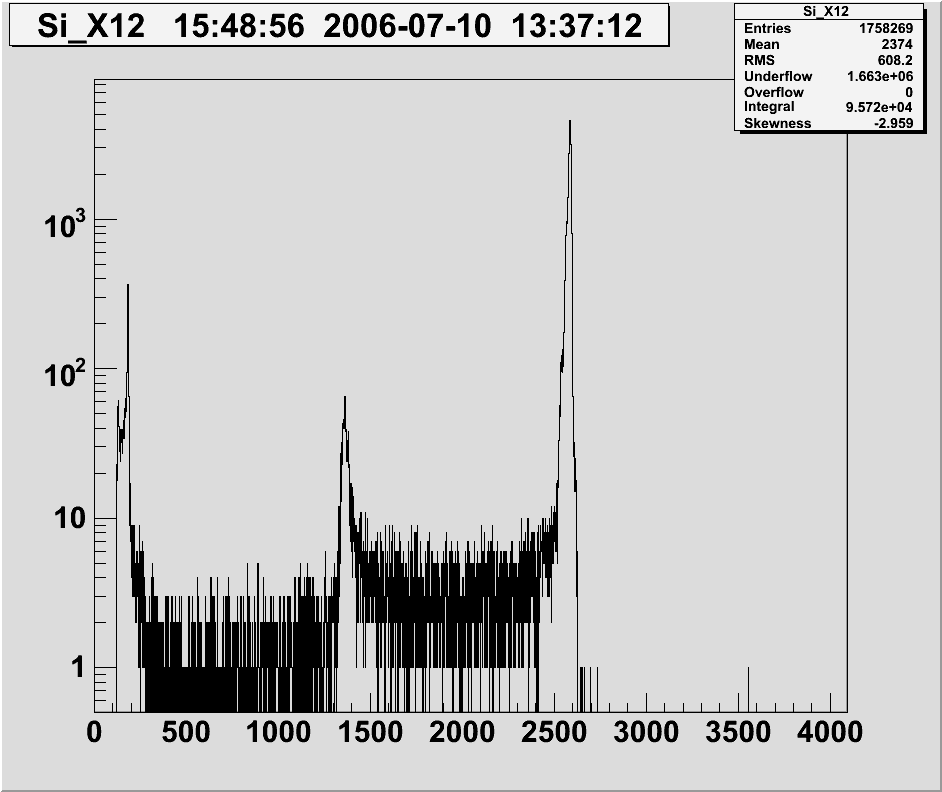

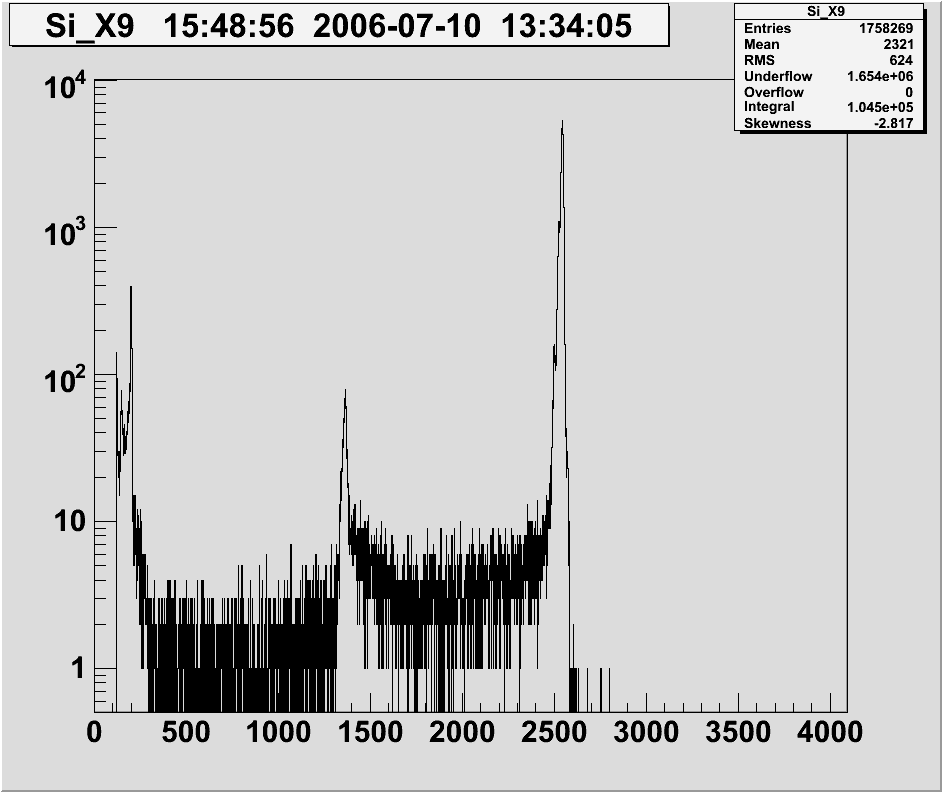

STRIP 9,  RESOLUTION 0.56 % view spectrum	STRIP 10,  RESOLUTION 0.58 % view spectrum	STRIP 11,  RESOLUTION 0.56 % view spectrum	STRIP 12,  RESOLUTION 0.60 % view spectrum

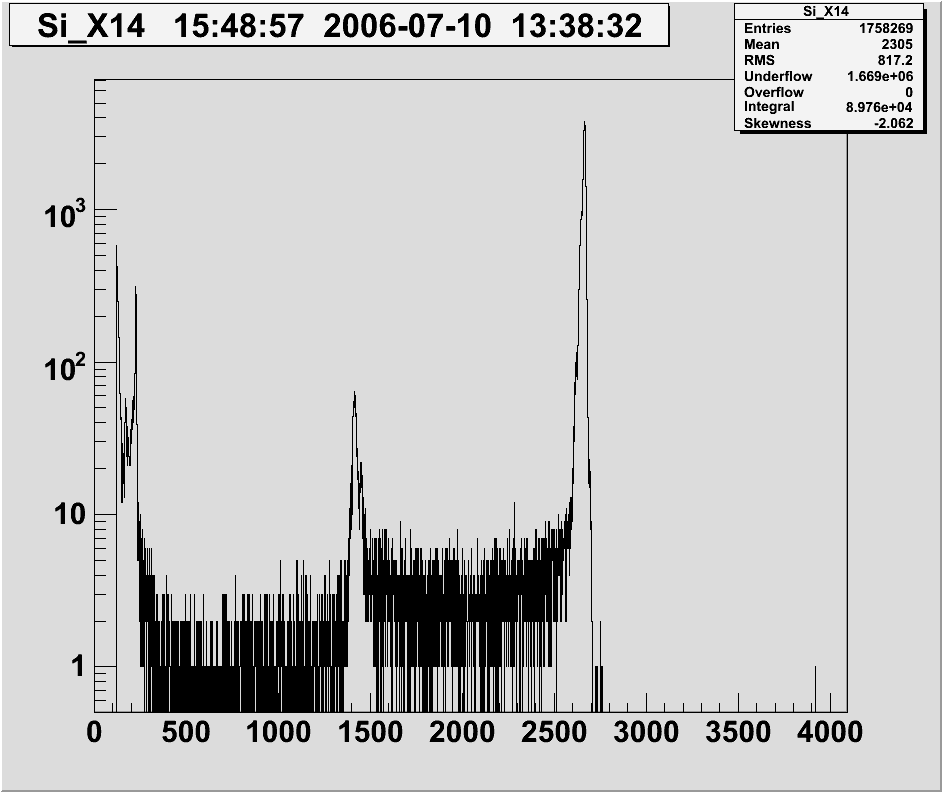

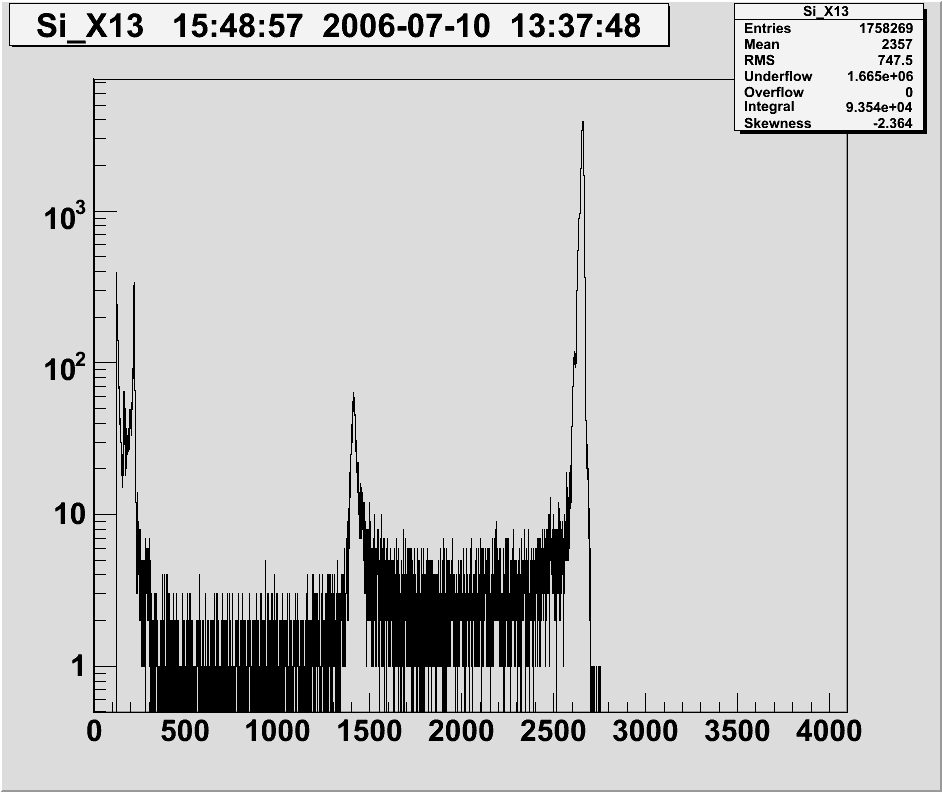

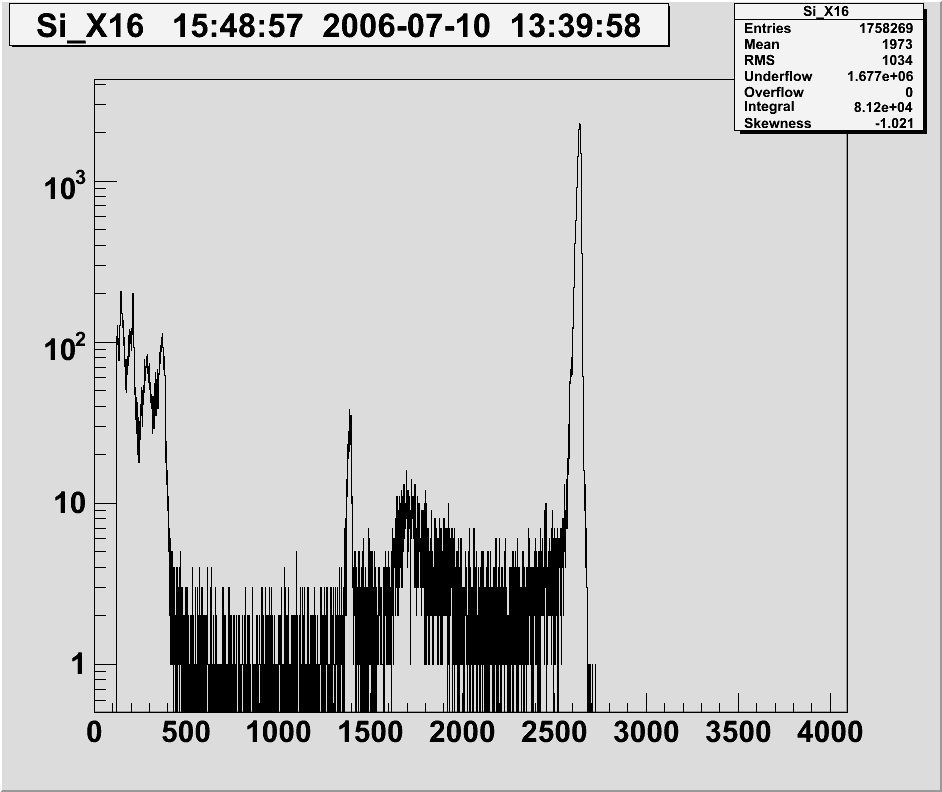

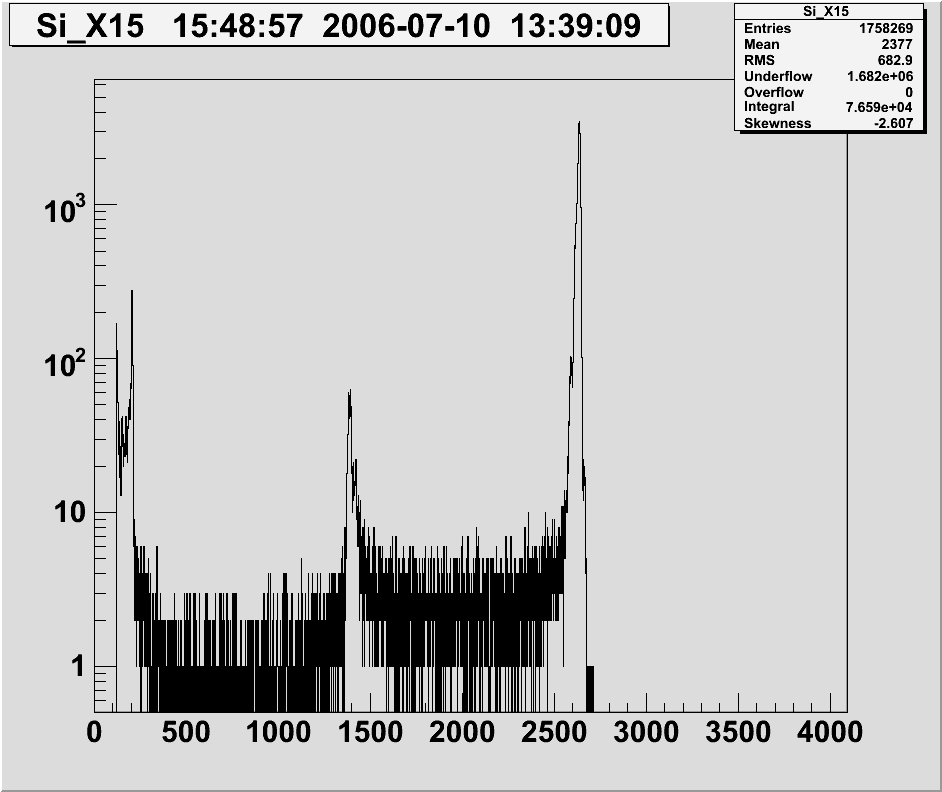

STRIP 13,  RESOLUTION 0.65 % view spectrum	STRIP 14,  RESOLUTION 0.64 % view spectrum	STRIP 15,  RESOLUTION 0.62 % view spectrum	STRIP 16,  RESOLUTION 0.81 % view spectrum
