Kind — Kubernetes in Docker

Kubernetes

Published

May 16, 2025

Modified

May 28, 2025

Overview

Kind¹ (Kubernetes IN Docker)

…run Kubernetes clusters in Docker containers
…primarily used for local testing and development purposes
…supports the creation of multi-node clusters
…allows testing against multiple Kubernetess versions
…test different configuration with multiple clusters
…support for persistent volumes …no loadbalancer …no ingress
Maintained by the Kubernetes community…
- …dedicated Kubernetes SIG (Special Interest Group)
- …focuses on testing and quality assurance for Kubernetes
- …find the Kind repository on GitHub²

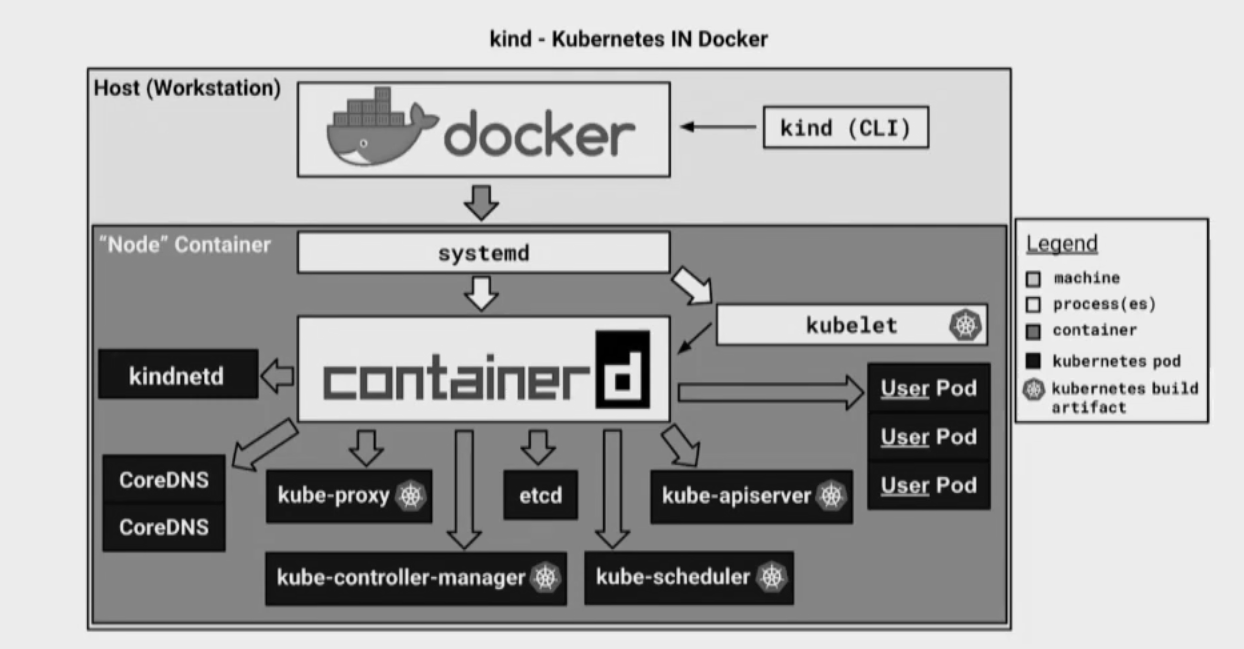

Keep Calm and Load Balance on KIND³, Antonio Ojea & Benjamin Elder, Google, KubeCon (2024)

Installation

Prerequisites…

…ensure Docker is installed⁴ & Docker daemon is running
…kubectl⁵ to interact with the Kubernetes cluster

Installation⁶…

# install Kind in the user home-directory
test -d ~/bin || mkdir ~/bin ; export PATH=$PATH:~/bin
curl -L https://kind.sigs.k8s.io/dl/v0.27.0/kind-linux-amd64 -o ~/bin/kind
chmod +x ~/bin/kind

# verify the installation
kind version

…or use the script kind-install⁷

Usage

Simple example of multiple clusters…

# create clusters
kind create cluster --name alpha
kind create cluster --name beta

# list running clusters
kind get clusters

# switch configuration context between clusters
kubectl config use-context kind-alpha

# remove a cluster
kind delete cluster --name beta

Configuration

Kind supports to specify various settings by configuration file⁸…

…for example number of nodes, networking options,etc
Why use a configuration file?
- Documentation …servers a documentation of the setup
- Reproducibility …recreate the same setup consistently
- Version control …provides a setup for collaboration
- Automation …simplify CI/CD integration

Create a multi-node cluster from a configuration file

# simple configuration file example
cat > kind-config.yaml <<EOF
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
name: alpha
nodes:
- role: control-plane
- role: worker
- role: worker
EOF

# create a cluster using a configuration file
kind create cluster --config kind-config.yaml

# verify the number of nodes
kubectl get nodes

`kind load`

Load a container image into the cluster⁹:

# create a container image
cat > Dockerfile <<EOF
FROM debian:latest
CMD ["sleep", "3000"]
EOF
docker build -t sleep:latest .

# start a cluster
Kind create cluster

# load the image into the cluster
kind load docker-image sleep:latest

# use the image
kubectl apply -f - <<EOF
apiVersion: v1
kind: Pod
metadata:
  name: sleep
  spec:
    containers:
    - name: sleep
      image: sleep:latest
      imagePullPolicy: Never  # required if using latest
EOF

Do not use the :latest tag or specify imagePullPolicy: Never

# create a named cluster
name=alpha ; kind create cluster --name $name

# container image with a specific version
docker build -t sleep:0.1 .

# upload the container image to the cluster
kind load docker-image --name $name sleep:0.1

# list images present on the cluster node
docker exec -it $name-control-plane crictl images

Network

Kind cluster leverages Docker’s networking…

…alongside standard Kubernetes components
Kind Kubernetes nodes in Docker containers…
- …share the same Linux network namespace
- …communication over a Docker bridge network

# example is running two Kind clusters
>>> kind get clusters
alpba
delta

# The `kind` bridge running on the host
>>> docker network list
NETWORK ID     NAME      DRIVER    SCOPE
#…
ba3abde46bfb   kind      bridge    local

A Linux bridge behaves like a network switch…

>>> docker inspect kind
#…
                "Name": "alpba-control-plane",
                "IPv4Address": "172.18.0.5/16",

#…
                "Name": "delta-control-plane",
                "IPv4Address": "172.18.0.2/16",

Lightweight networking with kindnetd¹⁰ …no load-balancer, ingress

Port Forwarding

kubectl create deployment nginx --image nginx
kubectl expose deployment nginx --name nginx --type NodePort --port 80
kubectl port-forward service/nginx 8000:80
$BROWSER localhost:8000

Port Mapping

cat <<EOF | kind create cluster --config=-
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
  extraPortMappings:
  - containerPort: 30080
    hostPort: 8080
    protocol: TCP
EOF

kubectl run nginx --image=nginx --port=80

# service IP within the cluster
cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Service
metadata:
  labels:
    run: nginx
  name: nginx
spec:
  ports:
  - port: 80
    protocol: TCP
    targetPort: 80
    nodePort: 30080
  selector:
    run: nginx
  type: NodePort
status:
  loadBalancer: {}
EOF

Cloud Provider

sudo dnf install golang
go install sigs.k8s.io/cloud-provider-kind@latest
install ~/go/bin/cloud-provider-kind ~/bin

cloud-provider-kind¹¹ …monitors all Kind clusters…

…reacts to services of type LoadBalancer
…creates a corresponding container to expose the service

# start a cluster
kind create cluster
# start the cloud provider
cloud-provider-kind

Allow load-balancing of workloads on a control plane node…

kubectl label node $name-control-plane node.kubernetes.io/exclude-from-external-load-balancers-

apiVersion: v1
kind: Service
metadata:
  #…
spec:
  type: LoadBalancer
  externalTrafficPolicy: Local
  #…

Kubernetes Dashboard

helm repo add kubernetes-dashboard https://kubernetes.github.io/dashboard/
helm install dashboard kubernetes-dashboard/kubernetes-dashboard --namespace kubernetes-dashboard --create-namespace

# wait for all containers
kubectl -n kubernetes-dashboard get pods

kubectl -n kubernetes-dashboard port-forward svc/dashboard-kong-proxy 8443:443 &
$BROWSER https://localhost:8443

# create a user to access the dashboard
cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user
  namespace: kubernetes-dashboard
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: admin-user
  namespace: kubernetes-dashboard
EOF
kubectl -n kubernetes-dashboard create token admin-user

Prometheus

Install Promtheus from a Helm chart…

helm add prometheus-community https://prometheus-community.github.io/helm-charts
helm repo update
helm install -n prometheus --create-namespace prometheus prometheus-community/prometheus

…start port forwarding to access the Prometheus dashboard:

prometheus_pod=$(kubectl get pods --namespace prometheus -l "app.kubernetes.io/name=prometheus" -o name)
kubectl --namespace prometheus port-forward $prometheus_pod 9090
