TGo4FitDataIter Class Reference

#include <TGo4FitData.h>

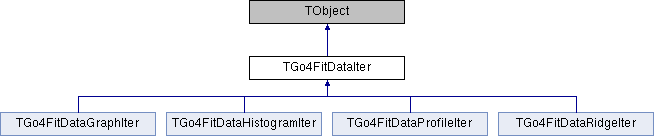

Inheritance diagram for TGo4FitDataIter:

Public Member Functions
	TGo4FitDataIter ()
virtual	~TGo4FitDataIter ()
virtual Bool_t	Reset (Bool_t UseRanges=kTRUE)
virtual Bool_t	Next (Bool_t UseRanges=kTRUE)
Bool_t	HasIndexes () const
Int_t	IndexesSize () const
const Int_t *	Indexes () const
Bool_t	DefineIndexesLimits (TArrayI &Limits)
Int_t	ScalesSize () const
const Double_t *	Scales () const
Double_t	x () const
Double_t	y () const
Double_t	z () const
Bool_t	HasWidths () const
const Double_t *	Widths () const
Double_t	xWidths () const
Double_t	Value () const
Double_t	StandardDeviation () const
Int_t	Point () const
Bool_t	CheckPointForRange ()
Int_t	CountPoints (Bool_t UseRanges=kTRUE)
Bool_t	ReachEnd () const
TH1 *	CreateHistogram (const char *HistoName, Bool_t UseRanges=kFALSE, Bool_t SetBins=kFALSE)
TGraph *	CreateGraph (const char *GraphName, Bool_t UseRanges=kFALSE, Bool_t SetBins=kFALSE)
TObject *	CreateDrawObject (const char *ObjName)

Protected Member Functions
virtual TGo4FitData *	GetData () const =0
virtual Bool_t	StartReset ()=0
virtual Bool_t	ReadCurrentPoint ()=0
virtual Bool_t	ShiftToNextPoint ()=0
Bool_t	ReserveArrays (Int_t NumDimen, Int_t NumOwnAxis, Bool_t HasWidth)
void	TransformScales (Double_t *scales)
Bool_t	ProduceScales (const Int_t *index, const Double_t *ownscales, const Double_t *ownwidths)
Bool_t	NextIndex (TArrayI &Index, TArrayI &Limits)
Bool_t	GetDeviation ()

Protected Attributes
TArrayI	fxIndexes
TArrayD	fxScales
TArrayD	fxWidths
Double_t	fdValue {0.}
Double_t	fdStandardDeviation {0.}
Int_t	fiNumPoint {0}
Bool_t	fbReachEnd {kFALSE}

Detailed Description

Iterator class for data object. The main aim of TGo4FitDataIter class is provide an sequential access to data, containing in appropriate data object. Each new class of data object should provide also it's own implementation for TGo4FitDataIrter class. To create iterator, MakeIter() method of data object should be used. Iterator has two main methods: Reset() and Next(). First method resets all internal buffers of iterator and positioning pointer on first data point. Next() method shifts to next data pointer. As argument of these methods usage of bins selection mechanism via range conditions or amplitude threshold can be specified. Typical usage of iterator:

auto iter = data->MakeIter(); if (iter->Reset()) do { // do something with values in iterator } while (iter->Next());

Access to most iterator methods like Values(), IndexesSize() and so on can be done only after first call of Reset() method.

Definition at line 418 of file TGo4FitData.h.

Constructor & Destructor Documentation

TGo4FitDataIter()

TGo4FitDataIter::TGo4FitDataIter

(

)

Default constructor.

Definition at line 382 of file TGo4FitData.cxx.

~TGo4FitDataIter()

TGo4FitDataIter::~TGo4FitDataIter ( )

virtual

Destroys TGo4FitDataIter object.

Definition at line 388 of file TGo4FitData.cxx.

Member Function Documentation

CheckPointForRange()

Bool_t TGo4FitDataIter::CheckPointForRange

(

)

Check range conditions and amplitude threshold for current point.

Definition at line 494 of file TGo4FitData.cxx.

References TGo4FitComponent::CheckRangeConditions(), GetData(), TGo4FitData::GetExcludeLessThen(), Scales(), ScalesSize(), and Value().

Referenced by Next(), and Reset().

CountPoints()

Int_t TGo4FitDataIter::CountPoints

(

Bool_t

UseRanges = kTRUE

)

Counts total number of points in data object. Uses Reset() and Next() methods, therefore change pointer to the data object

Definition at line 568 of file TGo4FitData.cxx.

References Next(), and Reset().

Referenced by CreateGraph().

CreateDrawObject()

TObject * TGo4FitDataIter::CreateDrawObject

(

const char *

ObjName

)

Create either histogram or graph object.

Definition at line 671 of file TGo4FitData.cxx.

References CreateGraph(), CreateHistogram(), HasIndexes(), HasWidths(), IndexesSize(), Reset(), and ScalesSize().

CreateGraph()

TGraph * TGo4FitDataIter::CreateGraph	(	const char *	GraphName,
		Bool_t	UseRanges = kFALSE,
		Bool_t	SetBins = kFALSE
	)

Create TGraph object with appropriate to data object size. If more than one scales values exists, only first will be used as X-coordinate of TGraph. Bin content (Value()) will be used as Y-coordinate in TGraph. If UseRanges specified, data point selection mechanism will be involved. If SetBins specified, bin content will be copied to histogram.

Definition at line 653 of file TGo4FitData.cxx.

References CountPoints(), TGo4FitComponent::GetAmplValue(), GetData(), Next(), Point(), Reset(), ScalesSize(), Value(), and x().

Referenced by CreateDrawObject().

CreateHistogram()

TH1 * TGo4FitDataIter::CreateHistogram	(	const char *	HistoName,
		Bool_t	UseRanges = kFALSE,
		Bool_t	SetBins = kFALSE
	)

Create histogram (if possible) with appropriate to data object dimensions number and size. If UseRanges specified, data point selection mechanism will be involved. If SetBins specified, bin content will be copied to histogram.

Definition at line 595 of file TGo4FitData.cxx.

References DefineIndexesLimits(), TGo4FitComponent::GetAmplValue(), GetData(), HasIndexes(), HasWidths(), Indexes(), IndexesSize(), Next(), Reset(), Scales(), ScalesSize(), Value(), and Widths().

Referenced by CreateDrawObject().

DefineIndexesLimits()

Bool_t TGo4FitDataIter::DefineIndexesLimits

(

TArrayI &

Limits

)

Iterate over all data points and returns maximum value for indexes.

Definition at line 579 of file TGo4FitData.cxx.

References Indexes(), IndexesSize(), Next(), and Reset().

Referenced by CreateHistogram().

GetData()

virtual TGo4FitData* TGo4FitDataIter::GetData ( ) const

protectedpure virtual

Return pointer on correspondent TGo4FitData object, which create iterator. Should be implemented in derived classes.

Implemented in TGo4FitDataRidgeIter, TGo4FitDataGraphIter, TGo4FitDataHistogramIter, and TGo4FitDataProfileIter.

Referenced by CheckPointForRange(), CreateGraph(), CreateHistogram(), GetDeviation(), Next(), ProduceScales(), ReserveArrays(), and TransformScales().

GetDeviation()

Bool_t TGo4FitDataIter::GetDeviation ( )

protected

Calculates standard deviation from GetSigmaValue() of data object.

Definition at line 482 of file TGo4FitData.cxx.

References fdStandardDeviation, GetData(), TGo4FitData::GetSigmaSource(), and TGo4FitData::GetSigmaValue().

Referenced by TGo4FitDataProfileIter::ReadCurrentPoint(), TGo4FitDataHistogramIter::ReadCurrentPoint(), TGo4FitDataGraphIter::ReadCurrentPoint(), and TGo4FitDataRidgeIter::ReadCurrentPoint().

HasIndexes()

Bool_t TGo4FitDataIter::HasIndexes ( ) const

inline

Return kTRUE, if data object has indexes.

Definition at line 449 of file TGo4FitData.h.

Referenced by CreateDrawObject(), and CreateHistogram().

HasWidths()

Bool_t TGo4FitDataIter::HasWidths ( ) const

inline

Return kTRUE, if scale widths values exists.

Definition at line 494 of file TGo4FitData.h.

Referenced by CreateDrawObject(), CreateHistogram(), and xWidths().

Indexes()

const Int_t* TGo4FitDataIter::Indexes ( ) const

inline

Return indexes for current data point.

Definition at line 459 of file TGo4FitData.h.

Referenced by CreateHistogram(), DefineIndexesLimits(), and TGo4FitModelFromData::EvaluateAtPoint().

IndexesSize()

Int_t TGo4FitDataIter::IndexesSize ( ) const

inline

Return size (number of dimensions) of data indexes.

Definition at line 454 of file TGo4FitData.h.

Referenced by CreateDrawObject(), CreateHistogram(), DefineIndexesLimits(), and TGo4FitModelFromData::EvaluateAtPoint().

Next()

Bool_t TGo4FitDataIter::Next ( Bool_t  UseRanges = kTRUE )

virtual

Shift pointer to next data point. Return kTRUE, if next points exist. If UseRanges = kTRUE (default), selection mechanism of data points via range conditions or amplitude threshold will be involved. Most of iterator routines should be used only after Reset() command.

Definition at line 531 of file TGo4FitData.cxx.

References CheckPointForRange(), fbReachEnd, fiNumPoint, GetData(), ReadCurrentPoint(), and ShiftToNextPoint().

Referenced by CountPoints(), CreateGraph(), CreateHistogram(), and DefineIndexesLimits().

NextIndex()

Bool_t TGo4FitDataIter::NextIndex ( TArrayI &  Index, TArrayI &  Limits  )

protected

Producing next indexes set according limits values.

Definition at line 469 of file TGo4FitData.cxx.

Referenced by TGo4FitDataHistogramIter::ShiftToNextPoint().

Point()

Int_t TGo4FitDataIter::Point ( ) const

inline

Return number of current point, starting from 0.

Definition at line 519 of file TGo4FitData.h.

Referenced by CreateGraph().

ProduceScales()

Bool_t TGo4FitDataIter::ProduceScales ( const Int_t *  index, const Double_t *  ownscales, const Double_t *  ownwidths  )

protected

Converts scale values. Involved when usage of binary number instead scales or axis calibration objects specified to data.

Definition at line 429 of file TGo4FitData.cxx.

References TGo4FitData::dtHistogram, fxScales, fxWidths, GetData(), TGo4FitData::GetDataType(), TGo4FitData::GetNumberOfTransSlots(), TGo4FitData::GetUseBinScale(), ScalesSize(), and TransformScales().

Referenced by TGo4FitDataProfileIter::ReadCurrentPoint(), TGo4FitDataHistogramIter::ReadCurrentPoint(), TGo4FitDataGraphIter::ReadCurrentPoint(), and TGo4FitDataRidgeIter::ReadCurrentPoint().

ReachEnd()

Bool_t TGo4FitDataIter::ReachEnd ( ) const

inline

Checks, if iterator already reach end of data object. This happens, when Next() method return kFALSE value.

Definition at line 536 of file TGo4FitData.h.

References TGo4FitData::CreateDrawObject().

ReadCurrentPoint()

virtual Bool_t TGo4FitDataIter::ReadCurrentPoint ( )

protectedpure virtual

Perform specific actions to read all values from data object. Should be implemented in derived classes.

Implemented in TGo4FitDataRidgeIter, TGo4FitDataGraphIter, TGo4FitDataHistogramIter, and TGo4FitDataProfileIter.

Referenced by Next(), and Reset().

ReserveArrays()

Bool_t TGo4FitDataIter::ReserveArrays ( Int_t  NumDimen, Int_t  NumOwnAxis, Bool_t  HasWidth  )

protected

Reserve buffers for indexes, scales and width values. In case of 3-D histogram they consume only 3 Int_t and 6 Double_t points.

Definition at line 390 of file TGo4FitData.cxx.

References fxIndexes, fxScales, fxWidths, GetData(), and TGo4FitData::GetUseBinScale().

Referenced by TGo4FitDataProfileIter::StartReset(), TGo4FitDataHistogramIter::StartReset(), TGo4FitDataGraphIter::StartReset(), and TGo4FitDataRidgeIter::StartReset().

Reset()

Bool_t TGo4FitDataIter::Reset ( Bool_t  UseRanges = kTRUE )

virtual

Initialize iterator and positioning pointer on first point. If UseRanges = kTRUE (default), selection mechanism of data points via range conditions or amplitude threshold will be involved. Most of iterator routines should be used only after Reset() command.

Definition at line 504 of file TGo4FitData.cxx.

References CheckPointForRange(), fbReachEnd, fiNumPoint, ReadCurrentPoint(), ShiftToNextPoint(), and StartReset().

Referenced by CountPoints(), CreateDrawObject(), CreateGraph(), CreateHistogram(), and DefineIndexesLimits().

Scales()

const Double_t* TGo4FitDataIter::Scales ( ) const

inline

Return scale values for current data points.

Definition at line 474 of file TGo4FitData.h.

Referenced by CheckPointForRange(), CreateHistogram(), and TGo4FitModel::EvaluateAtPoint().

ScalesSize()

Int_t TGo4FitDataIter::ScalesSize ( ) const

inline

Return size (number) of scale values for each data point.

Definition at line 469 of file TGo4FitData.h.

Referenced by CheckPointForRange(), CreateDrawObject(), CreateGraph(), CreateHistogram(), TGo4FitModel::EvaluateAtPoint(), ProduceScales(), and TransformScales().

ShiftToNextPoint()

virtual Bool_t TGo4FitDataIter::ShiftToNextPoint ( )

protectedpure virtual

Move pointer to following data point. Should be implemented in derived classes.

Implemented in TGo4FitDataRidgeIter, TGo4FitDataGraphIter, TGo4FitDataHistogramIter, and TGo4FitDataProfileIter.

Referenced by Next(), and Reset().

StandardDeviation()

Double_t TGo4FitDataIter::StandardDeviation ( ) const

inline

Return standard deviation of bin content (Value) for current point.

Definition at line 514 of file TGo4FitData.h.

StartReset()

virtual Bool_t TGo4FitDataIter::StartReset ( )

protectedpure virtual

Reset pointer and other specific values to the beginning of data. Should be implemented in derived classes.

Implemented in TGo4FitDataRidgeIter, TGo4FitDataGraphIter, TGo4FitDataHistogramIter, and TGo4FitDataProfileIter.

Referenced by Reset().

TransformScales()

void TGo4FitDataIter::TransformScales ( Double_t *  scales )

protected

Transform scales values, using transformation objects in data.

Definition at line 419 of file TGo4FitData.cxx.

References TGo4FitData::GetAxisTrans(), GetData(), TGo4FitData::GetNumberOfTransSlots(), ScalesSize(), and TGo4FitAxisTrans::Transformation().

Referenced by ProduceScales().

Value()

Double_t TGo4FitDataIter::Value ( ) const

inline

Return bin content (Value) for current point.

Definition at line 509 of file TGo4FitData.h.

Referenced by CheckPointForRange(), CreateGraph(), and CreateHistogram().

Widths()

const Double_t* TGo4FitDataIter::Widths ( ) const

inline

Return scales widths values.

Definition at line 499 of file TGo4FitData.h.

Referenced by CreateHistogram(), and TGo4FitModel::EvaluateAtPoint().

x()

Double_t TGo4FitDataIter::x ( ) const

inline

Return current x coordinate if exists, otherwise 0

Definition at line 479 of file TGo4FitData.h.

Referenced by CreateGraph().

xWidths()

Double_t TGo4FitDataIter::xWidths

(

)

const

Return production of all width parameters (1 if no widths)

Definition at line 559 of file TGo4FitData.cxx.

References fxWidths, and HasWidths().

y()

Double_t TGo4FitDataIter::y ( ) const

inline

Return current y coordinate if exists, otherwise 0

Definition at line 484 of file TGo4FitData.h.

z()

Double_t TGo4FitDataIter::z ( ) const

inline

Return current z coordinate if exists, otherwise 0

Definition at line 489 of file TGo4FitData.h.

Member Data Documentation

fbReachEnd

Bool_t TGo4FitDataIter::fbReachEnd {kFALSE}

protected

Definition at line 621 of file TGo4FitData.h.

Referenced by Next(), and Reset().

fdStandardDeviation

Double_t TGo4FitDataIter::fdStandardDeviation {0.}

protected

Definition at line 617 of file TGo4FitData.h.

Referenced by GetDeviation(), TGo4FitDataProfileIter::ReadCurrentPoint(), TGo4FitDataHistogramIter::ReadCurrentPoint(), TGo4FitDataGraphIter::ReadCurrentPoint(), and TGo4FitDataRidgeIter::ReadCurrentPoint().

fdValue

Double_t TGo4FitDataIter::fdValue {0.}

protected

Definition at line 616 of file TGo4FitData.h.

Referenced by TGo4FitDataProfileIter::ReadCurrentPoint(), TGo4FitDataHistogramIter::ReadCurrentPoint(), TGo4FitDataGraphIter::ReadCurrentPoint(), and TGo4FitDataRidgeIter::ReadCurrentPoint().

fiNumPoint

Int_t TGo4FitDataIter::fiNumPoint {0}

protected

Definition at line 619 of file TGo4FitData.h.

Referenced by Next(), and Reset().

fxIndexes

TArrayI TGo4FitDataIter::fxIndexes

protected

Definition at line 612 of file TGo4FitData.h.

Referenced by TGo4FitDataProfileIter::ReadCurrentPoint(), TGo4FitDataHistogramIter::ReadCurrentPoint(), TGo4FitDataGraphIter::ReadCurrentPoint(), ReserveArrays(), TGo4FitDataProfileIter::ShiftToNextPoint(), TGo4FitDataHistogramIter::ShiftToNextPoint(), and TGo4FitDataGraphIter::ShiftToNextPoint().

fxScales

TArrayD TGo4FitDataIter::fxScales

protected

Definition at line 614 of file TGo4FitData.h.

Referenced by ProduceScales(), and ReserveArrays().

fxWidths

TArrayD TGo4FitDataIter::fxWidths

protected

Definition at line 615 of file TGo4FitData.h.

Referenced by ProduceScales(), ReserveArrays(), and xWidths().

---

The documentation for this class was generated from the following files:

• Go4Fit/TGo4FitData.h
• Go4Fit/TGo4FitData.cxx
