class HMdcClusFit: public TObject
_HADES_CLASS_DESCRIPTION HMdcClusFit Container class keep fit information for debuging. void setAddress(Char_t sc, Char_t sg, Char_t md) void setSec(Char_t sc) Set sector. void setIOSeg(Char_t sg) Set segment. It can be equal 0,1 (segment fit) or 3 sector fit. void setMod(Char_t m) Set module. It can be equal 0,1,2,3 - one module fit, or -1 - segment fit. void setFitAuthor(Char_t v) Old name of function. Use setFitVersion(Char_t v) instead it. void setFitVersion(Char_t v) Set fit version. =1 - old Alexander's fit version void setDistTimeVer(Char_t v) Set distence=>drift_time calc. version Now only one version exist (=1-by J.Market's func.) void setFitType(Char_t v) Set fit type. =0 - segment (or sector) fit, =1 - one mdc fit void setNParam(Char_t v) Set number of parameters in fit. void setFunMin(Float_t v) Set value of functional. void setNumOfWires(Int_t v) Set number of wires passed fit. void setNumOfLayers(Int_t v) Set number of layers. void setX1(Float_t v) void setY1(Float_t v) void setZ1(Float_t v) void setX2(Float_t v) void setY2(Float_t v) void setZ2(Float_t v) Set track parameters. It is two point in sector coor.sys. [mm] void setNumIter(Short_t v) Set number of iterations void setFirstWireFitInd(Int_t v) Set index of the first HMdcWireFit object in catMdcWireFit for this track. void setLastWireFitInd(Int_t v) Set index of the last HMdcWireFit object in catMdcWireFit for this track. void setClustIndex(Int_t v) Set index of HMdcClus object in catMdcClus for this track. void setTimeOff(const Double_t* tos) Set time offsets for each MDC in fit. void seFitStatus(Bool_t stat) Set fit status. kTRUE if fit result is accepted. kFALSE if not. void getAddress(Int_t& sc, Int_t& sg, Int_t& md) Char_t getSec(void) Get sector. Char_t getIOSeg(void) Get segment. Return 0,1 for segment fit or 3 for sector fit. Char_t getMod(void) Get module. It can be equal 0,1,2,3 for one module fit, or -1 - segment or sector fit. Char_t getFitAuthor(void) Old name of function. Use getFitVersion() instead it. Char_t getFitVersion(void) Get fit version. =1 - old Alexander's fit version Char_t getDistTimeVer(void) Get distence=>drift_time calc. version Now only one version exist (=1-by J.Market's func.) Char_t getFitType(void) Get fit type. =0 - segment (or sector) fit, =1 - one mdc fit Char_t getNParam(Char_t v) Get number of parameters in fit. Float_t getFunMin(void) Get value of functional. Float_t getChi2(void) Get chi2 per one deg. of freedom. Float_t getTimeOff(Int_t mod); Old name of function. Use getTimeOffset(Int_t mod) instead it. Float_t getTimeOffset(Int_t mod) Get time offset for module =mod. return -1000. if mod is not valid (<0 or >3). Float_t getTimeOffsetMdc1(void) Get time offset for module 1 (from 1) Float_t getTimeOffsetMdc2(void) Get time offset for module 2 (from 1) Float_t getTimeOffsetMdc3(void) Get time offset for module 3 (from 1) Float_t getTimeOffsetMdc4(void) Get time offset for module 4 (from 1) Short_t getNumOfWires(void) Get number of wires passed fit. Short_t getTotNumOfWires(void) Get total number of wires in fit. Char_t getNumOfLayers(void) Get number of layers. Float_t getX1(void) Float_t getY1(void) Float_t getZ1(void) Float_t getX2(void) Float_t getY2(void) Float_t getZ2(void) Get track parameters. It is two point in sector coor.sys. [mm] Float_t getPhi(void) Get angle phi of track [rad] Float_t getTheta(void) Get angle theta of track [rad] Short_t getNumIter(void) Get number of iterations Int_t getIndf(void) Old name of function. Use getFirstWireFitInd() instead it. Int_t getIndl(void) Old name of function. Use getLastWireFitInd() instead it. Int_t getFirstWireFitInd(void) Get index of the first HMdcWireFit object in catMdcWireFit. for this track. Int_t getLastWireFitInd(void) Get index of the last HMdcWireFit object in catMdcWireFit for this track. void getIndexis(Int_t &indexf,Int_t &indexl) Get indexis of the first and last HMdcWireFit objects in catMdcWireFit. Int_t getClustIndex(void) Get index of HMdcClus object in catMdcClus for this track. Index here is the third index in cluster location: [sector][segment][index] void getClustAddress(Int_t& sc, Int_t& sg, Int_t& ind) Get location of cluster in Int_t getNextIndex(Int_t ind) Get index of the next HMdcWireFit object for this track. Using: Int_t ind=-1; while((ind=pHMdcClusFit->getNextIndex(ind)) >=0) { HMdcWireFit* pWireFit = (HMdcWireFit*)pCatWireFit->getObect(ind); } Bool_t geFitStatus(void) Return kTRUE if fit result was accepted, kFALSE if not. void print() Print container. Bool_t isGeant() Return kFALSE
Function Members (Methods)
public:
protected:
| virtual void | TObject::DoError(int level, const char* location, const char* fmt, va_list va) const |
| void | TObject::MakeZombie() |
Data Members
public:
| enum { | kIsFake | |
| }; | ||
| enum TObject::EStatusBits { | kCanDelete | |
| kMustCleanup | ||
| kObjInCanvas | ||
| kIsReferenced | ||
| kHasUUID | ||
| kCannotPick | ||
| kNoContextMenu | ||
| kInvalidObject | ||
| }; | ||
| enum TObject::[unnamed] { | kIsOnHeap | |
| kNotDeleted | ||
| kZombie | ||
| kBitMask | ||
| kSingleKey | ||
| kOverwrite | ||
| kWriteDelete | ||
| }; |
protected:
| Int_t | clustIndex | >=0 - cluster index in clus.category |
| Char_t | distTimeVer | 0-calc. time by polinom., 1-by J.Market's func. |
| Float_t | dx1 | x1 error |
| Float_t | dx2 | x2 error |
| Float_t | dy1 | y1 error |
| Float_t | dy2 | y2 error |
| Char_t | exitFlag | flag of track fitter exit [1-3] |
| Char_t | fitAuthor | fit version, =1 - old Alexander's fit version |
| Bool_t | fitStatus | kTRUE if fit result is accepted |
| Char_t | fitType | 0 - segment fit, 1 - mdc fit |
| Float_t | functional | value of functional |
| Int_t | indf | index of the first HMdcWireFit obj. in catMdcWireFit |
| Int_t | indl | index of the last HMdcWireFit obj. in catMdcWireFit |
| Char_t | mod | =0,1,2,3 - module; =-1 - segment fit |
| Char_t | nParam | number of parameters |
| Short_t | numIter | number of iterations |
| Char_t | numOfLayers | Num. of layers with wire weight > weight_min |
| Short_t | numOfWires | Num. of wires with weight > weight_min |
| Char_t | sec | sector [0-5] |
| Char_t | seg | =0 or 1 segment fit, =3 sector fit |
| Float_t | sigmaChi2 | final sigma of chi2 distr. which was |
| Float_t | timeOffMdc1 | time offset for each MDC in sec. [ns] |
| Float_t | timeOffMdc2 | if timeOff==-1000. no wires in this mod. |
| Float_t | timeOffMdc3 | |
| Float_t | timeOffMdc4 | |
| Float_t | x1 | Track parameters: [mm] |
| Float_t | x2 | |
| Float_t | y1 | Track is line (x1,y1,z1) - (x2,y2,z2) |
| Float_t | y2 | |
| Float_t | z1 | in sector coor. system. |
| Float_t | z2 |

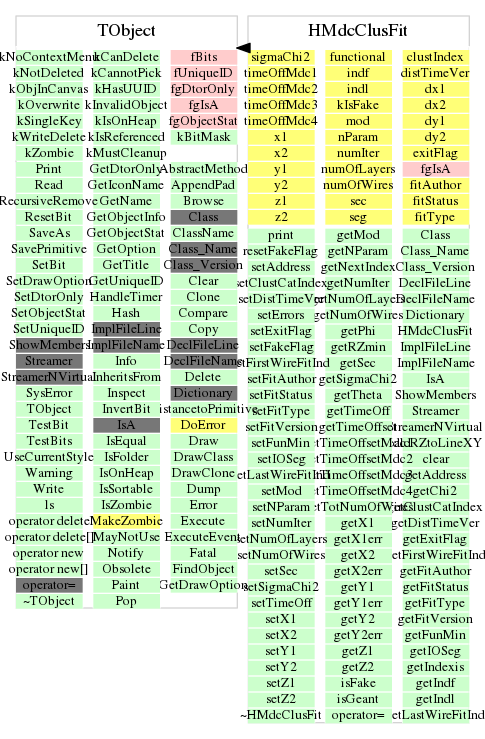

Class Charts
Function documentation
void calcRZtoLineXY(Float_t& zm, Float_t& r0, Float_t x1, Float_t y1, Float_t z1, Float_t x2, Float_t y2, Float_t z2, Float_t xBeam = 0., Float_t yBeam = 0.) const
void clear()
void getIndexis(Int_t& indexf, Int_t& indexl) const
void getAddress(Int_t& sc, Int_t& sg, Int_t& md) const
