class HMdcGarMacroMaker: public TNamed

_HADES_CLASS_DESCRIPTION

 HMdcGarMacroMaker
 Class to create a GARFIELD Macro for Batch farm processing to simulate
 a couple of tracks for each sample point (distance from wire). The produced
 signals on the sense wire will be written to an ascii file, which can be read in
 via HMdcGarSignalReader afterwards.
 As input you have to specify the Mdc (0-3) and the angle (0-85 degree)
 where 0 degree is perpendicular impact of the track.

Function Members (Methods)

public:

	HMdcGarMacroMaker(const HMdcGarMacroMaker&)
	HMdcGarMacroMaker(const Char_t* name = "", const Char_t* title = "")
virtual	~HMdcGarMacroMaker()
void	TObject::AbstractMethod(const char* method) const
virtual void	TObject::AppendPad(Option_t* option = "")
virtual void	TObject::Browse(TBrowser* b)
static TClass*	Class()
virtual const char*	TObject::ClassName() const
virtual void	TNamed::Clear(Option_t* option = "")
virtual TObject*	TNamed::Clone(const char* newname = "") const
virtual Int_t	TNamed::Compare(const TObject* obj) const
virtual void	TNamed::Copy(TObject& named) const
virtual void	TObject::Delete(Option_t* option = "")MENU
virtual Int_t	TObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual void	TObject::Draw(Option_t* option = "")
virtual void	TObject::DrawClass() constMENU
virtual TObject*	TObject::DrawClone(Option_t* option = "") constMENU
virtual void	TObject::Dump() constMENU
virtual void	TObject::Error(const char* method, const char* msgfmt) const
virtual void	TObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual void	TObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual void	TObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual void	TObject::Fatal(const char* method, const char* msgfmt) const
virtual void	TNamed::FillBuffer(char*& buffer)
virtual TObject*	TObject::FindObject(const char* name) const
virtual TObject*	TObject::FindObject(const TObject* obj) const
virtual Option_t*	TObject::GetDrawOption() const
static Long_t	TObject::GetDtorOnly()
virtual const char*	TObject::GetIconName() const
virtual const char*	TNamed::GetName() const
virtual char*	TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_t	TObject::GetObjectStat()
virtual Option_t*	TObject::GetOption() const
virtual const char*	TNamed::GetTitle() const
virtual UInt_t	TObject::GetUniqueID() const
virtual Bool_t	TObject::HandleTimer(TTimer* timer)
virtual ULong_t	TNamed::Hash() const
virtual void	TObject::Info(const char* method, const char* msgfmt) const
virtual Bool_t	TObject::InheritsFrom(const char* classname) const
virtual Bool_t	TObject::InheritsFrom(const TClass* cl) const
virtual void	TObject::Inspect() constMENU
void	TObject::InvertBit(UInt_t f)
virtual TClass*	IsA() const
virtual Bool_t	TObject::IsEqual(const TObject* obj) const
virtual Bool_t	TObject::IsFolder() const
Bool_t	TObject::IsOnHeap() const
virtual Bool_t	TNamed::IsSortable() const
Bool_t	TObject::IsZombie() const
virtual void	TNamed::ls(Option_t* option = "") const
void	TObject::MayNotUse(const char* method) const
virtual Bool_t	TObject::Notify()
void	TObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static void	TObject::operator delete(void* ptr)
static void	TObject::operator delete(void* ptr, void* vp)
static void	TObject::operator delete[](void* ptr)
static void	TObject::operator delete[](void* ptr, void* vp)
void*	TObject::operator new(size_t sz)
void*	TObject::operator new(size_t sz, void* vp)
void*	TObject::operator new[](size_t sz)
void*	TObject::operator new[](size_t sz, void* vp)
HMdcGarMacroMaker&	operator=(const HMdcGarMacroMaker&)
virtual void	TObject::Paint(Option_t* option = "")
virtual void	TObject::Pop()
virtual void	TNamed::Print(Option_t* option = "") const
void	printMacro()
void	printStatus()
virtual Int_t	TObject::Read(const char* name)
virtual void	TObject::RecursiveRemove(TObject* obj)
void	TObject::ResetBit(UInt_t f)
virtual void	TObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual void	TObject::SavePrimitive(ostream& out, Option_t* option = "")
void	setAngle(Float_t a)
void	setAngleStepSize(Float_t s)
void	setArea(Float_t* c)
void	setArgon(Int_t ar)
void	setArgonCO2(Int_t ar, Int_t co)
void	setArgonIButane(Int_t ar, Int_t ib)
void	setAvalanche(Int_t a)
void	setBFieldComponents(Float_t, Float_t, Float_t)
void	TObject::SetBit(UInt_t f)
void	TObject::SetBit(UInt_t f, Bool_t set)
void	setCathodeFoil(Bool_t foil)
void	setCathodHv(Int_t* c)
void	setCathodHvMod(Int_t hv, Int_t i)
void	setCathodPitch(Float_t* c)
void	setCathodTh(Float_t* c)
void	setCathodX(Float_t* c)
void	setCO2(Int_t co)
void	setCWire(Int_t* c)
void	setCWireFoil(Int_t* c)
void	setDC_S(Float_t* c)
virtual void	TObject::SetDrawOption(Option_t* option = "")MENU
static void	TObject::SetDtorOnly(void* obj)
void	setEnergy(Float_t e)
void	setFieldHv(Int_t* c)
void	setFieldHvMod(Int_t hv, Int_t i)
void	setFieldPitch(Float_t* c)
void	setFieldTh(Float_t* c)
void	setFieldX(Float_t* c)
void	setFileNameGasFile(TString)
void	setFileNameOut(TString)
void	setFileNameSignals(TString)
void	setHelium(Int_t he)
void	setHeliumIButane(Int_t he, Int_t ib)
void	setIButane(Int_t b)
void	setIsochrones(Float_t ni)
void	setMaxLoop(Int_t* c)
void	setMCDistance(Double_t m0, Double_t m1, Double_t m2, Double_t m3)
void	setMdcType(Int_t type)
void	setMinLoop(Int_t* c)
void	setMobility(Float_t m)
virtual void	TNamed::SetName(const char* name)MENU
virtual void	TNamed::SetNameTitle(const char* name, const char* title)
void	setNCathod(Int_t* c)
void	setNCollisions(Int_t c)
void	setNField(Int_t* c)
void	setNLines(Int_t ni)
void	setNSense(Int_t* c)
void	setNSignals(Int_t nS)
void	setNTimeBin(Int_t number)
static void	TObject::SetObjectStat(Bool_t stat)
void	setParticle(TString p)
void	setPressure(Int_t p)
void	setPrintClusters(Bool_t opt)
void	setPrintSetup(TString)
void	setPsFileName(TString)
void	setRange(Int_t r)
void	setRungeKuttaMaxStep(Double_t m0, Double_t m1, Double_t m2, Double_t m3)
void	setSenseHv(Int_t* c)
void	setSenseHvMod(Int_t hv, Int_t i)
void	setSensePitch(Float_t* c)
void	setSenseTh(Float_t* c)
void	setSenseX(Float_t* c)
void	setTemperature(Int_t t)
void	setTimeLow(Float_t* c)
void	setTimeUp(Float_t* c)
virtual void	TNamed::SetTitle(const char* title = "")MENU
void	setTrapRadius(Double_t d)
virtual void	TObject::SetUniqueID(UInt_t uid)
void	setUseRungeKutta(Bool_t doit)
void	setWriteDataSets(Bool_t write = kTRUE)
virtual void	ShowMembers(TMemberInspector&)
virtual Int_t	TNamed::Sizeof() const
virtual void	Streamer(TBuffer&)
void	StreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual void	TObject::SysError(const char* method, const char* msgfmt) const
Bool_t	TObject::TestBit(UInt_t f) const
Int_t	TObject::TestBits(UInt_t f) const
virtual void	TObject::UseCurrentStyle()
virtual void	TObject::Warning(const char* method, const char* msgfmt) const
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const

protected:

void	closeOutPut()
virtual void	TObject::DoError(int level, const char* location, const char* fmt, va_list va) const
void	initVariables()
void	TObject::MakeZombie()
void	openOutPut()
void	parseArguments(TString)
void	print3D()
void	printCell()
void	printDrift()
void	printField()
void	printGas()
void	printGeometry()
void	printKeyWords()
void	printMagnetic()
void	printMetaHeader()
void	printMetaTrailer()
void	printOptions()
void	printSignal()
void	putOut(const Char_t*)

Data Members

public:

enum TObject::EStatusBits {	kCanDelete
	kMustCleanup
	kObjInCanvas
	kIsReferenced
	kHasUUID
	kCannotPick
	kNoContextMenu
	kInvalidObject
};
enum TObject::[unnamed] {	kIsOnHeap
	kNotDeleted
	kZombie
	kBitMask
	kSingleKey
	kOverwrite
	kWriteDelete
};

protected:

static Float_t	B_components[3]	! components of the magnetic field
Float_t	angleDeg	! impact angle of track;
Int_t	angleStep	! impact angle of track (step of stepsizeAngle);
Float_t	angleStepSize	!
static Float_t	area[4][4]	! window of interest
Int_t	argon	! fraction of argon in gas mixture (in %) (allowed in combination with co2)
Int_t	avalanche	!
Bool_t	cathode_foils	! use cathode foils instead of cathode wires
static Int_t	cathodhv[4]	! hv of cathod per chamber type
static Int_t	cathodhvmod[4]	! hv of cathod for modification
static Float_t	cathodpitch[4]	! pitch of cathod per chamber type
static Float_t	cathodth[4]	! thickness of cathod per chamber type
static Float_t	cathodx[4]	! x of cathod per chamber type
Int_t	co2	! fraction of co2 in gas mixture (in %) (allowed in combination with argon)
Int_t	collisions	! number of collisions for monte carlo
static Int_t	cwire[4]	! wire which is selected for read out
static Int_t	cwire_foil[4]	! wire which is selected for read out if cathode foil is used
static Float_t	dc_s[4]	! distance cathod and sense wire plane
Bool_t	doRungeKutta	! use rungeKutta by default, otherwise MC
Float_t	energy	! particle energy in GeV
TString	TNamed::fName	object identifier
TString	fNameAsciiOut	! file name of ascii output file
TString	fNameGasIn	! file name of gas Input file
TString	fNameSignalOut	! file name of output file for signals
TString	TNamed::fTitle	object title
static Int_t	fieldhv[4]	! hv of field per chamber type
static Int_t	fieldhvmod[4]	! hv of field for modification
static Float_t	fieldpitch[4]	! pitch of field per chamber type
static Float_t	fieldth[4]	! thickness of field per chamber type
static Float_t	fieldx[4]	! x pitch of field per chamber type
Int_t	helium	! fraction of helium in gas mixture (in %) (allowed in combination with ibutane)
Int_t	ibutane	! fraction of iso-butan in gas mixture (in %) (allowed in combination with helium)
Float_t	isochrones	! distance of isochrones in musec
static Int_t	maxLoop[4][18]	! upper limit for loop over distance
static Double_t	maxstep[4]	! maxstepsize of RungeKutta
static Double_t	mc_dist[4]	! maxstepsize of monte carlo integration distance
Int_t	mdc	! module type
static Int_t	minLoop[4][18]	! lower limit for loop over distance
Float_t	mobility	! mobility for magboltz
Int_t	nLines	! number of lines for isochrones plot
Int_t	nSignals	! number of signal per sample point
Int_t	nTimeBin	! number of bins for time window;
static Int_t	ncathod[4]	! number of cathod wires per chamber type
static Int_t	nfield[4]	! number of field wires per chamber type
static Int_t	nsense[4]	! number of sense wires per chamber type
FILE*	output	! file pointer to out put
TString	particle	!
Bool_t	postscript	! print pictures to ps
TString	postscriptfile	! file name of ps output file
Int_t	pressure	! pressure of gas
Bool_t	print3d	! switch print on/off for 3d
Bool_t	printcell	! switch print on/off for cell
Bool_t	printclusters	! switch print option in SIGNAL
Bool_t	printdrift	! switch print on/off for drift
Bool_t	printfield	! switch print on/off for field
Bool_t	printgas	! switch print on/off for gas
Bool_t	printoption	! switch print on/off for option
Bool_t	printsignal	! switch print on/off for signal
Double_t	range	! max track length;
static Int_t	sensehv[4]	! hv of sense per chamber type
static Int_t	sensehvmod[4]	! hv of sense for modification
static Float_t	sensepitch[4]	! pitch of sense per chamber type
static Float_t	senseth[4]	! thickness of sense per chamber type
static Float_t	sensex[4]	! x of sense per chamber type
TString	setup	! contains the print options
Int_t	temperature	! temperature of gas
static Float_t	time_low[4]	! lower limit of time window
static Float_t	time_up[4]	! upper limit of time window
Float_t	timebin	! bin size of time window;
Double_t	trap_radius	! trap radius around th wire
Bool_t	writeData	! flag for writing out datasets

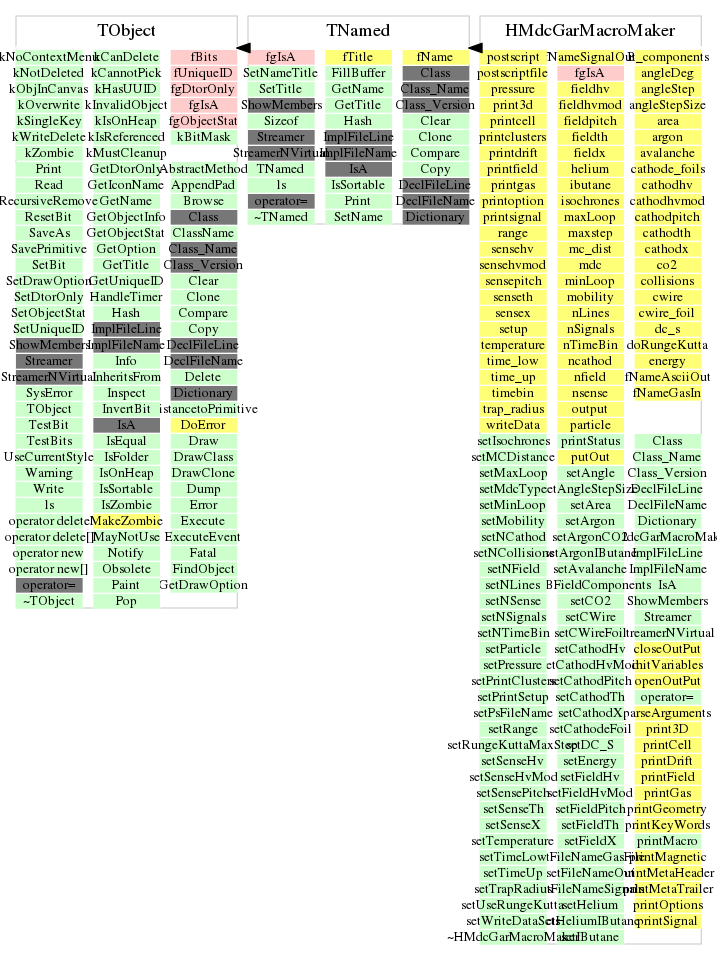

Class Charts

Inheritance Inherited Members Includes Libraries

Function documentation

HMdcGarMacroMaker(const Char_t* name = "", const Char_t* title = "")

 constructor for HMdcGarMacroMaker
 The parameters are initialized with non valid values.

~HMdcGarMacroMaker()

 destructor of HMdcGarMacroMaker

void setArgon(Int_t ar)

void setHelium(Int_t he)

void setIButane(Int_t b)

void setCO2(Int_t co)

void setArgonCO2(Int_t ar, Int_t co)

void setArgonIButane(Int_t ar, Int_t ib)

void setHeliumIButane(Int_t he, Int_t ib)

void setFileNameOut(TString )

 Sets ascii output of HMdcGarMacroMaker

void setFileNameSignals(TString )

 Sets ascii output of HMdcGarMacroMaker

void setFileNameGasFile(TString )

 Sets ascii output of HMdcGarMacroMaker

void setPsFileName(TString )

 Sets ascii output of HMdcGarMacroMaker

void setPrintSetup(TString )

void setBFieldComponents(Float_t , Float_t , Float_t )

void parseArguments(TString )

 The option string is searched for known arguments and
 the internal variables of the class are defined according
 to the arguments.
 If unknown arguments are found error messages will be displayed
 and the program will be exited.
 Not found options will be switched to kFALSE.

void initVariables()

 inits all variables

void printKeyWords()

 Prints the known keywords to the screen

void printStatus(void)

 prints the parameters to the screen

void putOut(const Char_t* )

 Prints the buffer to the screen and to the ascii output file

void openOutPut()

 Opens the output file

void closeOutPut()

 Close the output file

void printMacro()

 Print the macro to the screen and the ascii file output

void printMetaHeader()

 Prints the Metafile Header of the macro

void printCell()

 Prints the cell Id

void printOptions()

 Print some options

void printGeometry()

 Print the Geometry of the drift cell

void printField()

 Print the field section of the macro

void printMagnetic()

 Prints the magnetic field settings

void printGas()

 Print the Gas section of the macro

void printDrift()

 Print the Drift section of the macro

void printSignal()

 Print the Signal section of the macro

void printMetaTrailer()

 Print the Metafiel Trailer of the macro

void print3D()

 Print some 3d plot of the drift cell

HMdcGarMacroMaker(const Char_t* name = "", const Char_t* title = "")

void setWriteDataSets(Bool_t write = kTRUE)

{writeData=write;}

void setMdcType(Int_t type)

{mdc =type;}

void setAngle(Float_t a)

void setCathodeFoil(Bool_t foil)

{cathode_foils=foil;}

void setAngleStepSize(Float_t s)

{angleStepSize=s;}

void setTemperature(Int_t t)

{temperature=t;}

void setPressure(Int_t p)

{pressure =p;}

void setMobility(Float_t m)

{mobility =m;}

void setParticle(TString p)

{particle =p;}

void setEnergy(Float_t e)

{energy =e;}

void setRange(Int_t r)

{range =r;}

void setAvalanche(Int_t a)

{avalanche =a;}

void setNCollisions(Int_t c)

{collisions =c;}

void setTrapRadius(Double_t d)

{trap_radius=d;}

void setUseRungeKutta(Bool_t doit)

{ doRungeKutta = doit; }

void setRungeKuttaMaxStep(Double_t m0, Double_t m1, Double_t m2, Double_t m3)

{maxstep[0]=m0;maxstep[1]=m1;maxstep[2]=m2;maxstep[3]=m3;}

void setMCDistance(Double_t m0, Double_t m1, Double_t m2, Double_t m3)

{mc_dist[0]=m0;mc_dist[1]=m1;mc_dist[2]=m2;mc_dist[3]=m3;}

void setNSignals(Int_t nS)

{nSignals =nS;}

void setNLines(Int_t ni)

{nLines =ni;}

void setIsochrones(Float_t ni)

{isochrones =ni;}

void setCathodHvMod(Int_t hv, Int_t i)

{cathodhvmod[i]=hv;}

void setSenseHvMod(Int_t hv, Int_t i)

{sensehvmod [i]=hv;}

void setFieldHvMod(Int_t hv, Int_t i)

{fieldhvmod [i]=hv;}

void setCathodTh(Float_t* c)

{for(Int_t i=0;i<4;i++)cathodth [i]=c[i];}

void setSenseTh(Float_t* c)

{for(Int_t i=0;i<4;i++)senseth [i]=c[i];}

void setFieldTh(Float_t* c)

{for(Int_t i=0;i<4;i++)fieldth [i]=c[i];}

void setCathodPitch(Float_t* c)

{for(Int_t i=0;i<4;i++)cathodpitch[i]=c[i];}

void setSensePitch(Float_t* c)

{for(Int_t i=0;i<4;i++)sensepitch [i]=c[i];}

void setFieldPitch(Float_t* c)

{for(Int_t i=0;i<4;i++)fieldpitch [i]=c[i];}

void setCathodHv(Int_t* c)

{for(Int_t i=0;i<4;i++)cathodhv [i]=c[i];}

void setSenseHv(Int_t* c)

{for(Int_t i=0;i<4;i++)sensehv [i]=c[i];}

void setFieldHv(Int_t* c)

{for(Int_t i=0;i<4;i++)fieldhv [i]=c[i];}

void setNCathod(Int_t* c)

{for(Int_t i=0;i<4;i++)ncathod [i]=c[i];}

void setNSense(Int_t* c)

{for(Int_t i=0;i<4;i++)nsense [i]=c[i];}

void setNField(Int_t* c)

{for(Int_t i=0;i<4;i++)nfield [i]=c[i];}

void setCathodX(Float_t* c)

{for(Int_t i=0;i<4;i++)cathodx [i]=c[i];}

void setSenseX(Float_t* c)

{for(Int_t i=0;i<4;i++)sensex [i]=c[i];}

void setFieldX(Float_t* c)

{for(Int_t i=0;i<4;i++)fieldx [i]=c[i];}

void setArea(Float_t* c)

void setMaxLoop(Int_t* c)

void setMinLoop(Int_t* c)

void setCWire(Int_t* c)

{for(Int_t i=0;i<4;i++)cwire [i]=c[i];}

void setCWireFoil(Int_t* c)

{for(Int_t i=0;i<4;i++)cwire_foil[i]=c[i];}

void setTimeUp(Float_t* c)

{for(Int_t i=0;i<4;i++)time_up [i]=c[i];}

void setTimeLow(Float_t* c)

{for(Int_t i=0;i<4;i++)time_low [i]=c[i];}

void setNTimeBin(Int_t number)

{nTimeBin=1000;}

void setDC_S(Float_t* c)

{for(Int_t i=0;i<4;i++)dc_s[i]=c[i];}

void setPrintClusters(Bool_t opt)

{printclusters=opt;}
