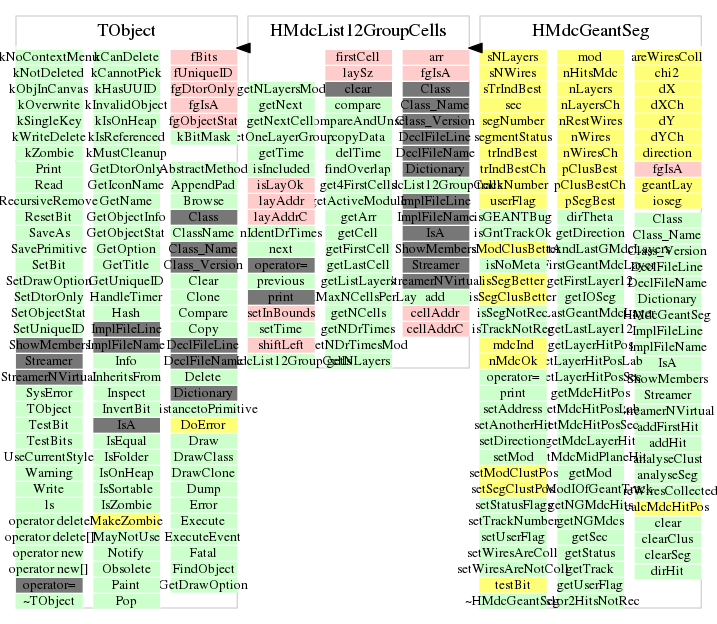

class HMdcGeantSeg: public HMdcList12GroupCells

_HADES_CLASS_DESCRIPTION


 HMdcGeantSeg

   Class collect and keep GEANT and mdc digitized information about
   one inner or outer mdc segment


 HMdcGeantTrack

   Class collect and keep GEANT and mdc digitized information about
   one track. Keep also array of HMdcGeantSeg objects for this track.


 HMdcGeantEvent

   Class fill and keep array of HMdcGeantTrack objects for one event.


 HMdcTrackInfSim

   Class fill HMdcClusSim, HMdcSegSim and HMdcHitSim objects
   by information from HMdcGeantTrack and HMdcGeantSeg


 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
 Meaning of HMdcGeantTrack::trackStatus, HMdcGeantSeg::segmentStatus
 and HMdcClusSim::trackStatus[tr] bits.

 Bits in HMdcGeantTrack::trackStatus:

  Bit 8, GEANT_BUG          : =0 - GEANT bug was found in this track
  Bit 7, NO_META_HIT        : =0 - track don't reach META
  Bit 6, NOT_RECONSTRUCTABLE: =0 - not reconstructable track. It can be if
                                   track not present in mdc,
                                   track cross more then one sector,
                                   numder of segments <1 or >2,
                                   upstream direction of at list one segment,
                                   track doesn't cross inner or outer segment,
                                   num. of segments with digi.wires <1 or >2,
                                   num.digi.wires in track < 5*num.segments,
                                   at list one seg. has <3 layers or <5 wires
  Bits 1-5 are eq.1

 Bits in HMdcGeantSeg::segmentStatus trackStatus bits plus:

  Bit 5, SEG_NOT_RECONS_ABLE: =0 - segment has <3 layers or <5 digi.wires
  Bit 4, HIT_NOT_RECONS_ABLE: =0 - at list one mdc in segment has
                                   <3 fired layers or <5 wires

 Bits in HMdcClusSim::trackStatus[tr] are segmentStatus bits plus:

  Bit 3, CLFLEVEL_TOO_HIGH  : =0 - segment can't be found due to high level
                                   of cluster finder
  Bit 2, FAKE_CONTRIBUTION  : =0 - fake contribution in cluster
  Bit 1, SEGS_MATH_OK       : =0 - no inner-outer segments matching
