HYDRA - THE HADES ANALYSIS PACKAGE » (UNKNOWN) » HOnlineMonClientMain

class HOnlineMonClientMain

_HADES_CLASS_DESCRIPTION

 HOnlineMonClientMain

 Main class of the HADES Online Monitoring Client.
 It contains a separat Thread in which the histograms are updated.
 The canvases are updated in the main thread, because the
 canvas-update is not threadsafe.

Function Members (Methods)

public:

	HOnlineMonClientMain(TString filename = "")
virtual	~HOnlineMonClientMain()
void	AddHist(HOnlineMonClientCanvas* canvas, HOnlineMonClientHist* hist)
static TClass*	Class()
TThread*	getMainThread()
Int_t	GetMasterClient()
Int_t	GetReconnect()
TString	GetServerhost()
Int_t	GetServerport()
Int_t	GetUpdateInterval()
void	HandleAutoSaveRateChange()
void	HandleConnectionError()
void	HandleControlbuttonClick(char* detectorname)
void	HandleMainWindowClose()
void	HandleRefreshRateChange()
void	HandleSendResetHists()
void	HandleSendStopServer()
void	HandleSingleWindowClose(char* windowname, char* detectorname)
void	HandleSnapshotSave()
void	HandleSnapshotSaveOnline()
void	HandleTryClose()
void	Init(Bool_t sendCmdOnly = kFALSE, TString host = "", Int_t port = 0, TString cmd = "")
virtual TClass*	IsA() const
Int_t	IsMasterClient()
void	RemoveHist(HOnlineMonClientCanvas* canvas, HOnlineMonClientHist* hist)
static void	SetAutoSaveInterval(Int_t minute)
static void	SetAutoSaveIntervalOnline(Int_t minute)
void	SetIsMasterClient(Bool_t master)
void	SetReconnect(Int_t recon)
void	SetServerhost(TString host)
void	SetServerport(Int_t port)
virtual void	ShowMembers(TMemberInspector&)
virtual void	Streamer(TBuffer&)
void	StreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)

private:

Bool_t	Connect(TString host, Int_t port)
void	CreateClientConfig(TString xmlfile)
void	CreateDetGui(HOnlineMonClientDet* detector)
void	DestroyDetGui(HOnlineMonClientDet* detector)
void	DestroySingleWindow(HOnlineMonClientSimpleWin* window)
void	DestroySingleWindow(HOnlineMonClientTabWin* window)
HOnlineMonHistAddon*	GetHist(TString histoname)
TList*	GetListOfHistograms()
Bool_t	ReConnect(TString host, Int_t port)
TString	SendCmdToServer(TString cmd)
void	SetUpdateInterval(Int_t msec)
static void*	ThreadUpdateHists(void* arg)
Bool_t	UpdateHist(HOnlineMonClientHist* hist)
void	UpdateHists()

Data Members

public:

HOnlineMonClientMainWin*	clientmainwin	pointer to mainwindow class
TList	listDetectors	list of all detectors

private:

static Int_t	AutoSaveInterval	auto save interval in minutes.
static Int_t	AutoSaveIntervalOnline	auto save interval in minutes.
Int_t	UpdateInterval	update interval in secs.
TString	configfile	name of the xml config file
Int_t	doReconnect	0 = stop at crash, 1 = ask for reconnect (default), 2 = auto reconnect
static Int_t	isMasterClient	remember if it was a master client
static time_t	lastSaved	remember the time when last saved (in seconds since 1970)
static time_t	lastSavedOnline	remember the time when last saved (in seconds since 1970)
static ULong64_t	lastSumBytes	remember last number of bytes recieved
TList	listHists	global list to store the opened histograms.
TList	listPads	global list to store the canvas subpads
static TThread*	mainThread	thread for the client program
map<TString,TString>	pad2hist	provide mapping between subpadname and histogram name
TString	serverhost
Int_t	serverport
TSocket*	socket	socket for network communication
Bool_t	updateComplete	after complete update of histograms, thread sets this to true
TThread*	updateThread	thread to update histograms

Class Charts

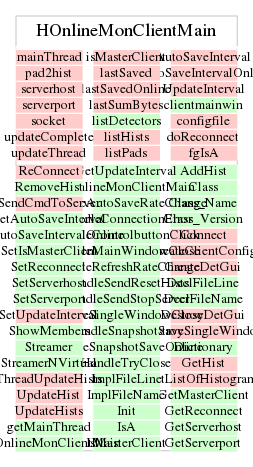

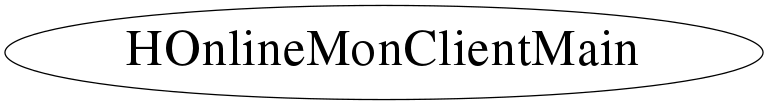

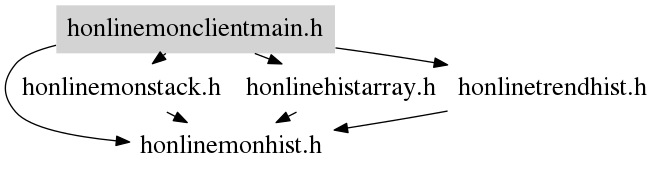

Inheritance Inherited Members Includes Libraries

Function documentation

HOnlineMonClientMain(TString filename = "")

 filename is the name of the xml configuration file

void Init(Bool_t sendCmdOnly = kFALSE, TString host = "", Int_t port = 0, TString cmd = "")

 Initialize program.
 If there is a command, execute it and exit.
 Else start client program with graphical user interface

void* ThreadUpdateHists(void* arg)

void UpdateHists()

void CreateClientConfig(TString xmlfile)

 Parse configuration file

void CreateDetGui(HOnlineMonClientDet* detector)

 Create and show all windows from given detector

void DestroyDetGui(HOnlineMonClientDet* detector)

 Hide and destroy all windows from given detector

void DestroySingleWindow(HOnlineMonClientSimpleWin* window)

 Hide and destroy a single simple window

void DestroySingleWindow(HOnlineMonClientTabWin* window)

 Hide and destroy a single tab window

void HandleRefreshRateChange()

 GUI Event Handler to handle change of refresh rate

void HandleAutoSaveRateChange()

 GUI Event Handler to handle change of refresh rate

void HandleSendStopServer()

void HandleSendResetHists()

void HandleConnectionError()

void HandleTryClose()

void HandleSnapshotSave()

 GUI Event Handler to handle snapshot button click
 Save all active canvases in a ps file in the same folder as the program.
 The filename contains a timestamp

void HandleSnapshotSaveOnline()

 GUI Event Handler to handle snapshot button click
 Save all active canvases in png file in the online snapshot path.

void HandleMainWindowClose()

 GUI Event Handler to handle close-event of the main window

~HOnlineMonClientMain()

void HandleControlbuttonClick(char* detectorname)

void SetUpdateInterval(Int_t msec)

void HandleSingleWindowClose(char* windowname, char* detectorname)

Bool_t Connect(TString host, Int_t port)

Bool_t ReConnect(TString host, Int_t port)

Bool_t UpdateHist(HOnlineMonClientHist* hist)

 update a single histogram and draw it on the current canvas.
 A timestamp is added to the histogram title

TString SendCmdToServer(TString cmd)

TList* GetListOfHistograms()

HOnlineMonHistAddon* GetHist(TString histoname)

void AddHist(HOnlineMonClientCanvas* canvas, HOnlineMonClientHist* hist)

 Put the histogram and the corresponding canvas into the global
 lists listHists / listPads.
 All histograms and canvases/pads in these lists are updated
 by the update-function

void RemoveHist(HOnlineMonClientCanvas* canvas, HOnlineMonClientHist* hist)

 Remove canvas and hist from the global list. Then, the hist and the canvas
 are no longer updated

void SetServerhost(TString host)

TString GetServerhost()

void SetServerport(Int_t port)

Int_t GetServerport()

Int_t GetUpdateInterval()

{ return UpdateInterval;}

void SetAutoSaveInterval(Int_t minute)

{AutoSaveInterval = minute;}

void SetAutoSaveIntervalOnline(Int_t minute)

{AutoSaveIntervalOnline = minute;}

TThread* getMainThread()

{ return mainThread; }

Int_t IsMasterClient()

{ return isMasterClient <= 0 ? kFALSE : kTRUE ;}

Int_t GetMasterClient()

{ return isMasterClient ;}

void SetIsMasterClient(Bool_t master)

{ isMasterClient = master;}

Int_t GetReconnect()

{ return doReconnect;}

void SetReconnect(Int_t recon)

{ doReconnect = recon;}
