HYDRA - THE HADES ANALYSIS PACKAGE » (UNKNOWN) » HOraSlowChannel

class HOraSlowChannel: public TNamed

_HADES_CLASS_DESCRIPTION


 HOraSlowChannel

 Class for a slowcontrol channel

Function Members (Methods)

public:

	HOraSlowChannel(const Char_t* name = "")
	HOraSlowChannel(const HOraSlowChannel&)
virtual	~HOraSlowChannel()
void	TObject::AbstractMethod(const char* method) const
virtual void	TObject::AppendPad(Option_t* option = "")
virtual void	TObject::Browse(TBrowser* b)
static TClass*	Class()
virtual const char*	TObject::ClassName() const
virtual void	TNamed::Clear(Option_t* option = "")
virtual TObject*	TNamed::Clone(const char* newname = "") const
virtual Int_t	TNamed::Compare(const TObject* obj) const
virtual void	TNamed::Copy(TObject& named) const
virtual void	TObject::Delete(Option_t* option = "")MENU
virtual Int_t	TObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual void	TObject::Draw(Option_t* option = "")
virtual void	TObject::DrawClass() constMENU
virtual TObject*	TObject::DrawClone(Option_t* option = "") constMENU
virtual void	TObject::Dump() constMENU
virtual void	TObject::Error(const char* method, const char* msgfmt) const
virtual void	TObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual void	TObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual void	TObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual void	TObject::Fatal(const char* method, const char* msgfmt) const
virtual void	TNamed::FillBuffer(char*& buffer)
virtual TObject*	TObject::FindObject(const char* name) const
virtual TObject*	TObject::FindObject(const TObject* obj) const
Int_t	getChannelId()
const Char_t*	getChannelType()
virtual Option_t*	TObject::GetDrawOption() const
static Long_t	TObject::GetDtorOnly()
virtual const char*	TObject::GetIconName() const
Int_t	getMaxPrecision()
TObjArray*	getMetaData()
virtual const char*	TNamed::GetName() const
virtual char*	TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_t	TObject::GetObjectStat()
virtual Option_t*	TObject::GetOption() const
TObjArray*	getRawData()
TGraph*	getRawDataGraph(Int_t mStyle = 7, Int_t mColor = 4)
TObjArray*	getRunSumData()
TGraphAsymmErrors*	getRunSumMeanMinMaxGraph(Int_t opt = 0, Int_t mStyle = 7, Int_t mColor = 2)
TGraphErrors*	getRunSumMeanSigmaGraph(Int_t opt = 0, Int_t mStyle = 7, Int_t mColor = 4)
virtual const char*	TNamed::GetTitle() const
virtual UInt_t	TObject::GetUniqueID() const
virtual Bool_t	TObject::HandleTimer(TTimer* timer)
virtual ULong_t	TNamed::Hash() const
virtual void	TObject::Info(const char* method, const char* msgfmt) const
virtual Bool_t	TObject::InheritsFrom(const char* classname) const
virtual Bool_t	TObject::InheritsFrom(const TClass* cl) const
virtual void	TObject::Inspect() constMENU
void	TObject::InvertBit(UInt_t f)
virtual TClass*	IsA() const
virtual Bool_t	TObject::IsEqual(const TObject* obj) const
virtual Bool_t	TObject::IsFolder() const
Bool_t	TObject::IsOnHeap() const
virtual Bool_t	TNamed::IsSortable() const
Bool_t	TObject::IsZombie() const
virtual void	TNamed::ls(Option_t* option = "") const
void	TObject::MayNotUse(const char* method) const
virtual Bool_t	TObject::Notify()
void	TObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static void	TObject::operator delete(void* ptr)
static void	TObject::operator delete(void* ptr, void* vp)
static void	TObject::operator delete[](void* ptr)
static void	TObject::operator delete[](void* ptr, void* vp)
void*	TObject::operator new(size_t sz)
void*	TObject::operator new(size_t sz, void* vp)
void*	TObject::operator new[](size_t sz)
void*	TObject::operator new[](size_t sz, void* vp)
HOraSlowChannel&	operator=(const HOraSlowChannel&)
virtual void	TObject::Paint(Option_t* option = "")
virtual void	TObject::Pop()
virtual void	TNamed::Print(Option_t* option = "") const
void	printMetaData()
void	printRawData()
void	printRunSumData(Int_t opt = 0)
virtual Int_t	TObject::Read(const char* name)
Bool_t	readRawData(Int_t)
Bool_t	readRawData(const Char_t, const Char_t)
virtual void	TObject::RecursiveRemove(TObject* obj)
void	TObject::ResetBit(UInt_t f)
virtual void	TObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual void	TObject::SavePrimitive(ostream& out, Option_t* option = "")
void	TObject::SetBit(UInt_t f)
void	TObject::SetBit(UInt_t f, Bool_t set)
void	setChannelId(Int_t n)
void	setChannelType(const Char_t* s)
virtual void	TObject::SetDrawOption(Option_t* option = "")MENU
static void	TObject::SetDtorOnly(void* obj)
void	setMaxPrecision(Int_t n)
void	setMetaData(TObjArray*)
virtual void	TNamed::SetName(const char* name)MENU
virtual void	TNamed::SetNameTitle(const char* name, const char* title)
static void	TObject::SetObjectStat(Bool_t stat)
void	setPartition(HOraSlowPartition*)
void	setRawData(TObjArray, const Char_t, const Char_t*)
void	setRunSumData(TObjArray*)
virtual void	TNamed::SetTitle(const char* title = "")MENU
virtual void	TObject::SetUniqueID(UInt_t uid)
virtual void	ShowMembers(TMemberInspector&)
virtual Int_t	TNamed::Sizeof() const
virtual void	Streamer(TBuffer&)
void	StreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual void	TObject::SysError(const char* method, const char* msgfmt) const
Bool_t	TObject::TestBit(UInt_t f) const
Int_t	TObject::TestBits(UInt_t f) const
virtual void	TObject::UseCurrentStyle()
virtual void	TObject::Warning(const char* method, const char* msgfmt) const
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
void	writeMetaData(fstream&)
void	writeRawData(fstream&)
void	writeRunSumData(fstream&, Int_t opt = 0)

protected:

virtual void	TObject::DoError(int level, const char* location, const char* fmt, va_list va) const
void	TObject::MakeZombie()

private:

void	clearRawData()
void	clearRunSumData()
void	deleteGraph()
void	deleteRawGraph()

Data Members

public:

enum TObject::EStatusBits {	kCanDelete
	kMustCleanup
	kObjInCanvas
	kIsReferenced
	kHasUUID
	kCannotPick
	kNoContextMenu
	kInvalidObject
};
enum TObject::[unnamed] {	kIsOnHeap
	kNotDeleted
	kZombie
	kBitMask
	kSingleKey
	kOverwrite
	kWriteDelete
};

protected:

TString	TNamed::fName	object identifier
TString	TNamed::fTitle	object title

private:

Int_t	channelId	Id of the channel in Oracle
TString	channelType	Type of the channel
Int_t	maxPrecision	Maximum precision of the values in the actual timerange
TGraph*	pGraph	Graph of the summary data
TObjArray*	pMetaData	Array of meta data (object type HOraSlowChanMata)
TObjArray*	pRawData	Array of the raw data
TGraph*	pRawGraph	Graph of the raw data
TObjArray*	pRunSumData	Array of summary data (object type HOraSlowChanRunSum)
HOraSlowPartition*	partition	Pointer to the actual partition
TString	rawEnd	End time of the raw data
TIterator*	rawIter	Iterator on the array of raw data
TString	rawStart	Start time of the raw data
TIterator*	runSumDataIter	Iterator on the array of summary data

Class Charts

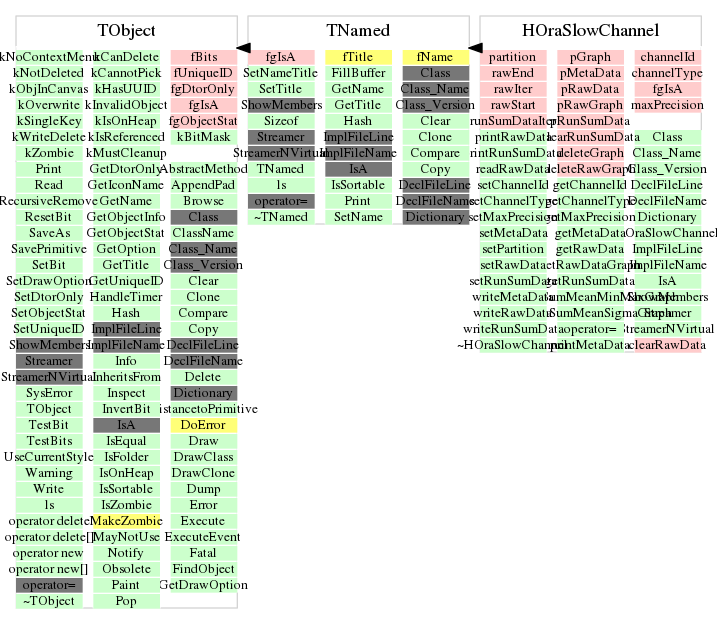

Inheritance Inherited Members Includes Libraries

Function documentation

HOraSlowChannel(const Char_t* name = "")

 Constructor with argument channel name

~HOraSlowChannel()

 Destructor

void deleteGraph()

 Deletes the graph of the summary data

void deleteRawGraph()

 Deletes the graph of the raw data

void clearRunSumData()

 Clears all

void clearRawData()

 Deletes the raw data and the corresponding graph

void setPartition(HOraSlowPartition* )

 Sets the partition pointer and clears all summary data

void setRunSumData(TObjArray* )

 Sets the pointer to the array of summary data and creates the iterator

void setRawData(TObjArray* , const Char_t* , const Char_t* )

 Sets the pointer to the array of raw data in the time interval t1 - t2
 and creates the iterator

void setMetaData(TObjArray* )

 Sets the pointer to the array of meta data

void printMetaData()

 Prints the meta data to stdout

void writeMetaData(fstream& )

 Streams the meta data

void printRunSumData(Int_t opt = 0)

 Prints the summary data to stdout
 option opt 0 = all periods
            1 = only hld-files
            2 = apply hld-file filter

void writeRunSumData(fstream& , Int_t opt = 0)

 Streams the summary data to stdout
 option opt 0 = all periods
            1 = only hld-files
            2 = apply hld-file filter

Bool_t readRawData(Int_t )

 Reads the raw data of a period specified by the array index

Bool_t readRawData(const Char_t* , const Char_t* )

 Reads the raw data of a period specified by a time range t1 - t2

void printRawData()

 Prints the raw data to stdout

void writeRawData(fstream& )

 Streams the raw data

TGraphErrors* getRunSumMeanSigmaGraph(Int_t opt = 0, Int_t mStyle = 7, Int_t mColor = 4)

 Returns a graph with mean and sigma values
 Default style: 7, default color 4 (blue)
 option opt 0 = all periods
            1 = only hld-files
            2 = apply hld-file filter
 The x-axis is the index of the periods

TGraphAsymmErrors* getRunSumMeanMinMaxGraph(Int_t opt = 0, Int_t mStyle = 7, Int_t mColor = 2)

 Returns a graph with the mean value and the min and max values as error bar
 Default style: 7, default color 2 (red)
 option opt 0 = all periods
            1 = only hld-files
            2 = apply hld-file filter
 The x-axis is the index of the periods

TGraph* getRawDataGraph(Int_t mStyle = 7, Int_t mColor = 4)

 Returns a graph of the raw data
 Default style: 7, default color 4 (blue)

HOraSlowChannel(const Char_t* name = "")

void setChannelId(Int_t n)

{channelId=n;}

void setChannelType(const Char_t* s)

{channelType=s;}

void setMaxPrecision(Int_t n)

{maxPrecision=n;}

Int_t getChannelId()

{return channelId;}

const Char_t* getChannelType()

{return channelType.Data();}

Int_t getMaxPrecision()

{return maxPrecision;}

TObjArray* getRunSumData()

{return pRunSumData;}

TObjArray* getMetaData()

{return pMetaData;}

TObjArray* getRawData()

{return pRawData;}
