class HParticleBtRingInfo: public TObject

_HADES_CLASS_DESCRIPTION


  HParticleBtRingInfo
  Class stores ring, rich and cluster information
  Data collected by HParticleBtRing and HParticleCluster are stored.
  Basic information like ring prediction, rich hits and cluster variables
  including detailed information of maximas are stored in arrays.



  Cluster classes


   # pad
   x maximum

   - - - - - - - - - - - -
   0: charge < 65
   - - - - - - - - - - - -
   1: #
   - - - - - - - - - - - -
   2: ##
   - - - - - - - - - - - -
   3: #
      #
   - - - - - - - - - - - -
   4: #x#
   - - - - - - - - - - - -
   5: #
      x
      #
   - - - - - - - - - - - -
   6: #x    (all orientations)
       #
   - - - - - - - - - - - -
   7: x##   (all orientations)
   - - - - - - - - - - - -
   8: ##    (all orientations)
       x
   - - - - - - - - - - - -
   9: x#    (all orientations)
      ##
   - - - - - - - - - - - -
   10:  #   (all orientations)
       #x#
   - - - - - - - - - - - -
   11: #### (all orientations)
   - - - - - - - - - - - -
   12: Rest of clusters with size 4
   - - - - - - - - - - - -
   13:  ##  #x  x#   (all orientations)
        x## ### ###
   - - - - - - - - - - - -
   14: Rest of clusters with size 5
   - - - - - - - - - - - -
   x : Cluster size x -9
   - - - - - - - - - - - -

Function Members (Methods)

public:
HParticleBtRingInfo()
HParticleBtRingInfo(const HParticleBtRingInfo&)
virtual~HParticleBtRingInfo()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTObject::Clear(Option_t* = "")
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
Float_t*getClusChargeRing()
Float_t*getClusChargeSum()
Float_t*getClusChi2()
Float_t*getClusChi2XMM()
Float_t*getClusChi2YMM()
Float_t*getClusCircleX()
Float_t*getClusCircleY()
Int_t*getClusClass()
Bool_t*getClusIsGood()
Int_t*getClusNMaxima()
Int_t*getClusNMaximaPad()
Float_t*getClusNMaximaPosX()
Float_t*getClusNMaximaPosY()
Int_t*getClusPadRing()
Int_t*getClusPadSum()
Float_t*getClusPosX()
Float_t*getClusPosY()
Float_t*getClusSig1X()
Float_t*getClusSig1Y()
Float_t*getClusSig2X()
Float_t*getClusSig2Y()
Int_t*getClusTrackNo()
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual const char*TObject::GetIconName() const
Bool_t*getIsGoodTrack()
Int_t*getIsInCluster()
virtual const char*TObject::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
Float_t*getPosXCenter()
Float_t*getPosYCenter()
Int_t*getPrediction()
Int_t*getRichHitAdd()
Float_t*getRichHitCharge()
Int_t*getRingMatrix()
virtual const char*TObject::GetTitle() const
Int_t*getTrackPCandIdx()
Float_t*getTrackPhi()
Int_t*getTrackSec()
Float_t*getTrackTheta()
Int_t*getTrackVertex()
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
voidTObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HParticleBtRingInfo&operator=(const HParticleBtRingInfo&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTObject::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(ostream& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
voidsetClusChargeRing(Float_t* val)
voidsetClusChargeSum(Float_t* val)
voidsetClusChi2(Float_t*** val)
voidsetClusChi2XMM(Float_t*** val)
voidsetClusChi2YMM(Float_t*** val)
voidsetClusCircleX(Float_t*** val)
voidsetClusCircleY(Float_t*** val)
voidsetClusClass(Int_t* val)
voidsetClusIsGood(Bool_t* val)
voidsetClusNMaxima(Int_t** val)
voidsetClusNMaximaPad(Int_t*** val)
voidsetClusNMaximaPosX(Float_t*** val)
voidsetClusNMaximaPosY(Float_t*** val)
voidsetClusPadRing(Int_t* val)
voidsetClusPadSum(Int_t* val)
voidsetClusPosX(Float_t* val)
voidsetClusPosY(Float_t* val)
voidsetClusSig1X(Float_t*** val)
voidsetClusSig1Y(Float_t*** val)
voidsetClusSig2X(Float_t*** val)
voidsetClusSig2Y(Float_t*** val)
voidsetClusTrackNo(Int_t** val)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidsetIsGoodTrack(Bool_t* val)
voidsetIsInCluster(Int_t* val)
static voidTObject::SetObjectStat(Bool_t stat)
voidsetPosXCenter(Float_t* val)
voidsetPosYCenter(Float_t* val)
voidsetPrediction(Int_t** val)
voidsetRichHitAdd(Int_t* val)
voidsetRichHitCharge(Float_t* val)
voidsetRingMatrix(Int_t** val)
voidsetTrackPCandIdx(Int_t* val)
voidsetTrackPhi(Float_t* val)
voidsetTrackSec(Int_t* val)
voidsetTrackTheta(Float_t* val)
voidsetTrackVertex(Int_t* val)
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector&)
virtual voidStreamer(TBuffer&)
voidStreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()
private:
voidinit()

Data Members

private:
Float_tfClusChargeRing[32]
Float_tfClusChargeSum[32]
Float_tfClusChi2[32][32][32]
Float_tfClusChi2XMM[32][32][32]
Float_tfClusChi2YMM[32][32][32]
Float_tfClusCircleX[32][32][32]
Float_tfClusCircleY[32][32][32]
Int_tfClusClass[32]
Bool_tfClusIsGood[32]clusters
Int_tfClusNMaxima[32][32]clusters,tracks
Int_tfClusNMaximaPad[32][32][32]clusters,tracks,maxima
Float_tfClusNMaximaPosX[32][32][32]
Float_tfClusNMaximaPosY[32][32][32]
Int_tfClusPadRing[32]
Int_tfClusPadSum[32]
Float_tfClusPosX[32]
Float_tfClusPosY[32]
Float_tfClusSig1X[32][32][32]
Float_tfClusSig1Y[32][32][32]
Float_tfClusSig2X[32][32][32]
Float_tfClusSig2Y[32][32][32]
Int_tfClusTrackNo[32][32]clusters, tracks
Bool_tfIsGoodTrack[128]
Int_tfIsInCluster[1024]
Float_tfPosXCenter[128]
Float_tfPosYCenter[128]
Int_tfPrediction[128][128]tracks,predicted pads
Int_tfRichHitAdd[1024]fired pads
Float_tfRichHitCharge[1024]
Int_tfRingMatrix[128][128]
Int_tfTrackPCandIdx[128]
Float_tfTrackPhi[128]
Int_tfTrackSec[128]
Float_tfTrackTheta[128]
Int_tfTrackVertex[128]

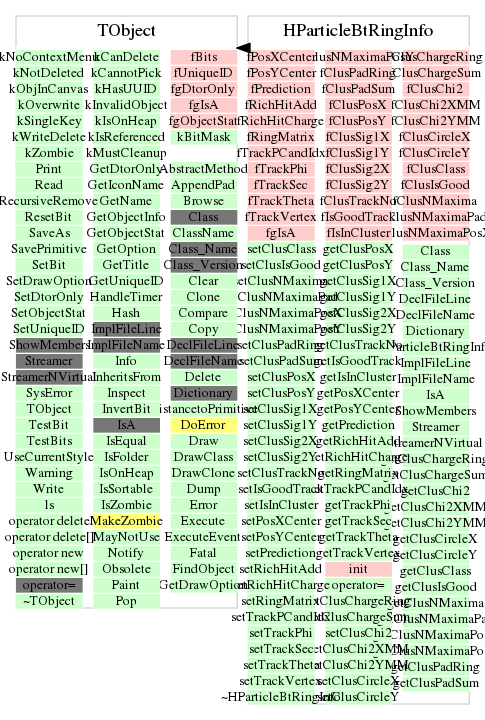

Class Charts

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

HParticleBtRingInfo()
~HParticleBtRingInfo()
void init()
HParticleBtRingInfo()
void setPrediction(Int_t** val)
 ------------ set functions -----------
void setRingMatrix(Int_t** val)
void setRichHitAdd(Int_t* val)
{ for(Int_t i=0;i<1024;i++) fRichHitAdd[i] = val[i];}
void setRichHitCharge(Float_t* val)
{ for(Int_t i=0;i<1024;i++) fRichHitCharge[i] = val[i];}
void setIsInCluster(Int_t* val)
{ for(Int_t i=0;i<1024;i++) fIsInCluster[i] = val[i];}
void setTrackTheta(Float_t* val)
{ for(Int_t i=0;i<128;i++) fTrackTheta[i] = val[i];}
void setTrackPhi(Float_t* val)
{ for(Int_t i=0;i<128;i++) fTrackPhi[i] = val[i];}
void setTrackVertex(Int_t* val)
{ for(Int_t i=0;i<128;i++) fTrackVertex[i] = val[i];}
void setTrackSec(Int_t* val)
{ for(Int_t i=0;i<128;i++) fTrackSec[i] = val[i];}
void setTrackPCandIdx(Int_t* val)
{ for(Int_t i=0;i<128;i++) fTrackPCandIdx[i] = val[i];}
void setIsGoodTrack(Bool_t* val)
{ for(Int_t i=0;i<128;i++) fIsGoodTrack[i] = val[i];}
void setPosXCenter(Float_t* val)
{ for(Int_t i=0;i<128;i++) fPosXCenter[i] = val[i];}
void setPosYCenter(Float_t* val)
{ for(Int_t i=0;i<128;i++) fPosYCenter[i] = val[i];}
void setClusTrackNo(Int_t** val)
void setClusIsGood(Bool_t* val)
{ for(Int_t i=0;i<32;i++) fClusIsGood[i] = val[i];}
void setClusPadSum(Int_t* val)
{ for(Int_t i=0;i<32;i++) fClusPadSum[i] = val[i];}
void setClusPadRing(Int_t* val)
{ for(Int_t i=0;i<32;i++) fClusPadRing[i] = val[i];}
void setClusChargeSum(Float_t* val)
{ for(Int_t i=0;i<32;i++) fClusChargeSum[i] = val[i];}
void setClusChargeRing(Float_t* val)
{ for(Int_t i=0;i<32;i++) fClusChargeRing[i] = val[i];}
void setClusPosX(Float_t* val)
{ for(Int_t i=0;i<32;i++) fClusPosX[i] = val[i];}
void setClusPosY(Float_t* val)
{ for(Int_t i=0;i<32;i++) fClusPosY[i] = val[i];}
void setClusClass(Int_t* val)
{ for(Int_t i=0;i<32;i++) fClusClass[i] = val[i];}
void setClusNMaxima(Int_t** val)
void setClusNMaximaPad(Int_t*** val)
void setClusNMaximaPosX(Float_t*** val)
void setClusNMaximaPosY(Float_t*** val)
void setClusChi2(Float_t*** val)
void setClusChi2XMM(Float_t*** val)
void setClusChi2YMM(Float_t*** val)
void setClusCircleX(Float_t*** val)
void setClusCircleY(Float_t*** val)
void setClusSig1X(Float_t*** val)
void setClusSig1Y(Float_t*** val)
void setClusSig2X(Float_t*** val)
void setClusSig2Y(Float_t*** val)
Int_t* getPrediction( void )
 ------------ get functions -----------
{ return &fPrediction[0][0] ;}
Int_t* getRingMatrix( void )
{ return &fRingMatrix[0][0] ;}
Int_t* getRichHitAdd( void )
{ return &fRichHitAdd[0] ;}
Float_t* getRichHitCharge( void )
{ return &fRichHitCharge[0] ;}
Int_t* getIsInCluster( void )
{ return &fIsInCluster[0] ;}
Float_t* getTrackTheta( void )
{ return &fTrackTheta[0] ;}
Float_t* getTrackPhi( void )
{ return &fTrackPhi[0] ;}
Int_t* getTrackVertex( void )
{ return &fTrackVertex[0] ;}
Int_t* getTrackSec( void )
{ return &fTrackSec[0] ;}
Int_t* getTrackPCandIdx( void )
{ return &fTrackPCandIdx[0];}
Bool_t* getIsGoodTrack( void )
{ return &fIsGoodTrack[0] ;}
Float_t* getPosXCenter( void )
{ return &fPosXCenter[0] ;}
Float_t* getPosYCenter( void )
{ return &fPosYCenter[0] ;}
Int_t* getClusTrackNo( void )
{ return &fClusTrackNo[0][0] ;}
Bool_t* getClusIsGood( void )
{ return &fClusIsGood[0] ;}
Int_t* getClusPadSum( void )
{ return &fClusPadSum[0] ;}
Int_t* getClusPadRing( void )
{ return &fClusPadRing[0] ;}
Float_t* getClusChargeSum( void )
{ return &fClusChargeSum[0] ;}
Float_t* getClusChargeRing( void )
{ return &fClusChargeRing[0] ;}
Float_t* getClusPosX( void )
{ return &fClusPosX[0] ;}
Float_t* getClusPosY( void )
{ return &fClusPosY[0] ;}
Int_t* getClusClass( void )
{ return &fClusClass[0] ;}
Int_t* getClusNMaxima( void )
{ return &fClusNMaxima[0][0] ;}
Int_t* getClusNMaximaPad( void )
{ return &fClusNMaximaPad[0][0][0] ;}
Float_t* getClusNMaximaPosX( void )
{ return &fClusNMaximaPosX[0][0][0] ;}
Float_t* getClusNMaximaPosY( void )
{ return &fClusNMaximaPosY[0][0][0] ;}
Float_t* getClusChi2( void )
{ return &fClusChi2[0][0][0] ;}
Float_t* getClusChi2XMM( void )
{ return &fClusChi2XMM[0][0][0] ;}
Float_t* getClusChi2YMM( void )
{ return &fClusChi2YMM[0][0][0] ;}
Float_t* getClusCircleX( void )
{ return &fClusCircleX[0][0][0] ;}
Float_t* getClusCircleY( void )
{ return &fClusCircleY[0][0][0] ;}
Float_t* getClusSig1X( void )
{ return &fClusSig1X[0][0][0] ;}
Float_t* getClusSig1Y( void )
{ return &fClusSig1Y[0][0][0] ;}
Float_t* getClusSig2X( void )
{ return &fClusSig2X[0][0][0] ;}
Float_t* getClusSig2Y( void )
{ return &fClusSig2Y[0][0][0] ;}
