HYDRA - THE HADES ANALYSIS PACKAGE » UTIL » HSUExeMacro

class HSUExeMacro: public TObject

 A class to make live easier with chains and branches in an executive macro.
 It is dedicated for making complicate correlation between branches.

 It supports:
 - TChain with files consists of HADES 'T' Tree
 - automatic access to branches' data by HCategory or TClonesArray
 - easy access to program arguments
 - easy access to parameters in a parameter files

 A simple program which shows possibility may looks like:

 Int_t main(Int_t iArg, Char_t* vArg[])
 {
 HSUExeMacro eEM;

     eEM.loadArgs(iArg, vArg);
     eEM.openInput();
     eEM.openParamFile();
     eEM.openOutput();

 HCategory *pMdcCategory;
 TCutG     *pCut = NULL;
 HMdcSeg   *pSeg;

     if(eEM.getOptBool())
         pCut = (TCutG *)eEM.getParamObject("some_cut");

     pMdcCategory = eEM.getHCategory("HMdcSeg");

     while(eEM.nextEvent() >= 0)
     {
         for(i = 0; i < pMdcCategory->getEntries(); i++)
         {
             if((pSeg = (HMdcSeg * )pMdcCategory->getObject(i)) == NULL)
                 continue;


         }
     }

     eEM.writeOutput();

     return 0;
 }

 Arguments of the program supported by the class:
 -i file_name - (may appear many times) define a list of input files.
                If the file is *.root it is added to the chain.
                Otherwise it is taken as a text file with a list of root files
                all empty lines and lines starting with # are skipped
 -o file_name - a name of an output file
 -e number    - maximum number of events to process
 -p file_name - a name of an optional file with some object for the program;
                they are easy to get by getParamObject() method
 -h           - prints a help message

 Other program arguments which may be used by the program:
 -s string    - string can be get by getOptString() method
 -n Int_t       - can be get by getOptInt()
 -f Float_t     - can be get by getOptFloat()
 -b           - existence of the parameter can be get by getOptBool()

Function Members (Methods)

public:

	HSUExeMacro()
	HSUExeMacro(const HSUExeMacro&)
virtual	~HSUExeMacro()
void	TObject::AbstractMethod(const char* method) const
Bool_t	addFilesFromList(const Char_t* pStr)
Bool_t	addInputFile(const Char_t* pStr)
virtual void	TObject::AppendPad(Option_t* option = "")
virtual void	TObject::Browse(TBrowser* b)
Bool_t	checkBranches()
static TClass*	Class()
virtual const char*	TObject::ClassName() const
void	clear()
virtual void	TObject::Clear(Option_t* = "")
virtual TObject*	TObject::Clone(const char* newname = "") const
virtual Int_t	TObject::Compare(const TObject* obj) const
virtual void	TObject::Copy(TObject& object) const
virtual void	TObject::Delete(Option_t* option = "")MENU
void	deleteProgress()
virtual Int_t	TObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual void	TObject::Draw(Option_t* option = "")
virtual void	TObject::DrawClass() constMENU
virtual TObject*	TObject::DrawClone(Option_t* option = "") constMENU
virtual void	TObject::Dump() constMENU
virtual void	TObject::Error(const char* method, const char* msgfmt) const
virtual void	TObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual void	TObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual void	TObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual void	TObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*	TObject::FindObject(const char* name) const
virtual TObject*	TObject::FindObject(const TObject* obj) const
TBranch*	getBranch(const Char_t* pBranchName)
void	getBranchesEntry(Int_t iEntry)
virtual Option_t*	TObject::GetDrawOption() const
static Long_t	TObject::GetDtorOnly()
Int_t	getEvent() const
Int_t	getEvent(Int_t iEvent)
Int_t	getEvents() const
Bool_t	getExitOnError() const
HCategory*	getHCategory(const Char_t* pCategoryName)
virtual const char*	TObject::GetIconName() const
Float_t	getMdcPhi(Int_t iSector, Float_t fPhiMdc) const
Float_t	getMdcTheta(Float_t fThetaMdc) const
virtual const char*	TObject::GetName() const
Bool_t	getNotFileChange()
virtual char*	TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_t	TObject::GetObjectStat()
Bool_t	getOptBool() const
Float_t	getOptFloat() const
Int_t	getOptInt() const
virtual Option_t*	TObject::GetOption() const
const TString&	getOptString() const
const TString&	getParamFileName() const
TObject*	getParamObject(const Char_t* pName)
HSUProgress*	getProgress() const
TClonesArray*	getTClonesArray(const Char_t* pBranchName)
virtual const char*	TObject::GetTitle() const
virtual UInt_t	TObject::GetUniqueID() const
virtual Bool_t	TObject::HandleTimer(TTimer* timer)
virtual ULong_t	TObject::Hash() const
virtual void	TObject::Info(const char* method, const char* msgfmt) const
virtual Bool_t	TObject::InheritsFrom(const char* classname) const
virtual Bool_t	TObject::InheritsFrom(const TClass* cl) const
virtual void	TObject::Inspect() constMENU
void	TObject::InvertBit(UInt_t f)
virtual TClass*	IsA() const
virtual Bool_t	TObject::IsEqual(const TObject* obj) const
virtual Bool_t	TObject::IsFolder() const
Bool_t	TObject::IsOnHeap() const
Bool_t	isParamFileOpened() const
virtual Bool_t	TObject::IsSortable() const
Bool_t	TObject::IsZombie() const
virtual Int_t	loadArgs(Int_t iArg, Char_t** vArg)
Int_t	loadTree(Int_t iEvent)
virtual void	TObject::ls(Option_t* option = "") const
void	TObject::MayNotUse(const char* method) const
Int_t	nextEvent()
virtual Bool_t	TObject::Notify()
void	TObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
Bool_t	openInput()
Bool_t	openOutput()
Bool_t	openParamFile(const Char_t* pParamFileName = 0)
static void	TObject::operator delete(void* ptr)
static void	TObject::operator delete(void* ptr, void* vp)
static void	TObject::operator delete[](void* ptr)
static void	TObject::operator delete[](void* ptr, void* vp)
void*	TObject::operator new(size_t sz)
void*	TObject::operator new(size_t sz, void* vp)
void*	TObject::operator new[](size_t sz)
void*	TObject::operator new[](size_t sz, void* vp)
HSUExeMacro&	operator=(const HSUExeMacro&)
virtual void	TObject::Paint(Option_t* option = "")
virtual void	TObject::Pop()
virtual void	TObject::Print(Option_t* option = "") const
virtual void	printInfo(const Char_t* pProgramName) const
virtual Int_t	TObject::Read(const char* name)
virtual void	TObject::RecursiveRemove(TObject* obj)
void	TObject::ResetBit(UInt_t f)
virtual void	TObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual void	TObject::SavePrimitive(ostream& out, Option_t* option = "")
void	TObject::SetBit(UInt_t f)
void	TObject::SetBit(UInt_t f, Bool_t set)
virtual void	TObject::SetDrawOption(Option_t* option = "")MENU
static void	TObject::SetDtorOnly(void* obj)
void	setExitOnError(Bool_t b = kTRUE)
void	setNotFileChange(Bool_t b)
static void	TObject::SetObjectStat(Bool_t stat)
void	setProgress(HSUProgress* pProgress)
void	setProgress(Bool_t bSet = kTRUE)
virtual void	TObject::SetUniqueID(UInt_t uid)
virtual void	ShowMembers(TMemberInspector&)
virtual void	Streamer(TBuffer&)
void	StreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual void	TObject::SysError(const char* method, const char* msgfmt) const
Bool_t	TObject::TestBit(UInt_t f) const
Int_t	TObject::TestBits(UInt_t f) const
virtual void	TObject::UseCurrentStyle()
virtual void	TObject::Warning(const char* method, const char* msgfmt) const
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
Bool_t	writeOutput()

protected:

virtual void	TObject::DoError(int level, const char* location, const char* fmt, va_list va) const
void	TObject::MakeZombie()

private:

HSUBranchElement*	findAciveBranch(const Char_t* pBranchName)
TClonesArray*	getNewArrayFromBranch(const Char_t* pBranchName)
HCategory*	getNewHCategoryFromBranch(const Char_t* pBranchName)
Bool_t	notifyBranches()

Data Members

public:

enum TObject::EStatusBits {	kCanDelete
	kMustCleanup
	kObjInCanvas
	kIsReferenced
	kHasUUID
	kCannotPick
	kNoContextMenu
	kInvalidObject
};
enum TObject::[unnamed] {	kIsOnHeap
	kNotDeleted
	kZombie
	kBitMask
	kSingleKey
	kOverwrite
	kWriteDelete
};

protected:

Bool_t	m_bExitOnError	if exit on any error
Bool_t	m_bNotFileChange	notify when the file changes
Bool_t	m_bOptBool	boolean from parameters
Float_t	m_fOptFloat	Float_t from parameters
Int_t	m_iCurrentFile	current file in the chain
Int_t	m_iEvent	current event
Int_t	m_iEvents	max number of events
Int_t	m_iOptInt	Int_t from parameters
TObjArray*	m_pActiveBranches	array with active branches
TChain*	m_pChain	chain of input files
TObjArray*	m_pInputArray	list of input files
TFile*	m_pOutputFile	output file
TFile*	m_pParamFile	file with parameters
HSUProgress*	m_pProgress	progress bar
TString	m_sOptString	string from parameters
TString	m_sOutputName	name of the output file
TString	m_sParamFileName	name of a file with parameters

Class Charts

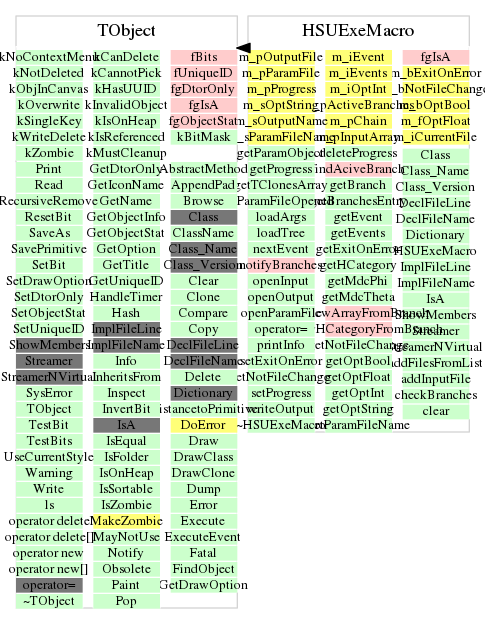

Inheritance Inherited Members Includes Libraries

Function documentation

HSUExeMacro(const HSUExeMacro& )

 A constructor of the class

~HSUExeMacro()

 Destructor.
 Close all input and output files opened by the class and delete what was used

void setProgress(HSUProgress* pProgress)

 Set a progress bar used by the class during the events loop

void setProgress(Bool_t bSet = kTRUE)

 Set a default progress bar used by the class during the events loop.
 If bSet == kFALSE - removes the progress bar

HSUProgress* getProgress(void)

 Return the progress bar used by the class

void deleteProgress(void)

 Delete the progress bar used by the class

Int_t loadArgs(Int_t iArg, Char_t** vArg)

 Load all arguments from the program arguments given as the parameters.
 All parameters supported by the class are listed in the class description.

void printInfo(const Char_t* pProgramName) const

 Print info about all standard options. Used when `-h' is in the arguments.

Bool_t openInput(void)

 Create the chain from all files given as the arguments of the program

Bool_t addInputFile(const Char_t* pStr)

 Add a root file to the chain

Bool_t addFilesFromList(const Char_t* pStr)

 Add all root files listed in a text file given as the argument.
 All empty lines or lines starting with `#' are skipped.
 File names are trimmed before use
 (all start and tail white characters are removed)

Bool_t openOutput(void)

 Open the output file

Bool_t writeOutput(void)

 Simple close the output file. All root objects created since the openOutput
 are written to the file

TClonesArray* getTClonesArray(const Char_t* pBranchName)

 Get the TClonesArray from the file.
 To get a proper branch a `.fData' suffix is added to `pBranchName'

HCategory* getHCategory(const Char_t* pCategoryName)

 Get the HCategory from the file.
 To get a proper branch a `.' suffix is added to `pCategoryName'

TBranch* getBranch(const Char_t* pBranchName)

 Get the brach from the `T'
 if was activated by getHCategory or getTClonesArray

TClonesArray* getNewArrayFromBranch(const Char_t* pBranchName)

 Create new branch and a TClonesArray for it

HCategory* getNewHCategoryFromBranch(const Char_t* pBranchName)

 Create new branch and a HCategory for it

HSUBranchElement* findAciveBranch(const Char_t* pBranchName)

 Find an active branch by name

Int_t loadTree(Int_t iEvent)

 Load the event from tree.
 All active categories and array are filled with the new data.
 If switch of the files is needed then new branches are created automatically.

Bool_t notifyBranches(void)

 Get branches from a new file in the chain.
 Called by loadTree if needed

void clear(void)

 Clear all arrays and categories before next event

void getBranchesEntry(Int_t iEntry)

 Fill the array or category with the data of the current event

Int_t getEvent(Int_t iEvent)

 Get all data for the event.
 If no events left return value < 0

Bool_t checkBranches(void)

 Check if all activated branches exist in the every file in the chain

Int_t nextEvent(void)

 Get next event
 Return >= 0 if ok, or < 0 when at the end of the events list

Bool_t openParamFile(const Char_t* pParamFileName = 0)

 Open a file with parameters. The parameters from the file may be get by:
 HSUExeMacro::getParamObject method

TObject* getParamObject(const Char_t* pName)

 Get an object from the parameter file (if opened)

const TString& getParamFileName(void)

 Return param file name or empty string if the name not set

Float_t getMdcPhi(Int_t iSector, Float_t fPhiMdc) const

 Convert MDC's phi angle to the coordinate system used in other detectors

Float_t getMdcTheta(Float_t fThetaMdc) const

 Convert MDC's theta angle to the coordinate system used in other detectors

HSUExeMacro()

Int_t getEvent(Int_t iEvent)

Bool_t getExitOnError(void)

{ return m_bExitOnError; }

void setExitOnError(Bool_t b = kTRUE)

{ m_bExitOnError = b; }

Bool_t isParamFileOpened(void)

{ return m_pParamFile != NULL; }

const TString& getOptString(void)

{ return m_sOptString; }

Int_t getOptInt(void)

{ return m_iOptInt; }

Float_t getOptFloat(void)

{ return m_fOptFloat; }

Bool_t getOptBool(void)

{ return m_bOptBool; }

Int_t getEvents(void)

{ return m_iEvents; }

Bool_t getNotFileChange(void)

{ return m_bNotFileChange; }

void setNotFileChange(Bool_t b)

{ m_bNotFileChange = b; }
