HMdcClusterToHit Class Reference

#include <hmdcclustertohit.h>

Inheritance diagram for HMdcClusterToHit:

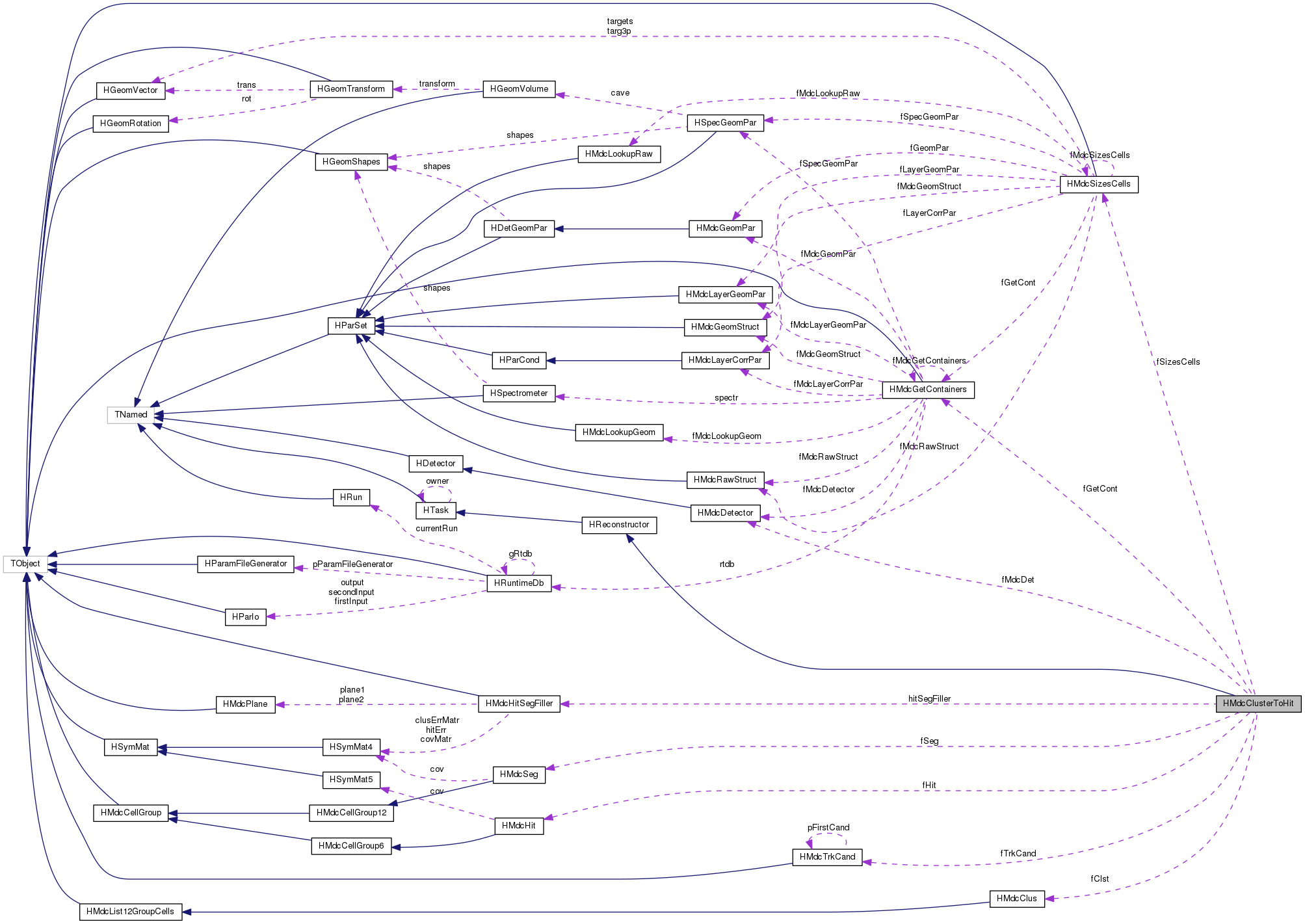

Collaboration diagram for HMdcClusterToHit:

Public Member Functions
	HMdcClusterToHit ()
	HMdcClusterToHit (const Text_t *name, const Text_t *title)
	HMdcClusterToHit (Int_t fSeg1, Int_t fSeg2)
	HMdcClusterToHit (const Text_t *name, const Text_t *title, Int_t fSeg1, Int_t fSeg2)
	~HMdcClusterToHit (void)
Bool_t	init (void)
Bool_t	reinit (void)
Bool_t	finalize (void)
Int_t	execute (void)
void	printStatus (void)
Public Member Functions inherited from HReconstructor
	HReconstructor (void)
	~HReconstructor (void)
	HReconstructor (const Text_t *name, const Text_t *title)
HTask *	next (Int_t &errCode)
HTask *	getTask (const Char_t *name)
Bool_t	connectTask (HTask *task, Int_t n=0)
TObjArray	getTable ()
void	getConnections ()
HTask *	getComposite ()
void	setActive (Bool_t state)
Bool_t	IsFolder (void) const
void	Browse (TBrowser *b)
void	isTimed (Bool_t flag=kTRUE)
void	resetTimer (void)
void	printTimer (void)
Public Member Functions inherited from HTask
	HTask (void)
	HTask (const Text_t name[], const Text_t title[])
virtual	~HTask (void)
virtual HTask *	getOwner ()
virtual void	setOwner (HTask *atask)
virtual Bool_t	setConnections ()
void	setManual ()

Private Member Functions
void	fillSeg (void)
Bool_t	fillHit (Short_t mod)
void	setParContainers (void)
HMdcClusInf *	fillClusInf (Int_t iMod)
void	fillContainers (void)
void	fillTrkCandISeg (Short_t sec, Int_t indexSeg)
void	fillTrkCandOSeg (Short_t sec, Int_t indexSeg)
void	fillTrkCandOSeg (Int_t indexSeg)

Private Attributes
HLocation	locHit
HLocation	locSeg
HLocation	loc
HLocation	locTrkCand
HCategory *	fHitCat
HCategory *	fSegCat
HCategory *	fClusInfCat
HCategory *	fTrkCandCat
HIterator *	iter
HCategory *	fClustCat
HMdcDetector *	fMdcDet
HMdcGetContainers *	fGetCont
HMdcSizesCells *	fSizesCells
HMdcClus *	fClst
Int_t	clusIndex
HMdcHit *	fHit
HMdcSeg *	fSeg
HMdcTrkCand *	fTrkCand
HMdcHitSegFiller	hitSegFiller
Bool_t	isGeant
Bool_t	slotNotAv
Int_t	tFillSeg [2]
Int_t	nMdcs
Bool_t	prntSt

Additional Inherited Members
Protected Attributes inherited from HReconstructor
TList *	fHistograms
Bool_t	fActive
TObjArray	fOutputs
TStopwatch	fTimer
Protected Attributes inherited from HTask
HTask *	owner
Bool_t	manual
Bool_t	isInitialised
Bool_t	isConnected
Bool_t	fIsTimed

Detailed Description

Definition at line 20 of file hmdcclustertohit.h.

Constructor & Destructor Documentation

HMdcClusterToHit::HMdcClusterToHit

(

)

Definition at line 53 of file hmdcclustertohit.cc.

References setParContainers().

HMdcClusterToHit::HMdcClusterToHit	(	const Text_t *	name,
		const Text_t *	title
	)

Definition at line 57 of file hmdcclustertohit.cc.

References setParContainers().

HMdcClusterToHit::HMdcClusterToHit	(	Int_t	fSeg1,
		Int_t	fSeg2
	)

Definition at line 62 of file hmdcclustertohit.cc.

References HMdcTrackDSet::setMdcClusterToHit(), and setParContainers().

HMdcClusterToHit::HMdcClusterToHit	(	const Text_t *	name,
		const Text_t *	title,
		Int_t	fSeg1,
		Int_t	fSeg2
	)

Definition at line 67 of file hmdcclustertohit.cc.

References HMdcTrackDSet::setMdcClusterToHit(), and setParContainers().

HMdcClusterToHit::~HMdcClusterToHit

(

void

)

Definition at line 73 of file hmdcclustertohit.cc.

References HMdcTrackDSet::clearPClusterToHit().

Member Function Documentation

Int_t HMdcClusterToHit::execute ( void  )

virtual

Implements HReconstructor.

Definition at line 134 of file hmdcclustertohit.cc.

References clusIndex, fClst, fClustCat, fillContainers(), fTrkCand, HMdcClus::getIndexParent(), HMdcClus::getIndexRegChilds(), HMdcClus::getIOSeg(), HMdcClus::getOwnIndex(), HMdcClus::getSec(), iter, kSkipEvent, locTrkCand, and slotNotAv.

HMdcClusInf * HMdcClusterToHit::fillClusInf ( Int_t  iMod )

private

Definition at line 299 of file hmdcclustertohit.cc.

References clusIndex, fClst, fClusInfCat, fHit, HMdcClus::getAlphaM1(), HMdcClus::getAlphaM2(), HMdcClus::getClFnLevelM1(), HMdcClus::getClFnLevelM2(), HMdcClus::getClusSizeM1(), HMdcClus::getClusSizeM2(), HMdcClusSim::getListTrM(), HMdcClus::getMod(), HMdcClus::getNDrTimesM1(), HMdcClus::getNDrTimesM2(), HMdcClus::getNMergClustM1(), HMdcClus::getNMergClustM2(), HMdcClusSim::getNTimesM(), HMdcClusSim::getNTracksMod(), HMdcClus::getSigma1M1(), HMdcClus::getSigma1M2(), HMdcClus::getSigma2M1(), HMdcClus::getSigma2M2(), isGeant, loc, HMdcClusInf::setAlpha(), HMdcHit::setChi2(), HMdcClusInf::setClusIndex(), HMdcHit::setClusInfIndex(), HMdcClusInf::setClusSize(), HMdcClusInf::setIsNotFitted(), HMdcClusInf::setLevelClFinding(), HMdcClusInf::setNDrTimes(), HMdcClusInf::setNMergClust(), HMdcClusInf::setNModInCl(), HMdcClusInf::setNModInFit(), HMdcClusInf::setSigma1(), HMdcClusInf::setSigma2(), HMdcHit::setTrackFinder(), and slotNotAv.

Referenced by fillHit().

void HMdcClusterToHit::fillContainers ( void  )

private

Definition at line 161 of file hmdcclustertohit.cc.

References clusIndex, fClst, fGetCont, fHit, fHitCat, fillHit(), fillSeg(), fillTrkCandISeg(), fillTrkCandOSeg(), fSeg, fSegCat, fTrkCand, fTrkCandCat, HMdcClus::getIOSeg(), HMdcClus::getMod(), HMdcClus::getNBins(), HMdcList12GroupCells::getNDrTimes(), HMdcList12GroupCells::getNLayersMod(), HMdcClus::getNMergClust(), HMdcList12GroupCells::getOneLayerGroup(), HMdcClus::getOwnIndex(), HMdcClus::getSec(), HMdcClus::getTypeClFinder(), hitSegFiller, HMdcTrackDSet::isCoilOff(), isGeant, HMdcGetContainers::isModActive(), locHit, locSeg, HMdcSeg::setChi2(), HMdcHit::setChi2(), HMdcSeg::setClusIndex(), HMdcHitSegFiller::setClusParam(), HMdcSeg::setFlag(), HMdcSeg::setHitInd(), HMdcSeg::setIOSeg(), HMdcCellGroup::setLayerGroup(), HMdcSeg::setSec(), HMdcHit::setSecMod(), slotNotAv, and tFillSeg.

Referenced by execute().

Bool_t HMdcClusterToHit::fillHit ( Short_t  mod )

private

Definition at line 282 of file hmdcclustertohit.cc.

References HMdcPlane::calcIntersection(), fClst, fHit, fillClusInf(), HMdcHitSegFiller::fillMdcHitByClus(), HMdcClus::getSec(), HMdcHit::getX(), HMdcClus::getX(), HMdcClus::getXTarg(), HMdcHit::getY(), HMdcClus::getY(), HMdcClus::getYTarg(), HMdcClus::getZ(), HMdcClus::getZTarg(), hitSegFiller, HMdcClusInf::setXYClus(), HMdcClusInf::setXYHit(), and HMdcSizesCellsMod::transTo().

Referenced by fillContainers().

void HMdcClusterToHit::fillSeg ( void  )

private

Definition at line 276 of file hmdcclustertohit.cc.

References HMdcHitSegFiller::fillMdcSegByClus(), fSeg, HMdcSeg::getSec(), HMdcSizesCellsSec::getTargetMiddlePoint(), and hitSegFiller.

Referenced by fillContainers().

void HMdcClusterToHit::fillTrkCandISeg ( Short_t  sec, Int_t  indexSeg  )

private

Definition at line 239 of file hmdcclustertohit.cc.

References fTrkCand, fTrkCandCat, locTrkCand, and slotNotAv.

Referenced by fillContainers().

void HMdcClusterToHit::fillTrkCandOSeg ( Short_t  sec, Int_t  indexSeg  )

private

Definition at line 249 of file hmdcclustertohit.cc.

References fTrkCand, fTrkCandCat, locTrkCand, HMdcTrkCand::setSeg1Ind(), HMdcTrkCand::setSeg2Ind(), and slotNotAv.

Referenced by fillContainers().

void HMdcClusterToHit::fillTrkCandOSeg ( Int_t  indexSeg )

private

Definition at line 262 of file hmdcclustertohit.cc.

References fTrkCand, fTrkCandCat, locTrkCand, and slotNotAv.

Bool_t HMdcClusterToHit::finalize ( void  )

inlinevirtual

Implements HTask.

Definition at line 71 of file hmdcclustertohit.h.

Bool_t HMdcClusterToHit::init ( void  )

virtual

Implements HTask.

Definition at line 84 of file hmdcclustertohit.cc.

References HEvent::addCategory(), HMdcDetector::buildCategory(), HMdcDetector::buildMatrixCategory(), catMdcHit, catMdcSeg, fClusInfCat, fClustCat, fGetCont, fHitCat, fMdcDet, fSegCat, fSizesCells, fTrkCandCat, HEvent::getCategory(), HMdcGetContainers::getCatMdcClus(), HMdcGetContainers::getCatMdcClusInf(), HMdcGetContainers::getCatMdcTrkCand(), Hades::getCurrentEvent(), HMdcGetContainers::getMdcDetector(), HMdcGetContainers::getObject(), HMdcSizesCells::getObject(), gHades, isGeant, HMdcGetContainers::isGeant(), iter, loc, locHit, locSeg, locTrkCand, printStatus(), prntSt, and tFillSeg.

void HMdcClusterToHit::printStatus

(

void

)

Definition at line 343 of file hmdcclustertohit.cc.

References prntSt, and tFillSeg.

Referenced by init().

Bool_t HMdcClusterToHit::reinit ( void  )

virtual

Reimplemented from HTask.

Definition at line 128 of file hmdcclustertohit.cc.

References fClusInfCat, fSizesCells, and HMdcSizesCells::initContainer().

void HMdcClusterToHit::setParContainers ( void  )

private

Definition at line 77 of file hmdcclustertohit.cc.

References HMdcTrackDSet::getModForSeg1(), HMdcTrackDSet::getModForSeg2(), prntSt, HMdcTrackDSet::setClusterToHit(), and tFillSeg.

Referenced by HMdcClusterToHit().

Member Data Documentation

Int_t HMdcClusterToHit::clusIndex

private

Definition at line 36 of file hmdcclustertohit.h.

Referenced by execute(), fillClusInf(), and fillContainers().

HMdcClus* HMdcClusterToHit::fClst

private

Definition at line 35 of file hmdcclustertohit.h.

Referenced by execute(), fillClusInf(), fillContainers(), and fillHit().

HCategory* HMdcClusterToHit::fClusInfCat

private

Definition at line 28 of file hmdcclustertohit.h.

Referenced by fillClusInf(), init(), and reinit().

HCategory* HMdcClusterToHit::fClustCat

private

Definition at line 31 of file hmdcclustertohit.h.

Referenced by execute(), and init().

HMdcGetContainers* HMdcClusterToHit::fGetCont

private

Definition at line 33 of file hmdcclustertohit.h.

Referenced by fillContainers(), and init().

HMdcHit* HMdcClusterToHit::fHit

private

Definition at line 37 of file hmdcclustertohit.h.

Referenced by fillClusInf(), fillContainers(), and fillHit().

HCategory* HMdcClusterToHit::fHitCat

private

Definition at line 26 of file hmdcclustertohit.h.

Referenced by fillContainers(), and init().

HMdcDetector* HMdcClusterToHit::fMdcDet

private

Definition at line 32 of file hmdcclustertohit.h.

Referenced by init().

HMdcSeg* HMdcClusterToHit::fSeg

private

Definition at line 38 of file hmdcclustertohit.h.

Referenced by fillContainers(), and fillSeg().

HCategory* HMdcClusterToHit::fSegCat

private

Definition at line 27 of file hmdcclustertohit.h.

Referenced by fillContainers(), and init().

HMdcSizesCells* HMdcClusterToHit::fSizesCells

private

Definition at line 34 of file hmdcclustertohit.h.

Referenced by init(), and reinit().

HMdcTrkCand* HMdcClusterToHit::fTrkCand

private

Definition at line 39 of file hmdcclustertohit.h.

Referenced by execute(), fillContainers(), fillTrkCandISeg(), and fillTrkCandOSeg().

HCategory* HMdcClusterToHit::fTrkCandCat

private

Definition at line 29 of file hmdcclustertohit.h.

Referenced by fillContainers(), fillTrkCandISeg(), fillTrkCandOSeg(), and init().

HMdcHitSegFiller HMdcClusterToHit::hitSegFiller

private

Definition at line 40 of file hmdcclustertohit.h.

Referenced by fillContainers(), fillHit(), and fillSeg().

Bool_t HMdcClusterToHit::isGeant

private

Definition at line 41 of file hmdcclustertohit.h.

Referenced by fillClusInf(), fillContainers(), and init().

HIterator* HMdcClusterToHit::iter

private

Definition at line 30 of file hmdcclustertohit.h.

Referenced by execute(), and init().

HLocation HMdcClusterToHit::loc

private

Definition at line 24 of file hmdcclustertohit.h.

Referenced by fillClusInf(), and init().

HLocation HMdcClusterToHit::locHit

private

Definition at line 22 of file hmdcclustertohit.h.

Referenced by fillContainers(), and init().

HLocation HMdcClusterToHit::locSeg

private

Definition at line 23 of file hmdcclustertohit.h.

Referenced by fillContainers(), and init().

HLocation HMdcClusterToHit::locTrkCand

private

Definition at line 25 of file hmdcclustertohit.h.

Referenced by execute(), fillTrkCandISeg(), fillTrkCandOSeg(), and init().

Int_t HMdcClusterToHit::nMdcs

private

Definition at line 50 of file hmdcclustertohit.h.

Bool_t HMdcClusterToHit::prntSt

private

Definition at line 51 of file hmdcclustertohit.h.

Referenced by init(), printStatus(), and setParContainers().

Bool_t HMdcClusterToHit::slotNotAv

private

Definition at line 42 of file hmdcclustertohit.h.

Referenced by execute(), fillClusInf(), fillContainers(), fillTrkCandISeg(), and fillTrkCandOSeg().

Int_t HMdcClusterToHit::tFillSeg[2]

private

Definition at line 43 of file hmdcclustertohit.h.

Referenced by fillContainers(), init(), printStatus(), and setParContainers().

---

The documentation for this class was generated from the following files:

• mdctrackD/hmdcclustertohit.h
• mdctrackD/hmdcclustertohit.cc
