class HBeam: public TObject


 Beam line transport

 Author:  T. Hennino (core), J. Biernat , J.Markert
          Pluto implementation by IF
 Written: 14.11.2013

Function Members (Methods)

public:

	HBeam()
	HBeam(const HBeam&)
virtual	~HBeam()
void	TObject::AbstractMethod(const char* method) const
Int_t	addDetector(TString name, Double_t distance, Int_t cutType, Double_t xcut = 50, Double_t ycut = 50)
virtual void	TObject::AppendPad(Option_t* option = "")
virtual void	TObject::Browse(TBrowser* b)
static TClass*	Class()
virtual const char*	TObject::ClassName() const
virtual void	TObject::Clear(Option_t* = "")
virtual TObject*	TObject::Clone(const char* newname = "") const
virtual Int_t	TObject::Compare(const TObject* obj) const
virtual void	TObject::Copy(TObject& object) const
void	createBeam(HBeamParticle& part)
Bool_t	createDetectorHits(HBeamParticle& part)
virtual void	TObject::Delete(Option_t* option = "")MENU
virtual Int_t	TObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual void	TObject::Draw(Option_t* option = "")
virtual void	TObject::DrawClass() constMENU
virtual TObject*	TObject::DrawClone(Option_t* option = "") constMENU
virtual void	TObject::Dump() constMENU
virtual void	TObject::Error(const char* method, const char* msgfmt) const
virtual void	TObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual void	TObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual void	TObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual void	TObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*	TObject::FindObject(const char* name) const
virtual TObject*	TObject::FindObject(const TObject* obj) const
vector<HBeamElement>&	getDetectors()
virtual Option_t*	TObject::GetDrawOption() const
static Long_t	TObject::GetDtorOnly()
vector<HBeamElement>&	getElements()
vector<HBeamParticle>&	getHistory()
virtual const char*	TObject::GetIconName() const
virtual const char*	TObject::GetName() const
virtual char*	TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_t	TObject::GetObjectStat()
virtual Option_t*	TObject::GetOption() const
virtual const char*	TObject::GetTitle() const
virtual UInt_t	TObject::GetUniqueID() const
virtual Bool_t	TObject::HandleTimer(TTimer* timer)
virtual ULong_t	TObject::Hash() const
virtual void	TObject::Info(const char* method, const char* msgfmt) const
virtual Bool_t	TObject::InheritsFrom(const char* classname) const
virtual Bool_t	TObject::InheritsFrom(const TClass* cl) const
Bool_t	initBeamLine(TString filename, Int_t targetElementNum, Bool_t debug = kFALSE)
virtual void	TObject::Inspect() constMENU
void	TObject::InvertBit(UInt_t f)
virtual TClass*	IsA() const
virtual Bool_t	TObject::IsEqual(const TObject* obj) const
virtual Bool_t	TObject::IsFolder() const
Bool_t	TObject::IsOnHeap() const
virtual Bool_t	TObject::IsSortable() const
Bool_t	TObject::IsZombie() const
virtual void	TObject::ls(Option_t* option = "") const
void	TObject::MayNotUse(const char* method) const
vector<HBeamParticle>&	newParticle()
virtual Bool_t	TObject::Notify()
void	TObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static void	TObject::operator delete(void* ptr)
static void	TObject::operator delete(void* ptr, void* vp)
static void	TObject::operator delete[](void* ptr)
static void	TObject::operator delete[](void* ptr, void* vp)
void*	TObject::operator new(size_t sz)
void*	TObject::operator new(size_t sz, void* vp)
void*	TObject::operator new[](size_t sz)
void*	TObject::operator new[](size_t sz, void* vp)
HBeam&	operator=(const HBeam&)
virtual void	TObject::Paint(Option_t* option = "")
virtual void	TObject::Pop()
virtual void	TObject::Print(Option_t* option = "") const
void	printBeamLine(Bool_t trans = kFALSE)
void	printBeamProfile()
void	printDetectors()
virtual Int_t	TObject::Read(const char* name)
virtual void	TObject::RecursiveRemove(TObject* obj)
void	TObject::ResetBit(UInt_t f)
virtual void	TObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual void	TObject::SavePrimitive(ostream& out, Option_t* option = "")
void	setBeam(Int_t id, Double_t p, Double_t dbeamtube_size_x, Double_t dbeamtube_size_y, Double_t xoff = 0, Double_t yoff = 0)
void	setBeamProfile(Double_t sigma_beam = 0.05, Double_t flat_radius = 0)
void	setBeamResolution(Double_t dpx = 0.001, Double_t dpy = 0.005, Double_t dpz = 0.06)
void	TObject::SetBit(UInt_t f)
void	TObject::SetBit(UInt_t f, Bool_t set)
virtual void	TObject::SetDrawOption(Option_t* option = "")MENU
static void	TObject::SetDtorOnly(void* obj)
static void	TObject::SetObjectStat(Bool_t stat)
void	setTargetElementOnly(Int_t id)
virtual void	TObject::SetUniqueID(UInt_t uid)
virtual void	ShowMembers(TMemberInspector&)
virtual void	Streamer(TBuffer&)
void	StreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual void	TObject::SysError(const char* method, const char* msgfmt) const
Bool_t	TObject::TestBit(UInt_t f) const
Int_t	TObject::TestBits(UInt_t f) const
Bool_t	transport(HBeamParticle& part)
virtual void	TObject::UseCurrentStyle()
virtual void	TObject::Warning(const char* method, const char* msgfmt) const
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const

protected:

virtual void	TObject::DoError(int level, const char* location, const char* fmt, va_list va) const
void	TObject::MakeZombie()

private:

static Double_t	profile(Double_t* x, Double_t* par)
Bool_t	setTargetElement(UInt_t n)

Data Members

public:

enum TObject::EStatusBits {	kCanDelete
	kMustCleanup
	kObjInCanvas
	kIsReferenced
	kHasUUID
	kCannotPick
	kNoContextMenu
	kInvalidObject
};
enum TObject::[unnamed] {	kIsOnHeap
	kNotDeleted
	kZombie
	kBitMask
	kSingleKey
	kOverwrite
	kWriteDelete
};

private:

HBeamParticle	fBeam	beam particle
TF1*	fProfile	-> beam profile
vector<HBeamElement>	fdetectors	vector of all detectors
vector<HBeamElement>	felements	vector of all beam elements
Double_t	ffromPluto[5]	units -> Pluto ->transport
vector<HBeamParticle>	fhistory	! vector of beam particle at all detectors
Int_t	fnum_target	index of elemnt target
Double_t	ftoPluto[5]	units -> transport ->Pluto

Class Charts

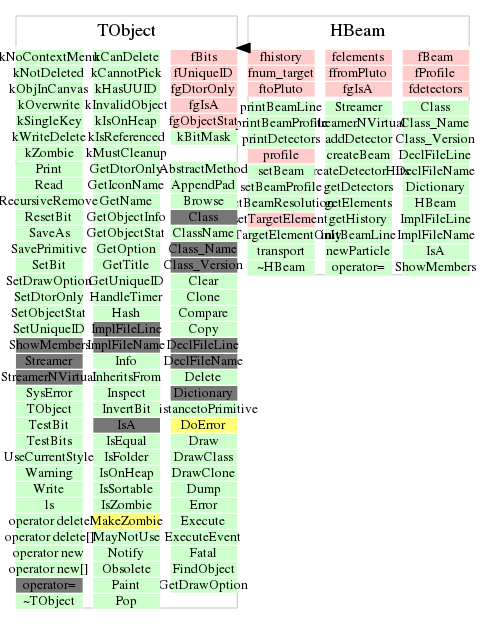

Inheritance Inherited Members Includes Libraries

Function documentation

Double_t profile(Double_t* x, Double_t* par)

Bool_t setTargetElement(UInt_t n)

HBeam()

setBeamProfile(Double_t sigma_beam = 0.05, Double_t flat_radius = 0)

setBeamResolution(Double_t dpx = 0.001, Double_t dpy = 0.005, Double_t dpz = 0.06)

~HBeam()

vector<HBeamElement>& getDetectors()

{ return fdetectors ; }

vector<HBeamElement>& getElements()

{ return felements ; }

vector<HBeamParticle>& getHistory()

{ return fhistory ; }

void setTargetElementOnly(Int_t id)

{ fnum_target=id; }

Int_t addDetector(TString name, Double_t distance, Int_t cutType, Double_t xcut = 50, Double_t ycut = 50)

 adds a detector "name" at place "distance" [in mm]
 (distance must be negative if placed before the target)
 cutType (0,1,2)(no,radial,square) xcut/ycut [mm]

void setBeam(Int_t id, Double_t p, Double_t dbeamtube_size_x, Double_t dbeamtube_size_y, Double_t xoff = 0, Double_t yoff = 0)

void createBeam(HBeamParticle& part)

 beam profile
 x-y symmetric profile

Bool_t transport(HBeamParticle& part)

Bool_t createDetectorHits(HBeamParticle& part)

calc particles at detector places

vector <HBeamParticle>& newParticle()

void printBeamLine(Bool_t trans = kFALSE)

void printBeamProfile()

void printDetectors()

Bool_t initBeamLine(TString filename, Int_t targetElementNum, Bool_t debug = kFALSE)

opens the ASCII description of the beam line
