HYDRA - THE HADES ANALYSIS PACKAGE » (UNKNOWN) » HMaterials

class HMaterials: public TObject

_HADES_CLASS_DESCRIPTION


 This class stores the properties of materials that are used in the Hades
 Mdc's: atomic mass, atomic number, density in g/cm^3, radiation length in cm
 and mean excitation energy in eV.
 Data for atomic and nuclear properties were obtained particle data group.
 http://pdg.lbl.gov/2009/AtomicNuclearProperties/index.html
 The properties can be accessed via the various get functions.
 These require a material id that is stored in the cName array. Many
 materials have several possible id's. For example, to get a property of
 hydrogen gas either "H" or "hydrogen" will work as identifier. Capitalization
 will be ignored for the id.

Function Members (Methods)

public:
HMaterials()
HMaterials(const HMaterials&)
~HMaterials()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTObject::Clear(Option_t* = "")
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
static Float_tgetA(const Char_t* id)
static Float_tgetDensity(const Char_t* id)
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
static Float_tgetExciteEner(const Char_t* id)
virtual const char*TObject::GetIconName() const
virtual const char*TObject::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
static Float_tgetRadLength(const Char_t* id)
virtual const char*TObject::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
static Float_tgetZ(const Char_t* id)
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
voidTObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HMaterials&operator=(const HMaterials&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTObject::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(ostream& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
static voidTObject::SetObjectStat(Bool_t stat)
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector&)
virtual voidStreamer(TBuffer&)
voidStreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
static Int_tgetIdx(const Char_t* id)
voidTObject::MakeZombie()

Data Members

private:
static const Char_t*cName[17]Material names.
static const Float_tfA[17]Atomic mass in g/mole.
static const Float_tfI[17]Mean excitation energy.
static const Float_tfRho[17]Density in g/cm³
static const Float_tfX0[17]Radiation length in cm.
static const Float_tfZ[17]Atomic number.
static const Int_tnElementsNumber of materials stored in this class.

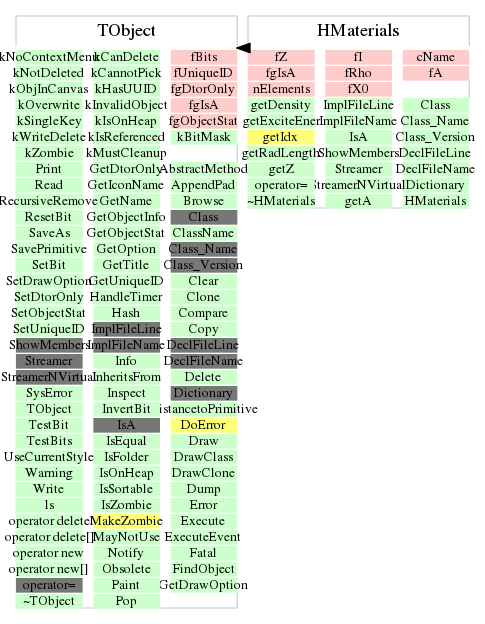

Class Charts

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

Int_t getIdx(const Char_t* id)
 Finds the array index for the material with name 'id'.
Float_t getA(const Char_t* id)
{ return fA [getIdx(id)]; }
Float_t getZ(const Char_t* id)
{ return fZ [getIdx(id)]; }
Float_t getDensity(const Char_t* id)
{ return fRho[getIdx(id)]; }
Float_t getExciteEner(const Char_t* id)
{ return fI [getIdx(id)]; }
Float_t getRadLength(const Char_t* id)
{ return fX0 [getIdx(id)]; }
