HYDRA - THE HADES ANALYSIS PACKAGE » (UNKNOWN) » HMdcClusterToHit

class HMdcClusterToHit: public HReconstructor

_HADES_CLASS_DESCRIPTION


  HMdcClusterToHit("","", Int_t flagSeg1, Int_t flagSeg2)

  fills the data objects of HMdcHit and HMdcSeg
  after track candidate search task (HMdcTrackFinder).

 flagSeg1=-1;0;1
   -1 - don't fill HMdcSeg
   0 (or 1) - at the typeClustFinder=1 (see hmdctrackfinder.cc)
     HMdcSeg will filled by hits from MDC1 (or MDC2)
 If in segment 1 is only one MDC (1 or 2) and
 flagSeg1=0 or 1  HMdcSeg will filled by Hit in this MDC.
 flagSeg2= -1;2;3
    -/- -/-

  HMdcHit and HMdcSeg:
  Chi2 - size of cluster (in proj. plot bins)
  user flag - "number of wires in cluster"*100 + "number of merged clusters"

  Using:
  Insert this task in task list after HMdcTrackFinder.

Function Members (Methods)

public:
HMdcClusterToHit()
HMdcClusterToHit(const Text_t* name, const Text_t* title)
HMdcClusterToHit(Int_t fSeg1, Int_t fSeg2)
HMdcClusterToHit(const Text_t* name, const Text_t* title, Int_t fSeg1, Int_t fSeg2)
virtual~HMdcClusterToHit()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidHReconstructor::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTNamed::Clear(Option_t* option = "")
virtual TObject*TNamed::Clone(const char* newname = "") const
virtual Int_tTNamed::Compare(const TObject* obj) const
virtual Bool_tHReconstructor::connectTask(HTask* task, Int_t n = 0)
virtual voidTNamed::Copy(TObject& named) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual Int_texecute()
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual voidTNamed::FillBuffer(char*& buffer)
virtual Bool_tfinalize()
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
virtual HTask*HReconstructor::getComposite()
virtual voidHReconstructor::getConnections()
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual const char*TObject::GetIconName() const
virtual const char*TNamed::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
virtual HTask*HTask::getOwner()
TObjArrayHReconstructor::getTable()
virtual HTask*HReconstructor::getTask(const Char_t* name)
virtual const char*TNamed::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTNamed::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual Bool_tinit()
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tHReconstructor::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTNamed::IsSortable() const
virtual voidHReconstructor::isTimed(Bool_t flag = kTRUE)
Bool_tTObject::IsZombie() const
virtual voidTNamed::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual HTask*HReconstructor::next(Int_t& errCode)
virtual Bool_tTObject::Notify()
voidTObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HTask&HTask::operator=(const HTask&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTNamed::Print(Option_t* option = "") const
voidprintStatus()
virtual voidHReconstructor::printTimer()
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
virtual Bool_treinit()
voidTObject::ResetBit(UInt_t f)
virtual voidHReconstructor::resetTimer()
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(ostream& out, Option_t* option = "")
voidHReconstructor::setActive(Bool_t state)MENU
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
virtual Bool_tHTask::setConnections()
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidHTask::setManual()
virtual voidTNamed::SetName(const char* name)MENU
virtual voidTNamed::SetNameTitle(const char* name, const char* title)
static voidTObject::SetObjectStat(Bool_t stat)
virtual voidHTask::setOwner(HTask* atask)
virtual voidTNamed::SetTitle(const char* title = "")MENU
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector&)
virtual Int_tTNamed::Sizeof() const
virtual voidStreamer(TBuffer&)
voidStreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()
private:
HMdcClusInf*fillClusInf(Int_t iMod)
voidfillContainers()
Bool_tfillHit(Short_t mod)
voidfillSeg()
voidfillTrkCandISeg(Short_t sec, Int_t indexSeg)
voidfillTrkCandOSeg(Int_t indexSeg)
voidfillTrkCandOSeg(Short_t sec, Int_t indexSeg)
voidsetParContainers()

Data Members

protected:
Bool_tHReconstructor::fActiveActive flag
TList*HReconstructor::fHistogramsList of histograms generated by this reconstructor.
Bool_tHTask::fIsTimedtimer flag
TStringTNamed::fNameobject identifier
TObjArrayHReconstructor::fOutputs
TStopwatchHReconstructor::fTimerTask timer
TStringTNamed::fTitleobject title
Bool_tHTask::isConnected
Bool_tHTask::isInitialised
Bool_tHTask::manual
HTask*HTask::owner
private:
Int_tclusIndexindex of fClst in catMdcClus
HMdcClus*fClst
HCategory*fClusInfCatpointer to HMdcSeg data category
HCategory*fClustCatpointer to Cluster data category
HMdcGetContainers*fGetCont
HMdcHit*fHit
HCategory*fHitCatpointer to HMdcHit data category
HMdcDetector*fMdcDet
HMdcSeg*fSeg
HCategory*fSegCatpointer to HMdcSeg data category
HMdcSizesCells*fSizesCells
HMdcTrkCand*fTrkCand
HCategory*fTrkCandCatpointer to HMdcTrkCand data category
HMdcHitSegFillerhitSegFiller
Bool_tisGeant
HIterator*iter
HLocationloc
HLocationlocHitlocation for new "hit" object
HLocationlocSeglocation for new "segment" object
HLocationlocTrkCandlocation for new HMdcTrkCand object
Int_tnMdcsNumb. mdc's in cluster
Bool_tprntStkTRUE - status printed already
Bool_tslotNotAv
Int_ttFillSeg[2][0]-segment 1, [1]-segment 2

Class Charts

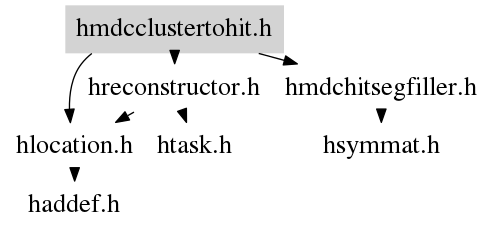

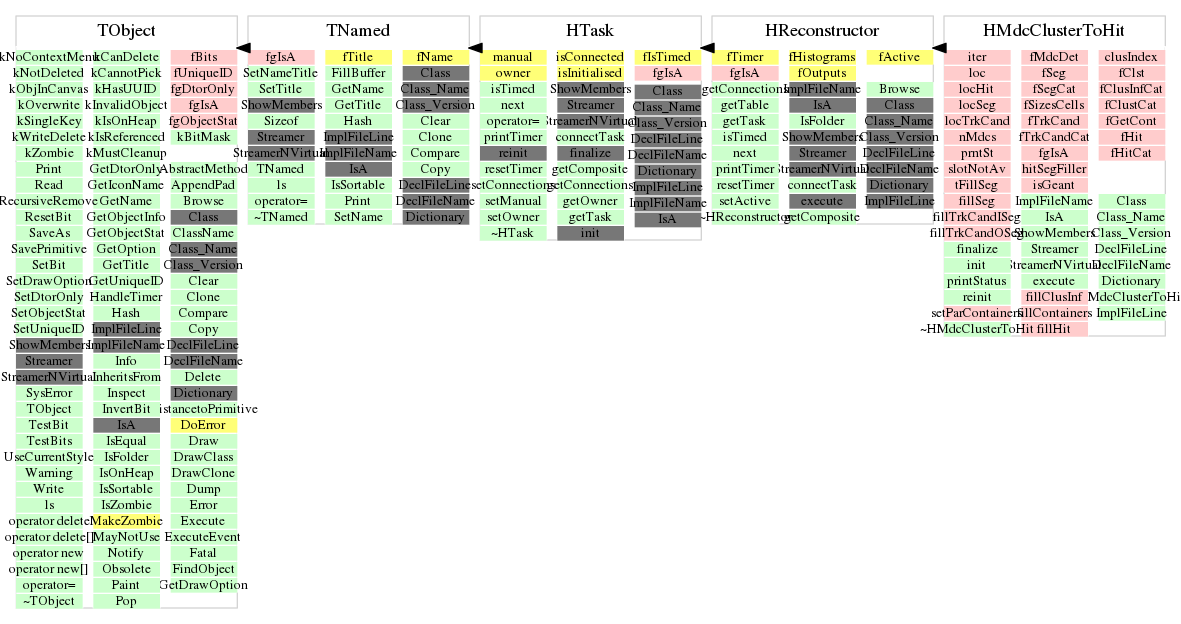

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

HMdcClusterToHit()
HMdcClusterToHit(const Text_t* name, const Text_t* title)
HMdcClusterToHit(Int_t fSeg1, Int_t fSeg2)
HMdcClusterToHit(const Text_t* name, const Text_t* title, Int_t fSeg1, Int_t fSeg2)
~HMdcClusterToHit(void)
void setParContainers(void)
Bool_t init(void)
Bool_t reinit(void)
Int_t execute(void)
void fillContainers(void)
void fillTrkCandISeg(Short_t sec, Int_t indexSeg)
void fillTrkCandOSeg(Short_t sec, Int_t indexSeg)
void fillTrkCandOSeg(Int_t indexSeg)
   if(fTrkCand->getSeg2Ind() <0) {
     fTrkCand->addSeg2Ind(indexSeg);
   } else {
void fillSeg(void)
Bool_t fillHit(Short_t mod)
HMdcClusInf* fillClusInf(Int_t iMod)
void printStatus(void)
 prints the parameters to the screen
Bool_t finalize(void)
{return kTRUE;}
