HYDRA - THE HADES ANALYSIS PACKAGE » (UNKNOWN) » HMdcDataword

class HMdcDataword: public TObject

 File: $RCSfile: $

 Author: Joern Wuestenfeld

 Version: $Revision $
 Modified by $Author $

Function Members (Methods)

public:
HMdcDataword()
HMdcDataword(Bool_t comment)
HMdcDataword(const HMdcDataword&)
virtual~HMdcDataword()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
Bool_tcheckConsistency(UInt_t version = 0, UInt_t data = 0)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTObject::Clear(Option_t* = "")
voidclearAddress()
voidclearAll()
voidclearData()
voidclearHeader()
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
Bool_tdecode(const UInt_t data, Bool_t consistencyCheck = kFALSE)
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
voiddump()
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
Int_tgetAddress()
Int_tgetChannel()
UInt_tgetCodedDataword(UInt_t version = 0)
Int_tgetDecodeType()
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
Int_tgetErrorFlag()
Int_tgetEventNumber()
Int_tgetHit()
virtual const char*TObject::GetIconName() const
Int_tgetMboAddress()
Int_tgetModule()
virtual const char*TObject::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
Int_tgetSector()
Int_tgetStatusCode()
Int_tgetStatusData()
Int_tgetSubEventSize()
Int_tgetTdcNumber()
Int_tgetTime()
Int_tgetTime1()
virtual const char*TObject::GetTitle() const
Int_tgetTriggerType()
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
voidTObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HMdcDataword&operator=(const HMdcDataword&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
voidprint(UInt_t version)
virtual voidTObject::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(ostream& out, Option_t* option = "")
voidsetAddress(Int_t addr)
voidsetAddress(Int_t s, Int_t m, Int_t mb, Int_t t, Int_t e)
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
voidsetChannel(Int_t val)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidsetErrorFlag(Int_t val)
voidsetEventNumber(Int_t val)
voidsetHit(Int_t val)
voidsetMboAddress(Int_t val)
static voidTObject::SetObjectStat(Bool_t stat)
voidsetQuietMode(Bool_t b = kTRUE)
voidsetSubEventSize(Int_t val)
voidsetTdcNumber(Int_t val)
voidsetTime(Int_t val)
voidsetTime1(Int_t val)
voidsetTriggerType(Int_t val)
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector&)
virtual voidStreamer(TBuffer&)
voidStreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
Bool_tsubHeader(const UInt_t* data, UInt_t version, Bool_t consistencyCheck = kFALSE)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()

Data Members

public:
enum { m1
m3
m4
m5
m11
m16
m24
m26
m29
m32
};
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
Int_tchannelNumber of channel in TDC
Bool_tdebugEnable debugging of dataword
Int_tdecodeTypeType of decoding
Int_tentryNumber of entry
Int_terrorFlagStatus information from subevent
Int_teventNumberNumber of event
Int_thitNumber of hit in TDC (0 or 1)
Int_tmboMdcRaw container coordinate: mbo
Int_tmboAddressAdress information of motherboard
Int_tmoduleMdcRaw container coordinate: module
Bool_tnoComment! Switches of all comments
Int_tsectorMdcRaw container coordinate: sector
Int_tstatusCodeCode of Statusword, see doc.
Int_tstatusDataSee doc.
Int_tsubEventSizeNumber of datawords in subevent
Int_ttdcMdcRaw container coordinate: tdc (tdc * 8 + channel)
Int_ttdcNumberNumber of TDC chip on MBO
Int_ttimeMeasured time in channels (~500ps)
Int_ttime1second hit of channel
Int_ttriggerTypeType of trigger (1 = normal, 9 = calibration)

Class Charts

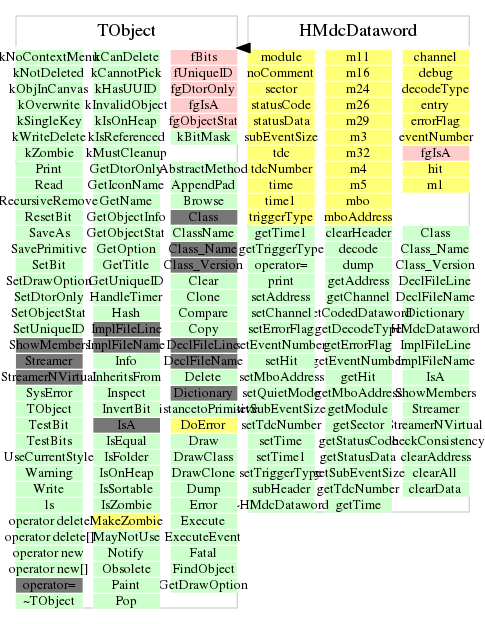

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

HMdcDataword(Bool_t comment)
 Default constructor.
 Coment switches off possible debug printouts.
HMdcDataword(const HMdcDataword& )
 Constructor.
 Debugoutput is always switched on. Use setQuiteMode() to disable it.
Bool_t checkConsistency(UInt_t version = 0, UInt_t data = 0)
 checks for the different decoding version whether the decoded value are consistent.
 I.e. that
           tdcNb in [ 0,   11]
        channels in [ 0,    7]
           time1 in [ 0,0x7ff] (only here hex value!)
            time in [ 0,0x7ff] (only here hex value!)

 return values:
  kTRUE all checks passed
  kFALSE else
void clearData(void)
Bool_t decode(const UInt_t data, Bool_t consistencyCheck = kFALSE)
 Decoding of the data word. version sets the
 different decode version. A consistency check of the data
 word is performed optionally (consistencyCheck=kTRUE).
 Bit 29 to 31 define decoding type:
 (data>>29)&0x7 -> type:
          0 = debug(uncomressed) dataformat
          2 = status datawords
          4 = compressed data format (t1 and t2 in one word )
void dump(void)
 dumps the event sequence number to the screen.
UInt_t getCodedDataword(UInt_t version = 0)
 Recode the 32 bit data word. version sets the
 different decode version.
Bool_t subHeader(const UInt_t* data, UInt_t version, Bool_t consistencyCheck = kFALSE)
 decodes the subheader information of the mdc data word
 version sets the different decode version. A consistency check of the data
 word is performed optionally (consistencyCheck=kTRUE).
void print(UInt_t version)
Print out the contents of the dataword.
Int_t getAddress(void)
void setAddress(Int_t addr)
HMdcDataword(Bool_t comment)
~HMdcDataword(void)
{;}
void clearAll(void)
{clearData();clearHeader();clearAddress();}
void clearAddress(void)
{sector = module = mbo = tdc = 0;}
void clearHeader(void)
{decodeType=eventNumber=triggerType=errorFlag=subEventSize=-1;}
Int_t getDecodeType(void)
 Get functions for member variables
{return decodeType;}
Int_t getEventNumber(void)
{return eventNumber;}
Int_t getTriggerType(void)
{return triggerType;}
Int_t getErrorFlag(void)
{return errorFlag;}
Int_t getModule(void)
{return module;}
Int_t getSector(void)
{return sector;}
Int_t getSubEventSize(void)
{return subEventSize;}
Int_t getMboAddress(void)
{return mboAddress;}
Int_t getTdcNumber(void)
{return tdcNumber;}
Int_t getChannel(void)
{return channel;}
Int_t getHit(void)
{return hit;}
Int_t getTime(void)
{return time;}
Int_t getTime1(void)
{return time1;}
Int_t getStatusCode(void)
{return statusCode;}
Int_t getStatusData(void)
{return statusData;}
void setAddress(Int_t s, Int_t m, Int_t mb, Int_t t, Int_t e)
 Set functions for member variables
{sector=s;module=m;mbo=mb,tdc=t;entry=e;}
void setEventNumber(Int_t val)
{eventNumber = val;}
void setTriggerType(Int_t val)
{triggerType = val;}
void setErrorFlag(Int_t val)
{errorFlag = val;}
void setSubEventSize(Int_t val)
{subEventSize = val;}
void setMboAddress(Int_t val)
{mboAddress = val;}
void setTdcNumber(Int_t val)
{tdcNumber = val;}
void setChannel(Int_t val)
{channel = val;}
void setHit(Int_t val)
{hit = val;}
void setTime(Int_t val)
{time = val;}
void setTime1(Int_t val)
{time1 = val;}
void setQuietMode(Bool_t b = kTRUE)
{noComment = b;}
