class HMdcLayer: public TObject

Function Members (Methods)

public:

	HMdcLayer()
	HMdcLayer(const HMdcLayer&)
	~HMdcLayer()
void	TObject::AbstractMethod(const char* method) const
virtual void	TObject::AppendPad(Option_t* option = "")
virtual void	TObject::Browse(TBrowser* b)
void	calcCropedLayer(Int_t s, Int_t m, Int_t l)
static TClass*	Class()
virtual const char*	TObject::ClassName() const
virtual void	TObject::Clear(Option_t* = "")
virtual TObject*	TObject::Clone(const char* newname = "") const
virtual Int_t	TObject::Compare(const TObject* obj) const
virtual void	TObject::Copy(TObject& object) const
virtual void	TObject::Delete(Option_t* option = "")MENU
virtual Int_t	TObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual void	TObject::Draw(Option_t* option = "")
virtual void	TObject::DrawClass() constMENU
virtual TObject*	TObject::DrawClone(Option_t* option = "") constMENU
virtual void	TObject::Dump() constMENU
virtual void	TObject::Error(const char* method, const char* msgfmt) const
virtual void	TObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual void	TObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual void	TObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual void	TObject::Fatal(const char* method, const char* msgfmt) const
void	fillLayerPoints(HMdcSizesCells* fSizesCells, Bool_t secsys = kFALSE)
void	fillRKPlane(HMdcSizesCells* fSizesCells)
virtual TObject*	TObject::FindObject(const char* name) const
virtual TObject*	TObject::FindObject(const TObject* obj) const
void	getCropedLayerPoints(Int_t s, Int_t m, Int_t l, TVector2& p0, TVector2& p1, TVector2& p2, TVector2& p3)
Bool_t	getCropedLayersEdge(TVector2& p, Int_t s, Int_t m, Int_t l, Double_t& xmin, Double_t& xmax, Double_t& ymin, Double_t& ymax)
virtual Option_t*	TObject::GetDrawOption() const
static Long_t	TObject::GetDtorOnly()
virtual const char*	TObject::GetIconName() const
void	getLayerPoints(Int_t s, Int_t m, Int_t l, TVector2& p0, TVector2& p1, TVector2& p2, TVector2& p3)
Bool_t	getLayersEdge(TVector2& p, Int_t s, Int_t m, Int_t l, Double_t& xmin, Double_t& xmax, Double_t& ymin, Double_t& ymax)
Bool_t	getLayersEdge(TVector2& p, Int_t s, Int_t m, Int_t l, Double_t& xmin, Double_t& xmax, Double_t& ymin, Double_t& ymax, Double_t& xmincrop, Double_t& xmaxcrop, Double_t& ymincrop, Double_t& ymaxcrop)
const HMdcPlane&	getMdcPlane(Int_t s)
const HMdcPlane*	getMdcPlanes()
virtual const char*	TObject::GetName() const
virtual char*	TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_t	TObject::GetObjectStat()
virtual Option_t*	TObject::GetOption() const
const HGeomVector&	getTargetMidPoint()
virtual const char*	TObject::GetTitle() const
virtual UInt_t	TObject::GetUniqueID() const
virtual Bool_t	TObject::HandleTimer(TTimer* timer)
virtual ULong_t	TObject::Hash() const
virtual void	TObject::Info(const char* method, const char* msgfmt) const
virtual Bool_t	TObject::InheritsFrom(const char* classname) const
virtual Bool_t	TObject::InheritsFrom(const TClass* cl) const
virtual void	TObject::Inspect() constMENU
void	TObject::InvertBit(UInt_t f)
virtual TClass*	IsA() const
Bool_t	isCroped(TVector2& p, Int_t s, Int_t m, Int_t l)
virtual Bool_t	TObject::IsEqual(const TObject* obj) const
virtual Bool_t	TObject::IsFolder() const
Bool_t	TObject::IsOnHeap() const
virtual Bool_t	TObject::IsSortable() const
Bool_t	TObject::IsZombie() const
virtual void	TObject::ls(Option_t* option = "") const
void	TObject::MayNotUse(const char* method) const
virtual Bool_t	TObject::Notify()
void	TObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static void	TObject::operator delete(void* ptr)
static void	TObject::operator delete(void* ptr, void* vp)
static void	TObject::operator delete[](void* ptr)
static void	TObject::operator delete[](void* ptr, void* vp)
void*	TObject::operator new(size_t sz)
void*	TObject::operator new(size_t sz, void* vp)
void*	TObject::operator new[](size_t sz)
void*	TObject::operator new[](size_t sz, void* vp)
HMdcLayer&	operator=(const HMdcLayer&)
virtual void	TObject::Paint(Option_t* option = "")
virtual void	TObject::Pop()
virtual void	TObject::Print(Option_t* option = "") const
void	printCropedLayer(Int_t s, Int_t m, Int_t l)
void	printLayer(Int_t s, Int_t m, Int_t l)
virtual Int_t	TObject::Read(const char* name)
virtual void	TObject::RecursiveRemove(TObject* obj)
void	TObject::ResetBit(UInt_t f)
virtual void	TObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual void	TObject::SavePrimitive(ostream& out, Option_t* option = "")
void	TObject::SetBit(UInt_t f)
void	TObject::SetBit(UInt_t f, Bool_t set)
virtual void	TObject::SetDrawOption(Option_t* option = "")MENU
static void	TObject::SetDtorOnly(void* obj)
void	setMDCCrop(Int_t m, Double_t xlowcrop, Double_t xupcrop, Double_t ylowcrop, Double_t yupcrop)
static void	TObject::SetObjectStat(Bool_t stat)
virtual void	TObject::SetUniqueID(UInt_t uid)
virtual void	ShowMembers(TMemberInspector&)
virtual void	Streamer(TBuffer&)
void	StreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual void	TObject::SysError(const char* method, const char* msgfmt) const
Bool_t	TObject::TestBit(UInt_t f) const
Int_t	TObject::TestBits(UInt_t f) const
virtual void	TObject::UseCurrentStyle()
virtual void	TObject::Warning(const char* method, const char* msgfmt) const
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const

protected:

virtual void	TObject::DoError(int level, const char* location, const char* fmt, va_list va) const
void	TObject::MakeZombie()

Data Members

public:

enum TObject::EStatusBits {	kCanDelete
	kMustCleanup
	kObjInCanvas
	kIsReferenced
	kHasUUID
	kCannotPick
	kNoContextMenu
	kInvalidObject
};
enum TObject::[unnamed] {	kIsOnHeap
	kNotDeleted
	kZombie
	kBitMask
	kSingleKey
	kOverwrite
	kWriteDelete
};

private:

TVector2	layerP[6][4][6][4]	4 corner points for each layer (layer sys)
TVector2	layerPcrop[6][4][6][4]	4 corner points for each croped layer (layer sys)
HMdcPlane	plMdc[6]	lab sys
HGeomVector	targetMidPoint	lab sys
Double_t	xcrop[4][2]	module wise x at lower and upper edge (symmetric)
Double_t	ycrop[4][2]	module wise y low and up

Class Charts

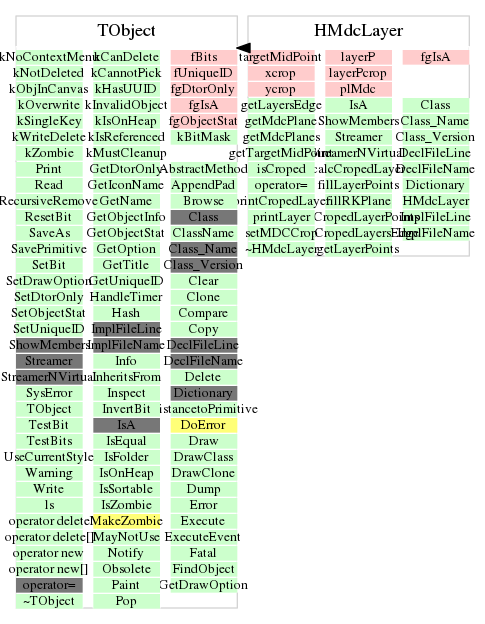

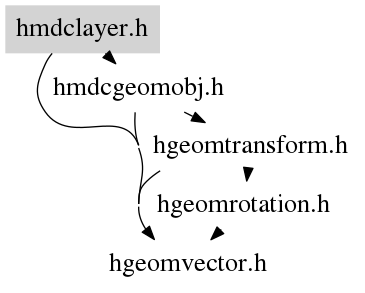

Inheritance Inherited Members Includes Libraries

Function documentation

HMdcLayer()

void setMDCCrop(Int_t m, Double_t xlowcrop, Double_t xupcrop, Double_t ylowcrop, Double_t yupcrop)

void getLayerPoints(Int_t s, Int_t m, Int_t l, TVector2& p0, TVector2& p1, TVector2& p2, TVector2& p3)

void getCropedLayerPoints(Int_t s, Int_t m, Int_t l, TVector2& p0, TVector2& p1, TVector2& p2, TVector2& p3)

Bool_t getLayersEdge(TVector2& p, Int_t s, Int_t m, Int_t l, Double_t& xmin, Double_t& xmax, Double_t& ymin, Double_t& ymax, Double_t& xmincrop, Double_t& xmaxcrop, Double_t& ymincrop, Double_t& ymaxcrop)

 calculates min and max values of x and y  for a given point p
 on the MDC layer. Both for full layer and croped layer

                  y|
                   |
        p3         L2           p2

\        |
\       |
            \      |0,0    /    x
         ----\-----|------/----
           L3 \    |     /  L1
\   |
\  |
\ |

                p4 |  p1
                   | L4
                   |

Bool_t getLayersEdge(TVector2& p, Int_t s, Int_t m, Int_t l, Double_t& xmin, Double_t& xmax, Double_t& ymin, Double_t& ymax)

 calculates min and max values of x and y  for a given point p
 on the MDC layer. Both for full layer and croped layer

                  y|
                   |
        p3         L2           p2

\        |
\       |
            \      |0,0    /    x
         ----\-----|------/----
           L3 \    |     /  L1
\   |
\  |
\ |

                p4 |  p1
                   | L4
                   |

Bool_t getCropedLayersEdge(TVector2& p, Int_t s, Int_t m, Int_t l, Double_t& xmin, Double_t& xmax, Double_t& ymin, Double_t& ymax)

 calculates min and max values of x and y  for a given point p
 on the MDC layer. Both for full layer and croped layer

                  y|
                   |
        p3         L2           p2

\        |
\       |
            \      |0,0    /    x
         ----\-----|------/----
           L3 \    |     /  L1
\   |
\  |
\ |

                p4 |  p1
                   | L4
                   |

Bool_t isCroped(TVector2& p, Int_t s, Int_t m, Int_t l)

 calculates min and max values of x and y  for a given point p
 on the MDC crop layer. return kTRUE i p is outside

                  y|
                   |
        p3         L2           p2

\        |
\       |
            \      |0,0    /    x
         ----\-----|------/----
           L3 \    |     /  L1
\   |
\  |
\ |

                p4 |  p1
                   | L4
                   |

void fillRKPlane(HMdcSizesCells* fSizesCells)

 path length correction for vertex
 Labsys

void fillLayerPoints(HMdcSizesCells* fSizesCells, Bool_t secsys = kFALSE)

 set layers in layer coord system (using HMdcSizesCells)
 calulates the croped layer realtive to the full layer
 uses xcrop and ycrop values (default values are set in constructor).
 if secsys = kTRUE the layer points are transformed to
 sector system (default kFALSE).

void calcCropedLayer(Int_t s, Int_t m, Int_t l)

void printLayer(Int_t s, Int_t m, Int_t l)

void printCropedLayer(Int_t s, Int_t m, Int_t l)

HMdcLayer()

const HGeomVector& getTargetMidPoint()

{ return targetMidPoint; }

const HMdcPlane& getMdcPlane(Int_t s)

{ return plMdc[s]; }

const HMdcPlane* getMdcPlanes()

{ return &plMdc[0];}
