HYDRA - THE HADES ANALYSIS PACKAGE » (UNKNOWN) » HParticleMdc

class HParticleMdc: public TObject

_HADES_CLASS_DESCRIPTION



 HParticleMdc

 helper object keeping additional information for investigation.
 The object is stored in the same order as the HParticleCand objects

Function Members (Methods)

public:
HParticleMdc()
HParticleMdc(const HParticleMdc&)
virtual~HParticleMdc()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTObject::Clear(Option_t* = "")
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
voidfill(HMdcSeg*)
voidfill(HMdcTrkCand*)
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
Float_tgetdedx(Int_t mod)
Float_tgetdedxSeg(Int_t seg)
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual const char*TObject::GetIconName() const
Short_tgetIndex()
Float_tgetMdc1X() const
Float_tgetMdc1Y() const
Float_tgetMdc2X() const
Float_tgetMdc2Y() const
Float_tgetMdc3X() const
Float_tgetMdc3Y() const
Float_tgetMdc4X() const
Float_tgetMdc4Y() const
virtual const char*TObject::GetName() const
Int_tgetNBinsClus() const
Int_tgetNCellsClus() const
Int_tgetNMergedClus() const
Int_tgetNRemovedCellsInnerSeg()
UChar_tgetNWireCutdedx(Int_t mod)
UChar_tgetNWireCutdedxSeg(Int_t seg)
UChar_tgetNWirededx(Int_t mod)
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
Float_tgetSigmadedx(Int_t mod)
Float_tgetSigmadedxSeg(Int_t seg)
virtual const char*TObject::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
voidTObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HParticleMdc&operator=(const HParticleMdc&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTObject::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(ostream& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidsetFlag(const Int_t fl)
voidsetIndex(Short_t ind)
static voidTObject::SetObjectStat(Bool_t stat)
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector&)
virtual voidStreamer(TBuffer&)
voidStreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()

Data Members

private:
floatdedx[4]mean value of t2-t1 per module
floatdedxCombinedmean value of t2-t1 for inner+outer segment
floatdedxInnermean value of t2-t1 for inner segment
UChar_tdedxNWire[4]number of wires per module before truncated mean procedure
UChar_tdedxNWireCut[4]number of wires per module cutted by truncated mean procedure
UChar_tdedxNWireCutCombinednumber of wires in inner+outer segment cutted by truncated mean procedure
UChar_tdedxNWireCutInnernumber of wires in inner segment cutted by truncated mean procedure
UChar_tdedxNWireCutOuternumber of wires in outer segment cutted by truncated mean procedure
floatdedxOutermean value of t2-t1 for outer segment
floatdedxSigma[4]sigma of t2-t1 distribution per module
floatdedxSigmaCombinedsigma of t2-t1 distribution in inner+outer segment
floatdedxSigmaInnersigma of t2-t1 distribution in inner segment
floatdedxSigmaOutersigma of t2-t1 distribution in outer segment
Short_tfIndexown index
Short_tfMdc1xx1,y1 - cross point of the segment line with first mdc layer (in sec.coor.sys.)
Short_tfMdc1yConvert to mm: Float_t(x1)*0.1; Float_t(y1)*0.1;
Short_tfMdc2xx2,y2 - cross point of the segment line with second mdc layer (in sec.coor.sys.)
Short_tfMdc2yConvert to mm: Float_t(x2)*0.1; Float_t(y2)*0.1;
Short_tfMdc3xx1,y1 - cross point of the segment line with third mdc layer (in sec.coor.sys.)
Short_tfMdc3yConvert to mm: Float_t(x1)*0.1; Float_t(y1)*0.1;
Short_tfMdc4xx2,y2 - cross point of the segment line with 4th mdc layer (in sec.coor.sys.)
Short_tfMdc4yConvert to mm: Float_t(x2)*0.1; Float_t(y2)*0.1;
Int_tfMdcFlagCluster info: number of cells, bins and merged clusters

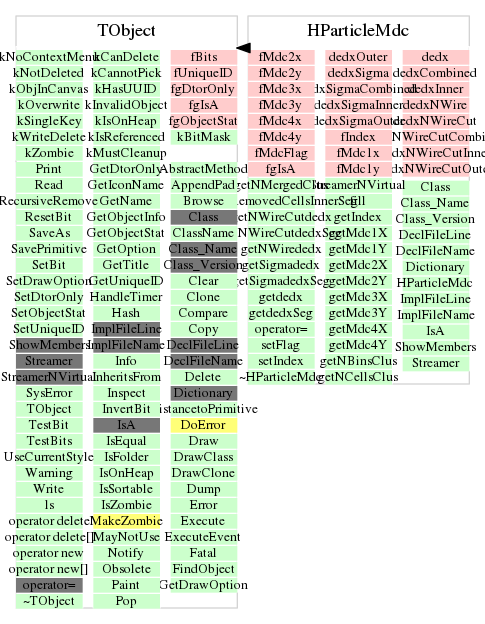

Class Charts

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

HParticleMdc()
~HParticleMdc()
Int_t getNRemovedCellsInnerSeg()
 returns the number of wires remove by the fit
 for innner segment
Float_t getdedxSeg(Int_t seg)
 returns dedx in
 combined segment (seg==2)
 inner seg (seg==0)
 outer seg (seg==1)
Float_t getSigmadedxSeg(Int_t seg)
 returns sigma dedx in
 combined segment (seg==2)
 inner seg (seg==0)
 outer seg (seg==1)
UChar_t getNWireCutdedxSeg(Int_t seg)
 returns the number of removed wires in
 combined segment (seg==2)
 inner seg (seg==0)
 outer seg (seg==1)
void fill(HMdcSeg* )
 fills all need vairables from HMdcSeg
 depending if it is inner or outer segment
void fill(HMdcTrkCand* )
 fills all need variables from HMdcTrkCand
HParticleMdc()
void setIndex(Short_t ind)
{ fIndex = ind; }
Short_t getIndex()
{ return fIndex;}
void setFlag(const Int_t fl)
{ fMdcFlag=fl; }
Int_t getNBinsClus(void)
{ return fMdcFlag >> 16;}
Int_t getNCellsClus(void)
{ return (fMdcFlag & 0xFFFF)/100;}
Int_t getNMergedClus(void)
{ return (fMdcFlag & 0xFFFF)%100;}
Float_t getMdc1X(void)
{ return Float_t(fMdc1x) * 0.1;}
Float_t getMdc1Y(void)
{ return Float_t(fMdc1y) * 0.1;}
Float_t getMdc2X(void)
{ return Float_t(fMdc2x) * 0.1;}
Float_t getMdc2Y(void)
{ return Float_t(fMdc2y) * 0.1;}
Float_t getMdc3X(void)
{ return Float_t(fMdc3x) * 0.1;}
Float_t getMdc3Y(void)
{ return Float_t(fMdc3y) * 0.1;}
Float_t getMdc4X(void)
{ return Float_t(fMdc4x) * 0.1;}
Float_t getMdc4Y(void)
{ return Float_t(fMdc4y) * 0.1;}
Float_t getdedx(Int_t mod)
{ return dedx [mod]; }
Float_t getSigmadedx(Int_t mod)
{ return dedxSigma [mod]; }
UChar_t getNWirededx(Int_t mod)
{ return dedxNWire [mod]; }
UChar_t getNWireCutdedx(Int_t mod)
{ return dedxNWireCut[mod]; }
