HYDRA - THE HADES ANALYSIS PACKAGE » (UNKNOWN) » HQAMaker

class HQAMaker: public HReconstructor

_HADES_CLASS_DESCRIPTION


 HQAMaker

 HQAMaker is a Hydra event-loop task which iterates over events and fills
 histograms and scalers, defined in separate classes.

For more information, see the QA home page.

Function Members (Methods)

public:

	HQAMaker()
	HQAMaker(const Text_t* name, const Text_t* title)
virtual	~HQAMaker()
void	TObject::AbstractMethod(const char* method) const
virtual void	TObject::AppendPad(Option_t* option = "")
virtual void	HReconstructor::Browse(TBrowser* b)
static TClass*	Class()
virtual const char*	TObject::ClassName() const
virtual void	TNamed::Clear(Option_t* option = "")
virtual TObject*	TNamed::Clone(const char* newname = "") const
virtual Int_t	TNamed::Compare(const TObject* obj) const
virtual Bool_t	HReconstructor::connectTask(HTask* task, Int_t n = 0)
virtual void	TNamed::Copy(TObject& named) const
virtual void	TObject::Delete(Option_t* option = "")MENU
virtual Int_t	TObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual void	TObject::Draw(Option_t* option = "")
virtual void	TObject::DrawClass() constMENU
virtual TObject*	TObject::DrawClone(Option_t* option = "") constMENU
virtual void	TObject::Dump() constMENU
virtual void	TObject::Error(const char* method, const char* msgfmt) const
virtual Int_t	execute()
virtual void	TObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual void	TObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual void	TObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual void	TObject::Fatal(const char* method, const char* msgfmt) const
virtual void	TNamed::FillBuffer(char*& buffer)
virtual Bool_t	finalize()
virtual TObject*	TObject::FindObject(const char* name) const
virtual TObject*	TObject::FindObject(const TObject* obj) const
void	generatePDF(Bool_t kpdf = kTRUE)
virtual HTask*	HReconstructor::getComposite()
virtual void	HReconstructor::getConnections()
virtual Option_t*	TObject::GetDrawOption() const
static Long_t	TObject::GetDtorOnly()
virtual const char*	TObject::GetIconName() const
Bool_t	getIteratorPointers()
virtual const char*	TNamed::GetName() const
virtual char*	TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_t	TObject::GetObjectStat()
virtual Option_t*	TObject::GetOption() const
virtual HTask*	HTask::getOwner()
TObjArray	HReconstructor::getTable()
virtual HTask*	HReconstructor::getTask(const Char_t* name)
virtual const char*	TNamed::GetTitle() const
virtual UInt_t	TObject::GetUniqueID() const
virtual Bool_t	TObject::HandleTimer(TTimer* timer)
virtual ULong_t	TNamed::Hash() const
virtual void	TObject::Info(const char* method, const char* msgfmt) const
virtual Bool_t	TObject::InheritsFrom(const char* classname) const
virtual Bool_t	TObject::InheritsFrom(const TClass* cl) const
virtual Bool_t	init()
void	initIteratorPointers()
virtual void	TObject::Inspect() constMENU
void	TObject::InvertBit(UInt_t f)
virtual TClass*	IsA() const
virtual Bool_t	TObject::IsEqual(const TObject* obj) const
virtual Bool_t	HReconstructor::IsFolder() const
Bool_t	TObject::IsOnHeap() const
virtual Bool_t	TNamed::IsSortable() const
virtual void	HReconstructor::isTimed(Bool_t flag = kTRUE)
Bool_t	TObject::IsZombie() const
virtual void	TNamed::ls(Option_t* option = "") const
void	TObject::MayNotUse(const char* method) const
virtual HTask*	HReconstructor::next(Int_t& errCode)
virtual Bool_t	TObject::Notify()
void	TObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static void	TObject::operator delete(void* ptr)
static void	TObject::operator delete(void* ptr, void* vp)
static void	TObject::operator delete[](void* ptr)
static void	TObject::operator delete[](void* ptr, void* vp)
void*	TObject::operator new(size_t sz)
void*	TObject::operator new(size_t sz, void* vp)
void*	TObject::operator new[](size_t sz)
void*	TObject::operator new[](size_t sz, void* vp)
HTask&	HTask::operator=(const HTask&)
virtual void	TObject::Paint(Option_t* option = "")
virtual void	TObject::Pop()
void	Print(Option_t* option = "")
virtual void	HReconstructor::printTimer()
virtual Int_t	TObject::Read(const char* name)
virtual void	TObject::RecursiveRemove(TObject* obj)
virtual Bool_t	HTask::reinit()
void	TObject::ResetBit(UInt_t f)
virtual void	HReconstructor::resetTimer()
virtual void	TObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual void	TObject::SavePrimitive(ostream& out, Option_t* option = "")
void	HReconstructor::setActive(Bool_t state)MENU
void	setBeamTime(TString beam)
void	TObject::SetBit(UInt_t f)
void	TObject::SetBit(UInt_t f, Bool_t set)
virtual Bool_t	HTask::setConnections()
virtual void	TObject::SetDrawOption(Option_t* option = "")MENU
static void	TObject::SetDtorOnly(void* obj)
void	setIntervalSize(Int_t size)
void	HTask::setManual()
virtual void	TNamed::SetName(const char* name)MENU
virtual void	TNamed::SetNameTitle(const char* name, const char* title)
static void	TObject::SetObjectStat(Bool_t stat)
void	setOutputDir(const Char_t* fdir)
virtual void	HTask::setOwner(HTask* atask)
void	setParContainers()
void	setPSFileName(const Char_t* fname)
void	setSamplingRate(Int_t rate)
virtual void	TNamed::SetTitle(const char* title = "")MENU
virtual void	TObject::SetUniqueID(UInt_t uid)
void	setUseSlowPar(Bool_t use)
virtual void	ShowMembers(TMemberInspector&)
virtual Int_t	TNamed::Sizeof() const
virtual void	Streamer(TBuffer&)
void	StreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual void	TObject::SysError(const char* method, const char* msgfmt) const
Bool_t	TObject::TestBit(UInt_t f) const
Int_t	TObject::TestBits(UInt_t f) const
virtual void	TObject::UseCurrentStyle()
virtual void	TObject::Warning(const char* method, const char* msgfmt) const
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
void	writeToFile(Bool_t kwtf = kTRUE)

protected:

virtual void	TObject::DoError(int level, const char* location, const char* fmt, va_list va) const
void	TObject::MakeZombie()

private:

void	buildPSFilename()
void	fillGlobalVertex()
void	fillHistDaqScaler()
void	fillHistEmc()
void	fillHistMatching()
void	fillHistMdc()
void	fillHistPid()
void	fillHistRich()
void	fillHistRichMDC()
void	fillHistRpc()
void	fillHistRungeKutta()
void	fillHistShower()
void	fillHistShowerRpc()
void	fillHistSpline()
void	fillHistStart()
void	fillHistTof()
void	fillHistWall()
void	fillMassSpectrum()
void	fillScalers()
void	finalizeHistDaqScaler()
void	finalizeHistMdc()
void	finalizeHistPid()
void	finalizeHistRich()
void	finalizeHistRichMDC()
void	finalizeHistRpc()
void	finalizeHistShower()
void	finalizeHistShowerRpc()
void	finalizeHistSpline()
void	finalizeHistStart()
void	finalizeHistTof()
void	finalizeMassSpectrum()
Bool_t	makePS()

Data Members

public:

enum TObject::EStatusBits {	kCanDelete
	kMustCleanup
	kObjInCanvas
	kIsReferenced
	kHasUUID
	kCannotPick
	kNoContextMenu
	kInvalidObject
};
enum TObject::[unnamed] {	kIsOnHeap
	kNotDeleted
	kZombie
	kBitMask
	kSingleKey
	kOverwrite
	kWriteDelete
};

protected:

static Int_t	cutResults[4]	contains 0/1 for cuts in t1,t2 and t2-1 after testTimeCuts()
HMdcCutStat*	cutStat	! container for statistics on cuts //asd
Bool_t	HReconstructor::fActive	Active flag
TList*	HReconstructor::fHistograms	List of histograms generated by this reconstructor.
Bool_t	HTask::fIsTimed	timer flag
TString	TNamed::fName	object identifier
TObjArray	HReconstructor::fOutputs
TStopwatch	HReconstructor::fTimer	Task timer
TString	TNamed::fTitle	object title
Bool_t	HTask::isConnected
Bool_t	HTask::isInitialised
Bool_t	HTask::manual
HTask*	HTask::owner

private:

HSlowPar*	SlowPar
HQAFileInfoTree	TFileInfo	Object for File characteristics, which is filled to tree
HQAMdcTree	TMdc	Object for Mdc detector, which is filled to Tree
HQAPhysicsTree	TPhy	Object with Physics Information which is written to Tree
HQARichTree	TRich	Object for Rich detector, which is filled to Tree
HQARpcTree	TRpc	Object for Tof detector, which is filled to Tree
HQAShowerTree	TShw	Object for Shower detector, which is filled to Tree
HQAStartTree	TStart	Object for Start detector, which is filled to Tree
HQATofTree	TTof	Object for Tof detector, which is filled to Tree
Float_t	betaMin	! beta cut
HCategory*	catRungeKuttaTrk
HCategory*	catShoHit
HCategory*	catSplineTrk
HCategory*	catTfClust
HCategory*	catTfHit
TString	dstFile	! DST filename
HCategory*	fCatParticleCand
HCategory*	fCatRpcCluster
HCategory*	fCatRpcHit
TString	fDir	! QA output directory
Bool_t	fUseSlowPar	! kTRUE(defualt) to use HSlowPar container
TString	fbeamtime	beam time needed for oraslowmanager
TFile*	fileTree	This is the output file for the outputTree
HQAHistograms*	hists	! General QA histograms
Int_t	intervalSize	! number of events per interval (for variation hists)
Bool_t	isSim	! boolean for sim/real
HIterator*	iterEmcCal	! HEmcCal iterator
HIterator*	iterEmcClus	! HEmcClus iterator
HIterator*	iterEmcRaw	! HEmcRaw iterator
HIterator*	iterFwHit	! HWallHit iterator
HIterator*	iterFwRaw	! HWallRaw iterator
HIterator*	iterHTBoxChan	!
HIterator*	iterMdcCal1	! HMdcCal1 iterator
HIterator*	iterMdcHit	! HMdcHit iterator
HIterator*	iterMdcRaw	! HMdcRaw iterator
HIterator*	iterMdcSeg	! HMdcSeg iterator
HIterator*	iterMetaMatch	! HMetaMatch iterator
HIterator*	iterParticleCand	! HPidTrackCand iterator
HIterator*	iterRichCal	! HRichCal iterator
HIterator*	iterRichHit	! HRichHit iterator
HIterator*	iterRpcCluster	! HRpcCluster iterator
HIterator*	iterRpcHit	! HRpcHit iterator
HIterator*	iterRungeKuttaTrk	! HSplineTrack iterator
HIterator*	iterShoHit	! HShowerHit iterator
HIterator*	iterSplineTrk	! HSplineTrack iterator
HIterator*	iterStCal	! HStartCal iterator
HIterator*	iterStHit	! HStartHit iterator
HIterator*	iterTofCluster	! HTofCluster iterator
HIterator*	iterTofHit	! HTofHit iterator
Bool_t	kFIRST
Bool_t	kPDF
Bool_t	kWriteToFile	! boolean for writing hists to gHades output file
HLocation	lMdc	location used in the execute for HMdcSeg
HLocation	lTrack	location used in the execute for HKickTrack
Int_t	nCountCalEvents	! number of calibration events analyzed
Int_t	nEvent	! number of events analyzed
Int_t	nInterval	! interval number (for variation hists)
Int_t	nProcessed	! number of events QA-analyzed
TTree*	outputTree	This is the tree where important numbers of the different histograms are stored
TString	psFile	! PostScript output filename
Int_t	samplingRate	! rate of event sampling
HQAScalers*	scalers	! Run QA scalers
HQAVariations*	varHists	! Run variation histograms

Class Charts

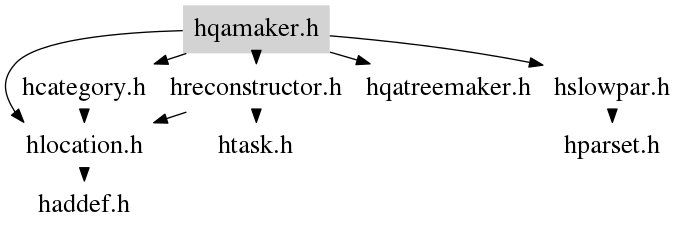

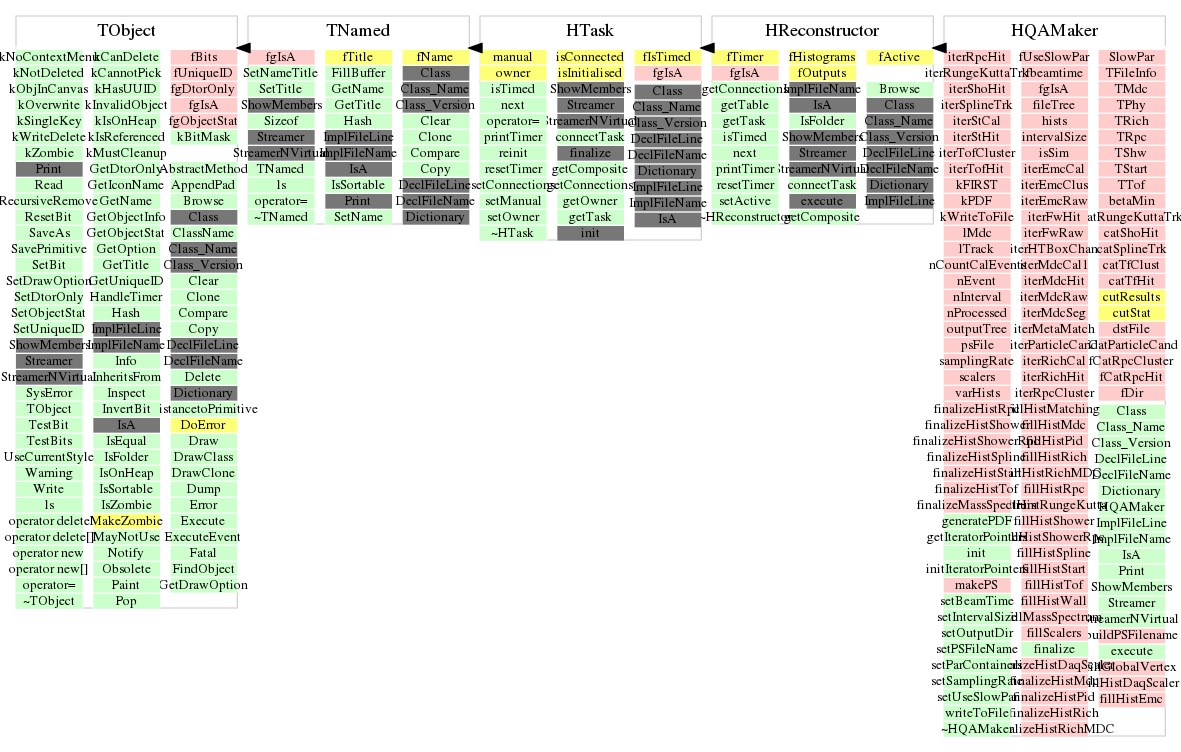

Inheritance Inherited Members Includes Libraries

Function documentation

HQAMaker(void)

 Default constructor

HQAMaker(const Text_t* name, const Text_t* title)

 Constructor: Name, title

~HQAMaker(void)

void initIteratorPointers()

 Set iterator pointers to NULL

Bool_t init(void)

 Create and book QA components, get iterator pointers if the categories
 exist in current event

void Print(Option_t* option = "")

 Print box showing QA summary

Bool_t getIteratorPointers()

 Search current event for relevant categories... make an iterator
 if category exists

void setParContainers()

 creates the parameter containers MdcLookupGeom/MdcLookupRaw/MdcTimeCut if they
 exist and adds them to the list of parameter containers in the runtime
 database
lookup   =(HMdcLookupGeom*)gHades->getRuntimeDb()->getContainer("MdcLookupGeom");
lookupRaw=(HMdcLookupRaw*) gHades->getRuntimeDb()->getContainer("MdcLookupRaw");

Int_t execute()

Fill histograms for events with a frequency of 1/samplingRate

void buildPSFilename()

 Build Postscript file name, either from user-supplied name or from DST filename

Bool_t finalize(void)

 Finalize histograms and fill scalers

Bool_t makePS()

 After finalizing, generate PS file using HQAOutputPS

void fillHistStart()

void finalizeHistStart()

void fillHistRich()

void finalizeHistRich()

void fillHistMdc()

void finalizeHistMdc()

void fillHistTof()

void finalizeHistTof()

void fillHistRpc()

void finalizeHistRpc()

void fillHistShower()

void finalizeHistShower()

void fillHistWall()

void fillHistEmc()

void fillHistSpline()

void fillHistRungeKutta()

void finalizeHistDaqScaler()

 show only not empty bins:
  ( (TAxis *)h->GetXaxis()) ->SetRange(0,nCountCalEvents)
---- set Xaxis range for  Daq Scalers

void fillHistRichMDC()

void finalizeHistRichMDC()

void fillScalers()

 Fill scalar quantities with operations on QA histograms

void fillHistMatching()

void fillHistPid()

void finalizeHistPid()

void fillHistDaqScaler()

void fillHistShowerRpc()

void finalizeHistShowerRpc()

void fillGlobalVertex()

void fillMassSpectrum()

void finalizeMassSpectrum()

void setSamplingRate(Int_t rate)

void setIntervalSize(Int_t size)

void setPSFileName(const Char_t* fname)

void setOutputDir(const Char_t* fdir)

void setUseSlowPar(Bool_t use)

{fUseSlowPar=use;}

void generatePDF(Bool_t kpdf = kTRUE)

void writeToFile(Bool_t kwtf = kTRUE)

void setBeamTime(TString beam)

{fbeamtime=beam;}

void finalizeHistSpline()

{}
