class HRich700Digitizer: public HReconstructor


 $Id: $

*-- Author  : S. Lebedev

_HADES_CLASS_DESCRIPTION


  HRich700Digitizer

  This class handles the mapping between xy position and PMT

Function Members (Methods)

public:

	HRich700Digitizer(const Text_t* name = "Rich700Digitizer", const Text_t* title = "Rich700Digitizer")
virtual	~HRich700Digitizer()
void	TObject::AbstractMethod(const char* method) const
virtual void	TObject::AppendPad(Option_t* option = "")
virtual void	HReconstructor::Browse(TBrowser* b)
static TClass*	Class()
virtual const char*	TObject::ClassName() const
virtual void	TNamed::Clear(Option_t* option = "")
virtual TObject*	TNamed::Clone(const char* newname = "") const
virtual Int_t	TNamed::Compare(const TObject* obj) const
virtual Bool_t	HReconstructor::connectTask(HTask* task, Int_t n = 0)
virtual void	TNamed::Copy(TObject& named) const
virtual void	TObject::Delete(Option_t* option = "")MENU
virtual Int_t	TObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual void	TObject::Draw(Option_t* option = "")
virtual void	TObject::DrawClass() constMENU
virtual TObject*	TObject::DrawClone(Option_t* option = "") constMENU
virtual void	TObject::Dump() constMENU
virtual void	TObject::Error(const char* method, const char* msgfmt) const
virtual Int_t	execute()
virtual void	TObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual void	TObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual void	TObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual void	TObject::Fatal(const char* method, const char* msgfmt) const
virtual void	TNamed::FillBuffer(char*& buffer)
virtual Bool_t	finalize()
virtual TObject*	TObject::FindObject(const char* name) const
virtual TObject*	TObject::FindObject(const TObject* obj) const
virtual HTask*	HReconstructor::getComposite()
virtual void	HReconstructor::getConnections()
Bool_t	getDeltaElectronUse()
static HRich700Digitizer*	getDigitizer()
virtual Option_t*	TObject::GetDrawOption() const
static Long_t	TObject::GetDtorOnly()
virtual const char*	TObject::GetIconName() const
virtual const char*	TNamed::GetName() const
virtual char*	TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_t	TObject::GetObjectStat()
virtual Option_t*	TObject::GetOption() const
virtual HTask*	HTask::getOwner()
TObjArray	HReconstructor::getTable()
virtual HTask*	HReconstructor::getTask(const Char_t* name)
virtual const char*	TNamed::GetTitle() const
virtual UInt_t	TObject::GetUniqueID() const
virtual Bool_t	TObject::HandleTimer(TTimer* timer)
virtual ULong_t	TNamed::Hash() const
virtual void	TObject::Info(const char* method, const char* msgfmt) const
virtual Bool_t	TObject::InheritsFrom(const char* classname) const
virtual Bool_t	TObject::InheritsFrom(const TClass* cl) const
virtual Bool_t	init()
virtual void	TObject::Inspect() constMENU
void	TObject::InvertBit(UInt_t f)
virtual TClass*	IsA() const
virtual Bool_t	TObject::IsEqual(const TObject* obj) const
virtual Bool_t	HReconstructor::IsFolder() const
Bool_t	TObject::IsOnHeap() const
virtual Bool_t	TNamed::IsSortable() const
virtual void	HReconstructor::isTimed(Bool_t flag = kTRUE)
Bool_t	TObject::IsZombie() const
virtual void	TNamed::ls(Option_t* option = "") const
void	TObject::MayNotUse(const char* method) const
virtual HTask*	HReconstructor::next(Int_t& errCode)
virtual Bool_t	TObject::Notify()
void	TObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static void	TObject::operator delete(void* ptr)
static void	TObject::operator delete(void* ptr, void* vp)
static void	TObject::operator delete[](void* ptr)
static void	TObject::operator delete[](void* ptr, void* vp)
void*	TObject::operator new(size_t sz)
void*	TObject::operator new(size_t sz, void* vp)
void*	TObject::operator new[](size_t sz)
void*	TObject::operator new[](size_t sz, void* vp)
HTask&	HTask::operator=(const HTask&)
virtual void	TObject::Paint(Option_t* option = "")
virtual void	TObject::Pop()
virtual void	TNamed::Print(Option_t* option = "") const
virtual void	HReconstructor::printTimer()
virtual Int_t	TObject::Read(const char* name)
virtual void	TObject::RecursiveRemove(TObject* obj)
virtual Bool_t	reinit()
void	TObject::ResetBit(UInt_t f)
virtual void	HReconstructor::resetTimer()
virtual void	TObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual void	TObject::SavePrimitive(ostream& out, Option_t* option = "")
void	HReconstructor::setActive(Bool_t state)MENU
void	TObject::SetBit(UInt_t f)
void	TObject::SetBit(UInt_t f, Bool_t set)
virtual Bool_t	HTask::setConnections()
void	setDeltaElectronMinMomCut(Float_t s0 = 2., Float_t s1 = 2., Float_t s2 = 4., Float_t s3 = 2., Float_t s4 = 2., Float_t s5 = 4.)
void	setDeltaElectronUse(Bool_t use, Bool_t useDeltaMomSel = kFALSE, Int_t ionId = 109, Float_t momCut = 20., Float_t probDelta = 2.)
virtual void	TObject::SetDrawOption(Option_t* option = "")MENU
static void	TObject::SetDtorOnly(void* obj)
void	HTask::setManual()
virtual void	TNamed::SetName(const char* name)MENU
virtual void	TNamed::SetNameTitle(const char* name, const char* title)
static void	TObject::SetObjectStat(Bool_t stat)
virtual void	HTask::setOwner(HTask* atask)
void	setStoreOnlyConvertedPhotonTrackIds(Bool_t s)
virtual void	TNamed::SetTitle(const char* title = "")MENU
virtual void	TObject::SetUniqueID(UInt_t uid)
virtual void	ShowMembers(TMemberInspector&)
virtual Int_t	TNamed::Sizeof() const
virtual void	Streamer(TBuffer&)
void	StreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual void	TObject::SysError(const char* method, const char* msgfmt) const
Bool_t	TObject::TestBit(UInt_t f) const
Int_t	TObject::TestBits(UInt_t f) const
virtual void	TObject::UseCurrentStyle()
virtual void	TObject::Warning(const char* method, const char* msgfmt) const
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const

protected:

virtual void	TObject::DoError(int level, const char* location, const char* fmt, va_list va) const
void	TObject::MakeZombie()

private:

void	addAllTrackIds()
void	addCrossTalkHit(Int_t sector, Int_t col, Int_t row, Int_t trackId)
void	addNoiseHits()
void	addRichCal(Int_t sector, Int_t col, Int_t row, Int_t trackId)
void	addTrackId(Int_t sector, Int_t col, Int_t row, Int_t trackId)
void	processEvent()
void	processRichDirect(HGeantRichDirect* direct)
void	processRichPhoton(HGeantRichPhoton* photon)
void	setProbabilityForDeltaElectrons()
Bool_t	workOnDeltaElectrons(HGeantKine* primary, Int_t sector)

Data Members

public:

enum TObject::EStatusBits {	kCanDelete
	kMustCleanup
	kObjInCanvas
	kIsReferenced
	kHasUUID
	kCannotPick
	kNoContextMenu
	kInvalidObject
};
enum TObject::[unnamed] {	kIsOnHeap
	kNotDeleted
	kZombie
	kBitMask
	kSingleKey
	kOverwrite
	kWriteDelete
};

protected:

Bool_t	HReconstructor::fActive	Active flag
TList*	HReconstructor::fHistograms	List of histograms generated by this reconstructor.
Bool_t	HTask::fIsTimed	timer flag
TString	TNamed::fName	object identifier
TObjArray	HReconstructor::fOutputs
TStopwatch	HReconstructor::fTimer	Task timer
TString	TNamed::fTitle	object title
Bool_t	HTask::isConnected
Bool_t	HTask::isInitialised
Bool_t	HTask::manual
HTask*	HTask::owner

private:

HCategory*	fCatKine	!
HCategory*	fCatRichCal	!
HCategory*	fCatRichDirect	!
HCategory*	fCatRichPhoton	!
HRich700DigiPar*	fDigiPar	!
static HRich700Digitizer*	fDigitizer	!
Int_t	fIonID	! beam ion (au ==109)
Float_t	fMomMaxDeltaElecCut	! delta electron smearing : primary electrons below this mom are considdered to be delta electrons [MeV/c]
Float_t	fMomMinDeltaCut[6]	! min mom cut per sector (account for different mirror materials) [MeV/c]
HRich700Pmt	fPmt
Float_t	fProbDeltaAccepted	! 0 - 1 probability to accept a delta electron (yield adjustment)
Bool_t	fStoreOnlyConvertedPhotonTrackIds
Bool_t	fUseDeltaElectrons	! switch for use/not use delta electron time smearing
Bool_t	fUseDeltaMomSelection	! switch for use/not use momentum below momMaxDeltaElecCut for primary electrons to identify delta electrons
map<HGeantKine,float,less<HGeantKine>,allocator<pair<HGeantKine* const,float> > >::iterator	fitDelta	! map delta electron candidates to prob
map<HGeantKine*,Float_t>	fmDeltaTrackProb	! map delta electron candidates to prob

Class Charts

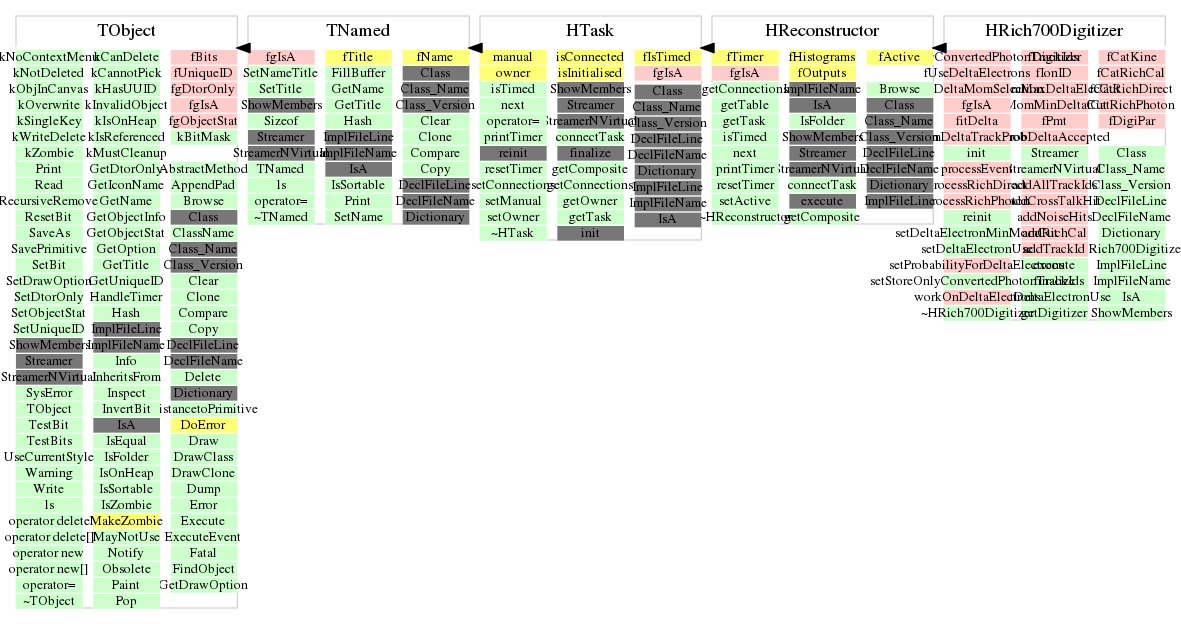

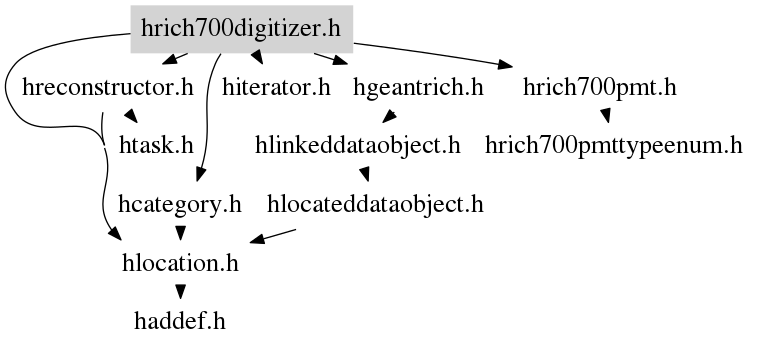

Inheritance Inherited Members Includes Libraries

Function documentation

HRich700Digitizer(const Text_t* name = "Rich700Digitizer", const Text_t* title = "Rich700Digitizer")

~HRich700Digitizer()

Bool_t init()

Bool_t reinit()

Int_t execute()

void processEvent()

 prob selection for delta electrons

void setProbabilityForDeltaElectrons()

Bool_t workOnDeltaElectrons(HGeantKine* primary, Int_t sector)

 if return is true: skipp all delta electrons and daughter hits

void processRichPhoton(HGeantRichPhoton* photon)

void processRichDirect(HGeantRichDirect* direct)

void addRichCal(Int_t sector, Int_t col, Int_t row, Int_t trackId)

void addAllTrackIds()

void addTrackId(Int_t sector, Int_t col, Int_t row, Int_t trackId)

void addCrossTalkHit(Int_t sector, Int_t col, Int_t row, Int_t trackId)

void addNoiseHits()

Bool_t finalize()

HRich700Digitizer* getDigitizer()

{ return fDigitizer;}

void setStoreOnlyConvertedPhotonTrackIds(Bool_t s)

{fStoreOnlyConvertedPhotonTrackIds = s;}

void setDeltaElectronUse(Bool_t use, Bool_t useDeltaMomSel = kFALSE, Int_t ionId = 109, Float_t momCut = 20., Float_t probDelta = 2.)

using delta electrons

{ fProbDeltaAccepted = probDelta; fUseDeltaElectrons = use;fUseDeltaMomSelection = useDeltaMomSel; fIonID=ionId; fMomMaxDeltaElecCut = momCut; }

Bool_t getDeltaElectronUse()

{ return fUseDeltaElectrons;}

void setDeltaElectronMinMomCut(Float_t s0 = 2., Float_t s1 = 2., Float_t s2 = 4., Float_t s3 = 2., Float_t s4 = 2., Float_t s5 = 4.)

{ fMomMinDeltaCut[0]=s0; fMomMinDeltaCut[1]=s1; fMomMinDeltaCut[2]=s2;  fMomMinDeltaCut[3]=s3;  fMomMinDeltaCut[4]=s4; fMomMinDeltaCut[5]=s5; }
