HYDRA - THE HADES ANALYSIS PACKAGE » (UNKNOWN) » HRich700Raw

class HRich700Raw: public TObject

_HADES_CLASS_DESCRIPTION


  HRich700Raw

  Unpacked TRB raw data of the START detector using the TRB for readout

  The class accepts up to 4 (START2_MAX_MULT) hits per channel, each with
    time and width. If the number of hits exceeds 4, the hit counter
    will be incremeted, but no data are stored for these hits.

Function Members (Methods)

public:
HRich700Raw()
HRich700Raw(const HRich700Raw&)
virtual~HRich700Raw()
voidTObject::AbstractMethod(const char* method) const
voidaddHit(Double_t leading, Double_t trailing, Double_t tot, UInt_t flag = 3)
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTObject::Clear(Option_t* = "")
voidclearHits()
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
voidgetAddress(Int_t& pmt, Int_t& pix, Int_t& sec, Int_t& col, Int_t& row)
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
const HRich700hit_t*getHit(const UInt_t n) const
virtual const char*TObject::GetIconName() const
Int_tgetMultiplicity() const
virtual const char*TObject::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
Int_tgetPixel() const
Int_tgetPMT() const
virtual const char*TObject::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
voidTObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HRich700Raw&operator=(const HRich700Raw&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTObject::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(ostream& out, Option_t* option = "")
voidsetAddress(const Int_t pmt, const Int_t pixel, const Int_t sec, const Int_t col, const Int_t row)
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
voidsetCol(Int_t c)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
static voidTObject::SetObjectStat(Bool_t stat)
voidsetPixel(Int_t p)
voidsetPMT(Int_t p)
voidsetRow(Int_t r)
voidsetSector(Int_t s)
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector&)
virtual voidStreamer(TBuffer&)
voidStreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()

Data Members

private:
Int_tfCol
HRich700hit_tfHitlist[15]list of hits in this pixel during the event
Int_tfPMTglobal RICH700 PMT id
Int_tfPixellocal pixel id on the PMT
Int_tfRow
Int_tfSector
UInt_tfnHits

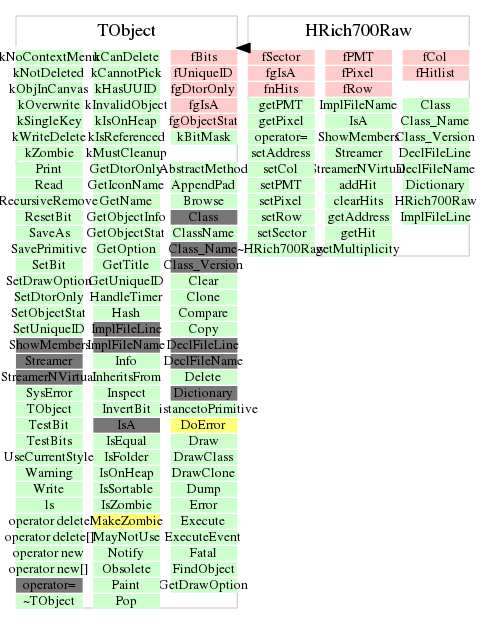

Class Charts

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

HRich700Raw()
clearHits()
virtual ~HRich700Raw()
{}
Int_t getMultiplicity() const
{return fnHits;}
Int_t getPMT() const
{return fPMT;}
Int_t getPixel() const
{return fPixel;}
const HRich700hit_t* getHit(const UInt_t n) const
{ return (n<fnHits ? &fHitlist[n] : 0 );}
void setPMT(Int_t p)
{fPMT=p;}
void setPixel(Int_t p)
{fPixel=p;}
void setSector(Int_t s)
{fSector = s;}
void setCol(Int_t c)
{fCol = c;}
void setRow(Int_t r)
{fRow = r;}
void setAddress(const Int_t pmt, const Int_t pixel, const Int_t sec, const Int_t col, const Int_t row)
void getAddress(Int_t& pmt, Int_t& pix, Int_t& sec, Int_t& col, Int_t& row)
void addHit(Double_t leading, Double_t trailing, Double_t tot, UInt_t flag = 3)
