class HRichDrawHist: public TObject


 $Id: $

*-- Author  : S. Lebedev

_HADES_CLASS_DESCRIPTION


  HRich700DrawHist

  This class contains drawing util functions of RICH.

Function Members (Methods)

public:

	HRichDrawHist()
	HRichDrawHist(const HRichDrawHist&)
	~HRichDrawHist()
void	TObject::AbstractMethod(const char* method) const
virtual void	TObject::AppendPad(Option_t* option = "")
virtual void	TObject::Browse(TBrowser* b)
static TClass*	Class()
virtual const char*	TObject::ClassName() const
virtual void	TObject::Clear(Option_t* = "")
virtual TObject*	TObject::Clone(const char* newname = "") const
virtual Int_t	TObject::Compare(const TObject* obj) const
virtual void	TObject::Copy(TObject& object) const
virtual void	TObject::Delete(Option_t* option = "")MENU
virtual Int_t	TObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual void	TObject::Draw(Option_t* option = "")
virtual void	TObject::DrawClass() constMENU
virtual TObject*	TObject::DrawClone(Option_t* option = "") constMENU
static void	DrawGraph(TGraph* graph, HistScale logx = kLinear, HistScale logy = kLinear, const string& drawOpt = "AC", Int_t color = RichDrawingOptions::Color(0), Int_t lineWidth = RichDrawingOptions::LineWidth(), Int_t lineStyle = RichDrawingOptions::LineStyle(0), Int_t markerSize = RichDrawingOptions::MarkerSize(), Int_t markerStyle = RichDrawingOptions::MarkerStyle(0))
static void	DrawGraph(const vector<TGraph*>& graphs, const vector<string>& graphLabels, HistScale logx = kLinear, HistScale logy = kLinear, Bool_t drawLegend = kTRUE, Double_t x1 = 0.50, Double_t y1 = 0.78, Double_t x2 = 0.99, Double_t y2 = 0.99)
static void	DrawGraph2D(TGraph2D* graph, HistScale logx = kLinear, HistScale logy = kLinear, HistScale logz = kLinear, const string& drawOpt = "colz")
static void	DrawH1(TH1* hist, HistScale logx = kLinear, HistScale logy = kLinear, const string& drawOpt = "", Int_t color = RichDrawingOptions::Color(0), Int_t lineWidth = RichDrawingOptions::LineWidth(), Int_t lineStyle = RichDrawingOptions::LineStyle(0), Int_t markerSize = RichDrawingOptions::MarkerSize(), Int_t markerStyle = RichDrawingOptions::MarkerStyle(0))
static void	DrawH1(const vector<TH1*>& histos, const vector<string>& histLabels, HistScale logx = kLinear, HistScale logy = kLinear, Bool_t drawLegend = kTRUE, Double_t x1 = 0.6, Double_t y1 = 0.99, Double_t x2 = 0.99, Double_t y2 = 0.83, const string& drawOpt = "")
static void	DrawH1andFitGauss(TH1* hist, Bool_t drawResults = kTRUE, Bool_t doScale = kTRUE, Double_t userRangeMin = 0., Double_t userRangeMax = 0.)
static void	DrawH2(TH2* hist, HistScale logx = kLinear, HistScale logy = kLinear, HistScale logz = kLinear, const string& drawOpt = "COLZ")
static void	DrawH2WithProfile(TH2* hist, Bool_t doGaussFit = false, Bool_t drawOnlyMean = false, const string& drawOpt = "COLZ", Int_t profileColor = kBlack, Int_t profileLineWidth = 4)
static TH2D*	DrawH3Profile(TH3* h, Bool_t drawMean = true, Bool_t doGaussFit = false, Double_t zUserRangeMin = 0., Double_t zUserRangeMax = 0.)
static void	DrawTextOnPad(const string& text, Double_t x1, Double_t y1, Double_t x2, Double_t y2)
virtual void	TObject::Dump() constMENU
virtual void	TObject::Error(const char* method, const char* msgfmt) const
virtual void	TObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual void	TObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual void	TObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual void	TObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*	TObject::FindObject(const char* name) const
virtual TObject*	TObject::FindObject(const TObject* obj) const
virtual Option_t*	TObject::GetDrawOption() const
static Long_t	TObject::GetDtorOnly()
virtual const char*	TObject::GetIconName() const
virtual const char*	TObject::GetName() const
virtual char*	TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_t	TObject::GetObjectStat()
virtual Option_t*	TObject::GetOption() const
virtual const char*	TObject::GetTitle() const
virtual UInt_t	TObject::GetUniqueID() const
virtual Bool_t	TObject::HandleTimer(TTimer* timer)
virtual ULong_t	TObject::Hash() const
virtual void	TObject::Info(const char* method, const char* msgfmt) const
virtual Bool_t	TObject::InheritsFrom(const char* classname) const
virtual Bool_t	TObject::InheritsFrom(const TClass* cl) const
virtual void	TObject::Inspect() constMENU
void	TObject::InvertBit(UInt_t f)
virtual TClass*	IsA() const
virtual Bool_t	TObject::IsEqual(const TObject* obj) const
virtual Bool_t	TObject::IsFolder() const
Bool_t	TObject::IsOnHeap() const
virtual Bool_t	TObject::IsSortable() const
Bool_t	TObject::IsZombie() const
virtual void	TObject::ls(Option_t* option = "") const
void	TObject::MayNotUse(const char* method) const
virtual Bool_t	TObject::Notify()
void	TObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static void	TObject::operator delete(void* ptr)
static void	TObject::operator delete(void* ptr, void* vp)
static void	TObject::operator delete[](void* ptr)
static void	TObject::operator delete[](void* ptr, void* vp)
void*	TObject::operator new(size_t sz)
void*	TObject::operator new(size_t sz, void* vp)
void*	TObject::operator new[](size_t sz)
void*	TObject::operator new[](size_t sz, void* vp)
HRichDrawHist&	operator=(const HRichDrawHist&)
virtual void	TObject::Paint(Option_t* option = "")
virtual void	TObject::Pop()
virtual void	TObject::Print(Option_t* option = "") const
virtual Int_t	TObject::Read(const char* name)
virtual void	TObject::RecursiveRemove(TObject* obj)
void	TObject::ResetBit(UInt_t f)
virtual void	TObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual void	TObject::SavePrimitive(ostream& out, Option_t* option = "")
void	TObject::SetBit(UInt_t f)
void	TObject::SetBit(UInt_t f, Bool_t set)
static void	SetDefaultDrawStyle()
virtual void	TObject::SetDrawOption(Option_t* option = "")MENU
static void	TObject::SetDtorOnly(void* obj)
static void	TObject::SetObjectStat(Bool_t stat)
virtual void	TObject::SetUniqueID(UInt_t uid)
virtual void	ShowMembers(TMemberInspector&)
virtual void	Streamer(TBuffer&)
void	StreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual void	TObject::SysError(const char* method, const char* msgfmt) const
Bool_t	TObject::TestBit(UInt_t f) const
Int_t	TObject::TestBits(UInt_t f) const
virtual void	TObject::UseCurrentStyle()
virtual void	TObject::Warning(const char* method, const char* msgfmt) const
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const

protected:

virtual void	TObject::DoError(int level, const char* location, const char* fmt, va_list va) const
void	TObject::MakeZombie()

Data Members

public:

enum TObject::EStatusBits {	kCanDelete
	kMustCleanup
	kObjInCanvas
	kIsReferenced
	kHasUUID
	kCannotPick
	kNoContextMenu
	kInvalidObject
};
enum TObject::[unnamed] {	kIsOnHeap
	kNotDeleted
	kZombie
	kBitMask
	kSingleKey
	kOverwrite
	kWriteDelete
};

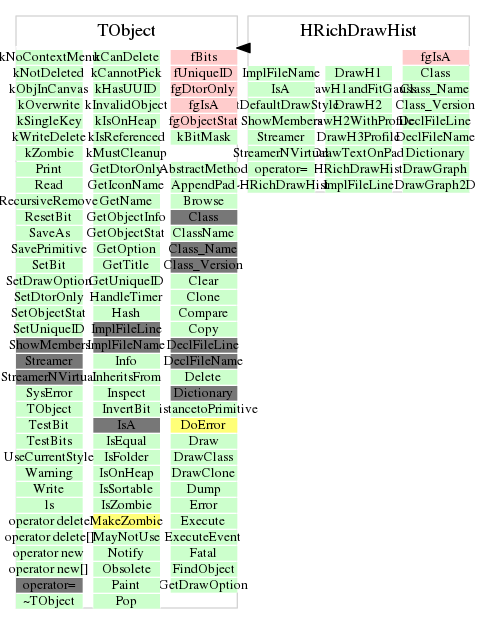

Class Charts

Inheritance Inherited Members Includes Libraries

Function documentation

void SetDefaultDrawStyle()

void DrawH1(TH1* hist, HistScale logx = kLinear, HistScale logy = kLinear, const string& drawOpt = "", Int_t color = RichDrawingOptions::Color(0), Int_t lineWidth = RichDrawingOptions::LineWidth(), Int_t lineStyle = RichDrawingOptions::LineStyle(0), Int_t markerSize = RichDrawingOptions::MarkerSize(), Int_t markerStyle = RichDrawingOptions::MarkerStyle(0))

 Draw 1D histogram.
 hist Pointer to histogram.
 logx Specify logarithmic or linear scale for X axis.
 logy Specify logarithmic or linear scale for Y axis.
 drawOpt Other drawing options (see ROOT documentation for details).
 color Color.
 lineWidth Line width.
 lineStyle Line style (see ROOT documentation for details).
 markerSize Marker size.
 markerStyle Marker style (see ROOT documentation for details).

void DrawH2(TH2* hist, HistScale logx = kLinear, HistScale logy = kLinear, HistScale logz = kLinear, const string& drawOpt = "COLZ")

 Draw 2D histogram.
 logx Specify logarithmic or linear scale for X axis.
 logy Specify logarithmic or linear scale for Y axis.
 logz Specify logarithmic or linear scale for Z axis.
 drawOpt Other drawing options (see ROOT documentation for details).

void DrawH1(const vector<TH1*>& histos, const vector<string>& histLabels, HistScale logx = kLinear, HistScale logy = kLinear, Bool_t drawLegend = kTRUE, Double_t x1 = 0.6, Double_t y1 = 0.99, Double_t x2 = 0.99, Double_t y2 = 0.83, const string& drawOpt = "")

 Draw several TH1 histograms.
 histos Array of histograms.
 histLabels Array of histogram labels.
 logx Specify logarithmic or linear scale for X axis.
 logy Specify logarithmic or linear scale for Y axis.
 drawLegend If true than legend will be drawn.
 x1 X coordinate of legend in current pad.
 y1 Y coordinate of legend in current pad.
 x2 X coordinate of legend in current pad.
 y2 Y coordinate of legend in current pad.
 drawOpt Draw options for TH1->Draw method.

void DrawGraph(TGraph* graph, HistScale logx = kLinear, HistScale logy = kLinear, const string& drawOpt = "AC", Int_t color = RichDrawingOptions::Color(0), Int_t lineWidth = RichDrawingOptions::LineWidth(), Int_t lineStyle = RichDrawingOptions::LineStyle(0), Int_t markerSize = RichDrawingOptions::MarkerSize(), Int_t markerStyle = RichDrawingOptions::MarkerStyle(0))

 graph Pointer to TGraph.
 logx Specify logarithmic or linear scale for X axis.
 logy Specify logarithmic or linear scale for Y axis.
 drawOpt Other drawing options (see ROOT documentation for details).
 color Color.
 lineWidth Line width.
 lineStyle Line style (see ROOT documentation for details).
 markerSize Marker size.
 markerStyle Marker style (see ROOT documentation for details).

void DrawGraph(const vector<TGraph*>& graphs, const vector<string>& graphLabels, HistScale logx = kLinear, HistScale logy = kLinear, Bool_t drawLegend = kTRUE, Double_t x1 = 0.50, Double_t y1 = 0.78, Double_t x2 = 0.99, Double_t y2 = 0.99)

 Draw upto 3 TGraphs. If graph == NULL than graph will not be drawn.
 graphs Vector of TGraphs.
 graphLabels Vector of graph labels.
 logx Specify logarithmic or linear scale for X axis.
 logy Specify logarithmic or linear scale for Y axis.
 drawLegend If true than legend will be drawn.
 x1 X coordinate of legend in current pad.
 y1 Y coordinate of legend in current pad.
 x2 X coordinate of legend in current pad.
 y2 Y coordinate of legend in current pad.

void DrawGraph2D(TGraph2D* graph, HistScale logx = kLinear, HistScale logy = kLinear, HistScale logz = kLinear, const string& drawOpt = "colz")

 Draw 2D graph.
 graph Pointer to TGraph2D.
 logx Specify logarithmic or linear scale for X axis.
 logy Specify logarithmic or linear scale for Y axis.
 logz Specify logarithmic or linear scale for Z axis.
 drawOpt Other drawing options (see ROOT documentation for details).

void DrawTextOnPad(const string& text, Double_t x1, Double_t y1, Double_t x2, Double_t y2)

 Draw text on a current pad. Latex expression can be used.
 text Your text. Latex can be also used.
 x1 X1 coordinate of legend in current pad.
 y1 Y1 coordinate of legend in current pad.
 x2 X2 coordinate of legend in current pad.
 y2 Y2 coordinate of legend in current pad.

void DrawH1andFitGauss(TH1* hist, Bool_t drawResults = kTRUE, Bool_t doScale = kTRUE, Double_t userRangeMin = 0., Double_t userRangeMax = 0.)

 Draw TH1 and fit with gauss. Draw fit results on top of the histogramm.
 hist Histogram to be drawn and fitted.
 drawResults If true - mean/sigma will be drawn.
 doScale If true - histogramm is scaled to Integral 1.
 userRangeMin SetRangeUser minimum.
 userRangeMax SetRangeUser maximum.

void DrawH2WithProfile(TH2* hist, Bool_t doGaussFit = false, Bool_t drawOnlyMean = false, const string& drawOpt = "COLZ", Int_t profileColor = kBlack, Int_t profileLineWidth = 4)

TH2D* DrawH3Profile(TH3* h, Bool_t drawMean = true, Bool_t doGaussFit = false, Double_t zUserRangeMin = 0., Double_t zUserRangeMax = 0.)
