class HRpcChargeOffsetPar: public HParCond

_HADES_CLASS_DESCRIPTION

 HRpcChargeOffsetPar

 Container class for RPC charge offset correction
 used by HRpcCalibrater

 (Condition Style)

 Each time slot is defined by the starting RunID and a
 array of 64 x 6 sectors parameters for each voltage
 regulator.

Function Members (Methods)

public:

	HRpcChargeOffsetPar(const HRpcChargeOffsetPar&)
	HRpcChargeOffsetPar(const Char_t* name = "RpcChargeOffsetPar", const Char_t* title = "Correction of RPC charge offsets", const Char_t* context = "RpcChargeOffsetParProduction")
virtual	~HRpcChargeOffsetPar()
void	TObject::AbstractMethod(const char* method) const
void	addFirstSet(Float_t* pars, Int_t startRunID)
void	addLastRunId(Int_t runId)
void	addLastSet(Float_t* pars, Int_t startRunID, Int_t endRunID)
void	addNewSet(Float_t* pars, Int_t startRunID)
virtual void	TObject::AppendPad(Option_t* option = "")
virtual void	TObject::Browse(TBrowser* b)
static TClass*	Class()
virtual const char*	TObject::ClassName() const
virtual void	clear()
virtual void	TNamed::Clear(Option_t* option = "")
virtual TObject*	TNamed::Clone(const char* newname = "") const
virtual Int_t	TNamed::Compare(const TObject* obj) const
virtual void	TNamed::Copy(TObject& named) const
void	HParSet::copyComment(HParSet& r)
virtual void	TObject::Delete(Option_t* option = "")MENU
virtual Int_t	TObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual void	TObject::Draw(Option_t* option = "")
virtual void	TObject::DrawClass() constMENU
virtual TObject*	TObject::DrawClone(Option_t* option = "") constMENU
virtual void	TObject::Dump() constMENU
virtual void	TObject::Error(const char* method, const char* msgfmt) const
virtual void	TObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual void	TObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual void	TObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual void	TObject::Fatal(const char* method, const char* msgfmt) const
virtual void	TNamed::FillBuffer(char*& buffer)
virtual TObject*	TObject::FindObject(const char* name) const
virtual TObject*	TObject::FindObject(const TObject* obj) const
const Char_t*	HParSet::getAuthor() const
Int_t	getCurrentSet()
const Char_t*	HParSet::getDescription() const
const Text_t*	HParSet::getDetectorName()
virtual Option_t*	TObject::GetDrawOption() const
static Long_t	TObject::GetDtorOnly()
Int_t	getFirstRunID() const
virtual const char*	TObject::GetIconName() const
Int_t	HParSet::getInputVersion(Int_t i)
Int_t	getLastRunID() const
virtual const char*	TNamed::GetName() const
Int_t	getNextRunID() const
Int_t	getNSets()
virtual char*	TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_t	TObject::GetObjectStat()
virtual Option_t*	TObject::GetOption() const
Float_t	getPar(Int_t regNum) const
Float_t	getPar(Int_t sec, Int_t TRB, Int_t MBO, Int_t DBO) const
const Char_t*	HParSet::getParamContext() const
virtual Bool_t	getParams(HParamList*)
Int_t	getSlot(Int_t runId)
virtual const char*	TNamed::GetTitle() const
virtual UInt_t	TObject::GetUniqueID() const
virtual Bool_t	TObject::HandleTimer(TTimer* timer)
Bool_t	HParSet::hasChanged()
virtual ULong_t	TNamed::Hash() const
virtual void	TObject::Info(const char* method, const char* msgfmt) const
virtual Bool_t	TObject::InheritsFrom(const char* classname) const
virtual Bool_t	TObject::InheritsFrom(const TClass* cl) const
virtual Bool_t	init(HParIo* inp, Int_t* set)
virtual void	TObject::Inspect() constMENU
void	TObject::InvertBit(UInt_t f)
virtual TClass*	IsA() const
virtual Bool_t	TObject::IsEqual(const TObject* obj) const
virtual Bool_t	TObject::IsFolder() const
Bool_t	TObject::IsOnHeap() const
virtual Bool_t	TNamed::IsSortable() const
Bool_t	HParSet::isStatic()
Bool_t	TObject::IsZombie() const
virtual void	TNamed::ls(Option_t* option = "") const
void	TObject::MayNotUse(const char* method) const
virtual Bool_t	TObject::Notify()
void	TObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static void	TObject::operator delete(void* ptr)
static void	TObject::operator delete(void* ptr, void* vp)
static void	TObject::operator delete[](void* ptr)
static void	TObject::operator delete[](void* ptr, void* vp)
void*	TObject::operator new(size_t sz)
void*	TObject::operator new(size_t sz, void* vp)
void*	TObject::operator new[](size_t sz)
void*	TObject::operator new[](size_t sz, void* vp)
HRpcChargeOffsetPar&	operator=(const HRpcChargeOffsetPar&)
virtual void	TObject::Paint(Option_t* option = "")
virtual void	TObject::Pop()
virtual void	HParSet::print()
virtual void	TNamed::Print(Option_t* option = "") const
virtual void	HParCond::printParams()
virtual void	putParams(HParamList*)
virtual Int_t	TObject::Read(const char* name)
virtual void	TObject::RecursiveRemove(TObject* obj)
void	TObject::ResetBit(UInt_t f)
void	HParSet::resetInputVersions()
virtual void	TObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual void	TObject::SavePrimitive(ostream& out, Option_t* option = "")
void	HParSet::setAuthor(const Char_t* s)
void	TObject::SetBit(UInt_t f)
void	TObject::SetBit(UInt_t f, Bool_t set)
void	HParSet::setChanged(Bool_t flag = kTRUE)
void	HParSet::setDescription(const Char_t* s)
virtual void	TObject::SetDrawOption(Option_t* option = "")MENU
static void	TObject::SetDtorOnly(void* obj)
void	HParSet::setInputVersion(Int_t v = -1, Int_t i = 0)
virtual void	TNamed::SetName(const char* name)MENU
virtual void	TNamed::SetNameTitle(const char* name, const char* title)
static void	TObject::SetObjectStat(Bool_t stat)
void	HParSet::setParamContext(const Char_t*)
void	setPars(Int_t nrun, Float_t* pars, Int_t startRunID)
void	HParSet::setStatic(Bool_t flag = kTRUE)
virtual void	TNamed::SetTitle(const char* title = "")MENU
virtual void	TObject::SetUniqueID(UInt_t uid)
virtual void	ShowMembers(TMemberInspector&)
virtual Int_t	TNamed::Sizeof() const
virtual void	Streamer(TBuffer&)
void	StreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual void	TObject::SysError(const char* method, const char* msgfmt) const
Bool_t	TObject::TestBit(UInt_t f) const
Int_t	TObject::TestBits(UInt_t f) const
virtual void	TObject::UseCurrentStyle()
virtual void	TObject::Warning(const char* method, const char* msgfmt) const
virtual Int_t	HParCond::write(HParIo*)
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const

protected:

virtual void	TObject::DoError(int level, const char* location, const char* fmt, va_list va) const
void	TObject::MakeZombie()

Data Members

public:

enum TObject::EStatusBits {	kCanDelete
	kMustCleanup
	kObjInCanvas
	kIsReferenced
	kHasUUID
	kCannotPick
	kNoContextMenu
	kInvalidObject
};
enum TObject::[unnamed] {	kIsOnHeap
	kNotDeleted
	kZombie
	kBitMask
	kSingleKey
	kOverwrite
	kWriteDelete
};

protected:

TString	HParSet::author	Author of parameters
Bool_t	HParSet::changed	! flag is kTRUE if parameters have changed
TString	HParSet::description	Description of parameters
Text_t	HParSet::detName[20]	! name of the detector the container belongs to
TArrayF	fChargeCorrPar	Array with Correction pars.
Int_t	fCurrent	Current set of correction parameters; Starts from 0 up to fNRuns-1
Int_t	fNRuns	number of sets of parameters
TString	TNamed::fName	object identifier
TArrayI	fRunIDs	Array with Beggining-End of RunId slots. Last stores the last RunID
TString	TNamed::fTitle	object title
TString	HParSet::paramContext	Context/purpose for parameters and conditions
Bool_t	HParSet::status	! static flag
Int_t	HParSet::versions[3]	! versions of container in the 2 possible inputs

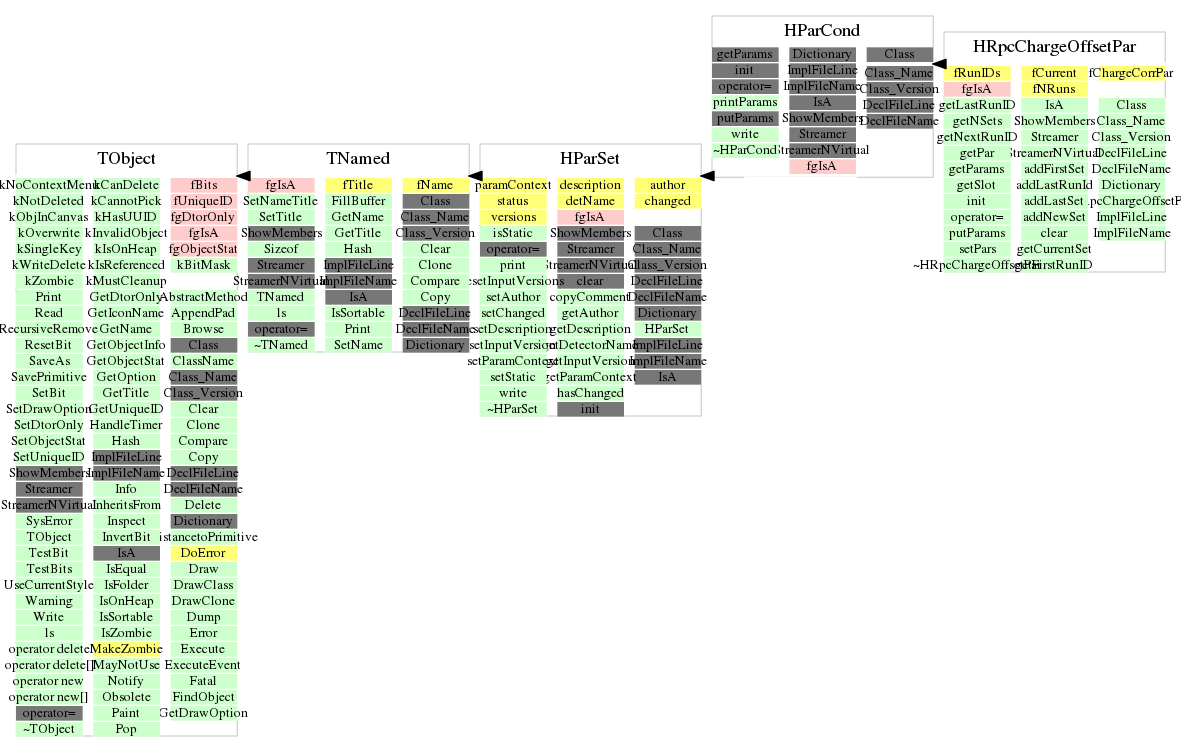

Class Charts

Inheritance Inherited Members Includes Libraries

Function documentation

HRpcChargeOffsetPar(const Char_t* name = "RpcChargeOffsetPar", const Char_t* title = "Correction of RPC charge offsets", const Char_t* context = "RpcChargeOffsetParProduction")

~HRpcChargeOffsetPar()

 destructor

void clear()

void addNewSet(Float_t* pars, Int_t startRunID)

adds a new time slot to an already created par

void addFirstSet(Float_t* pars, Int_t startRunID)

adds a new time slot to an already created par

void addLastRunId(Int_t runId)

adds the last runid for which parameters were obtained!

void addLastSet(Float_t* pars, Int_t startRunID, Int_t endRunID)

adds a new time slot to an already created par and ends the contparam if it is the last!

void putParams(HParamList* )

 Puts all params of HRpcTimePosPar to the parameter list of
 HParamList (which ist used by the io);

Bool_t getParams(HParamList* )

Bool_t init(HParIo* inp, Int_t* set)

First check the version! if a new version is present initialise it!

Int_t getSlot(Int_t runId)

find the correct parameters slot

HRpcChargeOffsetPar(const Char_t* name = "RpcChargeOffsetPar", const Char_t* title = "Correction of RPC charge offsets", const Char_t* context = "RpcChargeOffsetParProduction")

Float_t getPar(Int_t sec, Int_t TRB, Int_t MBO, Int_t DBO) const

{ return fChargeCorrPar[fCurrent*64*6 + sec*64 + MBO*16 + TRB*4 + DBO/2]; }

Float_t getPar(Int_t regNum) const

Float_t* getPars(Int_t runID); //return the array with parameters for a certain runID

{ return fChargeCorrPar[fCurrent*64*6 + regNum]; }

Int_t getFirstRunID() const

{ return fRunIDs[0]; }

Int_t getLastRunID() const

{ return fRunIDs[fNRuns]; }

Int_t getNextRunID() const

{ return fRunIDs[fCurrent+1]; }

Int_t getCurrentSet()

{ return fCurrent; }

Int_t getNSets()

{ return fNRuns; }

void setPars(Int_t nrun, Float_t* pars, Int_t startRunID)

void    setPar(Int_t sec, Int_t col, Int_t cell, Int_t npar, Float_t par)  { fChargeCorrPar[ sec*2880 + col*480 + cell*15 + npar ] = par; }

{ for(Int_t i = 0; i < 64*6 ; i++) fChargeCorrPar.AddAt(pars[i], nrun*64*6); fRunIDs.AddAt(startRunID, nrun); }
