class HStartParOra2Io: public HDetParOra2Io

_HADES_CLASS_DESCRIPTION

 HStartParOra2Io

 Interface class to database Oracle for input/output of parameters needed
 by the Start detector for runs since 2010
 (uses the Oracle C/C++ precompiler)

Function Members (Methods)

public:

	HStartParOra2Io(HOra2Conn* p = 0)
	HStartParOra2Io(const HStartParOra2Io&)
virtual	~HStartParOra2Io()
void	TObject::AbstractMethod(const char* method) const
virtual void	TObject::AppendPad(Option_t* option = "")
virtual void	TObject::Browse(TBrowser* b)
static TClass*	Class()
virtual const char*	TObject::ClassName() const
virtual void	TNamed::Clear(Option_t* option = "")
virtual TObject*	TNamed::Clone(const char* newname = "") const
void	HDetParOra2Io::commit()
virtual Int_t	TNamed::Compare(const TObject* obj) const
virtual void	TNamed::Copy(TObject& named) const
virtual void	TObject::Delete(Option_t* option = "")MENU
virtual Int_t	TObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual void	TObject::Draw(Option_t* option = "")
virtual void	TObject::DrawClass() constMENU
virtual TObject*	TObject::DrawClone(Option_t* option = "") constMENU
virtual void	TObject::Dump() constMENU
virtual void	TObject::Error(const char* method, const char* msgfmt) const
virtual void	TObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual void	TObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual void	TObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual void	TObject::Fatal(const char* method, const char* msgfmt) const
virtual void	TNamed::FillBuffer(char*& buffer)
virtual TObject*	TObject::FindObject(const char* name) const
virtual TObject*	TObject::FindObject(const TObject* obj) const
Int_t	HDetParOra2Io::getActRunId()
virtual Option_t*	TObject::GetDrawOption() const
static Long_t	TObject::GetDtorOnly()
const Char_t*	HDetParOra2Io::getExpLocation()
const Char_t*	HDetParOra2Io::getHistoryDate()
virtual const char*	TObject::GetIconName() const
Int_t	HDetParIo::getInputNumber()
virtual const char*	TNamed::GetName() const
virtual char*	TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_t	TObject::GetObjectStat()
virtual Option_t*	TObject::GetOption() const
Int_t	HDetParOra2Io::getPredefVersion(HParSet*)
Int_t	HDetParOra2Io::getRunStart(HParSet* pPar = 0)
virtual const char*	TNamed::GetTitle() const
virtual UInt_t	TObject::GetUniqueID() const
virtual Bool_t	TObject::HandleTimer(TTimer* timer)
virtual ULong_t	TNamed::Hash() const
virtual void	TObject::Info(const char* method, const char* msgfmt) const
virtual Bool_t	TObject::InheritsFrom(const char* classname) const
virtual Bool_t	TObject::InheritsFrom(const TClass* cl) const
virtual Bool_t	init(HParSet, Int_t)
virtual void	TObject::Inspect() constMENU
void	TObject::InvertBit(UInt_t f)
virtual TClass*	IsA() const
virtual Bool_t	TObject::IsEqual(const TObject* obj) const
virtual Bool_t	TObject::IsFolder() const
Bool_t	TObject::IsOnHeap() const
virtual Bool_t	TNamed::IsSortable() const
Bool_t	TObject::IsZombie() const
virtual void	TNamed::ls(Option_t* option = "") const
void	TObject::MayNotUse(const char* method) const
virtual Bool_t	TObject::Notify()
void	TObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static void	TObject::operator delete(void* ptr)
static void	TObject::operator delete(void* ptr, void* vp)
static void	TObject::operator delete[](void* ptr)
static void	TObject::operator delete[](void* ptr, void* vp)
void*	TObject::operator new(size_t sz)
void*	TObject::operator new(size_t sz, void* vp)
void*	TObject::operator new[](size_t sz)
void*	TObject::operator new[](size_t sz, void* vp)
HStartParOra2Io&	operator=(const HStartParOra2Io&)
virtual void	TObject::Paint(Option_t* option = "")
virtual void	TObject::Pop()
virtual void	TNamed::Print(Option_t* option = "") const
virtual Int_t	TObject::Read(const char* name)
Bool_t	HDetParOra2Io::readDetectorGeometry(HDetGeomPar, Int_t, HOra2GeomDetVersion*)
virtual void	TObject::RecursiveRemove(TObject* obj)
void	TObject::ResetBit(UInt_t f)
void	HDetParOra2Io::rollback()
virtual void	TObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual void	TObject::SavePrimitive(ostream& out, Option_t* option = "")
void	TObject::SetBit(UInt_t f)
void	TObject::SetBit(UInt_t f, Bool_t set)
virtual void	TObject::SetDrawOption(Option_t* option = "")MENU
static void	TObject::SetDtorOnly(void* obj)
void	HDetParIo::setInputNumber(Int_t n)
virtual void	TNamed::SetName(const char* name)MENU
virtual void	TNamed::SetNameTitle(const char* name, const char* title)
static void	TObject::SetObjectStat(Bool_t stat)
virtual void	TNamed::SetTitle(const char* title = "")MENU
virtual void	TObject::SetUniqueID(UInt_t uid)
virtual void	ShowMembers(TMemberInspector&)
void	HDetParOra2Io::showSqlError(const Char_t*)
virtual Int_t	TNamed::Sizeof() const
virtual void	Streamer(TBuffer&)
void	StreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual void	TObject::SysError(const char* method, const char* msgfmt) const
Bool_t	TObject::TestBit(UInt_t f) const
Int_t	TObject::TestBits(UInt_t f) const
virtual void	TObject::UseCurrentStyle()
virtual void	TObject::Warning(const char* method, const char* msgfmt) const
virtual Int_t	write(HParSet*)
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
Int_t	HDetParOra2Io::writeAlignment(HDetGeomPar*)

protected:

void	HDetParOra2Io::addGeomOraSet(HDetGeomPar*)
virtual void	HDetParOra2Io::addGeomRefComponents(HDetGeomPar, TList)
virtual void	TObject::DoError(int level, const char* location, const char* fmt, va_list va) const
Int_t	HDetParOra2Io::getAlignmentOutputVersion(HParSet, const Char_t)
Int_t	HDetParOra2Io::getAlignmentVersion(HParOra2Set, const Char_t)
Int_t	HDetParOra2Io::getContextId(const Char_t, const Char_t)
Int_t	HDetParOra2Io::getDetectorId(const Char_t*)
Int_t	HDetParOra2Io::getGeomVersion(const Char_t, HOra2GeomDetVersion)
Int_t	HDetParOra2Io::getGeomVersion(Int_t, HOra2GeomDetVersion*)
HParOra2Set*	HDetParOra2Io::getOraSet(HParSet*)
void	TObject::MakeZombie()
Int_t	HDetParOra2Io::readAlignmentTransform(TList*, Int_t)
Bool_t	HDetParOra2Io::readGeomPoints(TList*)
Bool_t	HDetParOra2Io::readGeomTransform(TList*)
Bool_t	HDetParOra2Io::readIdealGeometry(TList, HOra2GeomDetVersion)
void	HDetParOra2Io::setChanged(HParSet*)
void	HDetParOra2Io::setChanged(HParSet*, Int_t)
virtual Bool_t	HDetParOra2Io::transformGeomCompositeComponents(HDetGeomPar*)
Bool_t	HDetParOra2Io::writeTransform(Int_t, const Char_t*, const HGeomTransform&)

private:

Int_t	createVers(HParSet*)
Bool_t	getVersion(HParSet*, Int_t&)
void	printInfo(const Char_t*)
Bool_t	read(HStart2Trb2Lookup*)
Bool_t	read(HStart2Trb3Calpar*)
Bool_t	read(HStart2Trb3Lookup*)
Bool_t	read(HStart2Calpar, Int_t)
Bool_t	read(HStart2GeomPar, Int_t)
Bool_t	readTrb3CalData(HTrb3CalparTdc*, Int_t, Int_t)
Int_t	writePar(HStart2Calpar*)
Int_t	writePar(HStart2Trb2Lookup*)
Int_t	writePar(HStart2Trb3Calpar*)
Int_t	writePar(HStart2Trb3Lookup*)

Data Members

public:

enum TObject::EStatusBits {	kCanDelete
	kMustCleanup
	kObjInCanvas
	kIsReferenced
	kHasUUID
	kCannotPick
	kNoContextMenu
	kInvalidObject
};
enum TObject::[unnamed] {	kIsOnHeap
	kNotDeleted
	kZombie
	kBitMask
	kSingleKey
	kOverwrite
	kWriteDelete
};

protected:

TString	TNamed::fName	object identifier
TString	TNamed::fTitle	object title
Int_t	HDetParIo::inputNumber	input number (first or second input in runtime database)
Int_t	HDetParOra2Io::runStart	start time of current run

private:

HOra2GeomDetVersion*	geomVers	geometry version
TArrayI*	initModules	array of modules initialized from Oracle

Class Charts

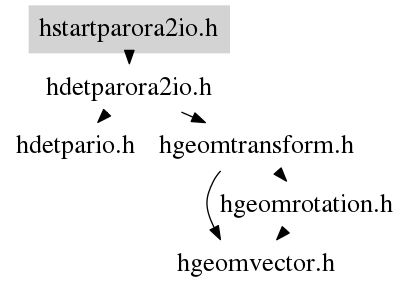

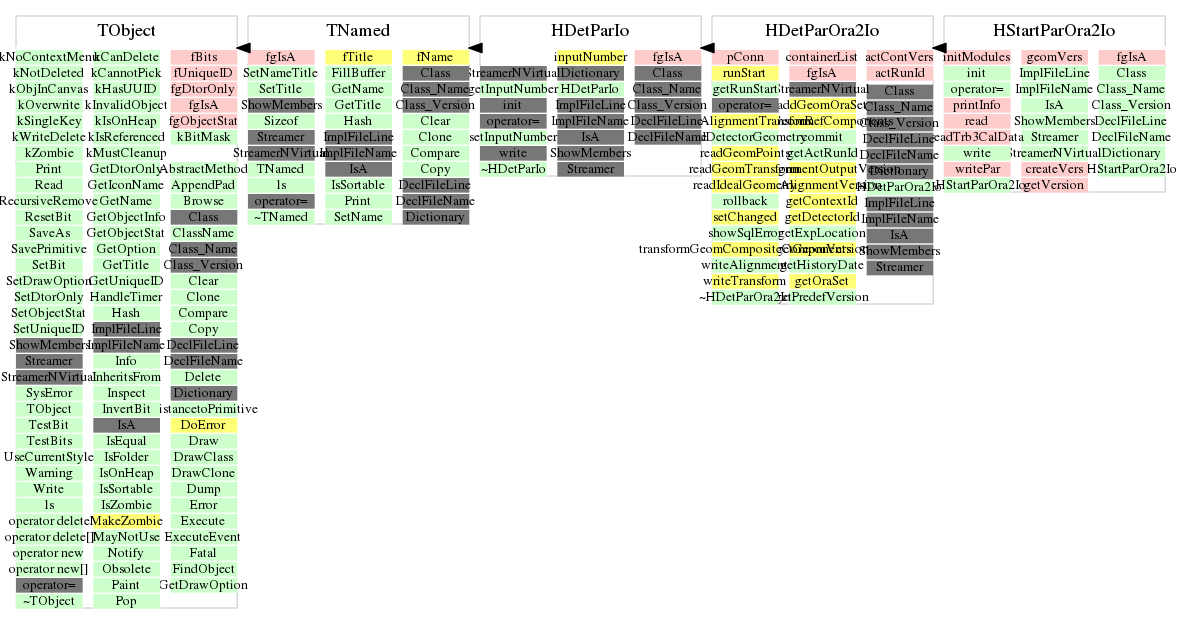

Inheritance Inherited Members Includes Libraries

Function documentation

HStartParOra2Io(HOra2Conn* p = 0)

 constructor
 sets the name of the I/O class "HStartParIo"
 gets the pointer to the connection class

~HStartParOra2Io(void)

 destructor

Bool_t init(HParSet* , Int_t* )

 calls special read-function for each parameter container

Int_t write(HParSet* )

 calls the appropriate write function for the container

Bool_t getVersion(HParSet* , Int_t& )

 checks, if the parameter container needs to be reinitialized
 reads the newest version valid for the current event file
 returns kTRUE, if new parameters must be read
 returns kFALSE, if no reinitialization needed or not valid version found

Bool_t read(HStart2Calpar* , Int_t* )

 reads the calibration parameters and fill the Start2Calpar container

Bool_t read(HStart2Trb2Lookup* )

 reads the lookup table for the Trb2 unpacker and fills the parameter container

Bool_t read(HStart2GeomPar* , Int_t* )

 reads the geometry of the Start detector and fills the Start2GeomPar container

Bool_t read(HStart2Trb3Calpar* )

 reads the calibration parameters for the Trb3 TDCs and fills the parameter container

Bool_t readTrb3CalData(HTrb3CalparTdc* , Int_t , Int_t )

Bool_t read(HStart2Trb3Lookup* )

 reads the lookup table for the Trb3 unpacker and fills the parameter container

Int_t createVers(HParSet* )

 creates a new version for the calibration parameters
 returns the new version

Int_t writePar(HStart2Trb2Lookup* )

 creates a new version and writes the lookup table to Oracle

Int_t writePar(HStart2Trb3Calpar* )

 creates a new version and writes the lookup table to Oracle

Int_t writePar(HStart2Trb3Lookup* )

 creates a new version and writes the lookup table to Oracle

void printInfo(const Char_t* )

 prints the sectors initialized from Oracle

HStartParOra2Io(HOra2Conn* p = 0)

Int_t writePar(HStart2Calpar* )
