class HWallEventPlanePar: public HParCond

_HADES_CLASS_DESCRIPTION

 HWallEventPlanePar

 Container class for Wall EventPlane parameters

Function Members (Methods)

public:

	HWallEventPlanePar(const HWallEventPlanePar&)
	HWallEventPlanePar(const Char_t* name = "WallEventPlanePar", const Char_t* title = "EventPlane parameters for Forward Wall", const Char_t* context = "WallEventPlaneProduction")
virtual	~HWallEventPlanePar()
void	TObject::AbstractMethod(const char* method) const
virtual void	TObject::AppendPad(Option_t* option = "")
virtual void	TObject::Browse(TBrowser* b)
static TClass*	Class()
virtual const char*	TObject::ClassName() const
virtual void	clear()
virtual void	TNamed::Clear(Option_t* option = "")
virtual TObject*	TNamed::Clone(const char* newname = "") const
virtual Int_t	TNamed::Compare(const TObject* obj) const
virtual void	TNamed::Copy(TObject& named) const
void	HParSet::copyComment(HParSet& r)
virtual void	TObject::Delete(Option_t* option = "")MENU
virtual Int_t	TObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual void	TObject::Draw(Option_t* option = "")
virtual void	TObject::DrawClass() constMENU
virtual TObject*	TObject::DrawClone(Option_t* option = "") constMENU
virtual void	TObject::Dump() constMENU
virtual void	TObject::Error(const char* method, const char* msgfmt) const
virtual void	TObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual void	TObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual void	TObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual void	TObject::Fatal(const char* method, const char* msgfmt) const
virtual void	TNamed::FillBuffer(char*& buffer)
virtual TObject*	TObject::FindObject(const char* name) const
virtual TObject*	TObject::FindObject(const TObject* obj) const
const Char_t*	HParSet::getAuthor() const
const Char_t*	HParSet::getDescription() const
const Text_t*	HParSet::getDetectorName()
virtual Option_t*	TObject::GetDrawOption() const
static Long_t	TObject::GetDtorOnly()
virtual const char*	TObject::GetIconName() const
Int_t	HParSet::getInputVersion(Int_t i)
virtual const char*	TNamed::GetName() const
virtual char*	TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_t	TObject::GetObjectStat()
virtual Option_t*	TObject::GetOption() const
const Char_t*	HParSet::getParamContext() const
virtual Bool_t	getParams(HParamList*)
Float_t	getR0Cut()
Float_t	getT1Cut()
Float_t	getT2Cut()
virtual const char*	TNamed::GetTitle() const
virtual UInt_t	TObject::GetUniqueID() const
Float_t	getXShift()
Float_t	getYShift()
Float_t	getZ1_cut_l()
Float_t	getZ1_cut_m()
Float_t	getZ1_cut_s()
virtual Bool_t	TObject::HandleTimer(TTimer* timer)
Bool_t	HParSet::hasChanged()
virtual ULong_t	TNamed::Hash() const
virtual void	TObject::Info(const char* method, const char* msgfmt) const
virtual Bool_t	TObject::InheritsFrom(const char* classname) const
virtual Bool_t	TObject::InheritsFrom(const TClass* cl) const
virtual Bool_t	HParCond::init(HParIo, Int_t)
virtual void	TObject::Inspect() constMENU
void	TObject::InvertBit(UInt_t f)
virtual TClass*	IsA() const
virtual Bool_t	TObject::IsEqual(const TObject* obj) const
virtual Bool_t	TObject::IsFolder() const
Bool_t	TObject::IsOnHeap() const
virtual Bool_t	TNamed::IsSortable() const
Bool_t	HParSet::isStatic()
Bool_t	TObject::IsZombie() const
virtual void	TNamed::ls(Option_t* option = "") const
void	TObject::MayNotUse(const char* method) const
virtual Bool_t	TObject::Notify()
void	TObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static void	TObject::operator delete(void* ptr)
static void	TObject::operator delete(void* ptr, void* vp)
static void	TObject::operator delete[](void* ptr)
static void	TObject::operator delete[](void* ptr, void* vp)
void*	TObject::operator new(size_t sz)
void*	TObject::operator new(size_t sz, void* vp)
void*	TObject::operator new[](size_t sz)
void*	TObject::operator new[](size_t sz, void* vp)
HWallEventPlanePar&	operator=(const HWallEventPlanePar&)
virtual void	TObject::Paint(Option_t* option = "")
virtual void	TObject::Pop()
virtual void	HParSet::print()
virtual void	TNamed::Print(Option_t* option = "") const
virtual void	HParCond::printParams()
virtual void	putParams(HParamList*)
virtual Int_t	TObject::Read(const char* name)
virtual void	TObject::RecursiveRemove(TObject* obj)
void	TObject::ResetBit(UInt_t f)
void	HParSet::resetInputVersions()
virtual void	TObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual void	TObject::SavePrimitive(ostream& out, Option_t* option = "")
void	HParSet::setAuthor(const Char_t* s)
void	TObject::SetBit(UInt_t f)
void	TObject::SetBit(UInt_t f, Bool_t set)
void	HParSet::setChanged(Bool_t flag = kTRUE)
void	HParSet::setDescription(const Char_t* s)
virtual void	TObject::SetDrawOption(Option_t* option = "")MENU
static void	TObject::SetDtorOnly(void* obj)
void	HParSet::setInputVersion(Int_t v = -1, Int_t i = 0)
virtual void	TNamed::SetName(const char* name)MENU
virtual void	TNamed::SetNameTitle(const char* name, const char* title)
static void	TObject::SetObjectStat(Bool_t stat)
void	HParSet::setParamContext(const Char_t*)
void	setR0Cut(Float_t r)
void	HParSet::setStatic(Bool_t flag = kTRUE)
void	setT1Cut(Float_t t1)
void	setT2Cut(Float_t t2)
virtual void	TNamed::SetTitle(const char* title = "")MENU
virtual void	TObject::SetUniqueID(UInt_t uid)
void	setXShift(Float_t x)
void	setYShift(Float_t y)
void	setZ1_cut_l(Float_t cl)
void	setZ1_cut_m(Float_t cm)
void	setZ1_cut_s(Float_t cs)
virtual void	ShowMembers(TMemberInspector&)
virtual Int_t	TNamed::Sizeof() const
virtual void	Streamer(TBuffer&)
void	StreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual void	TObject::SysError(const char* method, const char* msgfmt) const
Bool_t	TObject::TestBit(UInt_t f) const
Int_t	TObject::TestBits(UInt_t f) const
virtual void	TObject::UseCurrentStyle()
virtual void	TObject::Warning(const char* method, const char* msgfmt) const
virtual Int_t	HParCond::write(HParIo*)
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const

protected:

virtual void	TObject::DoError(int level, const char* location, const char* fmt, va_list va) const
void	TObject::MakeZombie()

Data Members

public:

enum TObject::EStatusBits {	kCanDelete
	kMustCleanup
	kObjInCanvas
	kIsReferenced
	kHasUUID
	kCannotPick
	kNoContextMenu
	kInvalidObject
};
enum TObject::[unnamed] {	kIsOnHeap
	kNotDeleted
	kZombie
	kBitMask
	kSingleKey
	kOverwrite
	kWriteDelete
};

protected:

TString	HParSet::author	Author of parameters
Bool_t	HParSet::changed	! flag is kTRUE if parameters have changed
TString	HParSet::description	Description of parameters
Text_t	HParSet::detName[20]	! name of the detector the container belongs to
TString	TNamed::fName	object identifier
Float_t	fR0_cut	cuts out internal zone, which might be affected by the beam spot
Float_t	fT1_cut	time1 cut to select spectators
Float_t	fT2_cut	time2 cut to select spectators
TString	TNamed::fTitle	object title
Float_t	fX_shift	shift from center in x direction
Float_t	fY_shift	shift from center in y direction
Float_t	fZ1_cut_l	common cut for large cells: cuts out noise below Z=1 particles on calibrated dE/dx spectrum
Float_t	fZ1_cut_m	common cut for middle cells: cuts out noise below Z=1 particles on calibrated dE/dx spectrum
Float_t	fZ1_cut_s	common cut for small cells: cuts out noise below Z=1 particles on calibrated dE/dx spectrum
TString	HParSet::paramContext	Context/purpose for parameters and conditions
Bool_t	HParSet::status	! static flag
Int_t	HParSet::versions[3]	! versions of container in the 2 possible inputs

Class Charts

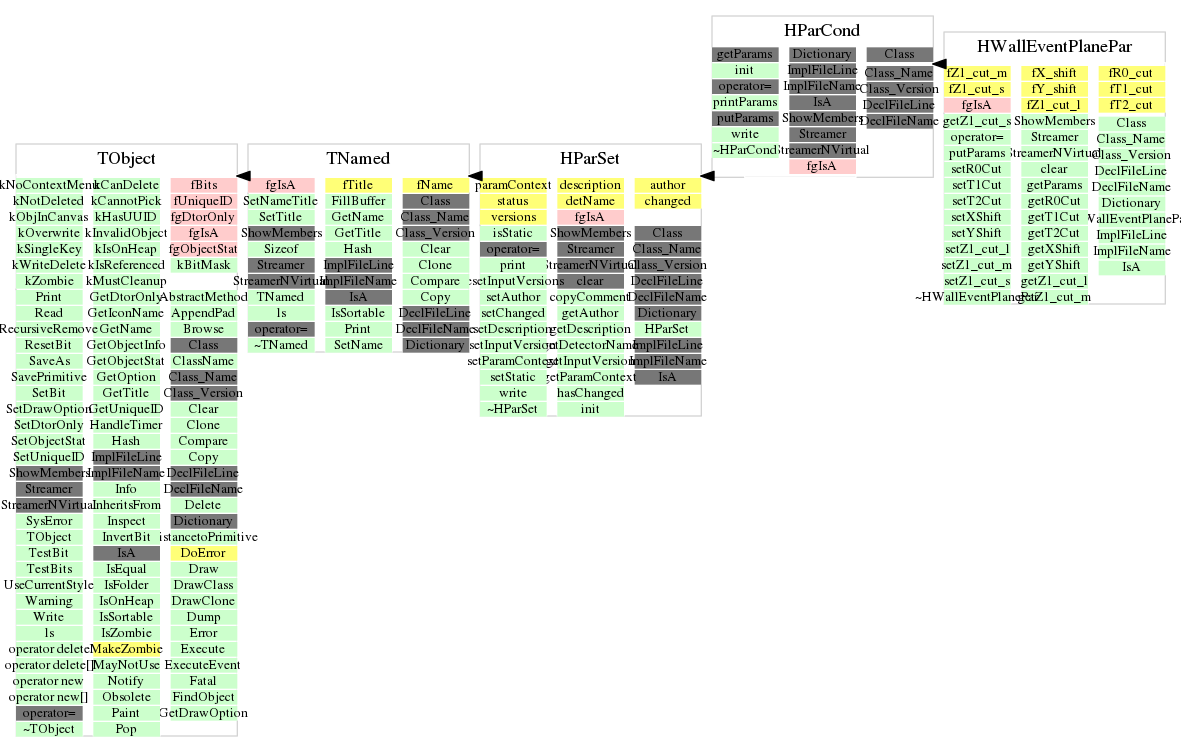

Inheritance Inherited Members Includes Libraries

Function documentation

HWallEventPlanePar(const Char_t* name = "WallEventPlanePar", const Char_t* title = "EventPlane parameters for Forward Wall", const Char_t* context = "WallEventPlaneProduction")

 constructor

void clear()

 clears the container

void putParams(HParamList* )

 puts all parameters to the parameter list, which is used by the io

Bool_t getParams(HParamList* )

 gets all parameters from the parameter list, which is used by the io

HWallEventPlanePar(const Char_t* name = "WallEventPlanePar", const Char_t* title = "EventPlane parameters for Forward Wall", const Char_t* context = "WallEventPlaneProduction")

{;}

Float_t getT1Cut(void)

{ return fT1_cut; }

Float_t getT2Cut(void)

{ return fT2_cut; }

Float_t getXShift(void)

{ return fX_shift; }

Float_t getYShift(void)

{ return fY_shift; }

Float_t getR0Cut(void)

{ return fR0_cut; }

Float_t getZ1_cut_s(void)
