#include <hmdcalignerparam.h>

Inheritance diagram for HMdcAlignerParam:

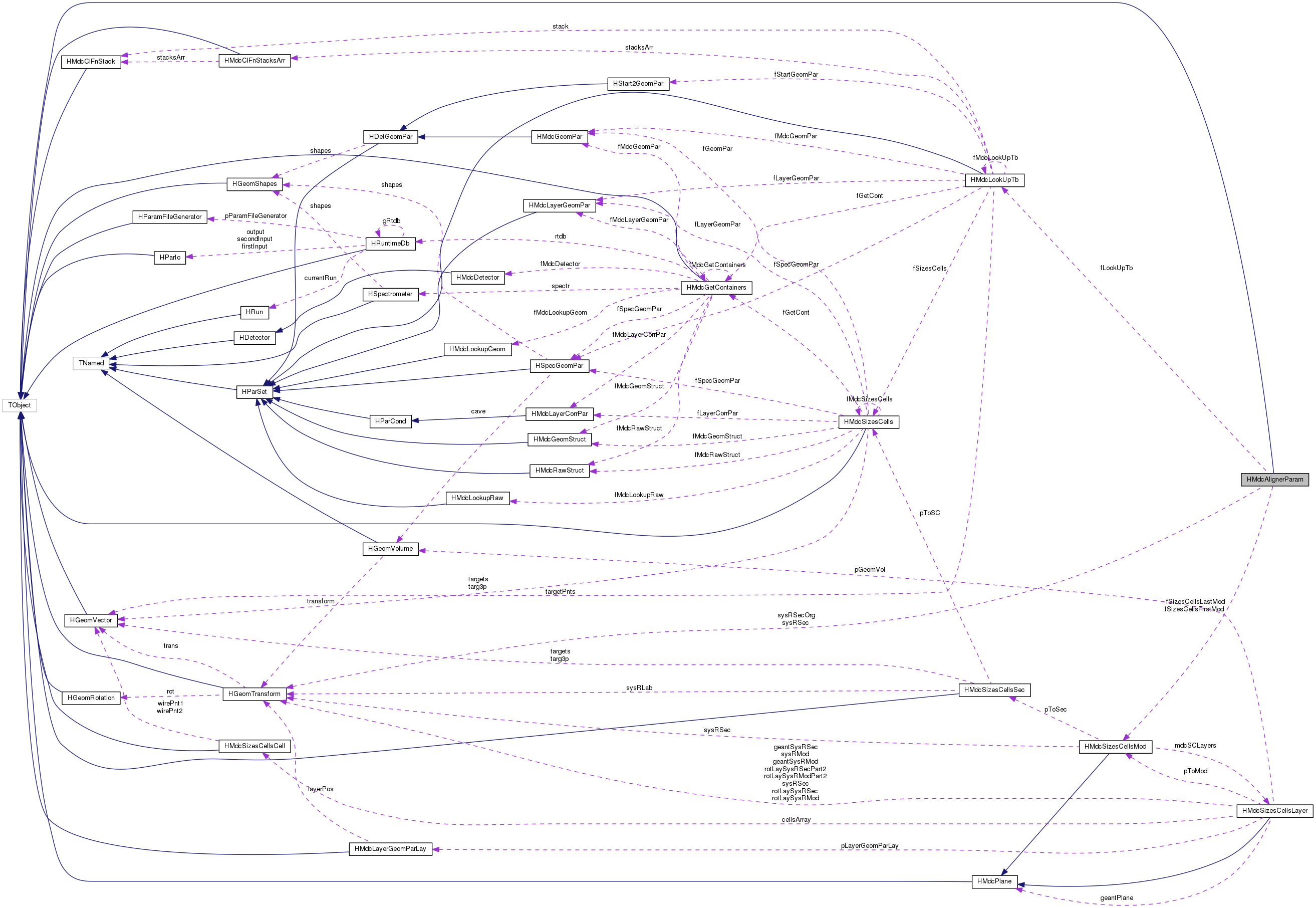

Collaboration diagram for HMdcAlignerParam:

Public Member Functions
	HMdcAlignerParam (void)

	HMdcAlignerParam (Int_t alignSec, Double_t params, Double_t steps, Int_t flags, HMdcLookUpTb fLookUpTb)

	HMdcAlignerParam (const HMdcAlignerParam &tp)

	~HMdcAlignerParam (void)

void	init (void)

Int_t	getNMinParams ()

Double_t *	getMinParams ()

Double_t *	getMinSteps ()

void	setNewPosition (Double_t *minParams=0, Int_t offset=0)

Bool_t	setPlanes (void)

void	printTransforms (Double_t *targetParams=0)

void	setRootFile (TString file)

TString	getRootFile (void)

void	setAlignSec (Int_t aSec)

Int_t	getAlignSec (void)

void	setCluster (Bool_t clus)

void	setScan (Bool_t scn)

void	setOffset (Int_t off)

Bool_t	getCluster (void)

Bool_t	getScan (void)

Int_t	getOffset (void)

const Double_t *	getTfSysRSec (Int_t mod)

Int_t	getFirstMod (void) const

Int_t	getLastMod (void) const

void	copyPlanes (const HMdcAlignerParam &ap)

void	copyAlignParams (const HMdcAlignerParam &ap)

void	setAlignParams (Double_t *par)

void	setNewAlignParams (Double_t *minPar)

void	copySteps (const HMdcAlignerParam &ap)

void	setSteps (Double_t *st)

void	copyFlags (const HMdcAlignerParam &ap)

void	setFlags (Int_t *fl)

void	copyMinParams (const HMdcAlignerParam &ap)

void	setMinParams (void)

void	copyMinSteps (const HMdcAlignerParam &ap)

void	setOriginalTransforms (void)

void	setActualTransforms (void)

void	copy (const HMdcAlignerParam &ap)

void	getSecTrackParams (Double_t &x1, Double_t &y1, Double_t &z1, Double_t &x2, Double_t &y2, Double_t &z2)

void	getModTrackParams (Double_t x1, Double_t y1, Double_t z1, Double_t x2, Double_t y2, Double_t z2, Double_t &xFirstMod, Double_t &yFirstMod, Double_t &xLastMod, Double_t &yLastMod)

void	print (TString header)

Protected Attributes
Int_t	alignSec

Bool_t	firstFile

Bool_t	cluster

Bool_t	scan

Int_t	offset

Int_t	nMinParams

TString	rootFile

Double_t	alignParams [24]

Double_t	steps [24]

Double_t	flags [24]

Double_t	minParams [24]

Double_t	minSteps [24]

Int_t	minIndex [24]

HMdcLookUpTb *	fLookUpTb

HMdcSizesCellsMod *	fSizesCellsFirstMod

HMdcSizesCellsMod *	fSizesCellsLastMod

Int_t	firstMod

Int_t	lastMod

HGeomTransform	sysRSecOrg [4]

HGeomTransform	sysRSec [4]

const Double_t *	tfSysRSec [4]

Detailed Description

Definition at line 10 of file hmdcalignerparam.h.

Constructor & Destructor Documentation

HMdcAlignerParam::HMdcAlignerParam ( void )

HMdcAlignerParam::HMdcAlignerParam	(	Int_t	alignSec,
		Double_t *	params,
		Double_t *	steps,
		Int_t *	flags,
		HMdcLookUpTb *	fLookUpTb
	)

Definition at line 34 of file hmdcalignerparam.cc.

References alignSec, cluster, firstFile, fLookUpTb, offset, setAlignParams(), setFlags(), setMinParams(), setNewPosition(), setPlanes(), and setSteps().

HMdcAlignerParam::HMdcAlignerParam ( const HMdcAlignerParam & tp )

Definition at line 24 of file hmdcalignerparam.cc.

References cluster, copy(), firstFile, and offset.

HMdcAlignerParam::~HMdcAlignerParam ( void )

inline

Definition at line 62 of file hmdcalignerparam.h.

Member Function Documentation

void HMdcAlignerParam::copy ( const HMdcAlignerParam & ap )

inline

Definition at line 198 of file hmdcalignerparam.h.

References cluster, copyAlignParams(), copyFlags(), copyMinParams(), copyMinSteps(), copyPlanes(), copySteps(), fLookUpTb, and nMinParams.

Referenced by HMdcAlignerParam().

void HMdcAlignerParam::copyAlignParams ( const HMdcAlignerParam & ap )

inline

Definition at line 122 of file hmdcalignerparam.h.

References alignParams.

Referenced by copy().

void HMdcAlignerParam::copyFlags ( const HMdcAlignerParam & ap )

inline

Definition at line 145 of file hmdcalignerparam.h.

References flags.

Referenced by copy().

void HMdcAlignerParam::copyMinParams ( const HMdcAlignerParam & ap )

inline

Definition at line 153 of file hmdcalignerparam.h.

References alignParams, minParams, and nMinParams.

Referenced by copy().

void HMdcAlignerParam::copyMinSteps ( const HMdcAlignerParam & ap )

inline

Definition at line 169 of file hmdcalignerparam.h.

References minSteps, and nMinParams.

Referenced by copy().

void HMdcAlignerParam::copyPlanes ( const HMdcAlignerParam & ap )

inline

Definition at line 115 of file hmdcalignerparam.h.

References firstMod, fSizesCellsFirstMod, fSizesCellsLastMod, and lastMod.

Referenced by copy().

void HMdcAlignerParam::copySteps ( const HMdcAlignerParam & ap )

inline

Definition at line 137 of file hmdcalignerparam.h.

References steps.

Referenced by copy().

Int_t HMdcAlignerParam::getAlignSec ( void )

inline

Definition at line 76 of file hmdcalignerparam.h.

References alignSec.

Referenced by HMdcAlignerD::execute(), HMdcAlignerD::finalize(), and HMdcAlignerD::monitor().

Bool_t HMdcAlignerParam::getCluster ( void )

inline

Definition at line 80 of file hmdcalignerparam.h.

References cluster.

Referenced by HMdcAlignerD::finalize().

Int_t HMdcAlignerParam::getFirstMod ( void ) const

inline

Definition at line 84 of file hmdcalignerparam.h.

References firstMod.

Referenced by HMdcAlignerD::finalize(), and HMdcAlignerD::monitor().

Int_t HMdcAlignerParam::getLastMod ( void ) const

inline

Definition at line 85 of file hmdcalignerparam.h.

References lastMod.

Referenced by HMdcAlignerD::finalize(), and HMdcAlignerD::monitor().

Double_t* HMdcAlignerParam::getMinParams ( )

inline

Definition at line 68 of file hmdcalignerparam.h.

References minParams.

Referenced by HMdcAlignerD::finalize().

Double_t* HMdcAlignerParam::getMinSteps ( )

inline

Definition at line 69 of file hmdcalignerparam.h.

References minSteps.

Referenced by HMdcAlignerD::finalize().

void HMdcAlignerParam::getModTrackParams	(	Double_t	x1,
		Double_t	y1,
		Double_t	z1,
		Double_t	x2,
		Double_t	y2,
		Double_t	z2,
		Double_t &	xFirstMod,
		Double_t &	yFirstMod,
		Double_t &	xLastMod,
		Double_t &	yLastMod
	)
