HModGeomPar Class Reference

#include <hdetgeompar.h>

Inheritance diagram for HModGeomPar:

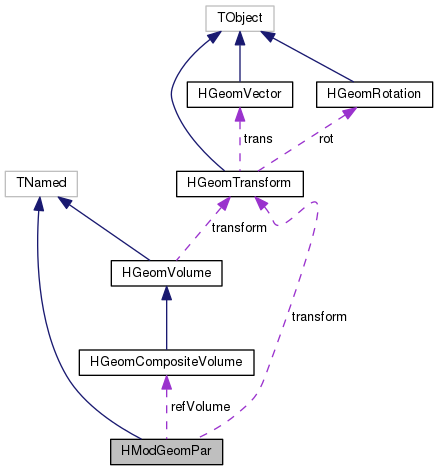

Collaboration diagram for HModGeomPar:

Public Member Functions
	HModGeomPar ()
	~HModGeomPar ()
HGeomCompositeVolume *	getRefVolume ()
HGeomTransform &	getLabTransform ()
const Text_t *	getRefName () const
void	setRefName (const Text_t *s)
void	clear ()
void	print ()
void	setVolume (HGeomCompositeVolume *p)

Protected Attributes
TString	refName
HGeomCompositeVolume *	refVolume
HGeomTransform	transform
	pointer to the reference module volume More...

Detailed Description

Definition at line 12 of file hdetgeompar.h.

Constructor & Destructor Documentation

HModGeomPar::HModGeomPar ( )

inline

Definition at line 18 of file hdetgeompar.h.

HModGeomPar::~HModGeomPar ( )

inline

Definition at line 19 of file hdetgeompar.h.

Member Function Documentation

void HModGeomPar::clear

(

void

)

Definition at line 96 of file hdetgeompar.cc.

References HGeomTransform::clear(), refName, refVolume, and transform.

Referenced by HDetGeomPar::clear().

HGeomTransform& HModGeomPar::getLabTransform ( void  )

inline

Definition at line 21 of file hdetgeompar.h.

References transform.

Referenced by HGeomInterface::addAlignment(), HMetaMatchF2::addTof(), HStart2GeomPar::calcLabPositions(), HEDTransform::calcRpcGeantPointLab(), HEDTransform::calcTofGeantPointLab(), HEDTransform::calcWallCell(), HEDTransform::calcWallFrame(), HEDTransform::calcWallGeantPointLab(), HDetGeomPar::clear(), HRpcHitF::execute(), HShowerGeometry::fillFromGeomPar(), HTofHitF::fillGeometry(), HWallHitF::fillGeometry(), HTofHitF2::fillGeometry(), HWallHitFSim::fillGeometry(), HMdcGetContainers::getLabTransMod(), HEmcCellGeomPar::init(), HMetaMatchF2::makeOuterSegMatch(), HMdcMille::makeShifts(), HParticleMetaMatcher::predictEmcCell(), HParticleMetaMatcher::predictRpcCell(), HParticleMetaMatcher::predictTofCell(), HMetaMatchF2::quality2TofClustS1(), HMetaMatchF2::quality2TofClustS2(), HMetaMatchF2::quality2TofHit(), HDetParRootFileIo::read(), HMdcVertexFind::readHits(), HDetParAsciiFileIo::readLabPositions(), HParticleMetaMatcher::recalcEmc(), HParticleMetaMatcher::recalcRpc(), HParticleMetaMatcher::recalcTof(), HEmcClusterF::reinit(), HMdcClusMetaMatch::reinit(), HEmcDigitizer::reinit(), HParticleMetaMatcher::reinit(), HMdcTargetMon::reinit(), HRKTrackBF2::reinit(), and HDetParAsciiFileIo::writeFile().

const Text_t* HModGeomPar::getRefName ( ) const

inline

Definition at line 22 of file hdetgeompar.h.

References refName.

Referenced by HDetParRootFileIo::read(), and HDetParAsciiFileIo::writeFile().

HGeomCompositeVolume* HModGeomPar::getRefVolume ( )

inline

Definition at line 20 of file hdetgeompar.h.

References refVolume.

Referenced by HGeomInterface::addAlignment(), HEDTransform::calcTofGeantPointLab(), HEDTransform::calcWallCell(), HEDTransform::calcWallGeantPointLab(), HMetaMatchF2::emcCellPath(), HTofHitF::fillGeometry(), HWallHitF::fillGeometry(), HTofHitF2::fillGeometry(), HWallHitFSim::fillGeometry(), HMetaMatchF2::quality2Emc(), HTofClusterF::readHit(), HEmcClusterF::reinit(), and HParticleMetaMatcher::reinit().

void HModGeomPar::print

(

void

)

Definition at line 88 of file hdetgeompar.cc.

References HGeomTransform::print(), refName, and transform.

Referenced by HDetGeomPar::printParam().

void HModGeomPar::setRefName

(

const Text_t *

s

)

Referenced by HDetParRootFileIo::read(), and HDetParAsciiFileIo::readLabPositions().

void HModGeomPar::setVolume ( HGeomCompositeVolume *  p )

inline

Definition at line 26 of file hdetgeompar.h.

Referenced by HDetParRootFileIo::read(), and HDetParAsciiFileIo::readLabPositions().

Member Data Documentation

TString HModGeomPar::refName

protected

Definition at line 14 of file hdetgeompar.h.

Referenced by clear(), getRefName(), and print().

HGeomCompositeVolume* HModGeomPar::refVolume

protected

Definition at line 15 of file hdetgeompar.h.

Referenced by clear(), and getRefVolume().

HGeomTransform HModGeomPar::transform

protected

pointer to the reference module volume

Definition at line 16 of file hdetgeompar.h.

Referenced by clear(), getLabTransform(), and print().

---

The documentation for this class was generated from the following files:

• base/geometry/hdetgeompar.h
• base/geometry/hdetgeompar.cc
