class HDetParOraIo: public HDetParIo

_HADES_CLASS_DESCRIPTION

 HDetParOraIo

 Base class for all detector I/O  classes from database Oracle
 (uses the Oracle C/C++ precompiler)

Function Members (Methods)

public:
HDetParOraIo(HOraConn* p = 0)
HDetParOraIo(const HDetParOraIo&)
virtual~HDetParOraIo()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTNamed::Clear(Option_t* option = "")
virtual TObject*TNamed::Clone(const char* newname = "") const
voidcommit()
virtual Int_tTNamed::Compare(const TObject* obj) const
virtual voidTNamed::Copy(TObject& named) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual voidTNamed::FillBuffer(char*& buffer)
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
Int_tgetActRunId()
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
const Char_t*getExpLocation()
const Char_t*getHistoryDate()
virtual const char*TObject::GetIconName() const
Int_tHDetParIo::getInputNumber()
virtual const char*TNamed::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
Int_tgetPredefVersion(HParSet*)
Int_tgetRunStart(HParSet* pPar = 0)
virtual const char*TNamed::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTNamed::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual Bool_tHDetParIo::init(HParSet*, Int_t*)
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTNamed::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTNamed::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HDetParOraIo&operator=(const HDetParOraIo&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTNamed::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
Bool_treadCond(HParCond*, Int_t*)
Bool_treadDetectorGeometry(HDetGeomPar*, Int_t*, HGeomOraDetVersion*)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
voidrollback()
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidHDetParIo::setInputNumber(Int_t n)
virtual voidTNamed::SetName(const char* name)MENU
virtual voidTNamed::SetNameTitle(const char* name, const char* title)
static voidTObject::SetObjectStat(Bool_t stat)
virtual voidTNamed::SetTitle(const char* title = "")MENU
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
voidshowSqlError(const Char_t*)
virtual Int_tTNamed::Sizeof() const
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tHDetParIo::write(HParSet*)
virtual Bool_tHDetParIo::write(HDetector*)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
Int_twriteAlignment(HDetGeomPar*)
Int_twriteCond(HParCond*)
protected:
voidaddGeomOraSet(HDetGeomPar*)
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
Int_tgetAlignmentOutputVersion(HParSet*, const Char_t*)
Int_tgetAlignmentVersion(HParOraSet*, const Char_t*)
Int_tgetContextId(const Char_t*, const Char_t*)
Int_tgetDetectorId(const Char_t*)
Int_tgetGeomVersion(const Char_t*, HGeomOraDetVersion*)
Int_tgetGeomVersion(Int_t, HGeomOraDetVersion*)
HParOraSet*getOraSet(HParSet*)
voidTObject::MakeZombie()
Int_treadAlignmentTransform(TList*, Int_t)
Bool_treadGeomPoints(TList*)
Bool_treadGeomTransform(TList*)
Bool_treadIdealGeometry(TList*, HGeomOraDetVersion*)
voidsetChanged(HParSet*)
Bool_twriteTransform(Int_t, const Char_t*, const HGeomTransform&)
private:
Int_tcreateAlignmentVers(HParSet*, Int_t)
Int_tcreateParamVers(HParCond*)
Bool_treadBlob(HParamObj*, Int_t, Bool_t)
Int_tstoreBlob(UChar_t*, Int_t, Bool_t)

Data Members

public:
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
TStringTNamed::fNameobject identifier
TStringTNamed::fTitleobject title
Int_tHDetParIo::inputNumberinput number (first or second input in runtime database)
private:
HRun*actContVerspointer to the actual list of container versions
Int_tactRunIdactual runId (can be -1 if there are no data in Oracle)
TList*containerListlist of parameter containers
HOraConn*pConnpointer to Oracle connection class

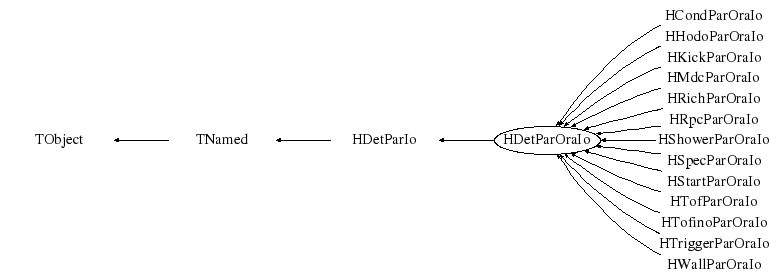

Class Charts

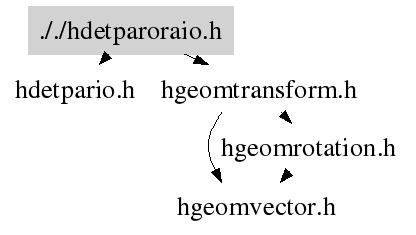

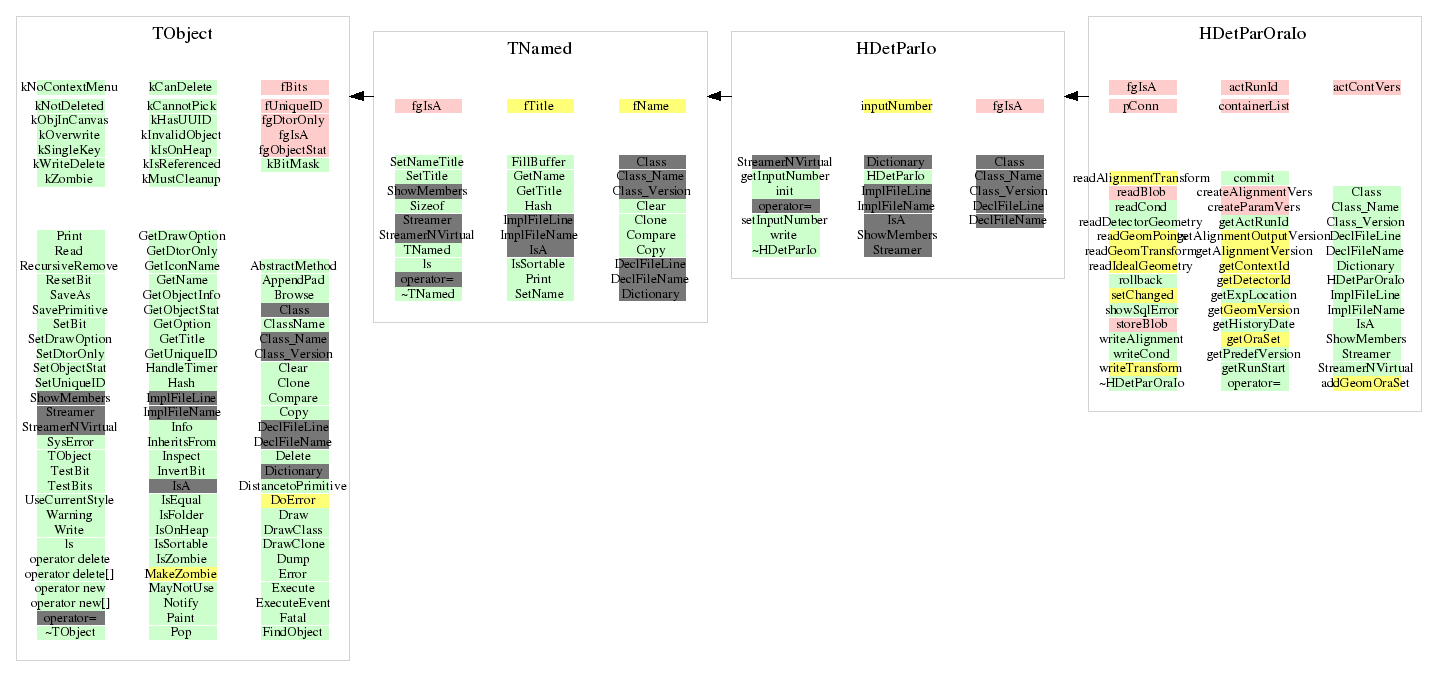

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

HDetParOraIo(HOraConn* pC)
 constructor gets a pointer to the connection class
~HDetParOraIo(void)
 destructor
void commit(void)
 commits all changes
EXEC SQL COMMIT WORK;
void rollback(void)
 discards all changes since last commit
EXEC SQL ROLLBACK WORK;
void showSqlError(const Char_t* )
 shows SQL error messages
Int_t getRunStart(HParSet* pPar = 0)
 Gets the actual run id from the runtime database and compares it with
 the last used actRunId for fetching data.
 If they are different, the run start time (converted to ansi C time) is
 read from Oracle and stored together with the run id in the data members
 run_id and runStart
const Char_t* getExpLocation()
 returns the experiment location
 (HADES_CAVE: beamtime runs,  VIRTUAL: simulation runs)
const Char_t* getHistoryDate()
 returns the timestamp set by the user to read historic data
Int_t getPredefVersion(HParSet* )
 finds out if a version for the parameter container has been set by
 the user (typically by defining a reference run for initialisation
 in the macro
 returns -1, if no version found
HParOraSet* getOraSet(HParSet* )
Int_t getContextId(const Char_t* , const Char_t* )
 return the parameter_context_id
void setChanged(HParSet* )
 sets the changed flag, the version (id of actual run) and the comment
Bool_t readCond(HParCond* , Int_t* )
 reads the analysis parameters and fill the container
Bool_t readBlob(HParamObj* , Int_t , Bool_t )
EXEC SQL BEGIN DECLARE SECTION;
Int_t createParamVers(HParCond* )
 create analysis parameter version in Oracle
 returns version number or -1 if error occurred
EXEC SQL BEGIN DECLARE SECTION;
Int_t writeCond(HParCond* )
 write analysis parameters to Oracle
Int_t storeBlob(UChar_t* , Int_t , Bool_t )
EXEC SQL BEGIN DECLARE SECTION;
void addGeomOraSet(HDetGeomPar* )
 Adds the geometry parameter container to the list of containers
Bool_t readDetectorGeometry(HDetGeomPar* , Int_t* , HGeomOraDetVersion* )
 Reads the geometry
Int_t getAlignmentVersion(HParOraSet* , const Char_t* )
 Reads the alignment version
Int_t getDetectorId(const Char_t* )
 Reads the detector id
Int_t getGeomVersion(const Char_t* detName,HGeomOraDetVersion* detVers)
 Reads the geometry version for the detector by name
Int_t getGeomVersion(Int_t detId,HGeomOraDetVersion* detVers)
 Reads the geometry version for the detector by id
Bool_t readIdealGeometry(TList* , HGeomOraDetVersion* )
 Reads the ids for the geometry
EXEC SQL BEGIN DECLARE SECTION;
Bool_t readGeomPoints(TList* )
 Reads the volume points
EXEC SQL BEGIN DECLARE SECTION;
Bool_t readGeomTransform(TList* )
 Reads the transformation
EXEC SQL BEGIN DECLARE SECTION;
Int_t readAlignmentTransform(TList* , Int_t )
 Reads the alignment transformation
EXEC SQL BEGIN DECLARE SECTION;
Int_t getAlignmentOutputVersion(HParSet* , const Char_t* )
 gets the alignment output version for the actual run
 creates a new one, if the version is -1
Int_t createAlignmentVers(HParSet* , Int_t )
 creates a new version for the alignment parameters
 returns the new version
HDetParOraIo(HOraConn* p=0)
Int_t getActRunId(void)
{ return actRunId; }
Int_t writeAlignment(HDetGeomPar* )
Bool_t writeTransform(Int_t , const Char_t* , const HGeomTransform& )

Last change: Sat May 22 12:54:38 2010
Last generated: 2010-05-22 12:54
