class HDetSet: public TNamed


 File name:       hdetset.cc
 Subject:         Detector sets.
 Author:          D.Vasiliev (INFN-LNS, Catania) "vassili@lns.infn.it"
 Date:            January 2000

 Remarks:         The concept of detector sets was initially proposed and
                  developed by
                  P.Finocchiaro (INFN-LNS,Catania, "finocchiaro@lns.infn.it")



 Description:

 This file contains the declaration of the classes HDetSet, HDetSetOut,
 HShowerDetSet, HMdcDetSet, HRichDetSet, HTofDetSet.
 These classes provide all functions to maintain the online objects of
 the type "detector set".

Function Members (Methods)

public:
HDetSet()
HDetSet(const HDetSet&)
virtual~HDetSet()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual Bool_tbelongs(Int_t dim1, Int_t dim2 = 0, Int_t dim3 = 0, Int_t dim4 = 0)
virtual voidTObject::Browse(TBrowser* b)
virtual voidcalcMinMax()
static TClass*Class()
virtual const char*TObject::ClassName() const
voidclear()
virtual voidTNamed::Clear(Option_t* option = "")
virtual TObject*TNamed::Clone(const char* newname = "") const
virtual Int_tTNamed::Compare(const TObject* obj) const
virtual voidTNamed::Copy(TObject& named) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidevaluate()
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual voidTNamed::FillBuffer(char*& buffer)
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
Int_tgetCategory()
Int_tgetDetName()
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
TArrayIgetHitAddress() const
virtual const char*TObject::GetIconName() const
Int_tgetMaxCell()
Int_tgetMinCell()
TArrayIgetMultiAddress() const
virtual const char*TNamed::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
HDetSetOut*getOutput() const
TArrayIgetSingleAddress() const
virtual const char*TNamed::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
const Char_t*getUserWord()
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTNamed::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tisEqual(HDetSet* pSet)
virtual Bool_tTObject::IsEqual(const TObject* obj) const
Bool_tisEvaluated() const
virtual Bool_tTObject::IsFolder() const
virtual Bool_tisGeomEqual(HDetSet* pSet)
Bool_tisMulti()
Bool_tTObject::IsOnHeap() const
virtual Bool_tTNamed::IsSortable() const
Bool_tTObject::IsZombie() const
virtual Bool_titerate(Int_t& n, Int_t* idx)
virtual Int_t*iterateHit(Int_t& n)
virtual voidTNamed::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HDetSet&operator=(const HDetSet&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTNamed::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
voidresetIter()
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
voidsetCategory(Int_t aname)
voidsetDetName(Int_t aname)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
Bool_tsetHitAddress(Int_t* idx, Int_t n)
voidsetMulti(Bool_t aflag = kTRUE)
Bool_tsetMultiAddress(Int_t* idx, Int_t n)
virtual voidTNamed::SetName(const char* name)MENU
virtual voidTNamed::SetNameTitle(const char* name, const char* title)
static voidTObject::SetObjectStat(Bool_t stat)
Bool_tsetSingleAddress(Int_t* idx, Int_t n)
virtual voidTNamed::SetTitle(const char* title = "")MENU
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual Int_tTNamed::Sizeof() const
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()

Data Members

public:
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
Int_tfCategory
Int_tfDetName
TArrayIfHitAddress
Int_tfIter
Int_tfMaxCell
Int_tfMinCell
TArrayIfMultiAddress
TStringTNamed::fNameobject identifier
HDetSetOut*fOut!
TArrayIfSingleAddress
TStringTNamed::fTitleobject title
Bool_tkEvaluated
Bool_tkMulti

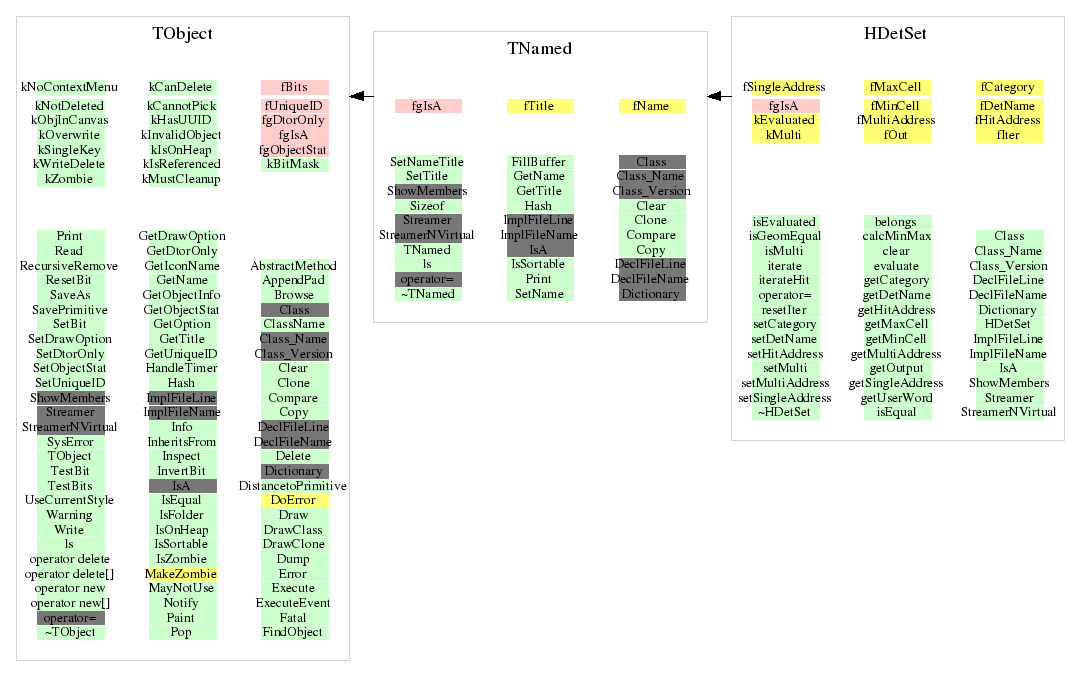

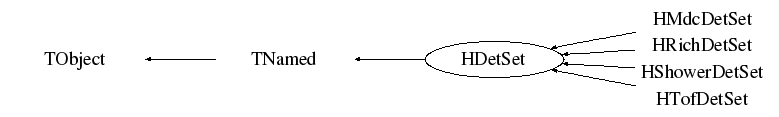

Class Charts

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

HDetSet()
 Constructor of the class HDetSet.
void evaluate()
 This function makes evaluation of a detector set.
 Evaluation means creation of a list of locations (inside the category
 of the detector set) with hits inside the cells which belong to
 the detector set.
void calcMinMax()
 This function calculates minimum and maximum cell number inside
 the detector set. This information is used by the mechanism of
 multihistogram definition.
Bool_t setSingleAddress(Int_t* idx, Int_t n)
 This function sets a detector set which contains only one cell.
Bool_t setHitAddress(Int_t* idx, Int_t n)
 This function sets a detector set for hit level.
 Not used so far.
Bool_t setMultiAddress(Int_t* idx, Int_t n)
 This function sets a multi detector set.
void clear()
 This function clears arrays which contain definition of the detector set.
const Char_t* getUserWord()
 The name of a detector set consists of two parts.
 1. The first part of the name is defined by the system. It reflects
    the detector type and data category(for example, "tofraw", "mdccal1").
 2. The second part is a user word.
 This function returns the user word.
Bool_t isGeomEqual(HDetSet* pSet)
 This function checks if the geometrical parts of the two detector sets
 are identical.
Bool_t isEqual(HDetSet* pSet)
 This function checks if the two detector sets are identical.
HDetSet()
virtual ~HDetSet()
{ if(fOut) delete fOut; }
Bool_t isEvaluated() const
{ return kEvaluated; }
HDetSetOut* getOutput() const
{ return fOut; }
void setDetName(Int_t aname)
{ fDetName = aname; }
Int_t getDetName()
{ return fDetName; }
void setCategory(Int_t aname)
{ fCategory = aname; }
Int_t getCategory()
{ return fCategory; }
void setMulti(Bool_t aflag = kTRUE)
{ kMulti = aflag; }
Bool_t isMulti()
{ return kMulti; }
void resetIter()
{ fIter = -1; }
Int_t getMinCell()
{ return fMinCell; }
Int_t getMaxCell()
{ return fMaxCell; }
Bool_t iterate(Int_t& n, Int_t* idx)
{ return kFALSE; }
Bool_t belongs(Int_t dim1, Int_t dim2 = 0, Int_t dim3 = 0, Int_t dim4 = 0)
{ return 0; }
TArrayI getSingleAddress() const
{ return fSingleAddress; }
TArrayI getHitAddress() const
{ return fHitAddress; }
TArrayI getMultiAddress() const
{ return fMultiAddress; }
Int_t* iterateHit(Int_t& n)
