class HHistogram: public TNamed

_HADES_CLASS_DESCRIPTION

 The HHistogram class provides a set of functions to maintain
 the online objects of the type "histogram".


 The HDrawingOpt class is a service class for HHistogram which allows
 to set and store drawing options for the histogrammes.

Function Members (Methods)

public:
HHistogram()
HHistogram(const HHistogram&)
virtual~HHistogram()
voidTObject::AbstractMethod(const char* method) const
voidaction()
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
Bool_tcheckConsistency(Bool_t kMsg = kFALSE)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTNamed::Clear(Option_t* option = "")
virtual TObject*TNamed::Clone(const char* newname = "") const
virtual Int_tTNamed::Compare(const TObject* obj) const
virtual voidTNamed::Copy(TObject& named) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
voidfill()
virtual voidTNamed::FillBuffer(char*& buffer)
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
Int_tgetCIdx() const
Int_tgetCType() const
voidgetCursors(Int_t& x, Int_t& y)
Int_tgetDim() const
virtual Option_t*TObject::GetDrawOption() const
Int_tgetDSIdx(Int_t pos) const
static Long_tTObject::GetDtorOnly()
TH1F*getHist1() const
TH2F*getHist2() const
virtual const char*TObject::GetIconName() const
Int_tgetKey() const
Int_tgetLCondition(Int_t axis) const
Int_tgetLCount(Int_t axis) const
virtual const char*TNamed::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
HUserParameter*getParameter(Int_t idx) const
Float_tgetPhi() const
Float_tgetTheta() const
virtual const char*TNamed::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTNamed::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
Bool_tisConditioned()
Bool_tisConsistent() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tisMulti() const
Bool_tTObject::IsOnHeap() const
Bool_tisPause() const
TList*isSameDS(Int_t axis)
virtual Bool_tTNamed::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTNamed::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HHistogram&operator=(const HHistogram&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
voidprint()
virtual voidTNamed::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
voidsetCIdx(Int_t idx)
voidsetCName(const Char_t* cname)
voidsetCType(Int_t type)
voidsetCursors(Int_t x = 1, Int_t y = 1)
voidsetDim(Int_t i)
voidsetDrawingOpt(Bool_t kDefault = kTRUE)
voidsetDrawingOpt(HDrawingOpt* p, Bool_t kSave = kFALSE)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
voidsetDSIdx(Int_t ds, Int_t pos)
voidsetDSName(const Char_t* name, Int_t pos)
static voidTObject::SetDtorOnly(void* obj)
voidsetHist1(TH1F* hist)
voidsetHist2(TH2F* hist)
voidsetKey(Int_t key)
voidsetLCondition(Int_t idx, Int_t axis)
voidsetLCount(Int_t idx, Int_t axis)
voidsetMulti(Bool_t kFlag = kTRUE)
virtual voidTNamed::SetName(const char* name)MENU
virtual voidTNamed::SetNameTitle(const char* name, const char* title)
static voidTObject::SetObjectStat(Bool_t stat)
voidsetParameter(HUserParameter* pPar, Int_t idx)
voidsetPause(Bool_t kFlag = kTRUE)
voidsetPhi(Float_t p)
voidsetTheta(Float_t t)
virtual voidTNamed::SetTitle(const char* title = "")MENU
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual Int_tTNamed::Sizeof() const
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()

Data Members

public:
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
Int_tfCIdxcondition index
Text_tfCName[100]condition name (consistency check)
Int_tfCTypetype of condition to which histogram is assigned
Int_tfDSIdx1main det set index (axis x)
Int_tfDSIdx2second det set index (axis y)
Text_tfDSName1[100]main det set name (axis x)
Text_tfDSName2[100]second det set name (axis y)
Int_tfDimnumber of dimensions
HDrawingOptfDrawing
TH1F*fHist11d histogram
TH2F*fHist22d histogram
Int_tfKey0 - lc counters not used for histogramming
Int_tfLCondition1local condition index on x axis
Int_tfLCondition2local condition index on y axis
Int_tfLCount1one of local condition counters on x axis
Int_tfLCount2one of local condition counters on y axis
TStringTNamed::fNameobject identifier
HUserParameter*fPar1x-axis parameter
HUserParameter*fPar2y-axis parameter (if needed)
Float_tfPhi
Float_tfTheta
TStringTNamed::fTitleobject title
Bool_tkConsistentconsistency flag
Bool_tkMultimulti/non multi histogram
Bool_tkPausedo not fill the histogram if true
Int_txcursor
Int_tycursor

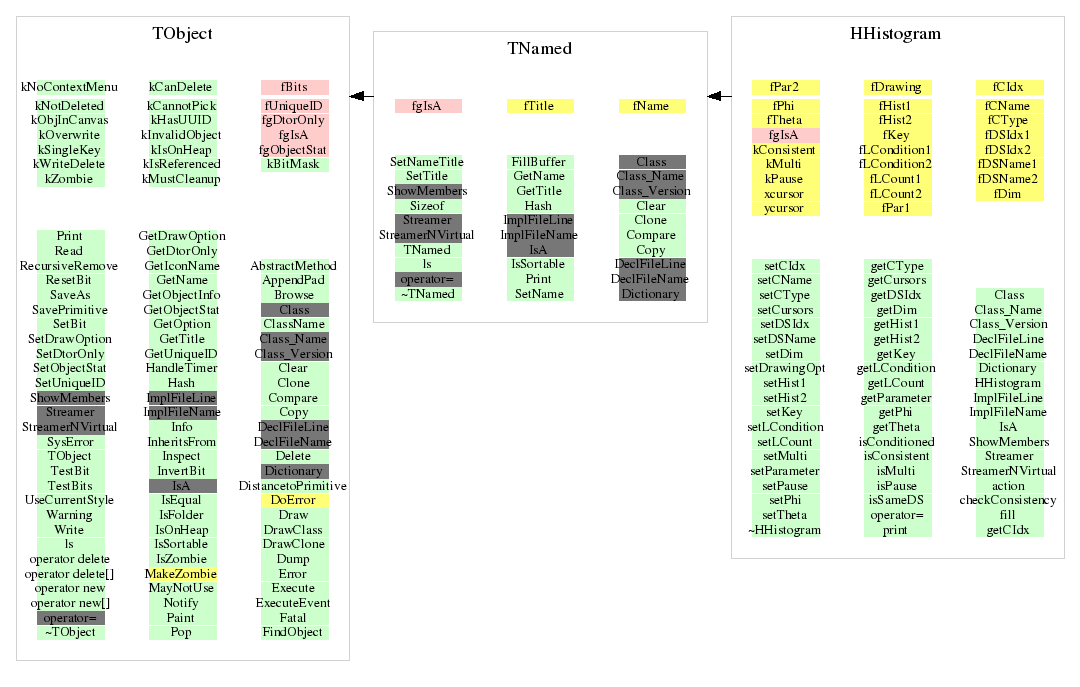

Class Charts

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

HHistogram()
 Constructor of the class HHistogram.
~HHistogram()
 Destructor of the class HHistogram.
TList* isSameDS(Int_t axis)
 This function is used only in case the histogram is bound to a global
 condition. It checks if the histogram detector set is present in one
 of the local conditions from which the global is formed. In case of
 the positive result returns the list of locations from the corresponding
 local condition outcome.
void fill()
 This function fills the histogram.
void action()
 This function takes decision about calling fill function in the event
 loop.
Bool_t checkConsistency(Bool_t kMsg = kFALSE)
 This function checks the histogram consistency.
void setHist1(TH1F* hist)
 This function sets 1d histogram.
void setHist2(TH2F* hist)
 This function sets 2d histogram.
void print()
 This fuction prints information about the histogram.
void setDrawingOpt(HDrawingOpt* p, Bool_t kSave = kFALSE)
 This function sets drawing options for the histogram.
 If kSave = kTRUE the options are remembered.
void setDrawingOpt(Bool_t kDefault = kTRUE)
 This function sets drawing options for the histogram using its own fDrawing.
 If kDefault = kTRUE the options are automatic (default ranges etc).
HHistogram()
void setDim(Int_t i)
{ fDim = i; }
Int_t getDim() const
{ return fDim; }
void setMulti(Bool_t kFlag = kTRUE)
{ kMulti = kFlag; }
Bool_t isMulti() const
{ return kMulti; }
void setCType(Int_t type)
{ fCType = type; }
Int_t getCType() const
{ return fCType; }
Bool_t isConditioned()
{ return ((fCType>0) ? kTRUE : kFALSE); }
void setPause(Bool_t kFlag = kTRUE)
{ kPause = kFlag; }
Bool_t isPause() const
{ return kPause; }
void setCIdx(Int_t idx)
{ fCIdx = idx; }
Int_t getCIdx() const
{ return fCIdx; }
void setCName(const Char_t* cname)
{ if(cname) sprintf(fCName,"%s",cname); }
void setDSIdx(Int_t ds, Int_t pos)
Int_t getDSIdx(Int_t pos) const
void setDSName(const Char_t* name, Int_t pos)
void setParameter(HUserParameter* pPar, Int_t idx)
HUserParameter * getParameter(Int_t idx) const
TH1F* getHist1() const
{ return fHist1; }
TH2F* getHist2() const
{ return fHist2; }
Bool_t isConsistent() const
{ return kConsistent; }
void setKey(Int_t key)
{ fKey = key; }
Int_t getKey() const
{ return fKey; }
void setLCount(Int_t idx, Int_t axis)
Int_t getLCount(Int_t axis) const
void setLCondition(Int_t idx, Int_t axis)
Int_t getLCondition(Int_t axis) const
void setTheta(Float_t t)
{ fTheta = t; }
void setPhi(Float_t p)
{ fPhi = p; }
Float_t getTheta() const
{ return fTheta; }
Float_t getPhi() const
{ return fPhi; }
void setCursors(Int_t x = 1, Int_t y = 1)
{ xcursor = x; ycursor = y; }
void getCursors(Int_t& x, Int_t& y)
{ x = xcursor; y = ycursor; }
