class HHodoTrbUnpacker: public HTrbBaseUnpacker

_HADES_CLASS_DESCRIPTION


  HHodoTrbUnpacker

  Class for unpacking TRB data and filling
    the Hodo Raw category
  Base subevent decoding is performed by decode function
  see: htrbbaseunpacker.h (/base/datasource/ )

Function Members (Methods)

public:
HHodoTrbUnpacker(UInt_t id = 0)
HHodoTrbUnpacker(const HHodoTrbUnpacker&)
virtual~HHodoTrbUnpacker()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTObject::Clear(Option_t* = "")
voidHTrbBaseUnpacker::clearAll()
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
virtual Int_tHTrbBaseUnpacker::correctOverflow()
virtual Int_tHTrbBaseUnpacker::correctRefTimeCh127()
virtual Int_tHTrbBaseUnpacker::correctRefTimeCh31()
Int_tcorrectRefTimeChVar()
voidcorrectRefTimeWKStyle()
virtual Int_tHTrbBaseUnpacker::decode()
virtual voidTObject::Delete(Option_t* option = "")MENU
voiddisableTimeRef()
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
voidenableControlHistograms()
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual Int_texecute()
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
Bool_tHTrbBaseUnpacker::fill_lead(Int_t ch, Int_t d)
Bool_tHTrbBaseUnpacker::fill_pair(Int_t ch, Int_t time, Int_t length)
Bool_tHTrbBaseUnpacker::fill_trail(Int_t ch, Int_t d)
virtual Bool_tfinalize()
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
Int_tHTrbBaseUnpacker::getDebugFlag()
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual const char*TObject::GetIconName() const
virtual const char*TObject::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
HldUnpack::HPPHldUnpack::getpSubEvt()
virtual Int_tHTrbBaseUnpacker::getSubEvtId() const
virtual const char*TObject::GetTitle() const
Int_tHTrbBaseUnpacker::getTrbDataVer() const
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual Bool_tinit()
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HHodoTrbUnpacker&operator=(const HHodoTrbUnpacker&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTObject::Print(Option_t* option = "") const
voidHTrbBaseUnpacker::PrintTdcError(UInt_t e, UInt_t trbId)
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
virtual Bool_tHldUnpack::reinit()
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
voidHldUnpack::setCategory(HCategory* aCat)
voidHTrbBaseUnpacker::setDebugFlag(Int_t db)
voidHTrbBaseUnpacker::setDebugFlag1(Int_t db)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
static voidTObject::SetObjectStat(Bool_t stat)
voidHTrbBaseUnpacker::setQuietMode()
voidHTrbBaseUnpacker::setReportCritical()
voidsetTimeRefType(Int_t f)
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()

Data Members

public:
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
Int_tHTrbBaseUnpacker::debugFlag! allows to print subevent information
Int_tHTrbBaseUnpacker::debugFlag1! used for special purpuses
Bool_tfControlHistogramsflag for control histograms
Bool_tfNoTimeRefCorrSwitch of Reference Time substraction (debugging)
Int_tforced_TimeRefTypeif !=-1 use this type of time ref correction
TH2F*histdiagdif
TH2F*histdiagraw
HLocationloc
HTrbLookup*HTrbBaseUnpacker::lookup
TH2F*multdiagcontrol histos
HCategory*HldUnpack::pRawCat! pointer to category where data will be stored;
HldSubEvt*HldUnpack::pSubEvt! pointer to subevent where data are read from
Bool_tHTrbBaseUnpacker::quietMode! do not print errors!
HHodoRefHitPar*refhit
Bool_tHTrbBaseUnpacker::reportCritical! report critical errors!
UInt_tHTrbBaseUnpacker::subEvtId
Int_tHTrbBaseUnpacker::trbADC[128][10]
Int_tHTrbBaseUnpacker::trbDataExtension[128]
Bool_tHTrbBaseUnpacker::trbDataPairFlag
Int_tHTrbBaseUnpacker::trbDataVerdata structure version:
Int_tHTrbBaseUnpacker::trbExtensionSize
Int_tHTrbBaseUnpacker::trbLeadingMult[128]
Int_tHTrbBaseUnpacker::trbLeadingTime[128][10]
Int_tHTrbBaseUnpacker::trbTrailingMult[128]
Int_tHTrbBaseUnpacker::trbTrailingTime[128][10]
Int_tHTrbBaseUnpacker::trbTrailingTotalMult[128]FIXME: Pablos private version; total multiplicity for trailings

Class Charts

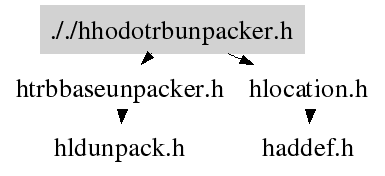

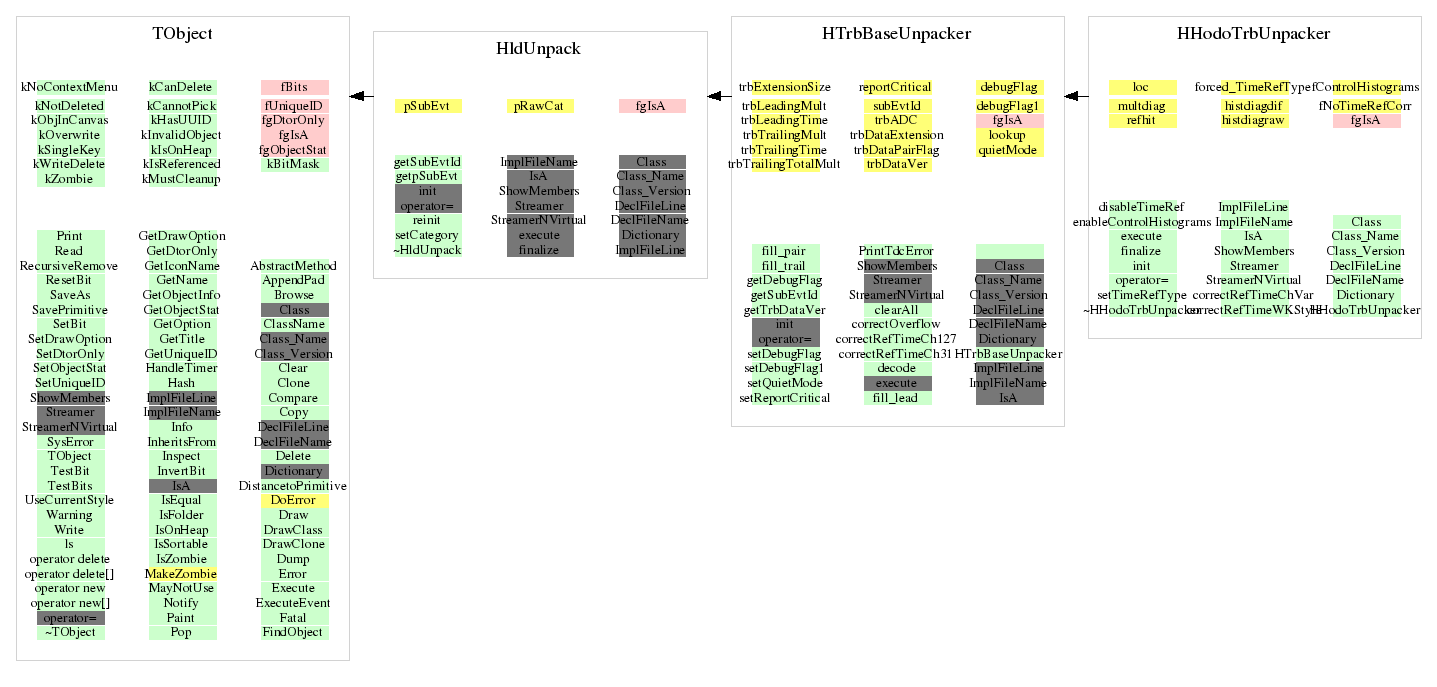

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

HHodoTrbUnpacker(UInt_t id)
 constructor
Bool_t init(void)
 creates the raw category and gets the pointer to the TRB lookup table
Bool_t finalize(void)
Int_t correctRefTimeChVar(void)

 Reference signal from channel 31 of TDC
 ist used for correction of corresponding TDC chns
 If no ref Time is found there the other TDCs
 are checked for chn31
 Attention: Timing of the four TCD refHit Chns
 can be different (+25ps per TDC claimed by Jurek)
Int_t execute(void)
void correctRefTimeWKStyle(void)

 Reference signal from channel XX is used for TDC correction
 this is not the final version of hardware design
 call this function only if channel using Wolfgangs LED+Meantimer boards

 This code has not been used up to now!!!
 -> not really tested
 function should be moved to TRB class if working
HHodoTrbUnpacker(UInt_t id=0)
~HHodoTrbUnpacker(void)
{ }
void disableTimeRef(void)
{fNoTimeRefCorr=true;}
void setTimeRefType(Int_t f)
{forced_TimeRefType=f;}
void enableControlHistograms()
{ fControlHistograms = kTRUE; }
