class HHypBaseAlgorithm

Function Members (Methods)

public:

	HHypBaseAlgorithm(const HHypBaseAlgorithm&)
	HHypBaseAlgorithm(const Char_t* name_i = 0, Option_t* par = 0)
virtual	~HHypBaseAlgorithm()
Bool_t	base_execute()
Bool_t	base_finalize()
Bool_t	base_init()
Bool_t	base_reinit()
static TClass*	Class()
virtual Bool_t	execute()
virtual Bool_t	finalize()
Int_t	GetExitChannelAlgIdx()
TFile*	GetHFile()
HHypList*	GetList()
const Char_t*	GetName()
TString*	GetOpt(TString st)
Int_t	GetSourceChannelAlgIdx()
virtual Bool_t	init()
virtual TClass*	IsA() const
HHypBaseAlgorithm&	operator=(const HHypBaseAlgorithm&)
virtual Bool_t	reinit()
void	SetBeam(TLorentzVector* mybeam)
void	SetBeamPID(Int_t projectile)
Bool_t	SetExitChannelAlgIdx(Int_t e_id)
Bool_t	SetExitList(Int_t e_list)
void	SetHFile(TFile* file)
void	SetHypChannel(HHypChannel* mychannel)
Bool_t	SetInitList(Int_t i_list)
void	SetParams(HHypRecPar* Params)
Bool_t	SetSourceChannelAlgIdx(Int_t i_id)
void	SetTargetPID(Int_t target)
virtual void	ShowMembers(TMemberInspector& insp, char* parent)
virtual void	Streamer(TBuffer& b)
void	StreamerNVirtual(TBuffer& b)

Data Members

public:

Bool_t	skip

protected:

TString	algoName	! Name of the algorithm (for printout, debugging...)
TLorentzVector*	beam	! Pointer to the total CM energy for missing mass calculations
Int_t	beam_pid
HHypChannel*	channel	! Pointer to the official channel list
Int_t	exitIdx	The index number of the hyplist object created in base_execute
Int_t	exitList	The physical exit list (see HHypChannel)
TFile*	histofile	! Store optional information in this file
Int_t	initList	My physical init list
HHypList*	mylist	Pointer to the exitList (which THIS algorith may modify)
TString	options	! Option list
HHypRecPar*	pParams	pointer to container with params
Int_t	sourceIdx	The index number of the source hyplist object
Int_t	target_pid	! Beam and Target PID (needed for Kine Refit)

Class Charts

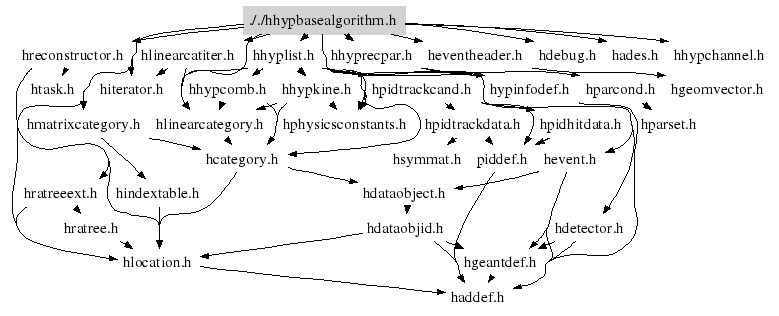

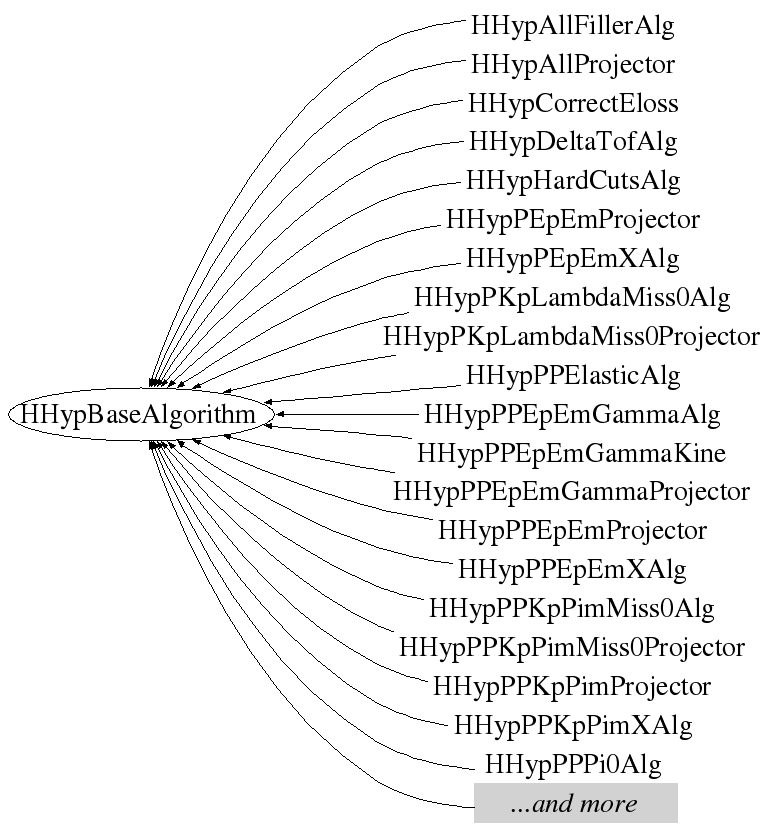

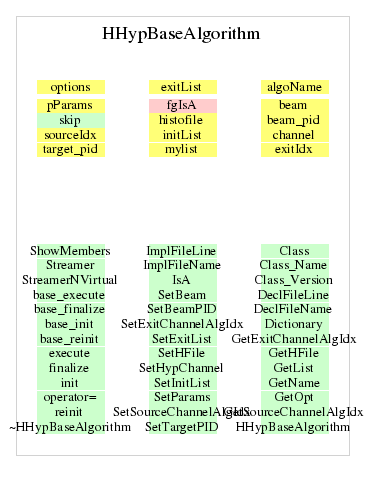

Inheritance Inherited Members Includes Libraries

Function documentation

HHypBaseAlgorithm(const Char_t* name_i = 0, Option_t* par = 0)

 Constructor


 Input parameters:
     name_i: Pointer to the algorithm name
     par:    Option, which can be parsed by the implementation

~HHypBaseAlgorithm()

TString * GetOpt(TString st)

scan option list
try to extract option paramter
returns NULL if option was not set

HHypList * GetList(void)

 Return the result HHypList of the specific algorithm

Bool_t SetSourceChannelAlgIdx(Int_t i_id)

Bool_t SetExitChannelAlgIdx(Int_t e_id)

Bool_t SetExitList(Int_t e_list)

Bool_t SetInitList(Int_t i_list)

Int_t GetSourceChannelAlgIdx()

Int_t GetExitChannelAlgIdx()

const Char_t * GetName()

Bool_t base_execute()

 base_execute should be executed by the reconstructor
 BEFORE execute is called
 In the case, when:
    1. the algorithm is based on another algorithm AND
    2. it should have an exit object
 the exit object HHypList is created

 Return code: kFALSE or kTRUE

Bool_t base_init()

Bool_t base_reinit()

Bool_t base_finalize()

Bool_t init()

Bool_t reinit()

Bool_t execute()

Bool_t finalize()

HHypBaseAlgorithm(const Char_t* name_i = 0, Option_t* par = 0)

void SetBeam(TLorentzVector* mybeam)

{beam = mybeam;}

void SetTargetPID(Int_t target)

{ target_pid=target;}

void SetBeamPID(Int_t projectile)

{ beam_pid=projectile;}

void SetHypChannel(HHypChannel* mychannel)

{channel = mychannel;}

void SetParams(HHypRecPar* Params)

{pParams = Params;}

void SetHFile(TFile* file)

{histofile = file;}

TFile* GetHFile()

{return histofile;}

Last change: 20/04/2005 by I. Froehlich
Last generated: 2010-05-22 12:57
