class HKickPlane2: public HParSet

_HADES_CLASS_DESCRIPTION

 HKickPlane2

  Descriptor of the magnetic kick plane of HADES.
  Contains a parametrization of the kick plane itself as well as
 parametrization of the momentum kicks in X and Y directions as a function of
 the position in the kick plane.

Function Members (Methods)

public:
HKickPlane2(const HKickPlane2& pl)
HKickPlane2(const Char_t* name = "KickPlane2", const Char_t* title = "Parameter container for kickplane v2", const Char_t* context = "KickPlane2Production")
virtual~HKickPlane2()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
Bool_tcalcIntersection(const HGeomVector& r, const HGeomVector& alpha, HGeomVector& out) const
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidclear()
virtual voidTNamed::Clear(Option_t* option = "")
virtual TObject*TNamed::Clone(const char* newname = "") const
virtual Int_tTNamed::Compare(const TObject* obj) const
virtual voidTNamed::Copy(TObject& named) const
voidHParSet::copyComment(HParSet& r)
virtual voidTObject::Delete(Option_t* option = "")MENU
Double_tdistanceTo(const HGeomVector& v)
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual voidTNamed::FillBuffer(char*& buffer)
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
const Char_t*HParSet::getAuthor() const
const Char_t*HParSet::getDescription() const
const Text_t*HParSet::getDetectorName()
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
Float_tgetFieldStrength() const
virtual const char*TObject::GetIconName() const
Int_tHParSet::getInputVersion(Int_t i)
static HKickPlane2*getMDC3()
static HKickPlane2*getMeta()
virtual const char*TNamed::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
Double_tgetP(const HGeomVector& pos, Double_t theta, const Int_t polarity)
const Char_t*HParSet::getParamContext() const
HSurface*getSurface()
virtual const char*TNamed::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
Bool_tHParSet::hasChanged()
virtual ULong_tTNamed::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual Bool_tinit(HParIo* inp, Int_t* set)
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTNamed::IsSortable() const
Bool_tHParSet::isStatic()
Bool_tTObject::IsZombie() const
virtual voidTNamed::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HKickPlane2&operator=(const HKickPlane2&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidHParSet::print()
virtual voidTNamed::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
Bool_tread(fstream* pFile, Int_t* set, Int_t inputNumber)
voidreadFrom(const HKickPlane2& pl)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
voidHParSet::resetInputVersions()
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
voidHParSet::setAuthor(const Char_t* s)
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
voidHParSet::setChanged(Bool_t flag = kTRUE)
voidHParSet::setDescription(const Char_t* s)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidHParSet::setInputVersion(Int_t v = -1, Int_t i = 0)
virtual voidTNamed::SetName(const char* name)MENU
virtual voidTNamed::SetNameTitle(const char* name, const char* title)
static voidTObject::SetObjectStat(Bool_t stat)
voidHParSet::setParamContext(const Char_t*)
voidHParSet::setStatic(Bool_t flag = kTRUE)
virtual voidTNamed::SetTitle(const char* title = "")MENU
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual Int_tTNamed::Sizeof() const
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_twrite(HParIo* io)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
Int_twriteFile(fstream* pFile)
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()

Data Members

public:
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
TStringHParSet::authorAuthor of parameters
Bool_tHParSet::changed! flag is kTRUE if parameters have changed
TStringHParSet::descriptionDescription of parameters
Text_tHParSet::detName[10]! name of the detector the container belongs to
HKickGridfGridAGrid for Pt
HKickGridfGridANegGrid for Pt and neg. parts
HKickGridfGridBGrid for Pt
HKickGridfGridBNegGrid for Pt and neg. parts
HKickGridfGridC
HKickGridfGridCNegGrid for Pt and neg. parts
TStringTNamed::fNameobject identifier
Double_tfScaleFactorField scaling
HSurface*fSurfaceKick plane's surface.
TStringTNamed::fTitleobject title
TStringHParSet::paramContextContext/purpose for parameters and conditions
Bool_tHParSet::status! static flag
Int_tHParSet::versions[3]! versions of container in the 2 possible inputs

Class Charts

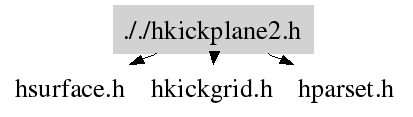

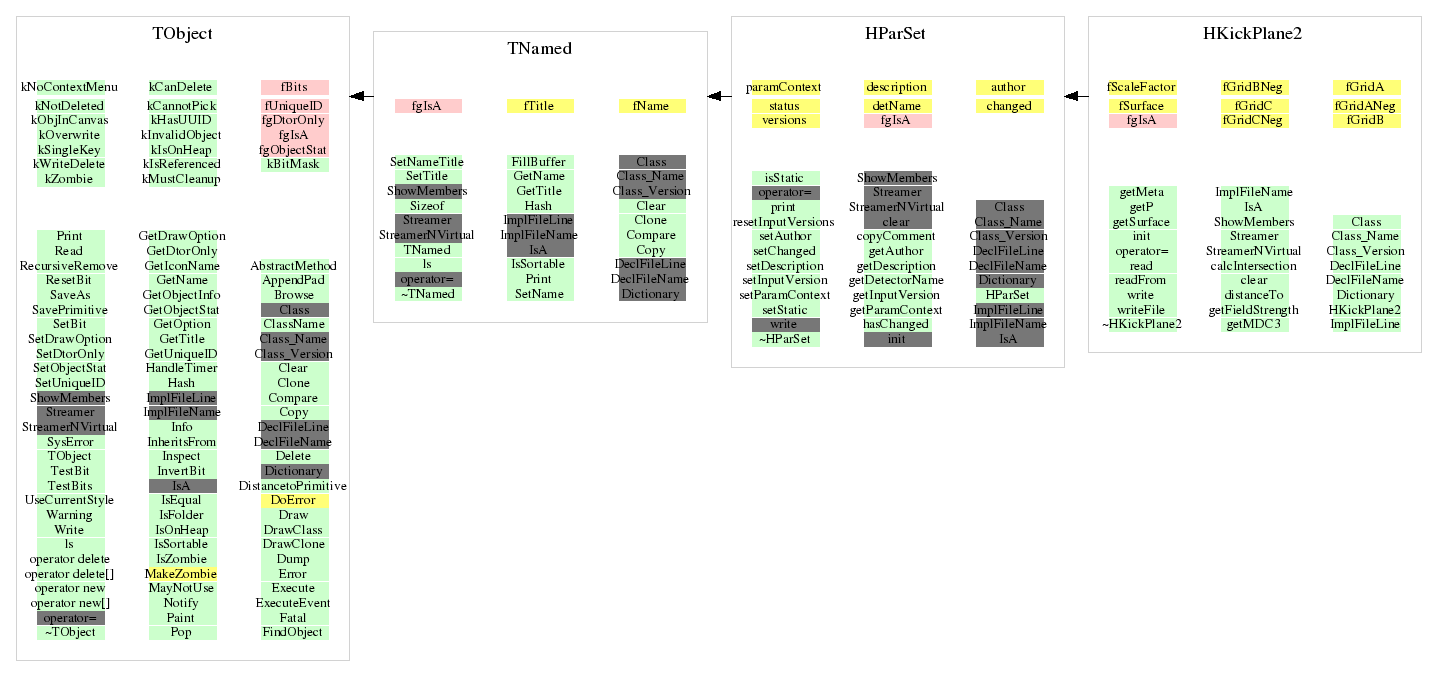

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

HKickPlane2 * getMDC3(void)
HKickPlane2 * getMeta(void)
HKickPlane2(const Char_t* name = "KickPlane2", const Char_t* title = "Parameter container for kickplane v2", const Char_t* context = "KickPlane2Production")
Default constructor
HKickPlane2(const HKickPlane2& pl)
~HKickPlane2(void)
Double_t getP(const HGeomVector& pos, Double_t theta, const Int_t polarity)
void clear(void)
Clears the container
Bool_t init(HParIo* inp, Int_t* set)
See HParSet::init
Int_t write(HParIo* io)
See HParSet::write
Int_t writeFile(fstream* pFile)
void readFrom(const HKickPlane2& pl)
Bool_t read(fstream* pFile, Int_t* set, Int_t inputNumber)
Bool_t calcIntersection(const HGeomVector& r, const HGeomVector& alpha, HGeomVector& out) const
*********** Inlines
Double_t distanceTo(const HGeomVector& v)
Float_t getFieldStrength() const
{ return fScaleFactor; }
HSurface * getSurface(void)
{ return fSurface; }
