class HMatrixCatIter: public HIterator

_HADES_CLASS_DESCRIPTION

HMatrixCatIter

   This is a HIterator for HMatrixCategory.

Function Members (Methods)

public:

	HMatrixCatIter(const HMatrixCatIter&)
	HMatrixCatIter(HMatrixCategory* cat, Bool_t dir = kIterForward)
virtual	~HMatrixCatIter()
static TClass*	Class()
virtual TCollection*	GetCollection() const
virtual HLocation&	getLocation()
virtual Option_t*	TIterator::GetOption() const
virtual Bool_t	gotoLocation(HLocation& loc)
virtual TClass*	IsA() const
virtual TObject*	Next()
virtual bool	TIterator::operator!=(const TIterator&) const
TObject*	TIterator::operator()()
virtual TObject*	TIterator::operator*() const
HMatrixCatIter&	operator=(const HMatrixCatIter&)
virtual void	Reset()
virtual void	ShowMembers(TMemberInspector& insp, char* parent)
virtual void	Streamer(TBuffer& b)
void	StreamerNVirtual(TBuffer& b)

private:

HMatrixCatIter()

Data Members

protected:

Int_t	fAntCursor	Cursor of previous interation
Int_t	fBegin	First value of fCursor
HMatrixCategory*	fCategory	! Category being iterated
HLocation	fCurrentLoc	Current location in the category
Int_t	fCursor	Cursor for linear iteration
Bool_t	fDir	Iteration direction.
Int_t	fEnd	Last possible value of fCursor
TArrayI*	fSizes	! Sizes of the category

Class Charts

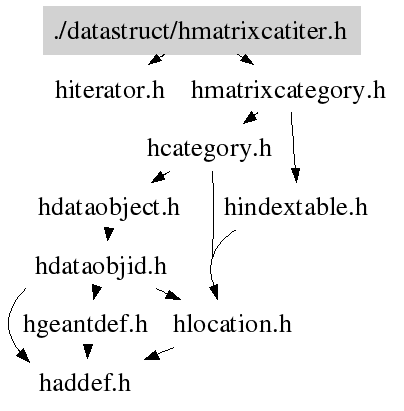

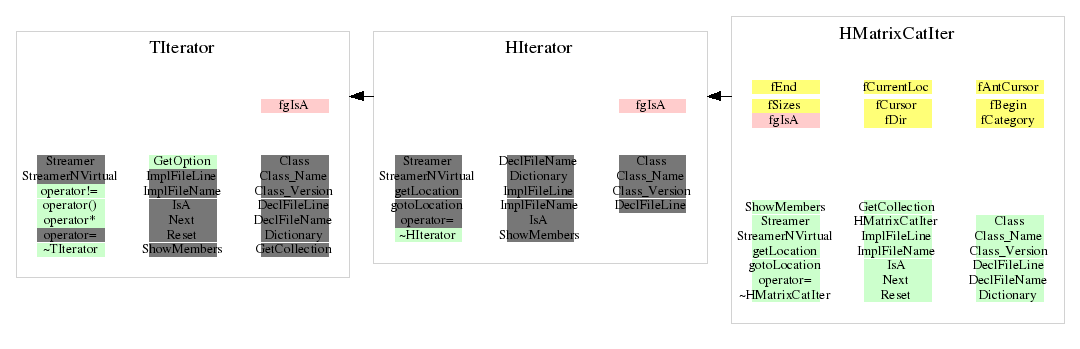

Inheritance Inherited Members Includes Libraries

Function documentation

HMatrixCatIter(const HMatrixCatIter& )

Default constructor. Never call

HMatrixCatIter(HMatrixCategory* cat, Bool_t dir = kIterForward)

Allocates a new HIterator pointing to the category cat and iterating in the direction
dir

~HMatrixCatIter(void)

Destructor

TCollection * GetCollection(void)

Returns the internal collection where the category stores data

TObject * Next(void)

Advances to next object and returns a pointer to it.
Returns NULL when reaches the end

void Reset(void)

Points the iterator to the first object in the category

Bool_t gotoLocation(HLocation& loc)

Points the iterator to the object given in the location loc

HLocation & getLocation(void)

Gets the location of the currently pointed object.

HMatrixCatIter(const HMatrixCatIter& )
