class HMdcCal1Sim: public HMdcCal1

_HADES_CLASS_DESCRIPTION


 HMdcCal1Sim

 Data object for a Mdc cell containing digitized drift times
 from simulation

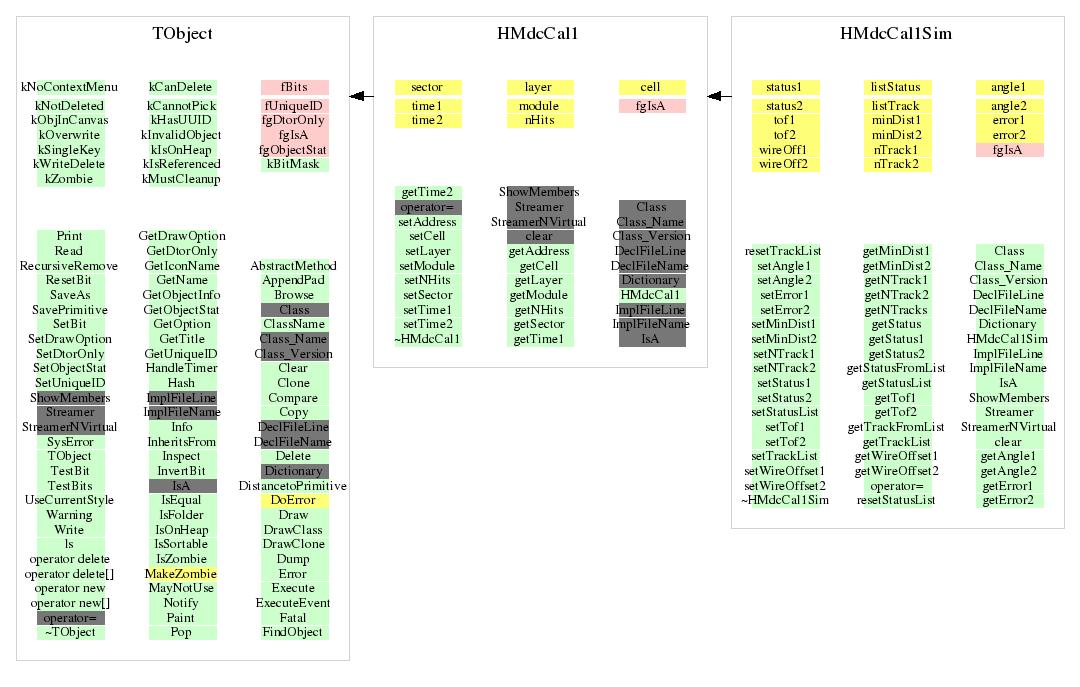

 This class inherits from the class HMdcCal1 used for real data.

 As additional data elements the track numbers of the two hits are stored
 and a status number set by the digitizer.
 The track number of the hits can be accessed via the inline functions
     void setNTrack1(const Int_t nTrack1)     of time1
     void setNTrack2(const Int_t nTrack2)     of time2
     Int_t getNTrack1(void) const             of time1
     Int_t getNTrack2(void) const             of time2
 and the status via the inline functions
     void setStatus1(const Int_t flag)        of time1
     Int_t getStatus1() const                 of time1
     void setStatus2(const Int_t flag)        of time2
     Int_t getStatus2() const                 of time2
     void setAngle1   (const Float_t angle1)  of time1
     void setAngle2   (const Float_t angle2)  of time2
     Float_t getAngle1(void)                  of time1
     Float_t getAngle2(void)                  of time2
     void setMinDist1 (const Float_t mindist1)of time1
     void setMinDist2 (const Float_t mindist2)of time2
     Float_t getMinDist1(void)                of time1
     Float_t getMinDist2(void)                of time2
     void setError1 (const Float_t error1)    of time1
     void setError2 (const Float_t error2)    of time2
     Float_t getError1(void)                  of time1
     Float_t getError2(void)                  of time2
     void setTof1 (const Float_t tof1)        of time1
     void setTof2 (const Float_t tof2)        of time2
     void setWireOffset1 (const Float_t off1) of time1
     void setWireOffset2 (const Float_t off2) of time2
     Float_t getTof1(void)                    of time1
     Float_t getTof2(void)                    of time2
     Float_t getWireOffset1(void)             of time1
     Float_t getWireOffset2(void)             of time2
     void  setTrackList(Int_t* array) array of tracks[5]  can be coppied
           to TrackList
     void  getTrackList(Int_t* array) array of tracks[5]  can be filled
           from TrackList
     void  setStatusList(Int_t* array) array of status[5] can be coppied
           to StatusList
     void  getStatusList(Int_t* array) array of status[5] can be filled
           from StatusList
     Int_t getNTracks() returns number of tracks in track list,
           can be used for loops
           for(Int_t i=0;i<(HMdcCal1Sim*)cal->getNTracks();i++)
              { (HMdcCal1Sim*)cal->getTrackFromList(i);}
     Int_t* getStatusList(){return (Int_t*)listStatus;}
     Int_t* getTrackList() {return (Int_t*)listTrack;}
     Int_t getTrackFromList (Int_t element){return listTrack [element];}
     Int_t getStatusFromList(Int_t element){return listStatus[element];}

 According to the two different TDC modes the HMdcCal1Sim category is filled.

 MODE 1 (two times LEADING EDGE of the TDC signal)
           nHits ==  -2 for 2 valid hits
                 ==  -1 for 1 valid hit
                 ==   0 for a not filled hit (e.g. 1 hit was kicked out by efficiency)
         status1 ==   1 for a valid first hit
                 ==   2 for a valid first hit caused by noise
                 ==  -3 for a not valid hit
                 ==   0 for REAL data (embedding) or no hit
         status2 ==   1 for a valid second hit
                 ==   2 for a valid first hit caused by noise
                 ==  -3 for a not valid hit
                 ==   0 for REAL data (embedding) or no hit
         angle1  ==   impact of track1 or -99 if not filled
         angle2  ==   impact of track2 or -99 if not filled
         minDist1==   minimum distance of track1 or -99 if not filled
         minDist2==   minimum distance of track2 or -99 if not filled
         error1  ==   error of time1
         error2  ==   error of time1 of the second valid hit or -99 if not filled
         tof1    ==   tof of time1
         tof2    ==   tof of time1 of the second valid hit or -99 if not filled
         wireOff1==   signal time on wire of track1 or -99 if not filled
         wireOff2==   signal time on wire of track2 or -99 if not filled
         nTrack1 ==   track number of the first valid hit
                 ==  -99 if not filled
         nTrack2 ==   track number of the second valid hit
                 ==  -99 if not filled
         time1   ==   drift time1 of the first valid hit
                 ==  -999 if not filled
         time2   ==   drift time1 of the second valid hit
                 ==  -999 if not filled
     listTrack[5] :   contains the track number of the first 5 hits per cell
                      == -99 if no hit was filled
     listStatus[5]:   contains the status flags of the first 5 hits per cell
                      == -1 if hit was kicked out by cell efficiency cut
                      == -2 if hit was kicked out by layer efficiency cut
                      ==  1 if hit is valid
                      ==  2 if hit is noise
                      ==  3 if hit is REAL data (embedding)
                      ==  0 if no hit was filled
     both lists will be filled even if no vaild hit was found

 MODE 2 (LEADING AND TRAILING EDGE of the TDC signal)
           nHits ==  +2 for 2 valid hits
                 ==   0 for not filled hit (e.g. 1 hit was kicked out by efficiency)
         status1 ==   1 for a valid first hit
                 ==   2 for a valid first hit caused by noise
                 ==  -3 for a not valid hit
                 ==   0 for REAL data (embedding) or no hit
         status2 ==   1 for a valid first hit
                 ==   2 for a valid first hit caused by noise
                 ==  -3 for a not valid hit
                 ==   0 for REAL data (embedding) or no hit
         angle1  ==   impact of track1 or -99 if not filled
         angle2  ==   impact of track1 or -99 if not filled
         minDist1==   minimum distance of track1 or -99 if not filled
         minDist2==   minimum distance of track1 or -99 if not filled
         error1  ==   error of time1 or -99 if not filled
         error2  ==   error of time2 or -99 if not filled
         tof1    ==   tof of time1 or -99 if not filled
         tof2    ==   tof of time2 or -99 if not filled
         wireOff1==   signal time on wire of track1 or -99 if not filled
         wireOff2==   signal time on wire of track1 or -99 if not filled
         nTrack1 ==   track number of first valid hit
                 ==  -99 if not filled
         nTrack2 ==   track number of first valid hit
                 ==  -99 if not filled
         time1   ==   drift time1 of the first valid hit
                 ==  -999 if not filled
         time2   ==   drift time2 of the first valid hit
                 ==  -999 if not filled
     listTrack[5] :   contains the track number of the first 5 hits per cell
                      == -99 if no hit was filled
     listStatus[5]:   contains the status flags of the first 5 hits per cell
                      == -1 if hit was kicked out by cell efficiency cut
                      == -2 if hit was kicked out by layer efficiency cut
                      ==  1 if hit is valid
                      ==  2 if hit is noise
                      ==  3 if hit is REAL data (embedding)
                      ==  0 if no hit was filled
     both lists will be filled even if no vaild hit was found
