class HMdcCal2: public TObject

_HADES_CLASS_DESCRIPTION


 HMdcCal2

 Data object for a Mdc cell containing calibrated distances to the wire

 In measurement mode the TDC accepts two hits per channel. The TDC can hereby
 trigger either on two leading edges (hit multiplicity nHits: -1 or -2) or
 on a leading and the trailing edge of a single pulse (nHits: +1 or +2).

 The addresses of the cell can be accessed via the inline functions
     void setSector(const Int_t s)
     void setModule(const Int_t m)
     void setLayer(const Int_t l)
     void setCell(const Int_t c)
     void setAddress(const Int_t sector,const Int_t module,
                     const Int_t layer,const Int_t cell)
     Int_t getSector(void) const
     Int_t getModule(void) const
     Int_t getLayer(void) const
     Int_t getCell(void) const
     void getAddress(Int_t& sector,Int_t& module,Int_t& layer,Int_t& cell)
 the number of hits with the inline functions
     void setNHits(const Int_t n)
     Int_t getNHits(void) const
 and the distances and its errors with the inline functions
     void setDist1(const Float_t dist1,const Float_t errDist1)
     void setDist2(const Float_t dist2,const Float_t errDist2)
     Float_t getDist1(void)
     Float_t getDist2(void)
     Float_t getErrDist1(void)
     Float_t getErrDist2(void)

 The inline function clear() sets the data data members to the following
 values:
         nHits=0;
         sector=module=layer=cell=-1;
         dist1=dist2=errDist1=errDist2=-99.F;

Function Members (Methods)

public:
HMdcCal2()
HMdcCal2(const HMdcCal2&)
virtual~HMdcCal2()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
voidclear()
virtual voidTObject::Clear(Option_t* = "")
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
voidgetAddress(Int_t& s, Int_t& m, Int_t& l, Int_t& c)
Int_tgetCell() const
Float_tgetDist1()
Float_tgetDist2()
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
Float_tgetErrDist1()
Float_tgetErrDist2()
virtual const char*TObject::GetIconName() const
Int_tgetLayer() const
Int_tgetModule() const
virtual const char*TObject::GetName() const
Int_tgetNHits() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
Int_tgetSector() const
virtual const char*TObject::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HMdcCal2&operator=(const HMdcCal2&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTObject::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
voidsetAddress(const Int_t s, const Int_t m, const Int_t l, const Int_t c)
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
voidsetCell(const Int_t c)
voidsetDist1(const Float_t d, const Float_t e)
voidsetDist2(const Float_t d, const Float_t e)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidsetLayer(const Int_t l)
voidsetModule(const Int_t m)
voidsetNHits(const Int_t n)
static voidTObject::SetObjectStat(Bool_t stat)
voidsetSector(const Int_t s)
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()

Data Members

public:
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
Int_tcellcell number in wire plane
Float_tdist1distance to the wire of first hit [mm]
Float_tdist2distance to the wire of second hit [mm]
Float_terrDist1error of distance for first hit [mm]
Float_terrDist2error of distance for second hit [mm]
Int_tlayerlayer number [0-5]
Int_tmodulemodule number [0-3]
Int_tnHitsnumber of hits in this cell
Int_tsectorsector number [0-5]

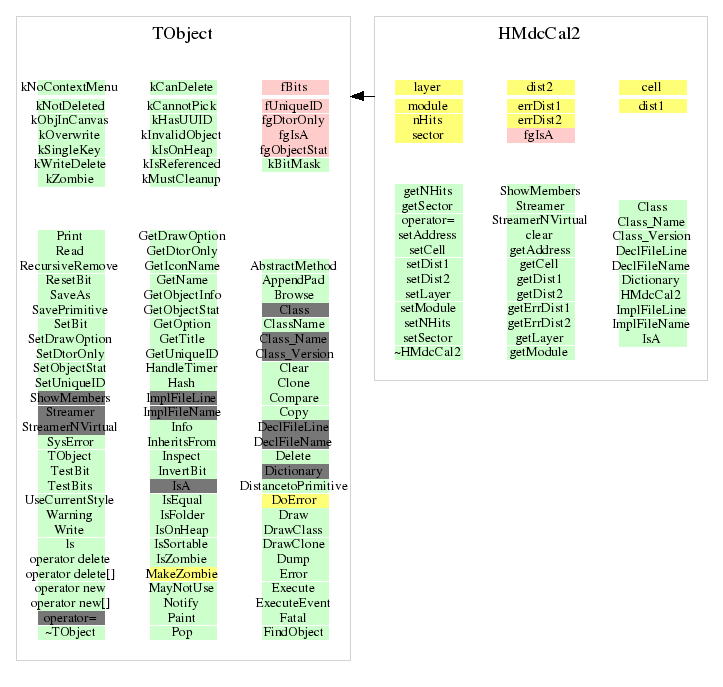

Class Charts

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

HMdcCal2(const HMdcCal2& )
{clear();}
~HMdcCal2(void)
{}
void clear()
void setSector(const Int_t s)
{ sector = s; }
void setModule(const Int_t m)
{ module = m; }
void setLayer(const Int_t l)
{ layer = l; }
void setCell(const Int_t c)
{ cell = c; }
void setAddress(const Int_t s, const Int_t m, const Int_t l, const Int_t c)
void setDist1(const Float_t d, const Float_t e)
void setDist2(const Float_t d, const Float_t e)
void setNHits(const Int_t n)
{nHits=n;}
Int_t getSector(void)
{ return sector; }
Int_t getModule(void)
{ return module; }
Int_t getLayer(void)
{ return layer; }
Int_t getCell(void)
{ return cell; }
void getAddress(Int_t& s, Int_t& m, Int_t& l, Int_t& c)
Int_t getNHits(void)
{ return nHits; }
Float_t getDist1(void)
{return dist1;}
Float_t getDist2(void)
{return dist2;}
Float_t getErrDist1(void)
{return errDist1;}
Float_t getErrDist2(void)
{return errDist2;}
