class HMdcCal3: public TObject

_HADES_CLASS_DESCRIPTION

   An HMdcCal3 is a calibrated hit in a mdc plane.
   It contains:
     - the coordinate in the plane in the local
       reference system (layer)
     - error of the coordinate
     - nHits: number of hits the cal3 object belongs to
     - fAddress: address of the cal3

   The class contains the following not-inline functions:
   - a default constructor
   - a default destructor
   - print(void): prints the hit information to the
                  standard output
   - print(ostream &file): prints the hit information
                           to file

Function Members (Methods)

public:
HMdcCal3()
HMdcCal3(HMdcCal3* copy)
HMdcCal3(const HMdcCal3&)
virtual~HMdcCal3()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTObject::Clear(Option_t* = "")
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
voiddecrFlag()
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
UInt_tgetAddress()
Int_tgetCell()
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
Double_tgetError()
Int_tgetFlag()
Int_tgetHitNumber()
virtual const char*TObject::GetIconName() const
Int_tgetLayer()
HMdcCalLink*getLink()
Int_tgetModule()
virtual const char*TObject::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
Double_tgetPos()
Int_tgetSector()
virtual const char*TObject::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
voidincrFlag()
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HMdcCal3&operator=(const HMdcCal3&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidprint()
virtual voidprint(ostream& file)
virtual voidTObject::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
voidsetAddress(UInt_t address)
voidsetAddress(Char_t sector, Char_t module, Char_t layer, Short_t cell, Char_t hitNumber)
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
voidsetCell(Short_t c)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidsetError(Double_t err)
voidsetFlag(Int_t n)
voidsetHitNumber(Char_t h)
voidsetLayer(Char_t l)
voidsetLink(HMdcCalLink* calLink)
voidsetModule(Char_t m)
static voidTObject::SetObjectStat(Bool_t stat)
voidsetPos(Double_t theta)
voidsetSector(Char_t s)
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()

Data Members

public:
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
Double_terrorcoordinate error
UInt_tfAddressaddress: sector, module, layer, cell, hit number
HMdcCalLink*link!corresponding object in linked list
Int_tnHitsnumber of hits the cal3 belongs to
Double_tposhit coordinate in the local reference system

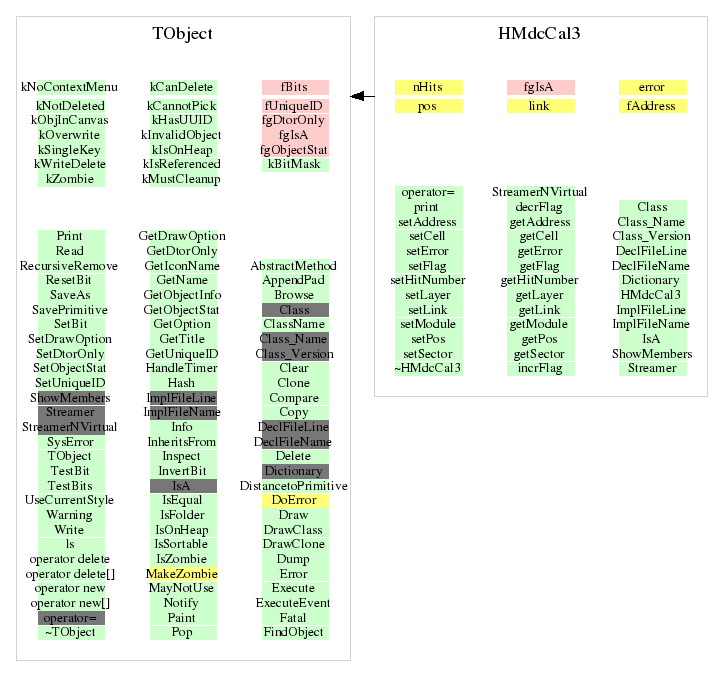

Class Charts

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

~HMdcCal3(void)
 Default destructor
delete link;
void setAddress(Char_t sector, Char_t module, Char_t layer, Short_t cell, Char_t hitNumber)
void print(ostream& file)
 Prints the particle coordinates to the standard output
void print(ostream& file)
 Prints the particle coordinates to file
HMdcCal3(void)
HMdcCal3(HMdcCal3* copy)
void setPos(Double_t theta)
{pos = theta;}
void setError(Double_t err)
{error = err;}
void setFlag(Int_t n)
{nHits = n;}
void incrFlag(void)
{nHits++;}
void decrFlag(void)
{nHits--;}
Double_t getPos(void)
{return pos;}
Double_t getError(void)
{return error;}
Int_t getFlag(void)
{return nHits;}
HMdcCalLink* getLink(void)
{return link;}
void setLink(HMdcCalLink* calLink)
{link = calLink;}
void setAddress(UInt_t address)
{fAddress=address;}
void setHitNumber(Char_t h)
{fAddress= (fAddress & 0x0FFFFFF) | (h<<24);}
void setSector(Char_t s)
{fAddress= (fAddress & 0x00FFFFF) | (s<<20);}
void setModule(Char_t m)
{fAddress= (fAddress & 0x0F0FFFF) | (m<<16);}
void setLayer(Char_t l)
{fAddress= (fAddress & 0x0FF0FFF) | (l<<12);}
void setCell(Short_t c)
{fAddress= (fAddress & 0x0FFF000) | c;}
UInt_t getAddress(void)
{return fAddress;}
Int_t getHitNumber(void)
{return (fAddress>>24 & 0xF);}
Int_t getSector(void)
{return (fAddress>>20 & 0xF);}
Int_t getModule(void)
{return (fAddress>>16 & 0xF);}
Int_t getLayer(void)
{return (fAddress>>12 & 0xF);}
Int_t getCell(void)
{return (fAddress & 0xFFF);}
