class HMdcLowLevelQA: public HReconstructor

_HADES_CLASS_DESCRIPTION


 HMdcLowLevelQA


Function Members (Methods)

public:
HMdcLowLevelQA()
HMdcLowLevelQA(const Text_t* name, const Text_t* title)
virtual~HMdcLowLevelQA()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidHReconstructor::Browse(TBrowser* b)
voidcheckNeighboringCells(Int_t s, Int_t m, Int_t c)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTNamed::Clear(Option_t* option = "")
virtual TObject*TNamed::Clone(const char* newname = "") const
virtual Int_tTNamed::Compare(const TObject* obj) const
virtual Bool_tHReconstructor::connectTask(HTask* task, Int_t n = 0)
virtual voidTNamed::Copy(TObject& named) const
voidcreateHistograms()
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual Int_texecute()
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual voidTNamed::FillBuffer(char*& buffer)
voidfillHistogramsCal(Int_t, Int_t, Int_t, Int_t, Float_t, Float_t)
voidfillHistogramsRaw(Int_t, Int_t, Int_t, Int_t, Float_t, Float_t)
virtual Bool_tfinalize()
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
Bool_tgetCategories()
virtual HTask*HReconstructor::getComposite()
virtual voidHReconstructor::getConnections()
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual const char*TObject::GetIconName() const
virtual const char*TNamed::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
virtual HTask*HTask::getOwner()
voidgetSetup()
TObjArrayHReconstructor::getTable()
virtual HTask*HReconstructor::getTask(const Char_t* name)
virtual const char*TNamed::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTNamed::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual Bool_tinit()
voidinitVariables()
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tHReconstructor::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTNamed::IsSortable() const
virtual voidHReconstructor::isTimed(Bool_t flag = kTRUE)
Bool_tTObject::IsZombie() const
voidlookupSlopes(Int_t s, Int_t m)
virtual voidTNamed::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
TDirectory*Mkdir(TDirectory*, const Char_t*, Int_t, Int_t p = 1)
virtual HTask*HReconstructor::next(Int_t& errCode)
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HTask&HTask::operator=(const HTask&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTNamed::Print(Option_t* option = "") const
voidprintStatus()
virtual voidHReconstructor::printTimer()
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
virtual Bool_treinit()
voidTObject::ResetBit(UInt_t f)
voidresetCounters()
virtual voidHReconstructor::resetTimer()
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
voidHReconstructor::setActive(Bool_t state)MENU
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
virtual Bool_tHTask::setConnections()
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidHTask::setManual()
virtual voidTNamed::SetName(const char* name)MENU
virtual voidTNamed::SetNameTitle(const char* name, const char* title)
static voidTObject::SetObjectStat(Bool_t stat)
voidsetOutputRoot(const Char_t*)
virtual voidHTask::setOwner(HTask* atask)
voidsetParContainers()
voidsetStepSize(Int_t size)
virtual voidTNamed::SetTitle(const char* title = "")MENU
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual Int_tTNamed::Sizeof() const
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
voidtestTimeCuts(Int_t s, Int_t m, Float_t t1, Float_t t2)
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
voidwriteHistograms(Int_t, Int_t, Int_t, Int_t, Int_t, Int_t)
voidwriteTimeCuts()
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()

Data Members

public:
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
Int_tEventcountercounts the number of events
Int_tNhitsPERmbo[6][4][16]for 6 modules in 4 planes
TH1F*a_thisFileName
HCategory*calCat! pointer to the cal data
Int_tcnt123[6][4]number of "noise" wires (we assume this to be a noise if only 1 or 2 or 3 wires have fired in a module)
static Int_tcolorsCuts[3]colors for hists to be compared for cuts
static Int_tcolorsModule[4]colors for hists to be compared in one sector
static Int_tcolorsSector[6]colors for hists to be compared in one plane
static Int_tcutResults[4]contains 0/1 for cuts in t1,t2 and t2-1 after testTimeCuts()
Int_tdouble_all[6][4][2]keeps conter for cells with neighbors and all cells
Bool_tHReconstructor::fActiveActive flag
TList*HReconstructor::fHistogramsList of histograms generated by this reconstructor.
Bool_tHTask::fIsTimedtimer flag
TStringTNamed::fNameobject identifier
Char_t*fNameRootHistsfile name of root output file
TObjArrayHReconstructor::fOutputs
TStopwatchHReconstructor::fTimerTask timer
TStringTNamed::fTitleobject title
TH1F*hmdc_Slope[6][4]technical histogramm for calculating slopes mean value for trend histogramm
TH1F*hmdc_multiplicity[6][4]hits multiplicity event by event storage
TH2F*hmdc_summ_MBOvsTDC[6][4]
TH1F*hmdc_summ_dNdNhits[6][4]
TH1F*hmdc_summ_dNdWire[6][4][6][3]sector//plane//layer//histogramm_kind_(four different histograms: for different time cut conditions)
TH2F*hmdc_summ_t2mt1_vs_t1[6][4]
TH1F*hmdc_summ_tCuts_info[4]histogram contains 6 bins for each time cut
TH1F*hmdc_summ_trend_123ratio
TH1F*hmdc_summ_trend_meantime1
TH1F*hmdc_summ_trend_meantime1_plane
TH1F*hmdc_summ_trend_meantime1not_t1
TH1F*hmdc_summ_trend_meantime1not_t12
TH1F*hmdc_summ_trend_meantime1not_t2
TH1F*hmdc_summ_trend_multiplicity
TH1F*hmdc_summ_trend_neighbors
TH1F*hmdc_time1[6][4]all t-cuts //time1 per sector and module
TH1F*hmdc_time1_everithing_summ[6][4]Regardless of any time cuts summary for the file
TH1F*hmdc_time1_good_t1_summ[6][4]All cuts are OK, summary for the file
TH1F*hmdc_time1_not_t1_summ[6][4]Time1 cut is not done, summary for the file
TH1F*hmdc_time1_plane[4]time1 per plane
TH1F*hmdc_time1not_t1[6][4]PASS t1-cut //time1 per sector and module
TH1F*hmdc_time1not_t12[6][4]PASS t12cut //time1 per sector and module
TH1F*hmdc_time1not_t2[6][4]PASS t2-cut //time1 per sector and module
TH1F*hmdc_trend_123ratio[6][4]for 6 modules in 4 planes
TH1F*hmdc_trend_NhitsPERmbo[6][4][16]for 6 modules in 4 planes
TH1F*hmdc_trend_meanSlope[6][4]slope of CAL1 as a function of file
TH1F*hmdc_trend_meantime1[6][4]PASS //trend of mean of time1 per sector and module
TH1F*hmdc_trend_meantime1_plane[4]trend of mean of time1 per plane
TH1F*hmdc_trend_meantime1not_t1[6][4]DOES NOT //trend of mean of time1 per sector and module
TH1F*hmdc_trend_meantime1not_t12[6][4]DOES NOT //trend of mean of time1 per sector and module
TH1F*hmdc_trend_meantime1not_t2[6][4]DOES NOT //trend of mean of time1 per sector and module
TH1F*hmdc_trend_multiplicity[6][4]mean value over N-step events of multiplicity
TH1F*hmdc_trend_neighbors[6][4]trend of ratio single to neighboring cells per sector and module
Bool_tHTask::isConnected
Bool_tHTask::isInitialised
Bool_tisInitializedflag for initialization of histograms
HIterator*itercal1! iterator on cal1 data.
HIterator*iterraw! iterator on raw data.
HLocationloccal1! location for new object.
HLocationlocraw! location for new object.
HMdcLookupGeom*lookup! lookup table for mapping
HMdcLookupRaw*lookupRaw! lookup table for mapping
Bool_tHTask::manual
Int_tmySetup[6][4]actual setup of the detector
Int_tnBinsTrendXmax number of bins for trend histograms
Int_tnReqEventsnuber of Events from Hades::EventLoop
Int_tnumberOfSectorsPerModule[4]stores number of chambers per plane
HTask*HTask::owner
Int_tpreviousCellStatusbuffer for cell number of previous hit
HCategory*rawCat! pointer to the raw data
Int_tsect_module_NumberOfHits[6][4]number of hits per module=(sector,plane)
Int_tsm_old[2]sector => sm_old[0], module => sm_old[1]
Int_tsmmb_old[3][sector,module,mbo] combination
Int_tstep_trend_meantime1_countercounts the number of bin to be filled in trend hists
Int_tstepsize_trend_meantime1defines the number of events to be filled for one data point
HMdcTimeCut*timecut! container for time cuts

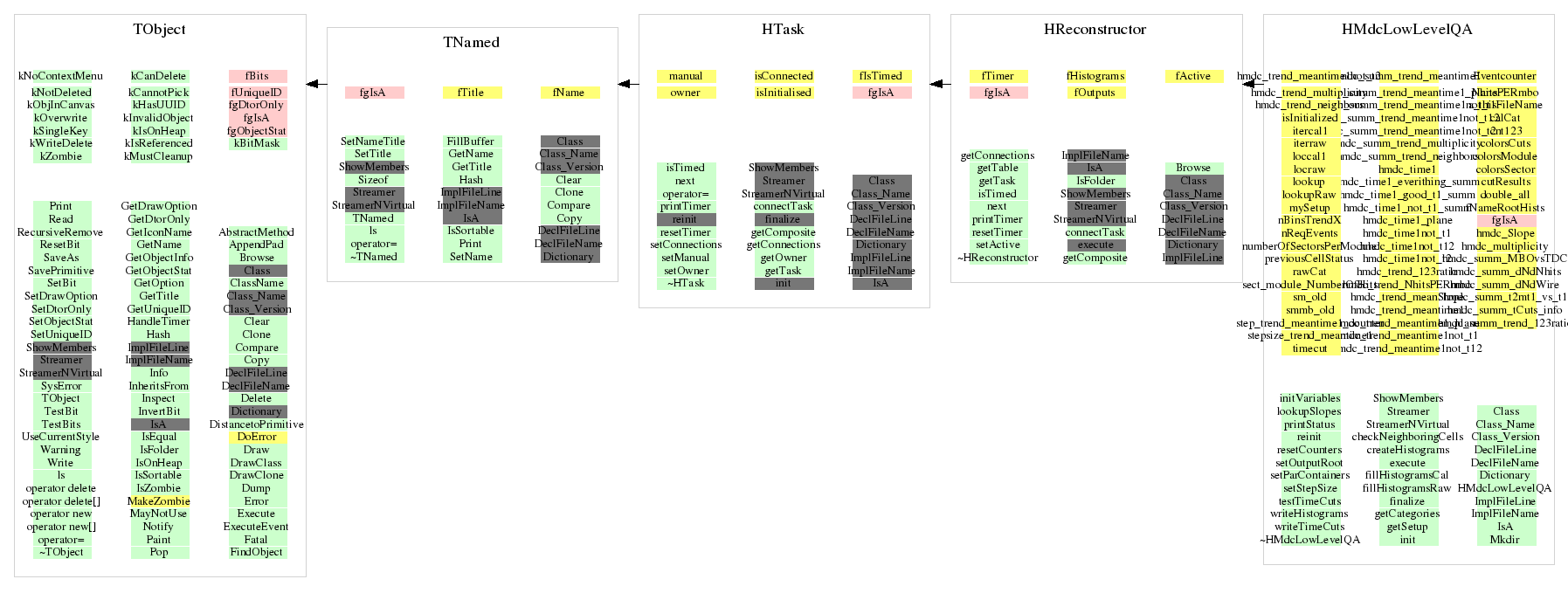

Class Charts

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

HMdcLowLevelQA(void)
 Default constructor calls the function setParContainers().
HMdcLowLevelQA(const Text_t* name, const Text_t* title)
 Constructor calls the constructor of class HReconstructor with the name
 and the title as arguments. It also calls the function setParContainers().
~HMdcLowLevelQA(void)
 destructor deletes the iterator
void initVariables()
void printStatus()
void setParContainers()
 creates the parameter containers MdcLookupGeom/MdcLookupRaw/MdcTimeCut if they do not
 exist and adds them to the list of parameter containers in the runtime
 database
void setOutputRoot(const Char_t* )
 Sets rootfile output of HMdcFillTimeHists where all created histograms were written.

Bool_t init(void)
 creates the MdcRaw  and MdcCal1 categories and adds them to the current
 event
 creates an iterator which loops over all fired cells
 calls the function setParContainers()
Bool_t reinit(void)
Bool_t getCategories()
void writeTimeCuts()
for(Int_t s=0; s<6; s++){ //time cut is the same for the same plane (different sectors)
void lookupSlopes(Int_t s, Int_t m)
cout << "s="<<s<<" m="<<m<<" Slope="<<calparraw->getSlope(s,m) << endl;
void testTimeCuts(Int_t s, Int_t m, Float_t t1, Float_t t2)
void createHistograms()
void writeHistograms(Int_t , Int_t , Int_t , Int_t , Int_t , Int_t )
 Writes hists to file dependend on level (0=raw,1=cal), main (1=summary,2=plane),
 sector,module,layer/mb,cell/channel.-99 means that this ind3ex is not used.
void fillHistogramsCal(Int_t , Int_t , Int_t , Int_t , Float_t , Float_t )
void fillHistogramsRaw(Int_t , Int_t , Int_t , Int_t , Float_t , Float_t )
 hmdc_summ_MBOvsTDC (independent from any cuts)
TDirectory * Mkdir(TDirectory* , const Char_t* , Int_t , Int_t p = 1)
 Function to create subdirectories
void getSetup()
Bool_t finalize(void)
Int_t execute()
cout << "----   ---- event ---- ----" << endl;
void resetCounters()
void checkNeighboringCells(Int_t s, Int_t m, Int_t c)
void setStepSize(Int_t size)
{stepsize_trend_meantime1=size;}

Last change: Sat May 22 13:02:51 2010
Last generated: 2010-05-22 13:02

This page has been automatically generated. If you have any comments or suggestions about the page layout send a mail to ROOT support, or contact the developers with any questions or problems regarding ROOT.
