class HMdcWireFit: public TObject

_HADES_CLASS_DESCRIPTION


 HMdcWireFit

 Container class keeps one wire fit information for debuging and tuning.

 void clear()
        Default setting of the data members.

 void setAddress(Char_t s,Char_t m,Char_t l,Short_t c)
 void setSec(Char_t s)
 void setMod(Char_t m)
 void setLayer(Char_t l)
 void setCell(Short_t c)
                Set wire address.
 void setTimeNum(Char_t t)
                Set drift time index (t=1 for time1 in HMdcCal1 and
                                      t=2 for time2 in HMdcCal1).
 void setTdcTime(Float_t v)
                Set measured time minus time of wire offset.
 void setDriftTime(Float_t v)
                Set calculated drift time.
 void setFullTime(Float_t v)
                Set calculated drift time + time offset.
 void setDev(Float_t v)
                Set deviation (full time minus tdc time).
 void setWeight(Float_t v)
                Set wire weight in fit.
 void setMinDist(Float_t v)
                Set minimal distance from track to wire.
 void setAlpha(Float_t v)
                Set impact angle of track in cell system.
 void setIsInCell(Bool_t v)
                v=kFALSE if track don't cross cell.
 void setTdcTimeErr(Float_t v)
                Set error of drift time.

 void getAddress(Int_t& s,Int_t& m,Int_t& l,Int_t& c)
 Char_t  getSec(void)
 Char_t  getMod(void)
 Char_t  getLayer(void)
 Short_t getCell(void)
                Get wire address.
 Char_t  getTimeNum(void)
               Get drift time index (return 1 for time1 in HMdcCal1,
                                     return 2 for time2 in HMdcCal1).
 Float_t getTdcTime(void)
                Get measured time minus time of wire offset.
 Float_t getDriftTime(void)
                Get calculated drift time.
 Float_t getFullTime(void)
                Get calculated drift time + time offset.
 Float_t getTimeOffset
                Get time offset ( =getFullTime()-getDriftTime())
 Float_t getDev(void)
                Get deviation (full time minus tdc time).
 Float_t getWeight(void)
                Get wire weight in fit.
 Float_t getMinDist(void)
                Get minimal distance from track to wire.
 Float_t getAlpha(void)
                Get impact angle of track in cell system.
 Bool_t  getIsInCell(void)
                Return kTRUE if track cross cell,
                retrn kFALSE if track don't cross cell.
 Float_t getTdcTimeErr(void)
                Get error of drift time.
 Float_t getChi2(void)
                Get chi2 ( =getDev()/getTdcTimeErr() )

 Bool_t isGeant()
                Return kFALSE
 void print()
                Print container

Function Members (Methods)

public:
HMdcWireFit()
HMdcWireFit(const HMdcWireFit&)
virtual~HMdcWireFit()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
voidclear()
virtual voidTObject::Clear(Option_t* = "")
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
voidgetAddress(Int_t& s, Int_t& m, Int_t& l, Int_t& c) const
Float_tgetAlpha() const
Float_tgetCal1Time() const
Short_tgetCell() const
Float_tgetChi2() const
Float_tgetDev() const
virtual Option_t*TObject::GetDrawOption() const
Float_tgetDriftTime() const
static Long_tTObject::GetDtorOnly()
Float_tgetFullTime() const
virtual const char*TObject::GetIconName() const
Bool_tgetIsInCell() const
Char_tgetLayer() const
Float_tgetMinDist() const
Char_tgetMod() const
virtual const char*TObject::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
Char_tgetSec() const
Float_tgetTdcTime() const
Float_tgetTdcTimeErr()
Char_tgetTimeNum() const
Float_tgetTimeOffset() const
virtual const char*TObject::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
Float_tgetWeight() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
virtual Bool_tisGeant() const
Bool_tTObject::IsOnHeap() const
Bool_tisOverWire() const
virtual Bool_tTObject::IsSortable() const
Bool_tisUnderWire() const
Bool_tisWrUsedInFit() const
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HMdcWireFit&operator=(const HMdcWireFit&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidprint()
virtual voidTObject::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
voidsetAddress(Char_t s, Char_t m, Char_t l, Short_t c)
voidsetAlpha(Float_t v)
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
voidsetCal1Time(Float_t v)
voidsetCell(Short_t c)
voidsetDev(Float_t v)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
voidsetDriftTime(Float_t v)
static voidTObject::SetDtorOnly(void* obj)
voidsetFullTime(Float_t v)
voidsetIsInCell(Bool_t v)
voidsetIsUsedFlag(Bool_t f)
voidsetLayer(Char_t l)
voidsetMinDist(Float_t v)
voidsetMod(Char_t m)
static voidTObject::SetObjectStat(Bool_t stat)
voidsetSec(Char_t s)
voidsetTdcTime(Float_t v)
voidsetTdcTimeErr(Float_t v)
voidsetTimeNum(Char_t t)
virtual voidTObject::SetUniqueID(UInt_t uid)
voidsetWeight(Float_t v)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()

Data Members

public:
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
Float_talphaimpact angle in cell system
Short_tcellMDC wire
Float_tdevfullTime-tdcTime
Float_tdriftTimecalculated drift time
Float_tfullTimedriftTime + time offset
Bool_tisInCell=kFALSE if track don't cross cell
Bool_tisUsedInFitkTRUE if wire was not used in fit (for alignment
Char_tlayerMDC layer
Float_tminDistmin.distance from track to wire with SIGN.
Char_tmodMDC module
Char_tsecsector
Float_ttdcTimetdcTimeCal1 minus time of wire offset
Float_ttdcTimeCal1drift time from HMdcCal1
Float_ttdcTimeErrerror of drift time.
Char_ttimeNum=1 or 2 (time1 or time2 from HMdcCal1)
Float_tweightwire weight. =0 if wire was excluded from fit

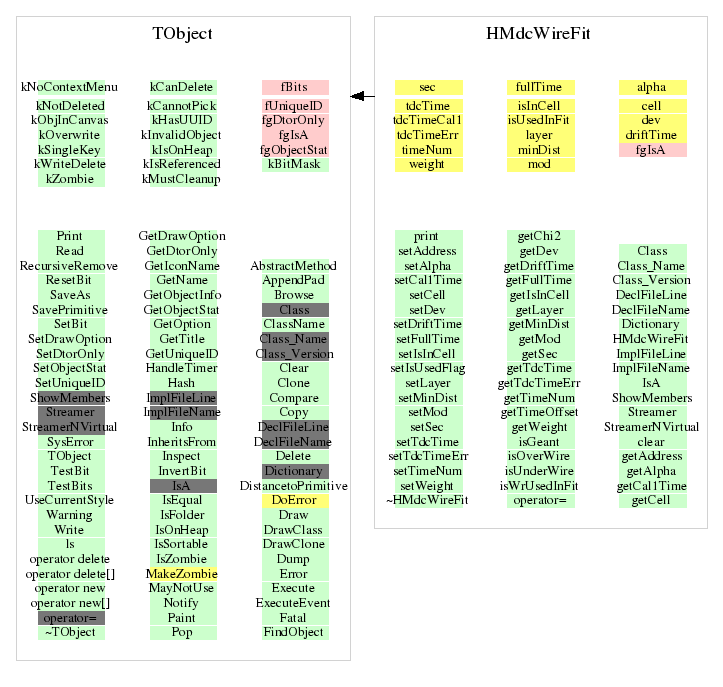

Class Charts

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

void print()
 Print this container
void Streamer(TBuffer& b)
 Stream an object of class HMdcWireFit.
void setAddress(Char_t s, Char_t m, Char_t l, Short_t c)
 Set wire address
void getAddress(Int_t& s, Int_t& m, Int_t& l, Int_t& c) const
 Get wire addres
void clear()
 Default setting of the data members.
HMdcWireFit()
 investigation)
{clear();}
~HMdcWireFit()
{;}
void setSec(Char_t s)
{sec=s;}
void setMod(Char_t m)
{mod=m;}
void setLayer(Char_t l)
{layer=l;}
void setCell(Short_t c)
{cell=c;}
void setTimeNum(Char_t t)
{timeNum=t;}
void setDev(Float_t v)
{dev=v;}
void setWeight(Float_t v)
{weight=v;}
void setIsUsedFlag(Bool_t f)
{isUsedInFit=f;}
void setDriftTime(Float_t v)
{driftTime=v;}
void setFullTime(Float_t v)
{fullTime=v;}
void setCal1Time(Float_t v)
{tdcTimeCal1=v;}
void setTdcTime(Float_t v)
{tdcTime=v;}
void setMinDist(Float_t v)
{minDist=v;}
void setAlpha(Float_t v)
{alpha=v;}
void setIsInCell(Bool_t v)
{isInCell=v;}
void setTdcTimeErr(Float_t v)
{tdcTimeErr=v;}
Char_t getSec(void)
{return sec;}
Char_t getMod(void)
{return mod;}
Char_t getLayer(void)
{return layer;}
Short_t getCell(void)
{return cell;}
Char_t getTimeNum(void)
{return timeNum;}
Float_t getDev(void)
{return dev;}
Float_t getWeight(void)
{return weight;}
Bool_t isWrUsedInFit(void)
{return isUsedInFit;}
Float_t getDriftTime(void)
{return driftTime;}
Float_t getFullTime(void)
{return fullTime;}
Float_t getTimeOffset(void)
{return fullTime-driftTime;}
Float_t getTdcTime(void)
{return tdcTime;}
Float_t getCal1Time(void)
{return tdcTimeCal1;}
Float_t getMinDist(void)
{return TMath::Abs(minDist);}
Bool_t isUnderWire(void)
{return minDist < 0. ? kTRUE:kFALSE;}
Bool_t isOverWire(void)
{return minDist >= 0. ? kTRUE:kFALSE;;}
Float_t getAlpha(void)
{return alpha;}
Bool_t getIsInCell(void)
{return isInCell;}
Float_t getTdcTimeErr(void)
{return tdcTimeErr;}
Float_t getChi2(void)
{Float_t c=dev/tdcTimeErr; return c*c;}
Bool_t isGeant(void)
{return kFALSE;}

Last change: Sat May 22 13:04:24 2010
