class HParticleFiller: public HReconstructor

_HADES_CLASS_DESCRIPTION


  HParticleFiller - Identifies particles using HCut classes

  This task fills the HParticle container by iterating over HKickTrack
  and HRichHit and identifying leptons with an angular correlation.  This
  class is still evolving... further pid and matching tools (showers,
  p.c. analysis, etc.) are being added.

  An HParticle is assigned its four-momentum compoments and other
  characteristics from HKickTrack (and rotated into cave coordinate
  system).  If an HParticle has an angular correlation with an HRichHit,
  the particle is assigned to be an electron (positron) if the track's
  charge in HKickTrack was -1 (+1).  2-d cuts are then applied to assign
  pid to hadrons.

  By calling the task with skip='kTRUE', events without an HParticle
  are skipped.  Currently, tracks from HKickTrack which do not have a
  valid pid are kept and assigned pid=0 (as in HKickTrack).
For more information, see the PhyAna documentation.

Function Members (Methods)

public:
HParticleFiller()
HParticleFiller(const Text_t* name, const Text_t* title, Bool_t skip = kFALSE)
virtual~HParticleFiller()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidHReconstructor::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTNamed::Clear(Option_t* option = "")
virtual TObject*TNamed::Clone(const char* newname = "") const
virtual Int_tTNamed::Compare(const TObject* obj) const
virtual Bool_tHReconstructor::connectTask(HTask* task, Int_t n = 0)
virtual voidTNamed::Copy(TObject& named) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual Int_texecute()
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual voidTNamed::FillBuffer(char*& buffer)
voidfillMomenta(HKickTrack* track, HParticle* part)
voidfillVertex(HKickTrack* track, HParticle* part)
virtual Bool_tfinalize()
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
virtual HTask*HReconstructor::getComposite()
virtual voidHReconstructor::getConnections()
HCutHadronId*getCutHadronPid()
HCutLeptonId*getCutLeptonPid()
HCutTrack*getCutTrack()
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual const char*TObject::GetIconName() const
virtual const char*TNamed::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
virtual HTask*HTask::getOwner()
TObjArrayHReconstructor::getTable()
virtual HTask*HReconstructor::getTask(const Char_t* name)
virtual const char*TNamed::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTNamed::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual Bool_tinit()
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tHReconstructor::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTNamed::IsSortable() const
virtual voidHReconstructor::isTimed(Bool_t flag = kTRUE)
Bool_tTObject::IsZombie() const
virtual voidTNamed::ls(Option_t* option = "") const
voidmakeLepton(HRichHit* ring, HParticle* part)
voidTObject::MayNotUse(const char* method) const
virtual HTask*HReconstructor::next(Int_t& errCode)
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HTask&HTask::operator=(const HTask&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTNamed::Print(Option_t* option = "") const
virtual voidHReconstructor::printTimer()
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
virtual Bool_tHTask::reinit()
voidTObject::ResetBit(UInt_t f)
virtual voidHReconstructor::resetTimer()
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
voidHReconstructor::setActive(Bool_t state)MENU
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
virtual Bool_tHTask::setConnections()
voidsetCutHadronId(HCutHadronId* cutHadron)
voidsetCutLeptonId(HCutLeptonId* cutLepton)
voidsetCutTrack(HCutTrack* cutTrack)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidHTask::setManual()
virtual voidTNamed::SetName(const char* name)MENU
virtual voidTNamed::SetNameTitle(const char* name, const char* title)
static voidTObject::SetObjectStat(Bool_t stat)
virtual voidHTask::setOwner(HTask* atask)
virtual voidTNamed::SetTitle(const char* title = "")MENU
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual Int_tTNamed::Sizeof() const
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()

Data Members

public:
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
Bool_tHReconstructor::fActiveActive flag
TList*HReconstructor::fHistogramsList of histograms generated by this reconstructor.
Bool_tHTask::fIsTimedtimer flag
HCategory*fKickTrackCat! Pointer to KickTrack data category
TStringTNamed::fNameobject identifier
TObjArrayHReconstructor::fOutputs
HCategory*fPartCat! Pointer to Particle data category
HCategory*fRichHitCat! Pointer to KickTrack data category
HSpecGeomPar*fSpecGeometry! Geometry needed for rotation of kick track data
TStopwatchHReconstructor::fTimerTask timer
TStringTNamed::fTitleobject title
HCutHadronId*hadronIdCutsCuts applied to hadrons
Bool_tHTask::isConnected
Bool_tHTask::isInitialised
HIterator*iterRings! Iterator over KickTrack category
HIterator*iterTracks! Iterator over KickTrack category
Bool_tkSkip! Option to skip events without certain requirements
HCutLeptonId*leptonCutsCuts applied to leptons
Bool_tHTask::manual
HTask*HTask::owner
HCutTrack*trackCutsCuts applied to tracks

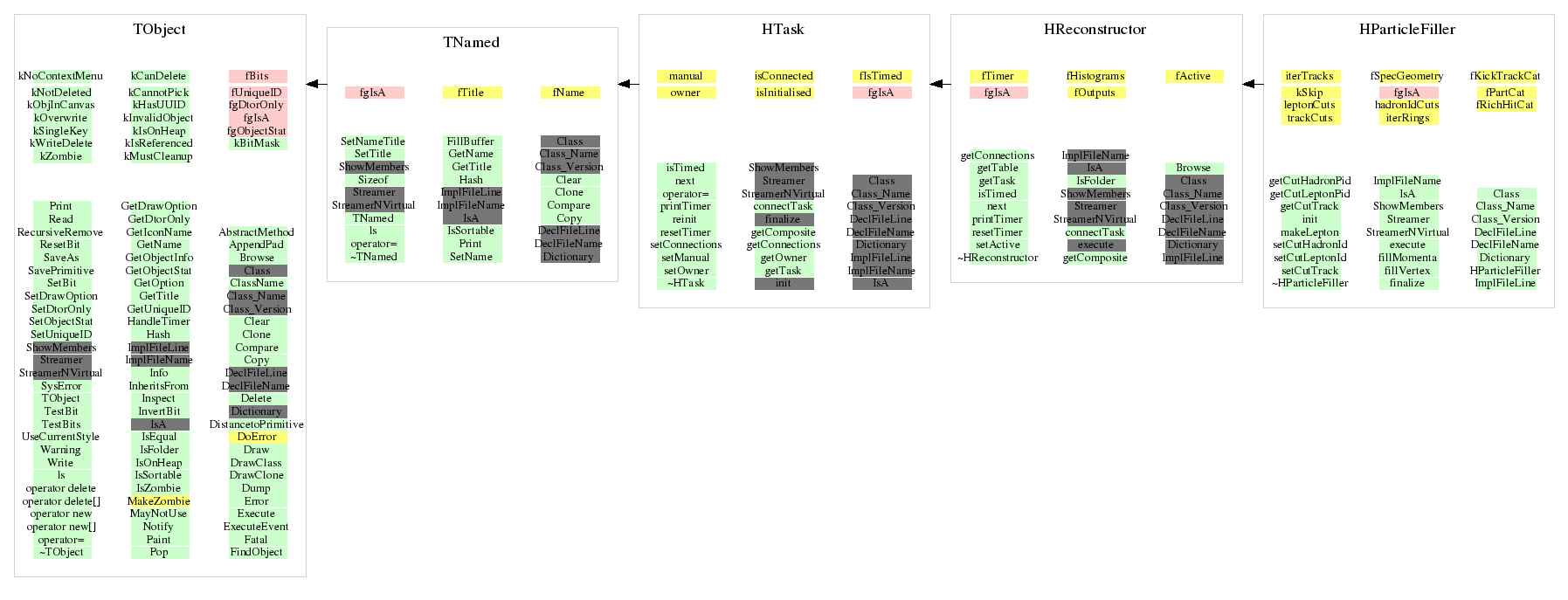

Class Charts

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

HParticleFiller(void)
 Default constructor
HParticleFiller(const Text_t* name, const Text_t* title, Bool_t skip = kFALSE)
 Consructor: Name, title, Skip event
Bool_t init(void)
 Creates/gets the KickTrack, RichHit and Particle categories in
 the current event
Int_t execute(void)
 Fills the Particle container using input from HKickTrack and HRichHit.
void fillMomenta(HKickTrack* track, HParticle* part)
 Fill components of 4-vector by rotating track into cave and
 calculating the coordinates.  If the particle has a PID, mass is
 calculated using particle mass from look-up table.  Otherwise,
 mass from HKickTrack is used.
void fillVertex(HKickTrack* track, HParticle* part)
 For now, this function simply fills HParticle's r and z directly
 from HKickTrack.  Eventually a vertex class could be implemented.
void makeLepton(HRichHit* ring, HParticle* part)
 Make a lepton out of an HParticle by reassigning mass and
 recalculating energy
~HParticleFiller(void)
{;}
void setCutTrack(HCutTrack* cutTrack)
{ trackCuts = cutTrack; }
HCutTrack* getCutTrack()
{ return trackCuts; }
void setCutLeptonId(HCutLeptonId* cutLepton)
{ leptonCuts = cutLepton; }
HCutLeptonId* getCutLeptonPid()
{ return leptonCuts; }
void setCutHadronId(HCutHadronId* cutHadron)
{ hadronIdCuts = cutHadron; }
HCutHadronId* getCutHadronPid()
{ return hadronIdCuts; }
Bool_t finalize(void)
{return kTRUE;}
