class HRpcHit: public TObject

_HADES_CLASS_DESCRIPTION


  HRpcHit

  Class for the RPC Hit data

Function Members (Methods)

public:
HRpcHit()
HRpcHit(const HRpcHit&)
virtual~HRpcHit()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
voidclear()
virtual voidTObject::Clear(Option_t* = "")
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
Int_tgetCell() const
Float_tgetCharge()
Int_tgetColumn() const
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual const char*TObject::GetIconName() const
Int_tgetLocationIndex(Int_t i)
virtual const char*TObject::GetName() const
Int_tgetNLocationIndex()
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
Int_tgetSector() const
virtual const char*TObject::GetTitle() const
Float_tgetTof()
Float_tgetTOFRMS()
virtual UInt_tTObject::GetUniqueID() const
Float_tgetXMod()
Float_tgetXRMS()
Float_tgetXSec()
Float_tgetYMod()
Float_tgetYRMS()
Float_tgetYSec()
Float_tgetZMod()
Float_tgetZRMS()
Float_tgetZSec()
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HRpcHit&operator=(const HRpcHit&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTObject::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
voidsetAddress(Short_t add)
voidsetAddress(Int_t sec, Int_t col, Int_t cell)
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidsetHit(Float_t atof, Float_t acharge, Float_t axmod, Float_t aymod, Float_t azmod)
voidsetLogBit(Short_t lBit)
static voidTObject::SetObjectStat(Bool_t stat)
voidsetRMS(Float_t asigma_tof, Float_t asigma_x, Float_t asigma_y, Float_t asigma_z)
virtual voidTObject::SetUniqueID(UInt_t uid)
voidsetXSec(Float_t axsec)
voidsetYSec(Float_t aysec)
voidsetZSec(Float_t azsec)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()

Data Members

public:
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
Short_taddressGeometrical address (sec, col, cell)
Float_tchargeCharge [pC]
Short_tlogBitData Info
Float_tsigma_tofSigma of tof [ps]
Float_tsigma_xSigma of x [mm]
Float_tsigma_ySigma of y [mm]
Float_tsigma_zSigma of z [mm]
Float_ttofTime of flight [ns]
Float_txmodX coordinate in Module system [mm]
Float_txsecX coordinate in Sector system [mm]
Float_tymodY coordinate in Module system [mm]
Float_tysecY coordinate in Sector system [mm]
Float_tzmodZ coordinate in Module system [mm]
Float_tzsecZ coordinate in Sector system [mm]

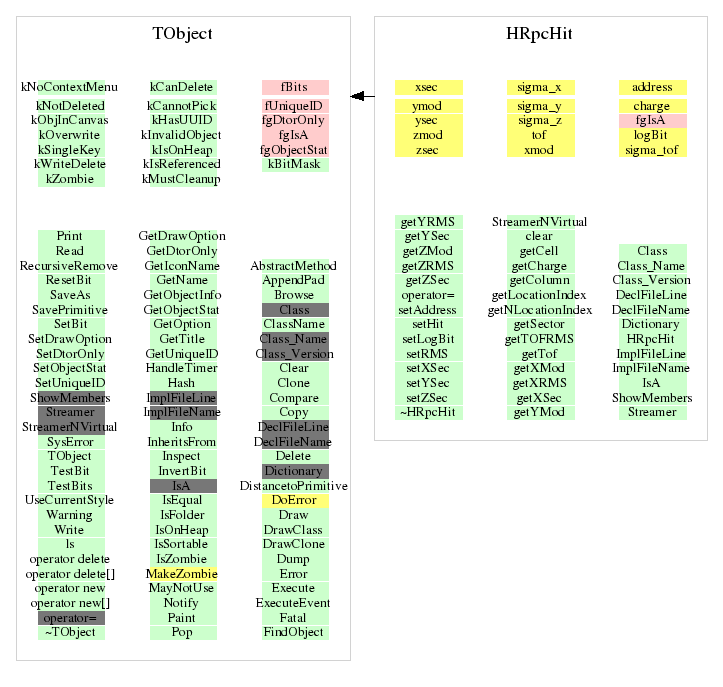

Class Charts

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

HRpcHit(const HRpcHit& )
void clear(void)
~HRpcHit(void)
void setHit(Float_t atof, Float_t acharge, Float_t axmod, Float_t aymod, Float_t azmod)
void setRMS(Float_t asigma_tof, Float_t asigma_x, Float_t asigma_y, Float_t asigma_z)
void setAddress(Int_t sec, Int_t col, Int_t cell)
Int_t getLocationIndex(Int_t i)
HRpcHit(const HRpcHit& )
See: http://hades-wiki.gsi.de/cgi-bin/view/RPC/SoftwareDocumentation1
Float_t getTof()
 Functions getVariable
{ return tof; }
Float_t getCharge()
{ return charge; }
Float_t getXMod()
{ return xmod; }
Float_t getYMod()
{ return ymod; }
Float_t getZMod()
{ return zmod; }
Float_t getXRMS()
{ return sigma_x; }
Float_t getYRMS()
{ return sigma_y; }
Float_t getZRMS()
{ return sigma_z; }
Float_t getTOFRMS()
{ return sigma_tof; }
Float_t getXSec()
{ return xsec; }
Float_t getYSec()
{ return ysec; }
Float_t getZSec()
{ return zsec; }
Int_t getNLocationIndex()
{ return 3; }
Int_t getSector() const
{ return (address>>10) & 7; }
Int_t getColumn() const
{ return (address>>7) & 7; }
Int_t getCell() const
{ return address & 127; }
void setAddress(Int_t sec, Int_t col, Int_t cell)
 Functions setVariable
void setXSec(Float_t axsec)
{ xsec = axsec;}
void setYSec(Float_t aysec)
{ ysec = aysec;}
void setZSec(Float_t azsec)
{ zsec = azsec;}
void setLogBit(Short_t lBit)
{ logBit = lBit; }
