class HRtFunctional: public TObject

Function Members (Methods)

public:
HRtFunctional()
HRtFunctional(const HRtFunctional&)
virtual~HRtFunctional()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
voidcalcDerivatives(HRtMatrix& result)
voidcalcValue(HRtVector& result)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTObject::Clear(Option_t* = "")
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual const char*TObject::GetIconName() const
virtual const char*TObject::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
UInt_tgetPointId()
virtual const char*TObject::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
Float_tguessValue(Int_t coord)
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
Bool_tinit()
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HRtFunctional&operator=(const HRtFunctional&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTObject::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
Bool_treinit()
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
static voidTObject::SetObjectStat(Bool_t stat)
Bool_tsetPoint(HRtVector& p, Int_t pol)
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
Bool_twithinResolution(HRtVector& v)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()
Float_tpartialDerivative(Int_t pi, Int_t pj)

Data Members

public:
enum ESide { kLeft
kRight
};
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
HRtGrid*fCurrentGrid! for polarity
HRtData*fData!Reference trajectories
Float_tfDeg2Rad!
UInt_t*fPoint! Current point
HRtMeasurement*fPointValue!
HRtSavGolPar*fPolinomParParameters for savitzky-golay filter
HRtSavGolManager*fSavGol! Savitzky-Golay coefficients
HRtFunctional::ESidefSectorSide! Current sector side

Class Charts

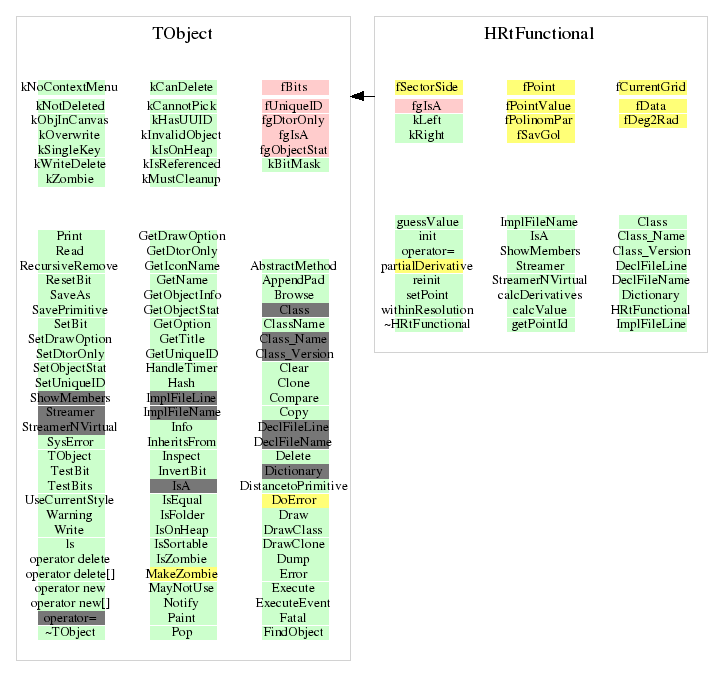

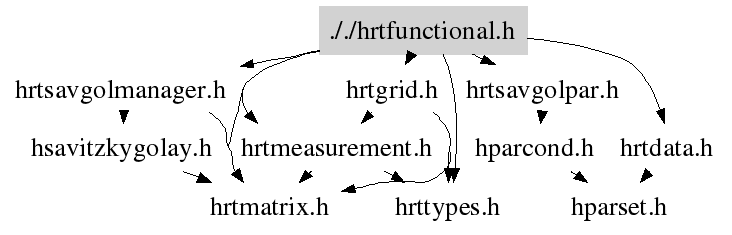

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

HRtFunctional(const HRtFunctional& )
~HRtFunctional(void)
Bool_t init(void)
Read reference trajectories data
Bool_t reinit(void)
Bool_t setPoint(HRtVector& p, Int_t pol)
Sets the evaluation point. Returns kFALSE if the functional is
not known at point p. (p is out of the parametrized region)

WARNING: This function modifies the argument. Snaping it to
the closest point in the grid.
Float_t partialDerivative(Int_t pi, Int_t pj)
 Calculates the partial derivative of the functional with
 respect to the pj component of p and evaluates it on p.
void calcDerivatives(HRtMatrix& result)
 Calculates the partial derivatives of the functional
 at point p and stores the result in the matrix "result".
 p is snaped to the closest point in the grid.
void calcValue(HRtVector& result)
 Calculates the value of the functional at p and stores the
 result in "result". p is snaped to the closest point in the
 grid.
Bool_t withinResolution(HRtVector& v)
HRtFunctional(const HRtFunctional& )
UInt_t getPointId(void)
{ return fCurrentGrid->getCurrentAddress(); }
Float_t guessValue(Int_t coord)
{ return fCurrentGrid->getMidValue(coord); }
