class HShowerCalPar: public HShowerParSet

_HADES_CLASS_DESCRIPTION

 HShowerCalPar

 HShowerCalPar is used to manage of all parameters for calibration
 This class contains structure HObjTable, which contains all
 HShowerCalParCell objects. One HShowerCalParCell object contains
 calibration parameters of one pad: slope and offset

Function Members (Methods)

public:
HShowerCalPar(const HShowerCalPar&)
HShowerCalPar(const Char_t* name = "ShowerCalPar", const Char_t* title = "Calibration parameters for Shower", const Char_t* context = "ShowerStandardCalib")
virtual~HShowerCalPar()
voidTObject::AbstractMethod(const char* method) const
voidaddValueToGains(Float_t fAdd)
voidaddValueToOffsets(Float_t fAdd)
voidaddValueToSlopes(Float_t fAdd)
voidaddValueToThresholds(Float_t fAdd)
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidHParSet::clear()
virtual voidTNamed::Clear(Option_t* option = "")
virtual TObject*TNamed::Clone(const char* newname = "") const
virtual Int_tTNamed::Compare(const TObject* obj) const
virtual voidTNamed::Copy(TObject& named) const
voidHParSet::copyComment(HParSet& r)
virtual Bool_tdefaultInit()
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual voidTNamed::FillBuffer(char*& buffer)
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
const Char_t*HParSet::getAuthor() const
Char_t*getCellClassName()
const Char_t*HParSet::getDescription() const
const Text_t*HParSet::getDetectorName()
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
Float_tgetGain(HLocation& loc)
TH2F*getGainsHist(Int_t iSector, Int_t iModule)
virtual const char*TObject::GetIconName() const
Int_tHParSet::getInputVersion(Int_t i)
virtual const char*TNamed::GetName() const
Int_tgetNColumns()
Int_tgetNModules()
Int_tgetNRows()
Int_tgetNSectors()
HShowerCalParCell*getObject(HLocation& loc)
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
Float_tgetOffset(HLocation& loc)
TH2F*getOffsetsHist(Int_t iSector, Int_t iModule)
virtual Option_t*TObject::GetOption() const
const Char_t*HParSet::getParamContext() const
Float_tgetSlope(HLocation& loc)
TH2F*getSlopesHist(Int_t iSector, Int_t iModule)
HShowerCalParCell*&getSlot(HLocation& loc)
Float_tgetThreshold(HLocation& loc)
TH2F*getThresholdsHist(Int_t iSector, Int_t iModule)
virtual const char*TNamed::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
Bool_tgetWriteForElectronic()
virtual Bool_tTObject::HandleTimer(TTimer* timer)
Bool_tHParSet::hasChanged()
virtual ULong_tTNamed::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual Bool_tHShowerParSet::init(HParIo* inp, Int_t* set)
virtual Bool_tinitAscii(HParHadAsciiFileIo* pHadAsciiFile)
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTNamed::IsSortable() const
Bool_tHParSet::isStatic()
Bool_tTObject::IsZombie() const
virtual voidTNamed::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
voidmultiplyGainsByValue(Float_t fM)
voidmultiplyOffsetsByValue(Float_t fM)
voidmultiplySlopesByValue(Float_t fM)
voidmultiplyThresholdsByValue(Float_t fM)
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
HShowerCalPar&operator=(const HShowerCalPar&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
voidPrint()
virtual voidHParSet::print()
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
voidHParSet::resetInputVersions()
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
voidHParSet::setAuthor(const Char_t* s)
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
voidsetCellClassName(const Char_t* pszName)
voidHParSet::setChanged(Bool_t flag = kTRUE)
voidHParSet::setDescription(const Char_t* s)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidsetGain(HLocation& loc, Float_t fGain)
voidsetGainsToValue(Float_t fGain)
voidHParSet::setInputVersion(Int_t v = -1, Int_t i = 0)
virtual voidTNamed::SetName(const char* name)MENU
virtual voidTNamed::SetNameTitle(const char* name, const char* title)
static voidTObject::SetObjectStat(Bool_t stat)
voidsetOffset(HLocation& loc, Float_t fOffset)
voidsetOffsetsToValue(Float_t fOffset)
voidHParSet::setParamContext(const Char_t*)
voidsetSetup(Int_t nSectors, Int_t nModules, Int_t nRows, Int_t nColumns)
voidsetSlope(HLocation& loc, Float_t fSlope)
voidsetSlopesToValue(Float_t fSlope)
voidHParSet::setStatic(Bool_t flag = kTRUE)
voidsetThreshold(HLocation& loc, Float_t fThreshold)
voidsetThresholdsToValue(Float_t fThreshold)
virtual voidTNamed::SetTitle(const char* title = "")MENU
virtual voidTObject::SetUniqueID(UInt_t uid)
voidsetWriteForElectronic(Bool_t bWrite)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual Int_tTNamed::Sizeof() const
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tHShowerParSet::write(HParIo*)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
virtual Bool_twriteAscii(HParHadAsciiFileIo* pHadAsciiFile)
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()
private:
voidchangeValues(Int_t iVar, Int_t iOpr, Float_t f)
TH2F*getHist(Int_t iSector, Int_t iModule, enum_HSCPM_Var enType)

Data Members

public:
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
TStringHParSet::authorAuthor of parameters
Bool_tHParSet::changed! flag is kTRUE if parameters have changed
TStringHParSet::descriptionDescription of parameters
Text_tHParSet::detName[10]! name of the detector the container belongs to
TStringTNamed::fNameobject identifier
TStringTNamed::fTitleobject title
TStringHParSet::paramContextContext/purpose for parameters and conditions
Bool_tHParSet::status! static flag
Int_tHParSet::versions[3]! versions of container in the 2 possible inputs
private:
HObjTablem_ParamsTablestructure which contains all object
Bool_tm_bWriteForElectronic!
Int_tm_nColumns
Int_tm_nModules
Int_tm_nRows
Int_tm_nSectorssizes of calibration structure
Char_tm_szClassName[40]name of class used for keeping data for

Class Charts

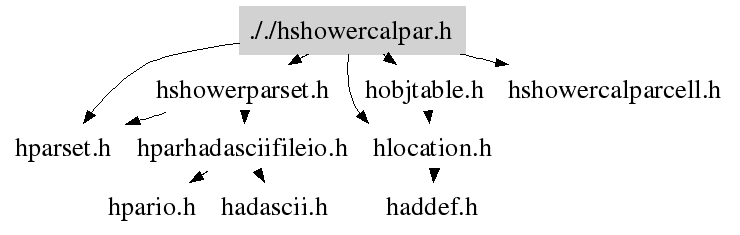

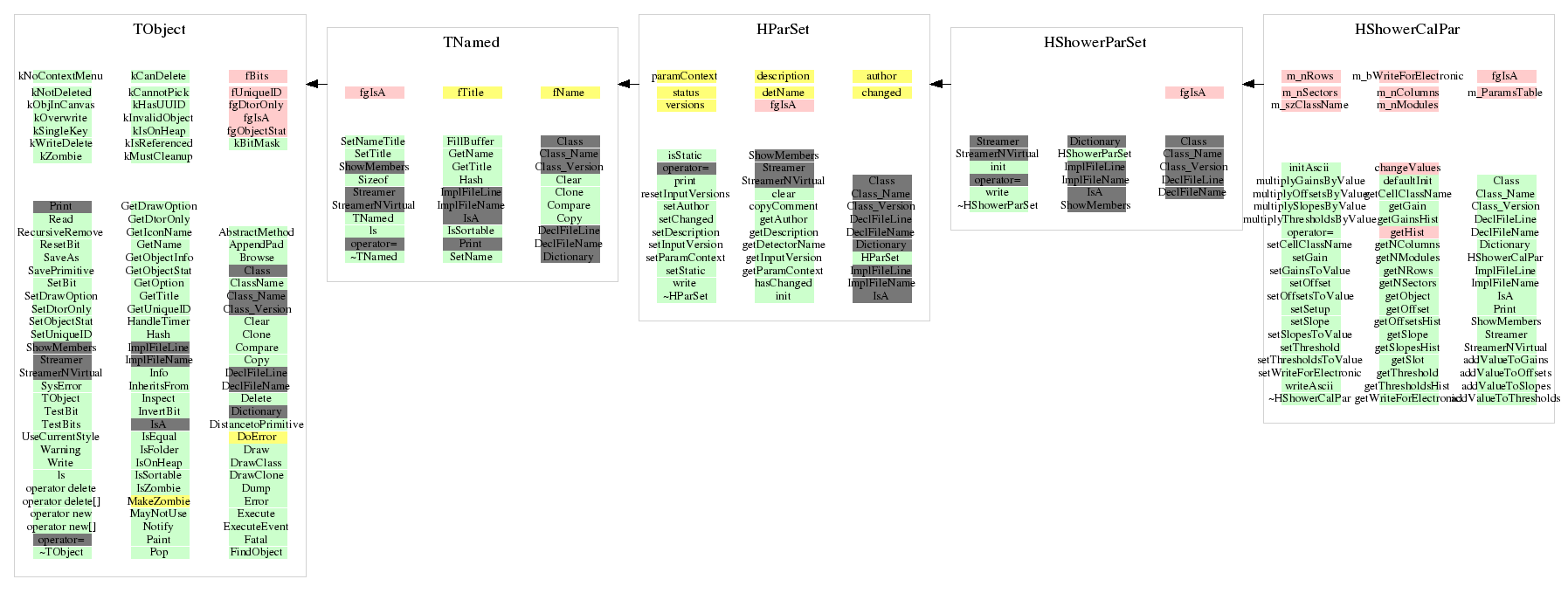

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

HShowerCalPar(const Char_t* name = "ShowerCalPar", const Char_t* title = "Calibration parameters for Shower", const Char_t* context = "ShowerStandardCalib")
~HShowerCalPar()
void setSetup(Int_t nSectors, Int_t nModules, Int_t nRows, Int_t nColumns)
set sizes of internal structure
void setCellClassName(const Char_t* pszName)
set name of class of calibration parameter container for one pad
Char_t* getCellClassName()
return  name of class of calibration parameter container for one pad
HShowerCalParCell*& getSlot(HLocation& loc)
return references address to place new object at loc position
HShowerCalParCell* getObject(HLocation& loc)
return pointer to object, which contains parameter for pad
at loc position
Float_t getSlope(HLocation& loc)
return slope for the pad at postion loc
Float_t getOffset(HLocation& loc)
return offset for the pad at postion loc
Float_t getThreshold(HLocation& loc)
return Threshold for the pad at postion loc
Float_t getGain(HLocation& loc)
return Gain for the pad at postion loc
void setSlope(HLocation& loc, Float_t fSlope)
set slope for the pad at postion loc
void setOffset(HLocation& loc, Float_t fOffset)
set offset for the pad at postion loc
void setThreshold(HLocation& loc, Float_t fThreshold)
set Threshold for the pad at postion loc
void setGain(HLocation& loc, Float_t fGain)
set Gain for the pad at postion loc
Bool_t initAscii(HParHadAsciiFileIo* pHadAsciiFile)
reading and initializing  calibration parameters from ascii file (HAsciiRaw format)
Bool_t writeAscii(HParHadAsciiFileIo* pHadAsciiFile)
writing calibration parameters into ascii file (HAsciiRaw format)
Bool_t defaultInit()
initialization of calibration parameters for full setup
of pre-SHOWER detector. Default calibration using
values of slope==1 and offset==0
void Print()
void changeValues(Int_t iVar, Int_t iOpr, Float_t f)
TH2F* getHist(Int_t iSector, Int_t iModule, enum_HSCPM_Var enType)
 Create a new histogram with a calibartion values for the selected chamber.
 User must delete the histogram himself
HShowerCalPar(const Char_t* name = "ShowerCalPar", const Char_t* title = "Calibration parameters for Shower", const Char_t* context = "ShowerStandardCalib")
Int_t getNSectors()
{ return m_nSectors; }
Int_t getNModules()
{ return m_nModules; }
Int_t getNRows()
{ return m_nRows; }
Int_t getNColumns()
{ return m_nColumns; }
void setWriteForElectronic(Bool_t bWrite)
{ m_bWriteForElectronic = bWrite; }
Bool_t getWriteForElectronic(void)
{ return m_bWriteForElectronic; }
void setSlopesToValue(Float_t fSlope)
{ changeValues(HSCPV_SLOPE, HSCPM_SET, fSlope); }
void addValueToSlopes(Float_t fAdd)
{ changeValues(HSCPV_SLOPE, HSCPM_ADD, fAdd); }
void multiplySlopesByValue(Float_t fM)
{ changeValues(HSCPV_SLOPE, HSCPM_MULT, fM); }
void setOffsetsToValue(Float_t fOffset)
{ changeValues(HSCPV_OFFSET, HSCPM_SET, fOffset);}
void addValueToOffsets(Float_t fAdd)
{ changeValues(HSCPV_OFFSET, HSCPM_ADD, fAdd); }
void multiplyOffsetsByValue(Float_t fM)
{ changeValues(HSCPV_OFFSET, HSCPM_MULT, fM); }
void setThresholdsToValue(Float_t fThreshold)
void addValueToThresholds(Float_t fAdd)
{ changeValues(HSCPV_THRESHOLD, HSCPM_ADD, fAdd);}
void multiplyThresholdsByValue(Float_t fM)
{ changeValues(HSCPV_THRESHOLD, HSCPM_MULT, fM); }
void setGainsToValue(Float_t fGain)
{ changeValues(HSCPV_GAIN, HSCPM_SET, fGain); }
void addValueToGains(Float_t fAdd)
{ changeValues(HSCPV_GAIN, HSCPM_ADD, fAdd); }
void multiplyGainsByValue(Float_t fM)
{ changeValues(HSCPV_GAIN, HSCPM_MULT, fM); }
TH2F* getOffsetsHist(Int_t iSector, Int_t iModule)
{ return getHist(iSector, iModule, HSCPV_OFFSET); }
TH2F* getSlopesHist(Int_t iSector, Int_t iModule)
{ return getHist(iSector, iModule, HSCPV_SLOPE); }
TH2F* getThresholdsHist(Int_t iSector, Int_t iModule)
{ return getHist(iSector, iModule, HSCPV_THRESHOLD); }
TH2F* getGainsHist(Int_t iSector, Int_t iModule)
{ return getHist(iSector, iModule, HSCPV_GAIN); }

Last change: Sat May 22 13:13:15 2010
Last generated: 2010-05-22 13:13
This page has been automatically generated. If you have any comments or suggestions about the page layout send a mail to ROOT support, or contact the developers with any questions or problems regarding ROOT.
