QGo4Widget Class Reference

#include <QGo4Widget.h>

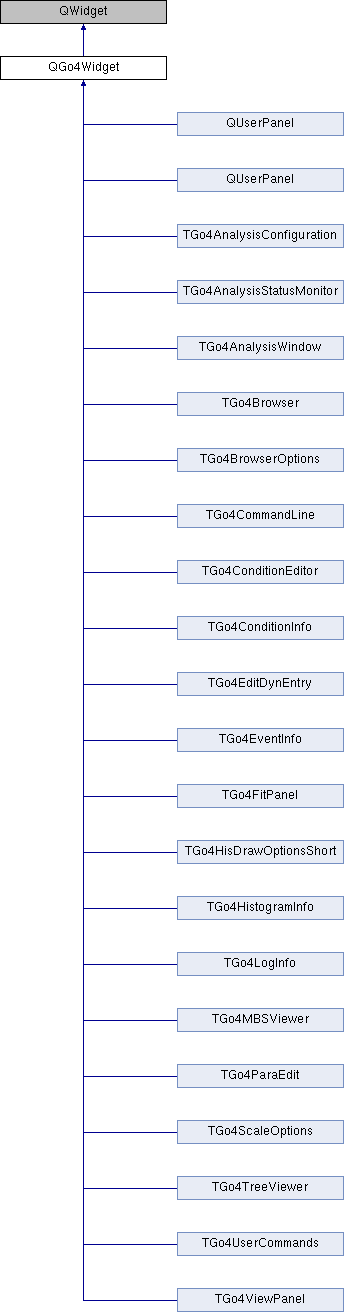

Inheritance diagram for QGo4Widget:

Public Types
enum	{   service_DragEnter = 1, service_DropEvent = 2, service_CreateItem = 3, service_DrawItem = 4,   service_EditItem = 5, service_ShowInfo = 6, service_EditInSlot = 7, service_SaveItem = 8,   service_UpdateAnalysisItem = 9, service_StatusMessage = 15, service_CreateViewPanel = 17, service_BrowserItemRemote = 18,   service_Browser = 19, service_SaveToMemory = 20, service_GetAnalysis = 21, service_AddEditorLink = 22,   service_AddDirectLink = 23, service_AddLinkInSlot = 24, service_GetTopSlot = 25, service_AddEditorSlot = 26,   service_SetLinkedName = 27, service_GetLinkedName = 28, service_GetLinkedName2 = 29, service_GetLinked0 = 30,   service_GetLinked1 = 31, service_GetLinked2 = 32, service_RemoveLink = 33, service_RemoveAllLinks = 34,   service_ObjectCreated = 35, service_ConnectPad = 36, service_LastActivePanel = 37, service_WhereItemDrawn = 38,   service_UndrawItem = 39, service_General = 40, service_PanelTimer = 41, service_HelpWindow = 42,   service_HotStart = 43, panel_Activated = 101, panel_Modified = 102, panel_Updated = 103,   panel_ActiveUpdated = 104, panel_PadDeleted = 105, panel_Deleted = 106 }
	pointer on browser proxy More...

Public Slots
void	CloseMDIParentSlot ()

Signals
void	widgetService (QGo4Widget *editor, int serviceid, const char *str, void *par)

Public Member Functions
	QGo4Widget (QWidget *parent=nullptr, const char *name=nullptr, Qt::WindowFlags f=Qt::Widget)
virtual	~QGo4Widget ()
virtual bool	IsAcceptDrag (const char *itemname, TClass *cl, int kind)
virtual void	DropItem (const char *itemname, TClass *cl, int kind)
virtual void	ResetWidget ()
void	ObjectCreatedByWidget (const char *itemname, TClass *cl)
void	ProcessSignal (const char *linkname, bool assigned, TObject *obj, TGo4Slot *slot)

Static Public Member Functions
static QAction *	AddIdAction (QMenu *menu, QSignalMapper *map, const QString &text, int id, int enabled=-1, int checked=-1)
static QAction *	AddIdAction (QMenu *menu, QSignalMapper *map, const QIcon &icon, const QString &text, int id, int enabled=-1, int checked=-1)
static QAction *	CreateChkAction (QMenu *menu, const QString &text, bool checked, bool enabled=true)
static QAction *	SetIdAction (QSignalMapper *map, int id, int enabled=-1, int checked=-1)

Protected Member Functions
void	closeEvent (QCloseEvent *e) override
void	dragEnterEvent (QDragEnterEvent *e) override
void	dragMoveEvent (QDragMoveEvent *e) override
void	dropEvent (QDropEvent *e) override
void	AddLink (const char *itemname, const char *linkname)
void	AddLink (TGo4Slot *slot, const char *linkname)
TGo4Slot *	AddLink (const char *itemname, TGo4Slot *parent)
TGo4Slot *	GetTopSlot (bool force=false)
TGo4Slot *	AddSlot (const char *slotname)
void	SetLinkedName (TGo4Slot *slot, const char *itemname)
const char *	GetLinkedName (const char *linkname)
const char *	GetLinkedName (TGo4Slot *slot)
TObject *	GetLinked (const char *linkname, int updatelevel=0)
template<class T >
T *	GetLinkedCast (const char *linkname, int updatelevel=0)
void	RemoveLink (const char *linkname, bool blockreset=true)
void	RemoveAllLinks (bool blockreset=true)
void	RemoveLinksMasked (const char *startedwith=nullptr, bool blockreset=true)
bool	BrowserItemRemote (const char *itemname)
TGo4BrowserProxy *	Browser ()
void	StatusMessage (const QString &message)
void	AskToCreateObject (TClass *cl, int isremote)
void	ShowItemInfo (const QString &itemname)
TGo4ViewPanel *	CreateViewPanel (int ndiv=0)
TGo4ViewPanel *	DrawItem (const QString &itemname, TGo4ViewPanel *panel=nullptr, TPad *pad=nullptr, bool activate=true, int updatelevel=-1)
TGo4ViewPanel *	WhereItemDrawn (const char *itemname)
void	HelpWindow (const char *filename, const char *msg=nullptr)
void	UndrawItem (const char *itemname)
TGo4ViewPanel *	LastActivePanel ()
void	EditItem (const QString &itemname)
void	EditObjectInSlot (TGo4Slot *slot)
QString	SaveObjectInMemory (const char *foldername, TObject *obj)
bool	SaveItemToFile (const char *itemname, const char *subfolder=nullptr)
bool	UpdateItemInAnalysis (const char *itemname, TObject *obj=nullptr)
void	InformThatObjectCreated (const char *itemname, TClass *cl)
TGo4ServerProxy *	GetAnalysis (const char *itemname=nullptr)
void	StartHotstart (const char *filename)
void	ConnectPad (TPad *pad)
void	CallServiceFunc (int id, const char *str=nullptr, void *par=nullptr)
void	ServiceCall (const char *name, void *par=nullptr)
virtual void	requestedObjectCreated (const char *itemname, TClass *cl)
virtual void	linkedObjectUpdated (const char *linkname, TObject *obj)
virtual void	linkedObjectRemoved (const char *linkname)
virtual void	linkedUpdated (TGo4Slot *slot, TObject *obj)
virtual void	linkedRemoved (TGo4Slot *slot, TObject *obj)
void	setCanDestroyWidget (bool on=true)
void	CallPanelFunc (int id, TPad *pad=nullptr)
void	ShootResetWidget ()
void	ShootCloseWidget (bool closeparent=false)
bool	IsUpdateBlocked () const

Private Attributes
bool	fWaitsForObjectCreation {false}
bool	fCanDestroyWidget {false}
bool	fResetWidgetShooted {false}
	indicate that widget can be destroyed More...
bool	fBlockUpdate {false}
	indicates that reset widget timer is shoot More...
TGo4BrowserProxy *	fBrowserProxy {nullptr}
	set when automatic reset must be blocked More...

Friends
class	TGo4MainWindow

Detailed Description

Definition at line 38 of file QGo4Widget.h.

Member Enumeration Documentation

anonymous enum

anonymous enum

pointer on browser proxy

Enumerator
service_DragEnter
service_DropEvent
service_CreateItem
service_DrawItem
service_EditItem
service_ShowInfo
service_EditInSlot
service_SaveItem
service_UpdateAnalysisItem
service_StatusMessage
service_CreateViewPanel
service_BrowserItemRemote
service_Browser
service_SaveToMemory
service_GetAnalysis
service_AddEditorLink
service_AddDirectLink
service_AddLinkInSlot
service_GetTopSlot
service_AddEditorSlot
service_SetLinkedName
service_GetLinkedName
service_GetLinkedName2
service_GetLinked0
service_GetLinked1
service_GetLinked2
service_RemoveLink
service_RemoveAllLinks
service_ObjectCreated
service_ConnectPad
service_LastActivePanel
service_WhereItemDrawn
service_UndrawItem
service_General
service_PanelTimer
service_HelpWindow
service_HotStart
panel_Activated
panel_Modified
panel_Updated
panel_ActiveUpdated
panel_PadDeleted
panel_Deleted

Definition at line 53 of file QGo4Widget.h.

Constructor & Destructor Documentation

QGo4Widget()

QGo4Widget::QGo4Widget	(	QWidget *	parent = nullptr,
		const char *	name = nullptr,
		Qt::WindowFlags	f = Qt::Widget
	)

Definition at line 25 of file QGo4Widget.cpp.

~QGo4Widget()

QGo4Widget::~QGo4Widget ( )

virtual

Definition at line 37 of file QGo4Widget.cpp.

References RemoveLinksMasked().

Member Function Documentation

AddIdAction() [1/2]

QAction * QGo4Widget::AddIdAction ( QMenu *  menu, QSignalMapper *  map, const QString &  text, int  id, int  enabled = -1, int  checked = -1  )

static

Definition at line 413 of file QGo4Widget.cpp.

Referenced by TGo4FitPanel::AboutToShowFitterMenu(), TGo4FitPanel::AboutToShowViewMenu(), TGo4FitPanel::TGo4FitPanel(), TGo4ViewPanel::TGo4ViewPanel(), and TGo4ViewPanel::UpdatePanelCaption().

AddIdAction() [2/2]

QAction * QGo4Widget::AddIdAction ( QMenu *  menu, QSignalMapper *  map, const QIcon &  icon, const QString &  text, int  id, int  enabled = -1, int  checked = -1  )

static

Definition at line 453 of file QGo4Widget.cpp.

AddLink() [1/3]

void QGo4Widget::AddLink ( const char *  itemname, const char *  linkname  )

protected

create link for item with name linkname

Definition at line 117 of file QGo4Widget.cpp.

References service_AddEditorLink, and widgetService().

Referenced by TGo4FitPanel::CreateFitSlotLink(), TGo4ConditionEditor::DrawCondition(), QUserPanel::DrawObjectOnCanvas(), QUserPanel::DropItem(), TGo4FitPanel::Fitter_NewForActivePad(), TGo4FitPanel::panelSlot(), TGo4TreeViewer::ProcessDropEvent(), TGo4FitPanel::SetFitter(), StartUserPanel(), TGo4BrowserOptions::StartWorking(), TGo4Browser::StartWorking(), TGo4FitPanel::UpdateObjectReferenceInSlot(), TGo4AnalysisConfiguration::WorkWithAnalysis(), TGo4ConditionEditor::WorkWithCondition(), TGo4ConditionInfo::WorkWithCondition(), TGo4AnalysisWindow::WorkWithDebugOutput(), TGo4EditDynEntry::WorkWithEntry(), TGo4FitPanel::WorkWithFitter(), TGo4FitPanel::WorkWithFitterInSlot(), TGo4HistogramInfo::WorkWithHistogram(), TGo4LogInfo::WorkWithInfo(), TGo4ParaEdit::WorkWithParameter(), TGo4AnalysisStatusMonitor::WorkWithRatemeter(), and TGo4AnalysisWindow::WorkWithUpdateObjectCmd().

AddLink() [2/3]

void QGo4Widget::AddLink ( TGo4Slot *  slot, const char *  linkname  )

protected

create link for object in slot with name linkname

Definition at line 122 of file QGo4Widget.cpp.

References service_AddDirectLink, and widgetService().

AddLink() [3/3]

TGo4Slot * QGo4Widget::AddLink ( const char *  itemname, TGo4Slot *  parent  )

protected

create link for item in dedicated slot parent

Definition at line 127 of file QGo4Widget.cpp.

References service_AddLinkInSlot, and widgetService().

AddSlot()

TGo4Slot * QGo4Widget::AddSlot ( const char *  slotname )

protected

add slot with specific name to widget top folder

Definition at line 141 of file QGo4Widget.cpp.

References service_AddEditorSlot, and widgetService().

Referenced by TGo4ParaEdit::EditFitter(), TGo4EventInfo::RefreshClicked(), TGo4HistogramInfo::WorkWithHistogram(), and TGo4ParaEdit::WorkWithParameter().

AskToCreateObject()

void QGo4Widget::AskToCreateObject ( TClass *  cl, int  isremote  )

protected

Function call dialog to create object of appropriate class isremote == 0 - object should be created localy and widget will be informed isremote == 1 - object should be created on analysis side and widget should be informed isremote == -1 - activate creation dialog without restriction (remote or local), widget will not be informed

Definition at line 275 of file QGo4Widget.cpp.

References fWaitsForObjectCreation, service_CreateItem, and widgetService().

Referenced by TGo4EditDynEntry::ConNewButton_clicked(), TGo4EditDynEntry::HisCreateButton_clicked(), and TGo4TreeViewer::NewHistBtn_clicked().

Browser()

TGo4BrowserProxy * QGo4Widget::Browser ( )

protected

Definition at line 219 of file QGo4Widget.cpp.

References fBrowserProxy, service_Browser, and widgetService().

Referenced by TGo4ViewPanel::AddDrawObject(), TGo4ParaEdit::ApplyClicked(), TGo4BrowserOptions::ClearBtn_clicked(), TGo4ConditionEditor::ClearCounters(), TGo4EditDynEntry::ClearHistogramClicked(), TGo4ConditionEditor::DrawCondition(), TGo4ViewPanel::DropOnPad(), TGo4UserCommands::ExecuteAnalysisMacro(), TGo4BrowserOptions::FilterBox_activated(), TGo4ViewPanel::GetConditionBtn_clicked(), TGo4ViewPanel::IsAcceptDrag(), TGo4Browser::ItemDropAcceptSlot(), TGo4Browser::ItemDropProcessSlot(), TGo4AnalysisWindow::linkedObjectUpdated(), TGo4EventInfo::MbsButton_clicked(), TGo4ViewPanel::MenuCommandExecutedSlot(), TGo4EditDynEntry::PrintDynList(), TGo4TreeViewer::ProcessDropEvent(), TGo4EditDynEntry::ProcessDropEvent(), TGo4ViewPanel::ProcessPictureRedraw(), TGo4EditDynEntry::ProcessTreeDropEvent(), TGo4BrowserOptions::RefreshBtn_clicked(), TGo4EventInfo::RefreshClicked(), TGo4ConditionEditor::RefreshWidget(), TGo4ParaEdit::RefreshWidget(), TGo4EditDynEntry::RefreshWidget(), TGo4ParaEdit::saveFile(), TGo4BrowserOptions::StartMonitorBtn_clicked(), TGo4BrowserOptions::StopMonitorBtn_clicked(), TGo4TreeViewer::TreeDrawBtn_clicked(), TGo4MBSViewer::TrendHisto(), TGo4BrowserOptions::UpdateView(), TGo4EventInfo::WorkWithEvent(), TGo4HistogramInfo::WorkWithHistogram(), and TGo4ParaEdit::WorkWithParameter().

BrowserItemRemote()

bool QGo4Widget::BrowserItemRemote ( const char *  itemname )

protected

Definition at line 212 of file QGo4Widget.cpp.

References service_BrowserItemRemote, and widgetService().

Referenced by TGo4ParaEdit::ApplyClicked(), TGo4TreeViewer::NewHistBtn_clicked(), TGo4ViewPanel::RefreshButtons(), TGo4ConditionEditor::UpdatePressed(), TGo4ConditionEditor::WorkWithCondition(), TGo4EditDynEntry::WorkWithEntry(), and TGo4ParaEdit::WorkWithParameter().

CallPanelFunc()

void QGo4Widget::CallPanelFunc ( int  id, TPad *  pad = nullptr  )

protected

Definition at line 234 of file QGo4Widget.cpp.

References widgetService().

Referenced by TGo4ViewPanel::AddDrawObject(), TGo4ViewPanel::OptionsMenuItemActivated(), TGo4ViewPanel::PadRangeAxisChanged(), TGo4ViewPanel::ProcessPadClear(), TGo4ViewPanel::ProcessPadModifiedSignal(), TGo4ViewPanel::ProcessPadRedraw(), TGo4ViewPanel::SelectMenuItemActivated(), TGo4ViewPanel::SetActivePad(), and TGo4ViewPanel::~TGo4ViewPanel().

CallServiceFunc()

void QGo4Widget::CallServiceFunc ( int  id, const char *  str = nullptr, void *  par = nullptr  )

protected

Definition at line 393 of file QGo4Widget.cpp.

References widgetService().

Referenced by ServiceCall(), and TGo4ViewPanel::ShootRepaintTimer().

closeEvent()

void QGo4Widget::closeEvent ( QCloseEvent *  e )

overrideprotected

Definition at line 93 of file QGo4Widget.cpp.

References fCanDestroyWidget.

CloseMDIParentSlot

void QGo4Widget::CloseMDIParentSlot ( )

slot

Definition at line 79 of file QGo4Widget.cpp.

References ShootCloseWidget().

Referenced by TGo4ConditionEditor::TGo4ConditionEditor(), TGo4EditDynEntry::TGo4EditDynEntry(), TGo4ParaEdit::TGo4ParaEdit(), and TGo4AnalysisWindow::~TGo4AnalysisWindow().

ConnectPad()

void QGo4Widget::ConnectPad ( TPad *  pad )

protected

connect pad axis change signals to react on such signals

Definition at line 229 of file QGo4Widget.cpp.

References service_ConnectPad, and widgetService().

Referenced by TGo4ViewPanel::SetSlotPad().

CreateChkAction()

QAction * QGo4Widget::CreateChkAction ( QMenu *  menu, const QString &  text, bool  checked, bool  enabled = true  )

static

Definition at line 403 of file QGo4Widget.cpp.

Referenced by TGo4MainWindow::AddSettingMenu(), TGo4Browser::Header_customContextMenuRequested(), and TGo4ViewPanel::TGo4ViewPanel().

CreateViewPanel()

TGo4ViewPanel * QGo4Widget::CreateViewPanel ( int  ndiv = 0 )

protected

Definition at line 297 of file QGo4Widget.cpp.

References service_CreateViewPanel, and widgetService().

Referenced by TGo4FitPanel::Button_FitterDraw(), TGo4Browser::DisplaySelectedItems(), TGo4ViewPanel::ProcessPadDoubleClick(), and TGo4Browser::SuperImposeSelectedItems().

dragEnterEvent()

void QGo4Widget::dragEnterEvent ( QDragEnterEvent *  e )

overrideprotected

Definition at line 102 of file QGo4Widget.cpp.

References service_DragEnter, and widgetService().

dragMoveEvent()

void QGo4Widget::dragMoveEvent ( QDragMoveEvent *  e )

overrideprotected

Definition at line 107 of file QGo4Widget.cpp.

References service_DragEnter, and widgetService().

DrawItem()

TGo4ViewPanel * QGo4Widget::DrawItem ( const QString &  itemname, TGo4ViewPanel *  panel = nullptr, TPad *  pad = nullptr, bool  activate = true, int  updatelevel = -1  )

protected

Definition at line 305 of file QGo4Widget.cpp.

References service_DrawItem, and widgetService().

Referenced by TGo4Browser::DisplaySelectedItems(), QUserPanel::DrawBtn_clicked(), TGo4EditDynEntry::DrawButton_clicked(), TGo4ConditionEditor::DrawCondition(), TGo4HistogramInfo::HisDrawButton_clicked(), TGo4Browser::ListView_doubleClicked(), StartUserPanel(), TGo4Browser::SuperImposeSelectedItems(), and TGo4TreeViewer::TreeDrawBtn_clicked().

dropEvent()

void QGo4Widget::dropEvent ( QDropEvent *  e )

overrideprotected

Definition at line 112 of file QGo4Widget.cpp.

References service_DropEvent, and widgetService().

DropItem()

void QGo4Widget::DropItem ( const char *  itemname, TClass *  cl, int  kind  )

virtual

Reimplemented in TGo4ConditionInfo, TGo4HistogramInfo, TGo4ParaEdit, TGo4EditDynEntry, TGo4ConditionEditor, TGo4AnalysisConfiguration, QUserPanel, QUserPanel, and TGo4EventInfo.

Definition at line 89 of file QGo4Widget.cpp.

Referenced by TGo4MainWindow::editorServiceSlot().

EditItem()

void QGo4Widget::EditItem ( const QString &  itemname )

protected

Definition at line 345 of file QGo4Widget.cpp.

References service_EditItem, and widgetService().

Referenced by TGo4ConditionInfo::ConEditButton_clicked(), TGo4EditDynEntry::ConInfoButton_clicked(), TGo4Browser::ContextMenuActivated(), TGo4ViewPanel::DropOnPad(), QUserPanel::EditBtn_clicked(), TGo4ViewPanel::EditConditionBtn_clicked(), TGo4AnalysisWindow::linkedObjectUpdated(), TGo4Browser::ListView_doubleClicked(), TGo4ViewPanel::StartConditionEditor(), and StartUserPanel().

EditObjectInSlot()

void QGo4Widget::EditObjectInSlot ( TGo4Slot *  slot )

protected

Definition at line 350 of file QGo4Widget.cpp.

References service_EditInSlot, and widgetService().

Referenced by TGo4ParaEdit::EditFitter().

GetAnalysis()

TGo4ServerProxy * QGo4Widget::GetAnalysis ( const char *  itemname = nullptr )

protected

Definition at line 386 of file QGo4Widget.cpp.

References service_GetAnalysis, and widgetService().

Referenced by TGo4AnalysisWindow::CommandSlot(), and TGo4EventInfo::PrintEventClicked().

GetLinked()

TObject * QGo4Widget::GetLinked ( const char *  linkname, int  updatelevel = 0  )

protected

Definition at line 172 of file QGo4Widget.cpp.

References service_GetLinked0, service_GetLinked1, service_GetLinked2, and widgetService().

Referenced by TGo4ConditionEditor::ClearCounters(), TGo4FitPanel::CreateFitSlotLink(), QUserPanel::DrawObjectOnCanvas(), QUserPanel::DropItem(), TGo4EditDynEntry::RefreshClicked(), TGo4ConditionEditor::RefreshClicked(), StartUserPanel(), TGo4FitPanel::UpdateObjectReferenceInSlot(), TGo4ConditionEditor::WorkWithCondition(), TGo4EditDynEntry::WorkWithEntry(), TGo4FitPanel::WorkWithFitter(), and TGo4FitPanel::WorkWithFitterInSlot().

GetLinkedCast()

template<class T >

T* QGo4Widget::GetLinkedCast ( const char *  linkname, int  updatelevel = 0  )

inlineprotected

Definition at line 157 of file QGo4Widget.h.

References TGo4MainWindow::Browser(), TGo4MainWindow::HelpWindow(), go4init::msg, and TGo4MainWindow::StatusMessage().

GetLinkedName() [1/2]

const char * QGo4Widget::GetLinkedName ( const char *  linkname )

protected

returns name of item, which was linked with linkname

Definition at line 153 of file QGo4Widget.cpp.

References service_GetLinkedName, and widgetService().

Referenced by TGo4EditDynEntry::ApplyClicked(), TGo4ViewPanel::CheckForSpecialObjects(), TGo4ConditionEditor::ClearCounters(), TGo4ConditionEditor::DrawCondition(), TGo4ViewPanel::EditConditionBtn_clicked(), TGo4ViewPanel::FindPadWithItem(), TGo4ViewPanel::GetConditionBtn_clicked(), TGo4ViewPanel::GetDrawItemName(), TGo4ViewPanel::GetDrawObjectLinkName(), TGo4ViewPanel::InfoConditionBtn_clicked(), TGo4ViewPanel::MakePictureForPad(), TGo4ConditionEditor::ModifyButton_clicked(), TGo4EditDynEntry::PrintDynList(), TGo4ViewPanel::ProduceSuperimposeObject(), TGo4ConditionEditor::RedrawCondition(), TGo4ViewPanel::RefreshButtons(), TGo4ConditionEditor::RefreshWidget(), TGo4EditDynEntry::RefreshWidget(), TGo4ConditionEditor::SaveCondition(), TGo4EditDynEntry::SaveEntrySlot(), TGo4ParaEdit::saveFile(), TGo4ViewPanel::SetConditionBtn_clicked(), TGo4ViewPanel::StartConditionEditor(), TGo4ViewPanel::UndrawItemOnPanel(), TGo4ConditionEditor::UpdatePressed(), TGo4FitPanel::Wiz_GetSlotSourceInfo(), TGo4ConditionEditor::WorkWithCondition(), TGo4EditDynEntry::WorkWithEntry(), and TGo4ParaEdit::WorkWithParameter().

GetLinkedName() [2/2]

const char * QGo4Widget::GetLinkedName ( TGo4Slot *  slot )

protected

returns name of item, which was linked in that slot

Definition at line 162 of file QGo4Widget.cpp.

References service_GetLinkedName2, and widgetService().

GetTopSlot()

TGo4Slot * QGo4Widget::GetTopSlot ( bool  force = false )

protected

return top slot of structure, corresponding to this widget

Definition at line 134 of file QGo4Widget.cpp.

References service_GetTopSlot, and widgetService().

Referenced by TGo4ViewPanel::GetPanelSlot().

HelpWindow()

void QGo4Widget::HelpWindow ( const char *  filename, const char *  msg = nullptr  )

protected

Definition at line 328 of file QGo4Widget.cpp.

References service_HelpWindow, and widgetService().

Referenced by TGo4CommandLine::PrintHelp().

InformThatObjectCreated()

void QGo4Widget::InformThatObjectCreated ( const char *  itemname, TClass *  cl  )

protected

Definition at line 282 of file QGo4Widget.cpp.

References service_ObjectCreated, and widgetService().

Referenced by TGo4AnalysisWindow::linkedObjectUpdated().

IsAcceptDrag()

bool QGo4Widget::IsAcceptDrag ( const char *  itemname, TClass *  cl, int  kind  )

virtual

Reimplemented in TGo4ViewPanel, TGo4FitPanel, TGo4HistogramInfo, TGo4ConditionInfo, TGo4ParaEdit, TGo4EditDynEntry, TGo4ConditionEditor, QUserPanel, QUserPanel, TGo4AnalysisConfiguration, and TGo4EventInfo.

Definition at line 84 of file QGo4Widget.cpp.

Referenced by TGo4MainWindow::editorServiceSlot().

IsUpdateBlocked()

bool QGo4Widget::IsUpdateBlocked ( ) const

inlineprotected

Definition at line 208 of file QGo4Widget.h.

Referenced by ProcessSignal().

LastActivePanel()

TGo4ViewPanel * QGo4Widget::LastActivePanel ( )

protected

Definition at line 338 of file QGo4Widget.cpp.

References service_LastActivePanel, and widgetService().

Referenced by TGo4FitPanel::AboutToShowFitterMenu(), TGo4FitPanel::Button_WorkWithPanel(), TGo4ConditionEditor::DrawCondition(), and TGo4FitPanel::Fitter_NewForActivePad().

linkedObjectRemoved()

void QGo4Widget::linkedObjectRemoved ( const char *  linkname )

protectedvirtual

Reimplemented in TGo4FitPanel, TGo4AnalysisWindow, TGo4ParaEdit, TGo4AnalysisStatusMonitor, TGo4EventInfo, TGo4AnalysisConfiguration, TGo4ConditionEditor, QUserPanel, and QUserPanel.

Definition at line 261 of file QGo4Widget.cpp.

References ShootResetWidget().

Referenced by ProcessSignal().

linkedObjectUpdated()

void QGo4Widget::linkedObjectUpdated ( const char *  linkname, TObject *  obj  )

protectedvirtual

Reimplemented in TGo4ViewPanel, TGo4FitPanel, TGo4AnalysisWindow, TGo4ConditionInfo, TGo4HistogramInfo, TGo4ParaEdit, TGo4EditDynEntry, TGo4AnalysisStatusMonitor, TGo4Browser, TGo4ConditionEditor, TGo4EventInfo, TGo4AnalysisConfiguration, TGo4BrowserOptions, QUserPanel, QUserPanel, and TGo4LogInfo.

Definition at line 257 of file QGo4Widget.cpp.

Referenced by ProcessSignal().

linkedRemoved()

void QGo4Widget::linkedRemoved ( TGo4Slot *  slot, TObject *  obj  )

protectedvirtual

Reimplemented in TGo4ViewPanel, and TGo4FitPanel.

Definition at line 271 of file QGo4Widget.cpp.

Referenced by ProcessSignal().

linkedUpdated()

void QGo4Widget::linkedUpdated ( TGo4Slot *  slot, TObject *  obj  )

protectedvirtual

Reimplemented in TGo4ViewPanel.

Definition at line 267 of file QGo4Widget.cpp.

Referenced by ProcessSignal().

ObjectCreatedByWidget()

void QGo4Widget::ObjectCreatedByWidget	(	const char *	itemname,
		TClass *	cl
	)

Definition at line 42 of file QGo4Widget.cpp.

References fWaitsForObjectCreation, and requestedObjectCreated().

Referenced by TGo4MainWindow::editorServiceSlot().

ProcessSignal()

void QGo4Widget::ProcessSignal	(	const char *	linkname,
		bool	assigned,
		TObject *	obj,
		TGo4Slot *	slot
	)

Definition at line 244 of file QGo4Widget.cpp.

References IsUpdateBlocked(), linkedObjectRemoved(), linkedObjectUpdated(), linkedRemoved(), and linkedUpdated().

Referenced by TGo4WidgetProxy::PadModified(), TGo4WidgetProxy::PadRangeAxisChanged(), and TGo4WidgetProxy::ProcessEvent().

RemoveAllLinks()

void QGo4Widget::RemoveAllLinks ( bool  blockreset = true )

protected

Definition at line 196 of file QGo4Widget.cpp.

References fBlockUpdate, service_RemoveAllLinks, and widgetService().

Referenced by TGo4FitPanel::linkedObjectRemoved(), TGo4EventInfo::RefreshClicked(), and ResetWidget().

RemoveLink()

void QGo4Widget::RemoveLink ( const char *  linkname, bool  blockreset = true  )

protected

Definition at line 188 of file QGo4Widget.cpp.

References fBlockUpdate, service_RemoveLink, and widgetService().

Referenced by TGo4FitPanel::CreateFitSlotLink(), TGo4ConditionEditor::DrawCondition(), QUserPanel::DrawObjectOnCanvas(), QUserPanel::DropItem(), QUserPanel::linkedObjectRemoved(), TGo4FitPanel::RemoveFitterLink(), and StartUserPanel().

RemoveLinksMasked()

void QGo4Widget::RemoveLinksMasked ( const char *  startedwith = nullptr, bool  blockreset = true  )

protected

Definition at line 204 of file QGo4Widget.cpp.

References fBlockUpdate, service_RemoveAllLinks, and widgetService().

Referenced by TGo4FitPanel::UpdateObjectReferenceInSlots(), and ~QGo4Widget().

requestedObjectCreated()

void QGo4Widget::requestedObjectCreated ( const char *  itemname, TClass *  cl  )

protectedvirtual

Reimplemented in TGo4EditDynEntry, and TGo4TreeViewer.

Definition at line 288 of file QGo4Widget.cpp.

Referenced by ObjectCreatedByWidget().

ResetWidget()

void QGo4Widget::ResetWidget ( )

virtual

Reimplemented in TGo4ViewPanel, TGo4ConditionInfo, TGo4HistogramInfo, TGo4ParaEdit, TGo4EditDynEntry, TGo4AnalysisConfiguration, TGo4ConditionEditor, TGo4Browser, TGo4EventInfo, and TGo4TreeViewer.

Definition at line 52 of file QGo4Widget.cpp.

References fResetWidgetShooted, fWaitsForObjectCreation, and RemoveAllLinks().

Referenced by TGo4TreeViewer::ResetWidget(), TGo4EventInfo::ResetWidget(), TGo4ConditionEditor::ResetWidget(), TGo4AnalysisConfiguration::ResetWidget(), TGo4EditDynEntry::ResetWidget(), TGo4ParaEdit::ResetWidget(), TGo4HistogramInfo::ResetWidget(), TGo4ConditionInfo::ResetWidget(), ShootResetWidget(), and TGo4LogInfo::WorkWithInfo().

SaveItemToFile()

bool QGo4Widget::SaveItemToFile ( const char *  itemname, const char *  subfolder = nullptr  )

protected

Definition at line 368 of file QGo4Widget.cpp.

References service_SaveItem, and widgetService().

Referenced by TGo4ConditionEditor::SaveCondition(), TGo4EditDynEntry::SaveEntrySlot(), and TGo4ParaEdit::saveFile().

SaveObjectInMemory()

QString QGo4Widget::SaveObjectInMemory ( const char *  foldername, TObject *  obj  )

protected

Definition at line 355 of file QGo4Widget.cpp.

References service_SaveToMemory, and widgetService().

Referenced by TGo4FitPanel::Fitter_SaveToBrowser(), TGo4ViewPanel::ProduceGraphFromMarkers(), TGo4ViewPanel::ProducePicture(), and TGo4FitPanel::SetFitter().

ServiceCall()

void QGo4Widget::ServiceCall ( const char *  name, void *  par = nullptr  )

protected

Definition at line 398 of file QGo4Widget.cpp.

References CallServiceFunc(), and service_General.

Referenced by TGo4ViewPanel::CheckActionAtTheEnd(), TGo4AnalysisConfiguration::CloseAnalysis(), TGo4ConditionInfo::ConPrintButton_clicked(), TGo4AnalysisConfiguration::DisplayMbsMonitor(), TGo4ParaEdit::GetFitterFromEditor(), TGo4HistogramInfo::HisPrintButton_clicked(), TGo4AnalysisWindow::linkedObjectRemoved(), TGo4AnalysisWindow::PrintEvent(), TGo4AnalysisWindow::RequestTerminate(), TGo4ViewPanel::SaveCanvas(), TGo4ScaleOptions::SetScaleValues(), TGo4AnalysisConfiguration::SubmitAndStart(), TGo4AnalysisConfiguration::SubmitConfiguration(), TGo4ParaEdit::TableContextMenu(), and TGo4Browser::updateListViewItems().

setCanDestroyWidget()

void QGo4Widget::setCanDestroyWidget ( bool  on = true )

inlineprotected

Definition at line 201 of file QGo4Widget.h.

Referenced by TGo4AnalysisConfiguration::TGo4AnalysisConfiguration(), TGo4AnalysisWindow::TGo4AnalysisWindow(), and TGo4Browser::TGo4Browser().

SetIdAction()

QAction * QGo4Widget::SetIdAction ( QSignalMapper *  map, int  id, int  enabled = -1, int  checked = -1  )

static

Definition at line 440 of file QGo4Widget.cpp.

Referenced by TGo4ViewPanel::AboutToShowOptionsMenu(), TGo4FitPanel::AboutToShowSettMenu(), TGo4FitPanel::AboutToShowViewMenu(), TGo4ViewPanel::OptionsMenuItemActivated(), and TGo4ViewPanel::UpdatePanelCaption().

SetLinkedName()

void QGo4Widget::SetLinkedName ( TGo4Slot *  slot, const char *  itemname  )

protected

set name of item, which was linked by this slot

Definition at line 148 of file QGo4Widget.cpp.

References service_SetLinkedName, and widgetService().

Referenced by TGo4ViewPanel::AddDrawObject(), and TGo4MainWindow::editorServiceSlot().

ShootCloseWidget()

void QGo4Widget::ShootCloseWidget ( bool  closeparent = false )

protected

Definition at line 70 of file QGo4Widget.cpp.

References fResetWidgetShooted.

Referenced by CloseMDIParentSlot(), TGo4AnalysisConfiguration::linkedObjectRemoved(), TGo4ConditionEditor::linkedObjectRemoved(), TGo4AnalysisStatusMonitor::linkedObjectRemoved(), TGo4ParaEdit::linkedObjectRemoved(), and TGo4AnalysisConfiguration::WorkWithAnalysis().

ShootResetWidget()

void QGo4Widget::ShootResetWidget ( )

protected

Definition at line 61 of file QGo4Widget.cpp.

References fResetWidgetShooted, and ResetWidget().

Referenced by linkedObjectRemoved().

ShowItemInfo()

void QGo4Widget::ShowItemInfo ( const QString &  itemname )

protected

Definition at line 292 of file QGo4Widget.cpp.

References service_ShowInfo, and widgetService().

Referenced by TGo4Browser::ContextMenuActivated(), TGo4EditDynEntry::HisInfoButton_clicked(), QUserPanel::InfoBtn_clicked(), TGo4ViewPanel::InfoConditionBtn_clicked(), and StartUserPanel().

StartHotstart()

void QGo4Widget::StartHotstart ( const char *  filename )

protected

Definition at line 333 of file QGo4Widget.cpp.

References service_HotStart, and widgetService().

Referenced by TGo4CommandLine::enterPressedSlot().

StatusMessage()

void QGo4Widget::StatusMessage ( const QString &  message )

protected

Definition at line 239 of file QGo4Widget.cpp.

References service_StatusMessage, and widgetService().

Referenced by TGo4CommandLine::enterPressedSlot(), TGo4UserCommands::ExecuteAnalysisMacro(), TGo4Browser::ExecuteItem(), TGo4TreeViewer::ProcessDropEvent(), and TGo4TreeViewer::TreeDrawBtn_clicked().

UndrawItem()

void QGo4Widget::UndrawItem ( const char *  itemname )

protected

Definition at line 323 of file QGo4Widget.cpp.

References service_UndrawItem, and widgetService().

Referenced by TGo4ViewPanel::AddDrawObject().

UpdateItemInAnalysis()

bool QGo4Widget::UpdateItemInAnalysis ( const char *  itemname, TObject *  obj = nullptr  )

protected

Definition at line 379 of file QGo4Widget.cpp.

References service_UpdateAnalysisItem, and widgetService().

Referenced by TGo4EditDynEntry::ApplyClicked(), TGo4ParaEdit::ApplyClicked(), TGo4ViewPanel::SetConditionBtn_clicked(), and TGo4ConditionEditor::UpdatePressed().

WhereItemDrawn()

TGo4ViewPanel * QGo4Widget::WhereItemDrawn ( const char *  itemname )

protected

Definition at line 316 of file QGo4Widget.cpp.

References service_WhereItemDrawn, and widgetService().

Referenced by TGo4ConditionEditor::DrawCondition(), TGo4Browser::ListView_doubleClicked(), TGo4ConditionEditor::ModifyButton_clicked(), TGo4ConditionEditor::RedrawCondition(), TGo4ConditionEditor::RefreshWidget(), TGo4TreeViewer::TreeDrawBtn_clicked(), and TGo4ConditionEditor::WorkWithCondition().

widgetService

void QGo4Widget::widgetService ( QGo4Widget *  editor, int  serviceid, const char *  str, void *  par  )

signal

Referenced by AddLink(), AddSlot(), AskToCreateObject(), Browser(), BrowserItemRemote(), CallPanelFunc(), CallServiceFunc(), TGo4ViewPanel::CanvasDropEventSlot(), TGo4MainWindow::ConnectGo4Widget(), ConnectPad(), CreateViewPanel(), dragEnterEvent(), dragMoveEvent(), DrawItem(), dropEvent(), EditItem(), EditObjectInSlot(), GetAnalysis(), GetLinked(), GetLinkedName(), GetTopSlot(), HelpWindow(), InformThatObjectCreated(), LastActivePanel(), RemoveAllLinks(), RemoveLink(), RemoveLinksMasked(), SaveItemToFile(), SaveObjectInMemory(), SetLinkedName(), ShowItemInfo(), StartHotstart(), StatusMessage(), UndrawItem(), UpdateItemInAnalysis(), and WhereItemDrawn().

Friends And Related Function Documentation

TGo4MainWindow

friend class TGo4MainWindow

friend

Definition at line 42 of file QGo4Widget.h.

Member Data Documentation

fBlockUpdate

bool QGo4Widget::fBlockUpdate {false}

private

indicates that reset widget timer is shoot

Definition at line 48 of file QGo4Widget.h.

Referenced by RemoveAllLinks(), RemoveLink(), and RemoveLinksMasked().

fBrowserProxy

TGo4BrowserProxy* QGo4Widget::fBrowserProxy {nullptr}

private

set when automatic reset must be blocked

Definition at line 50 of file QGo4Widget.h.

Referenced by Browser().

fCanDestroyWidget

bool QGo4Widget::fCanDestroyWidget {false}

private

Definition at line 46 of file QGo4Widget.h.

Referenced by closeEvent().

fResetWidgetShooted

bool QGo4Widget::fResetWidgetShooted {false}

private

indicate that widget can be destroyed

Definition at line 47 of file QGo4Widget.h.

Referenced by ResetWidget(), ShootCloseWidget(), and ShootResetWidget().

fWaitsForObjectCreation

bool QGo4Widget::fWaitsForObjectCreation {false}

private

Definition at line 45 of file QGo4Widget.h.

Referenced by AskToCreateObject(), ObjectCreatedByWidget(), and ResetWidget().

---

The documentation for this class was generated from the following files:

• qt4/Go4GUI/QGo4Widget.h
• qt4/Go4GUI/QGo4Widget.cpp
