TGo4Condition Class Reference

#include <TGo4Condition.h>

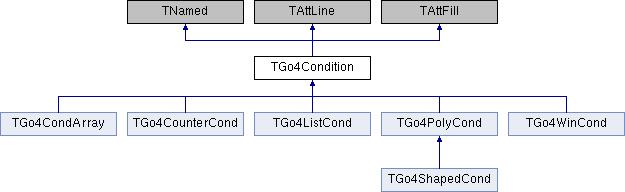

+ Inheritance diagram for TGo4Condition:

Public Member Functions

 TGo4Condition ()

 TGo4Condition (const char *name, const char *title="Go4 Condition")

virtual ~TGo4Condition ()

void Paint (Option_t *opt="") override

void Draw (Option_t *opt="") override

virtual void UnDraw (Option_t *opt="")

void Pop () override

virtual TGo4ConditionPainter * CreatePainter ()

virtual Int_t Counts ()

virtual Int_t TrueCounts ()

virtual void ResetCounts ()

virtual void SetCounts (Int_t truecounts, Int_t counts)

virtual void Disable (Bool_t result)

virtual void Enable ()

Bool_t IsEnabled () const

virtual Bool_t Test ()

virtual Bool_t Test (Double_t x, Double_t y)

virtual Bool_t Test (Double_t x)

virtual void SetValues ()

virtual void SetValues (Double_t low1, Double_t up1)

virtual void SetValues (Double_t low1, Double_t up1, Double_t low2, Double_t up2)

virtual void SetValues (TCutG *newcut)

virtual void SetValues (Double_t *x, Double_t *y, Int_t len)

virtual void AddCondition (TGo4Condition *next)

void IncCounts ()

void IncTrueCounts ()

Bool_t IsTrue () const

Bool_t IsFalse () const

Bool_t FixedResult () const

virtual void Invert (Bool_t on)

virtual void PrintCondition (Bool_t full=kTRUE)

virtual void PrintBar ()

void Print (Option_t *opt="") const override

void SetLast (Bool_t value)

Bool_t GetLast () const

virtual Bool_t UpdateFrom (TGo4Condition *cond, Bool_t counts)

virtual Bool_t UpdateFromUrl (const char *rest_url_opt)

virtual void GetValues (Int_t &dim, Double_t &x1, Double_t &y1, Double_t &x2, Double_t &y2)

virtual Double_t GetXLow () const

virtual Double_t GetXUp () const

virtual Double_t GetYLow () const

virtual Double_t GetYUp () const

virtual TCutG * GetCut (Bool_t owner)

virtual Double_t GetIntegral (TH1 *, Option_t *="")

virtual Double_t GetMean (TH1 *, Int_t=1)

virtual Double_t GetRMS (TH1 *, Int_t=1)

virtual Double_t GetSkewness (TH1 *, Int_t=1)

virtual Double_t GetCurtosis (TH1 *, Int_t=1)

virtual Double_t GetXMax (TH1 *)

virtual Double_t GetYMax (TH1 *)

virtual Double_t GetCMax (TH1 *)

virtual const TGo4Condition * GetActiveCondition () const

virtual void MarkReset (Bool_t on)

void Clear (Option_t *opt="") override

virtual void SetFlags (Bool_t enabled, Bool_t lastresult, Bool_t markreset, Bool_t result, Bool_t truevalue, Bool_t falsevalue)

virtual void GetFlags (Bool_t *enabled, Bool_t *lastresult, Bool_t *markreset, Bool_t *result, Bool_t *truevalue, Bool_t *falsevalue)

virtual void SetVisible (Bool_t on)

virtual Bool_t IsVisible () const

void SetHistogramLink (Bool_t on)

Bool_t IsHistogramLink () const

void SetHistogram (const char *name)

const char * GetLinkedHistogram () const

virtual void SetWorkHistogram (TH1 *histo)

TH1 * GetWorkHistogram () const

virtual void SetPainter (TGo4ConditionPainter *painter)

void SetUpdateEpsilon (Double_t val)

Double_t GetUpdateEpsilon () const

void SaveLabelStyle ()

void InitLabelStyle ()

void ResetLabel (Option_t *opt="reset")

virtual void SetLabelDraw (Bool_t on)

virtual Bool_t IsLabelDraw () const

virtual void SetLimitsDraw (Bool_t on)

virtual Bool_t IsLimitsDraw () const

virtual void SetIntDraw (Bool_t on)

virtual Bool_t IsIntDraw () const

virtual void SetXMeanDraw (Bool_t on)

virtual Bool_t IsXMeanDraw () const

virtual void SetXRMSDraw (Bool_t on)

virtual Bool_t IsXRMSDraw () const

virtual void SetYMeanDraw (Bool_t on)

virtual Bool_t IsYMeanDraw () const

virtual void SetYRMSDraw (Bool_t on)

virtual Bool_t IsYRMSDraw () const

virtual void SetXMaxDraw (Bool_t on)

virtual Bool_t IsXMaxDraw () const

virtual void SetYMaxDraw (Bool_t on)

virtual Bool_t IsYMaxDraw () const

virtual void SetCMaxDraw (Bool_t on)

virtual Bool_t IsCMaxDraw () const

virtual void SetLabelNumFormat (const char *fmt)

virtual const char * GetLabelNumFormat () const

virtual void SetChanged (Bool_t on=kTRUE)

virtual Int_t IsChanged () const

void SetMultiEdit (Bool_t on)

virtual Bool_t IsMultiEdit () const

void SetDimension (Int_t d)

Int_t GetDimension () const

void SetOwnedByEditor (Bool_t on)

Bool_t IsOwnedByEditor () const

virtual void SetCurrentIndex (Int_t)

virtual Int_t GetCurrentIndex () const

virtual Int_t GetNumberOfConditions () const

virtual Int_t GetMemorySize () const

virtual Bool_t IsPolygonType () const

virtual Bool_t IsArrayType () const

void DeletePainter ()


Static Public Member Functions

static void SetGlobalStyle (Bool_t LABELDRAW, Bool_t LIMITSDRAW, Bool_t INTDRAW, Bool_t XMEANDRAW, Bool_t YMEANDRAW, Bool_t XRMSDRAW, Bool_t YRMSDRAW, Bool_t XMAXDRAW, Bool_t YMAXDRAW, Bool_t CMAXDRAW, const char *NUMFORMAT)

static void GetGlobalStyle (Bool_t &LABELDRAW, Bool_t &LIMITSDRAW, Bool_t &INTDRAW, Bool_t &XMEANDRAW, Bool_t &YMEANDRAW, Bool_t &XRMSDRAW, Bool_t &YRMSDRAW, Bool_t &XMAXDRAW, Bool_t &YMAXDRAW, Bool_t &CMAXDRAW, TString &NUMFORMAT)


Static Public Attributes

static const Double_t fgdUPDATEEPSILON = 0.01

static Bool_t fgbLABELDRAW =kTRUE

static Bool_t fgbLIMITSDRAW =kTRUE

static Bool_t fgbINTDRAW =kTRUE

static Bool_t fgbXMEANDRAW =kTRUE

static Bool_t fgbXRMSDRAW =kTRUE

static Bool_t fgbYMEANDRAW =kFALSE

static Bool_t fgbYRMSDRAW =kFALSE

static Bool_t fgbXMAXDRAW =kTRUE

static Bool_t fgbYMAXDRAW =kFALSE

static Bool_t fgbCMAXDRAW =kTRUE

static TString fgxNUMFORMAT ="%.4E"

static TString fgxURL_RESET ="resetcounters"

static TString fgxURL_RESULT ="resultmode"

static TString fgxURL_INVERT ="invertmode"

static TString fgxURL_VISIBLE ="visible"

static TString fgxURL_LABEL ="labeldraw"

static TString fgxURL_LIMITS ="limitsdraw"

static TString fgxURL_INTEGRAL ="intdraw"

static TString fgxURL_XMEAN ="xmeandraw"

static TString fgxURL_XRMS ="xrmsdraw"

static TString fgxURL_YMEAN ="ymeandraw"

static TString fgxURL_YRMS ="yrmsdraw"

static TString fgxURL_XMAX ="xmaxdraw"

static TString fgxURL_YMAX ="ymaxdraw"

static TString fgxURL_CMAX ="cmaxdraw"


Protected Member Functions

void BuildUrlOptionArray (const char *rest_url_opt)

Bool_t UrlOptionHasKey (const char *key)

TString GetUrlOptionAsString (const char *key, TString def_value)

Int_t GetUrlOptionAsInt (const char *key, Int_t def_value)

Double_t GetUrlOptionAsDouble (const char *key, Double_t def_value)

void SetPainted (Bool_t on)

Bool_t IsPainted () const

const char * MakeScript (std::ostream &out, const char *varname, Option_t *opt="", const char *arrextraargs=nullptr)


Protected Attributes

TGo4ConditionPainter * fxPainter {nullptr}

TObjArray * fxUrlOptionArray {nullptr}


Private Attributes

Int_t fiDim {0}

Bool_t fbMarkReset {kFALSE}

Bool_t fbLastResult {kFALSE}

Bool_t fbTrue {kTRUE}

Bool_t fbFalse {kFALSE}

Int_t fiTrueCounts {0}

Int_t fiCounts {0}

Bool_t fbEnabled {kFALSE}

Bool_t fbResult {kFALSE}

Bool_t fbMultiEdit {kFALSE}

Bool_t fbVisible {kFALSE}

Bool_t fbHistogramLink {kFALSE}

TString fxHistoName

Double_t fdUpdateEpsilon {0}

Bool_t fbLabelDraw {kFALSE}

Bool_t fbLimitsDraw {kFALSE}

Bool_t fbIntDraw {kFALSE}

Bool_t fbXMeanDraw {kFALSE}

Bool_t fbXRMSDraw {kFALSE}

Bool_t fbYMeanDraw {kFALSE}

Bool_t fbYRMSDraw {kFALSE}

Bool_t fbXMaxDraw {kFALSE}

Bool_t fbYMaxDraw {kFALSE}

Bool_t fbCMaxDraw {kFALSE}

TString fxNumFormat

TH1 * fxHisto {nullptr}

Int_t fiIsChanged {0}

Bool_t fbIsPainted {kFALSE}

Bool_t fbOwnedByEditor {kFALSE}

Bool_t fbStreamedCondition {kFALSE}


Friends

class TGo4CondArray


Detailed Description

Definition at line 36 of file TGo4Condition.h.

Constructor & Destructor Documentation

◆ TGo4Condition() [1/2]

TGo4Condition::TGo4Condition ( )

Definition at line 59 of file TGo4Condition.cxx.

References fbEnabled, fbFalse, fbHistogramLink, fbIsPainted, fbMarkReset, fbMultiEdit, fbOwnedByEditor, fbResult, fbStreamedCondition, fbTrue, fbVisible, fdUpdateEpsilon, fgdUPDATEEPSILON, fiCounts, fiDim, fiTrueCounts, GO4TRACE, and InitLabelStyle().

◆ TGo4Condition() [2/2]

TGo4Condition::TGo4Condition ( const char *  name,
const char *  title = "Go4 Condition"
)

Definition at line 85 of file TGo4Condition.cxx.

References fbEnabled, fbFalse, fbHistogramLink, fbIsPainted, fbMarkReset, fbMultiEdit, fbOwnedByEditor, fbResult, fbStreamedCondition, fbTrue, fbVisible, fdUpdateEpsilon, fgdUPDATEEPSILON, fiCounts, fiDim, fiTrueCounts, GO4TRACE, and InitLabelStyle().

◆ ~TGo4Condition()

TGo4Condition::~TGo4Condition ( )
virtual

Definition at line 111 of file TGo4Condition.cxx.

References fxPainter, fxUrlOptionArray, and GO4TRACE.

Member Function Documentation

◆ AddCondition()

void TGo4Condition::AddCondition ( TGo4Condition *  next)
virtual

Add another condition to this one. The newly added condition is added as next condition and may be tested together with the current condition. User may specify the logical connection between the chained conditions (e.g. a logical "and", "or", "xor" relationships are all possible). Depends on the implementation of Test() method. The chained conditions are not owned by the top level condition and are not deleted by dtor, thus one condition instance may be chained to several others.

Definition at line 135 of file TGo4Condition.cxx.

References GO4TRACE.

Referenced by SetValues().

◆ BuildUrlOptionArray()

void TGo4Condition::BuildUrlOptionArray ( const char *  rest_url_opt)
protected

re-build the list of url options from string

Definition at line 329 of file TGo4Condition.cxx.

References fxUrlOptionArray.

Referenced by UpdateFromUrl().

◆ Clear()

void TGo4Condition::Clear ( Option_t *  opt = "")
override

Definition at line 520 of file TGo4Condition.cxx.

References ResetCounts().

Referenced by GetActiveCondition().

◆ Counts()

Int_t TGo4Condition::Counts ( )
virtual

Return number of calls of the Test method.

Reimplemented in TGo4CondArray.

Definition at line 152 of file TGo4Condition.cxx.

References fiCounts, and GO4TRACE.

Referenced by TGo4CondArray::Counts(), MakeScript(), Print(), TGo4ConditionInfo::RefreshWidget(), and TGo4CondArray::TrueCounts().

◆ CreatePainter()

TGo4ConditionPainter * TGo4Condition::CreatePainter ( )
virtual

Factory method to generate the subclass implementation for painter

Reimplemented in TGo4CondArray, TGo4PolyCond, and TGo4WinCond.

Definition at line 633 of file TGo4Condition.cxx.

Referenced by Paint(), and UnDraw().

◆ DeletePainter()

void TGo4Condition::DeletePainter ( )

Definition at line 711 of file TGo4Condition.cxx.

References fxPainter.

Referenced by IsArrayType(), and TGo4ViewPanel::MakePictureForPad().

◆ Disable()

void TGo4Condition::Disable ( Bool_t  result)
virtual

Freeze condition, on Test() return result. This overwrites inverted result, but does not change it

Reimplemented in TGo4CondArray.

Definition at line 547 of file TGo4Condition.cxx.

References fbEnabled, and fbResult.

Referenced by TGo4CondArray::Disable(), TGo4ConditionEditor::SetResultMode(), TXXXUnpackProc::TXXXUnpackProc(), TYYYUnpackProc::TYYYUnpackProc(), and UpdateFromUrl().

◆ Draw()

void TGo4Condition::Draw ( Option_t *  opt = "")
override

Draw this condition on current pad

Definition at line 601 of file TGo4Condition.cxx.

References IsVisible(), SetPainted(), and UnDraw().

Referenced by TGo4CondArray::Draw(), TGo4RootBrowserProxy::DrawCondition(), TGo4RootBrowserProxy::DrawPicture(), and TGo4ViewPanel::PadClickedSlot().

◆ Enable()

void TGo4Condition::Enable ( )
virtual

Enable (unfreeze) Test execution

Reimplemented in TGo4CondArray.

Definition at line 553 of file TGo4Condition.cxx.

References fbEnabled.

Referenced by TGo4CondArray::Enable(), TGo4CreateNewCondition::MakeCondition(), TGo4Analysis::MakeEllipseCond(), TGo4Analysis::MakeListCond(), TGo4Analysis::MakeWinCond(), TGo4ConditionEditor::SetResultMode(), TXXXUnpackProc::TXXXUnpackProc(), and UpdateFromUrl().

◆ FixedResult()

Bool_t TGo4Condition::FixedResult ( ) const
inline

Returns the value set by Disable(value).

Definition at line 129 of file TGo4Condition.h.

References fbResult, Invert(), Print(), PrintBar(), and PrintCondition().

Referenced by TGo4ConditionInfo::RefreshWidget(), TGo4ListCond::Test(), TGo4WinCond::Test(), and TGo4PolyCond::Test().

◆ GetActiveCondition()

virtual const TGo4Condition* TGo4Condition::GetActiveCondition ( ) const
inlinevirtual

To be overwritten for condition array. By default, it returns this.

Reimplemented in TGo4CondArray.

Definition at line 190 of file TGo4Condition.h.

References Clear(), GetFlags(), MarkReset(), and SetFlags().

Referenced by Print().

◆ GetCMax()

virtual Double_t TGo4Condition::GetCMax ( TH1 *  )
inlinevirtual

Calculate value for histogram inside condition limits.

Reimplemented in TGo4CondArray, TGo4PolyCond, and TGo4WinCond.

Definition at line 187 of file TGo4Condition.h.

Referenced by TGo4CondArray::GetCMax(), TGo4ConditionPainter::PaintLabel(), and Print().

◆ GetCurrentIndex()

virtual Int_t TGo4Condition::GetCurrentIndex ( ) const
inlinevirtual

get index for array type subclasses

Reimplemented in TGo4CondArray.

Definition at line 311 of file TGo4Condition.h.

◆ GetCurtosis()

virtual Double_t TGo4Condition::GetCurtosis ( TH1 *  ,
Int_t  = 1
)
inlinevirtual

Calculate value for histogram inside condition limits.

Reimplemented in TGo4CondArray, TGo4PolyCond, and TGo4WinCond.

Definition at line 178 of file TGo4Condition.h.

Referenced by TGo4CondArray::GetCurtosis().

◆ GetCut()

virtual TCutG* TGo4Condition::GetCut ( Bool_t  owner)
inlinevirtual

Reimplemented in TGo4PolyCond.

Definition at line 162 of file TGo4Condition.h.

◆ GetDimension()

Int_t TGo4Condition::GetDimension ( ) const
inline

Definition at line 302 of file TGo4Condition.h.

References fiDim.

Referenced by TGo4WinCond::GetValues(), GetValues(), TGo4ViewPanel::PadClickedSlot(), TGo4WinCondPainter::PaintCondition(), TGo4ConditionPainter::PaintLabel(), Print(), TGo4WinCond::PrintCondition(), TGo4ConditionEditor::RefreshWidget(), TGo4ConditionInfo::RefreshWidget(), TGo4WinCondView::SetToLimits(), UpdateFrom(), TGo4WinCond::UpdateFromUrl(), and TGo4ConditionEditor::UpdateLimits().

◆ GetFlags()

void TGo4Condition::GetFlags ( Bool_t *  enabled,
Bool_t *  lastresult,
Bool_t *  markreset,
Bool_t *  result,
Bool_t *  truevalue,
Bool_t *  falsevalue
)
virtual

Sets values of internal boolean flags to external variables. Overwritten in TGo4CondArray.

Reimplemented in TGo4CondArray.

Definition at line 525 of file TGo4Condition.cxx.

References fbEnabled, fbFalse, fbLastResult, fbMarkReset, fbResult, and fbTrue.

Referenced by GetActiveCondition(), TGo4CondArray::GetFlags(), and MakeScript().

◆ GetGlobalStyle()

void TGo4Condition::GetGlobalStyle ( Bool_t &  LABELDRAW,
Bool_t &  LIMITSDRAW,
Bool_t &  INTDRAW,
Bool_t &  XMEANDRAW,
Bool_t &  YMEANDRAW,
Bool_t &  XRMSDRAW,
Bool_t &  YRMSDRAW,
Bool_t &  XMAXDRAW,
Bool_t &  YMAXDRAW,
Bool_t &  CMAXDRAW,
TString &  NUMFORMAT
)
static

Definition at line 685 of file TGo4Condition.cxx.

References fgbCMAXDRAW, fgbINTDRAW, fgbLABELDRAW, fgbLIMITSDRAW, fgbXMAXDRAW, fgbXMEANDRAW, fgbXRMSDRAW, fgbYMAXDRAW, fgbYMEANDRAW, fgbYRMSDRAW, and fgxNUMFORMAT.

Referenced by TGo4QSettings::setBasicSettings(), and TGo4MarkerSettings::TGo4MarkerSettings().

◆ GetIntegral()

virtual Double_t TGo4Condition::GetIntegral ( TH1 *  ,
Option_t *  = ""
)
inlinevirtual

Calculate value for histogram inside condition limits. Option may specify "width" to scale channel sum with axes

Reimplemented in TGo4CondArray, TGo4PolyCond, and TGo4WinCond.

Definition at line 166 of file TGo4Condition.h.

Referenced by TGo4CondArray::GetIntegral(), TGo4ConditionPainter::PaintLabel(), and Print().

◆ GetLabelNumFormat()

virtual const char* TGo4Condition::GetLabelNumFormat ( ) const
inlinevirtual

Definition at line 287 of file TGo4Condition.h.

References fxNumFormat.

Referenced by TGo4ConditionPainter::PaintLabel().

◆ GetLast()

Bool_t TGo4Condition::GetLast ( ) const
inline

Returns result of last Test.

Definition at line 149 of file TGo4Condition.h.

References fbLastResult, GetValues(), UpdateFrom(), and UpdateFromUrl().

◆ GetLinkedHistogram()

const char * TGo4Condition::GetLinkedHistogram ( ) const

Access name of the associated histogram.

Definition at line 569 of file TGo4Condition.cxx.

References fxHistoName.

Referenced by TGo4RootBrowserProxy::DrawCondition(), IsHistogramLink(), and TGo4ConditionEditor::RefreshWidget().

◆ GetMean()

virtual Double_t TGo4Condition::GetMean ( TH1 *  ,
Int_t  = 1
)
inlinevirtual

Calculate value for histogram inside condition limits.

Reimplemented in TGo4CondArray, TGo4PolyCond, and TGo4WinCond.

Definition at line 169 of file TGo4Condition.h.

Referenced by TGo4CondArray::GetMean(), TGo4ConditionPainter::PaintLabel(), and Print().

◆ GetMemorySize()

Int_t TGo4Condition::GetMemorySize ( ) const
virtual

Reimplemented in TGo4CondArray, TGo4PolyCond, and TGo4WinCond.

Definition at line 507 of file TGo4Condition.cxx.

Referenced by TGo4CondArray::GetMemorySize(), GetNumberOfConditions(), and TGo4ConditionInfo::RefreshWidget().

◆ GetNumberOfConditions()

virtual Int_t TGo4Condition::GetNumberOfConditions ( ) const
inlinevirtual

for condition aggregates: return total number of conditions, i.e.size of condition array

Reimplemented in TGo4CondArray.

Definition at line 315 of file TGo4Condition.h.

References GetMemorySize().

◆ GetRMS()

virtual Double_t TGo4Condition::GetRMS ( TH1 *  ,
Int_t  = 1
)
inlinevirtual

Calculate value for histogram inside condition limits.

Reimplemented in TGo4CondArray, TGo4PolyCond, and TGo4WinCond.

Definition at line 172 of file TGo4Condition.h.

Referenced by TGo4CondArray::GetRMS(), TGo4ConditionPainter::PaintLabel(), and Print().

◆ GetSkewness()

virtual Double_t TGo4Condition::GetSkewness ( TH1 *  ,
Int_t  = 1
)
inlinevirtual

Calculate value for histogram inside condition limits.

Reimplemented in TGo4CondArray, TGo4PolyCond, and TGo4WinCond.

Definition at line 175 of file TGo4Condition.h.

Referenced by TGo4CondArray::GetSkewness().

◆ GetUpdateEpsilon()

Double_t TGo4Condition::GetUpdateEpsilon ( ) const
inline

Definition at line 241 of file TGo4Condition.h.

References fdUpdateEpsilon.

Referenced by TGo4WinCondView::ExecuteEvent(), and TGo4PolyCondView::IsCutChanged().

◆ GetUrlOptionAsDouble()

Double_t TGo4Condition::GetUrlOptionAsDouble ( const char *  key,
Double_t  def_value
)
protected

Scan list of url options for key. If found, return Double value. If not found, return default value def_value

Definition at line 386 of file TGo4Condition.cxx.

References GetUrlOptionAsString().

Referenced by TGo4WinCond::UpdateFromUrl(), TGo4PolyCond::UpdateFromUrl(), and TGo4ShapedCond::UpdateFromUrl().

◆ GetUrlOptionAsInt()

Int_t TGo4Condition::GetUrlOptionAsInt ( const char *  key,
Int_t  def_value
)
protected

Scan list of url options for key. If found, return Integer value. If not found, return default value def_value

Definition at line 377 of file TGo4Condition.cxx.

References GetUrlOptionAsString().

Referenced by TGo4PolyCond::UpdateFromUrl(), TGo4ShapedCond::UpdateFromUrl(), and UpdateFromUrl().

◆ GetUrlOptionAsString()

TString TGo4Condition::GetUrlOptionAsString ( const char *  key,
TString  def_value
)
protected

Scan list of url options for key. If found, return TString value. If not found, return default value def_value

Definition at line 356 of file TGo4Condition.cxx.

References fxUrlOptionArray.

Referenced by GetUrlOptionAsDouble(), and GetUrlOptionAsInt().

◆ GetValues()

void TGo4Condition::GetValues ( Int_t &  dim,
Double_t &  x1,
Double_t &  y1,
Double_t &  x2,
Double_t &  y2
)
virtual

Reimplemented in TGo4WinCond.

Definition at line 497 of file TGo4Condition.cxx.

References GetDimension(), GetXLow(), GetXUp(), GetYLow(), and GetYUp().

Referenced by GetLast(), and TGo4WinCond::UpdateFrom().

◆ GetWorkHistogram()

TH1* TGo4Condition::GetWorkHistogram ( ) const
inline

access work histogram reference

Definition at line 230 of file TGo4Condition.h.

References fxHisto, and SetPainter().

Referenced by TGo4ViewPanel::CheckObjectsAssigments(), TGo4CondArrayPainter::PaintCondition(), TGo4ConditionPainter::PaintLabel(), and Print().

◆ GetXLow()

virtual Double_t TGo4Condition::GetXLow ( ) const
inlinevirtual

Reimplemented in TGo4CondArray, TGo4ListCond, TGo4PolyCond, and TGo4WinCond.

Definition at line 158 of file TGo4Condition.h.

Referenced by GetValues(), TGo4CondArray::GetXLow(), TGo4ConditionPainter::PaintLabel(), and Print().

◆ GetXMax()

virtual Double_t TGo4Condition::GetXMax ( TH1 *  )
inlinevirtual

Calculate value for histogram inside condition limits.

Reimplemented in TGo4CondArray, TGo4PolyCond, and TGo4WinCond.

Definition at line 181 of file TGo4Condition.h.

Referenced by TGo4CondArray::GetXMax(), TGo4ConditionPainter::PaintLabel(), and Print().

◆ GetXUp()

virtual Double_t TGo4Condition::GetXUp ( ) const
inlinevirtual

Reimplemented in TGo4CondArray, TGo4ListCond, TGo4PolyCond, and TGo4WinCond.

Definition at line 159 of file TGo4Condition.h.

Referenced by GetValues(), TGo4CondArray::GetXUp(), TGo4ConditionPainter::PaintLabel(), and Print().

◆ GetYLow()

virtual Double_t TGo4Condition::GetYLow ( ) const
inlinevirtual

Reimplemented in TGo4CondArray, TGo4ListCond, TGo4PolyCond, and TGo4WinCond.

Definition at line 160 of file TGo4Condition.h.

Referenced by GetValues(), TGo4CondArray::GetYLow(), TGo4ConditionPainter::PaintLabel(), and Print().

◆ GetYMax()

virtual Double_t TGo4Condition::GetYMax ( TH1 *  )
inlinevirtual

Calculate value for histogram inside condition limits.

Reimplemented in TGo4CondArray, TGo4PolyCond, and TGo4WinCond.

Definition at line 184 of file TGo4Condition.h.

Referenced by TGo4CondArray::GetYMax(), TGo4ConditionPainter::PaintLabel(), and Print().

◆ GetYUp()

virtual Double_t TGo4Condition::GetYUp ( ) const
inlinevirtual

Reimplemented in TGo4CondArray, TGo4ListCond, TGo4PolyCond, and TGo4WinCond.

Definition at line 161 of file TGo4Condition.h.

Referenced by GetValues(), TGo4CondArray::GetYUp(), TGo4ConditionPainter::PaintLabel(), and Print().

◆ IncCounts()

void TGo4Condition::IncCounts ( )

Increment the test counter. User has to take care that this method is called within his/her Test method.

Definition at line 146 of file TGo4Condition.cxx.

References fiCounts, and GO4TRACE.

Referenced by SetValues(), TGo4CounterCond::Test(), TGo4ListCond::Test(), TGo4WinCond::Test(), TGo4PolyCond::Test(), and TGo4CondArray::Test().

◆ IncTrueCounts()

void TGo4Condition::IncTrueCounts ( )

Increment the "test was true" counter. User has to take care that this method is called within his/her Test method on success.

Definition at line 140 of file TGo4Condition.cxx.

References fiTrueCounts, and GO4TRACE.

Referenced by SetValues(), TGo4CounterCond::Test(), TGo4ListCond::Test(), TGo4WinCond::Test(), TGo4PolyCond::Test(), and TGo4CondArray::Test().

◆ InitLabelStyle()

void TGo4Condition::InitLabelStyle ( )

Initialize label setup from static default variables

Definition at line 653 of file TGo4Condition.cxx.

References fbCMaxDraw, fbIntDraw, fbLabelDraw, fbLimitsDraw, fbXMaxDraw, fbXMeanDraw, fbXRMSDraw, fbYMaxDraw, fbYMeanDraw, fbYRMSDraw, fgbCMAXDRAW, fgbINTDRAW, fgbLABELDRAW, fgbLIMITSDRAW, fgbXMAXDRAW, fgbXMEANDRAW, fgbXRMSDRAW, fgbYMAXDRAW, fgbYMEANDRAW, fgbYRMSDRAW, fgxNUMFORMAT, and fxNumFormat.

Referenced by TGo4Condition().

◆ Invert()

void TGo4Condition::Invert ( Bool_t  on)
virtual

Inverts return values, when on is true, i.e. isTrue() will return false, and isFalse() will return true. Whn on is false, inversion is reset.

Reimplemented in TGo4CondArray.

Definition at line 180 of file TGo4Condition.cxx.

References fbFalse, fbTrue, and GO4TRACE.

Referenced by FixedResult(), TGo4CondArray::Invert(), TGo4AnalysisObjectManager::MakeWindowCond(), TGo4ConditionEditor::SetInvertMode(), TXXXUnpackProc::TXXXUnpackProc(), TYYYUnpackProc::TYYYUnpackProc(), and UpdateFromUrl().

◆ IsArrayType()

virtual Bool_t TGo4Condition::IsArrayType ( ) const
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 320 of file TGo4Condition.h.

References DeletePainter().

Referenced by TGo4ConditionPainter::PaintLabel().

◆ IsChanged()

virtual Int_t TGo4Condition::IsChanged ( ) const
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 296 of file TGo4Condition.h.

References fiIsChanged.

Referenced by TGo4CondArray::IsChanged(), and TGo4ViewPanel::RefreshButtons().

◆ IsCMaxDraw()

virtual Bool_t TGo4Condition::IsCMaxDraw ( ) const
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 284 of file TGo4Condition.h.

References fbCMaxDraw.

Referenced by TGo4PolyCondView::IsCMaxDraw(), TGo4CondArray::IsCMaxDraw(), and TGo4ConditionPainter::PaintLabel().

◆ IsEnabled()

Bool_t TGo4Condition::IsEnabled ( ) const
inline

Returns true if condition is enabled

Definition at line 82 of file TGo4Condition.h.

References fbEnabled, and Test().

Referenced by TGo4ConditionInfo::RefreshWidget(), TGo4ListCond::Test(), TGo4WinCond::Test(), and TGo4PolyCond::Test().

◆ IsFalse()

Bool_t TGo4Condition::IsFalse ( ) const
inline

Use this as return, if test was false. Takes into account inversion, i.e. when condition is inverted, IsFalse returns true.

Definition at line 126 of file TGo4Condition.h.

References fbFalse.

Referenced by TGo4WinCond::Test(), and TGo4PolyCond::Test().

◆ IsHistogramLink()

Bool_t TGo4Condition::IsHistogramLink ( ) const
inline

True if the histogram of given name is linked to this

Definition at line 217 of file TGo4Condition.h.

References fbHistogramLink, GetLinkedHistogram(), and SetHistogram().

◆ IsIntDraw()

virtual Bool_t TGo4Condition::IsIntDraw ( ) const
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 263 of file TGo4Condition.h.

References fbIntDraw.

Referenced by TGo4PolyCondView::IsIntDraw(), TGo4CondArray::IsIntDraw(), and TGo4ConditionPainter::PaintLabel().

◆ IsLabelDraw()

virtual Bool_t TGo4Condition::IsLabelDraw ( ) const
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 257 of file TGo4Condition.h.

References fbLabelDraw.

Referenced by TGo4PolyCondView::IsLabelDraw(), TGo4CondArray::IsLabelDraw(), and TGo4ConditionPainter::PaintLabel().

◆ IsLimitsDraw()

virtual Bool_t TGo4Condition::IsLimitsDraw ( ) const
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 260 of file TGo4Condition.h.

References fbLimitsDraw.

Referenced by TGo4PolyCondView::IsLimitsDraw(), TGo4CondArray::IsLimitsDraw(), and TGo4ConditionPainter::PaintLabel().

◆ IsMultiEdit()

virtual Bool_t TGo4Condition::IsMultiEdit ( ) const
inlinevirtual

Definition at line 299 of file TGo4Condition.h.

References fbMultiEdit.

Referenced by TGo4CondArray::Counts(), TGo4CondArray::Disable(), TGo4CondArray::Enable(), TGo4CondArray::GetActiveCondition(), TGo4CondArray::GetCMax(), TGo4CondArray::GetCurtosis(), TGo4CondArray::GetFlags(), TGo4CondArray::GetIntegral(), TGo4CondArray::GetMean(), TGo4CondArray::GetRMS(), TGo4CondArray::GetSkewness(), TGo4CondArray::GetXLow(), TGo4CondArray::GetXMax(), TGo4CondArray::GetXUp(), TGo4CondArray::GetYLow(), TGo4CondArray::GetYMax(), TGo4CondArray::GetYUp(), TGo4CondArray::Invert(), TGo4CondArray::IsCMaxDraw(), TGo4CondArray::IsIntDraw(), TGo4CondArray::IsLabelDraw(), TGo4CondArray::IsLimitsDraw(), TGo4CondArray::IsPolygonType(), TGo4CondArray::IsVisible(), TGo4CondArray::IsXMaxDraw(), TGo4CondArray::IsXMeanDraw(), TGo4CondArray::IsXRMSDraw(), TGo4CondArray::IsYMaxDraw(), TGo4CondArray::IsYMeanDraw(), TGo4CondArray::IsYRMSDraw(), TGo4CondArray::MarkReset(), TGo4CondArrayPainter::PaintCondition(), TGo4ConditionPainter::PaintLabel(), TGo4CondArray::ResetCounts(), TGo4CondArray::SetCMaxDraw(), TGo4CondArray::SetIntDraw(), TGo4CondArray::SetLabelDraw(), TGo4CondArray::SetLimitsDraw(), TGo4CondArray::SetValues(), TGo4CondArray::SetVisible(), TGo4CondArray::SetXMaxDraw(), TGo4CondArray::SetXMeanDraw(), TGo4CondArray::SetXRMSDraw(), TGo4CondArray::SetYMaxDraw(), TGo4CondArray::SetYMeanDraw(), TGo4CondArray::SetYRMSDraw(), TGo4CondArray::Test(), and TGo4CondArray::TrueCounts().

◆ IsOwnedByEditor()

Bool_t TGo4Condition::IsOwnedByEditor ( ) const
inline

Definition at line 305 of file TGo4Condition.h.

References fbOwnedByEditor.

Referenced by TGo4PolyCondView::DeleteRegion().

◆ IsPainted()

Bool_t TGo4Condition::IsPainted ( ) const
inlineprotected

Definition at line 422 of file TGo4Condition.h.

References fbIsPainted, and MakeScript().

Referenced by TGo4CondArray::Draw(), and Paint().

◆ IsPolygonType()

virtual Bool_t TGo4Condition::IsPolygonType ( ) const
inlinevirtual

Reimplemented in TGo4CondArray, TGo4PolyCond, and TGo4WinCond.

Definition at line 319 of file TGo4Condition.h.

Referenced by TGo4CondArray::IsPolygonType(), and Print().

◆ IsTrue()

Bool_t TGo4Condition::IsTrue ( ) const
inline

Use this as return, if test was true. Takes into account inversion, i.e. when condition is inverted, IsTrue returns false.

Definition at line 122 of file TGo4Condition.h.

References fbTrue.

Referenced by TGo4ConditionInfo::RefreshWidget(), TGo4WinCond::Test(), and TGo4PolyCond::Test().

◆ IsVisible()

virtual Bool_t TGo4Condition::IsVisible ( ) const
inlinevirtual

Visibility property for gui display in editor

Reimplemented in TGo4CondArray.

Definition at line 211 of file TGo4Condition.h.

References fbVisible.

Referenced by Draw(), TGo4CondArray::IsVisible(), TGo4WinCondPainter::PaintCondition(), TGo4PolyCondPainter::PaintCondition(), TGo4ConditionPainter::PaintLabel(), and Print().

◆ IsXMaxDraw()

virtual Bool_t TGo4Condition::IsXMaxDraw ( ) const
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 278 of file TGo4Condition.h.

References fbXMaxDraw.

Referenced by TGo4PolyCondView::IsXMaxDraw(), TGo4CondArray::IsXMaxDraw(), TGo4ViewPanel::PadClickedSlot(), and TGo4ConditionPainter::PaintLabel().

◆ IsXMeanDraw()

virtual Bool_t TGo4Condition::IsXMeanDraw ( ) const
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 266 of file TGo4Condition.h.

References fbXMeanDraw.

Referenced by TGo4PolyCondView::IsXMeanDraw(), TGo4CondArray::IsXMeanDraw(), TGo4ViewPanel::PadClickedSlot(), and TGo4ConditionPainter::PaintLabel().

◆ IsXRMSDraw()

virtual Bool_t TGo4Condition::IsXRMSDraw ( ) const
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 269 of file TGo4Condition.h.

References fbXRMSDraw.

Referenced by TGo4PolyCondView::IsXRMSDraw(), TGo4CondArray::IsXRMSDraw(), TGo4ViewPanel::PadClickedSlot(), and TGo4ConditionPainter::PaintLabel().

◆ IsYMaxDraw()

virtual Bool_t TGo4Condition::IsYMaxDraw ( ) const
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 281 of file TGo4Condition.h.

References fbYMaxDraw.

Referenced by TGo4PolyCondView::IsYMaxDraw(), TGo4CondArray::IsYMaxDraw(), and TGo4ConditionPainter::PaintLabel().

◆ IsYMeanDraw()

virtual Bool_t TGo4Condition::IsYMeanDraw ( ) const
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 272 of file TGo4Condition.h.

References fbYMeanDraw.

Referenced by TGo4PolyCondView::IsYMeanDraw(), TGo4CondArray::IsYMeanDraw(), and TGo4ConditionPainter::PaintLabel().

◆ IsYRMSDraw()

virtual Bool_t TGo4Condition::IsYRMSDraw ( ) const
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 275 of file TGo4Condition.h.

References fbYRMSDraw.

Referenced by TGo4PolyCondView::IsYRMSDraw(), TGo4CondArray::IsYRMSDraw(), and TGo4ConditionPainter::PaintLabel().

◆ MakeScript()

const char * TGo4Condition::MakeScript ( std::ostream &  out,
const char *  varname,
Option_t *  opt = "",
const char *  arrextraargs = nullptr
)
protected

Definition at line 719 of file TGo4Condition.cxx.

References Counts(), GetFlags(), and TrueCounts().

Referenced by IsPainted(), TGo4WinCond::SavePrimitive(), TGo4PolyCond::SavePrimitive(), and TGo4CondArray::SavePrimitive().

◆ MarkReset()

void TGo4Condition::MarkReset ( Bool_t  on)
virtual

defines if condition counters shall be reset in UpdateFrom method

Reimplemented in TGo4CondArray.

Definition at line 515 of file TGo4Condition.cxx.

References fbMarkReset.

Referenced by GetActiveCondition(), and TGo4CondArray::MarkReset().

◆ Paint()

void TGo4Condition::Paint ( Option_t *  opt = "")
override

Display condition with plain root canvas and in go4 viewpanel

Definition at line 581 of file TGo4Condition.cxx.

References CreatePainter(), fbStreamedCondition, fxPainter, IsPainted(), TGo4ConditionPainter::PaintCondition(), TGo4ConditionPainter::PaintLabel(), TGo4ConditionPainter::SetCondition(), and SetPainted().

Referenced by TGo4CondArrayPainter::PaintCondition().

◆ Pop()

void TGo4Condition::Pop ( )
override

Re-implement TObject method to pop all our views to front

Definition at line 628 of file TGo4Condition.cxx.

References TGo4LabelPainter::DisplayToFront(), and fxPainter.

◆ Print()

void TGo4Condition::Print ( Option_t *  opt = "") const
override

Default printout for root object lists

Definition at line 225 of file TGo4Condition.cxx.

References Counts(), fbEnabled, fbResult, fbTrue, GetActiveCondition(), GetCMax(), GetDimension(), GetIntegral(), GetMean(), GetRMS(), GetWorkHistogram(), GetXLow(), GetXMax(), GetXUp(), GetYLow(), GetYMax(), GetYUp(), IsPolygonType(), IsVisible(), TGo4Log::Message(), PrintBar(), and TrueCounts().

Referenced by FixedResult().

◆ PrintBar()

void TGo4Condition::PrintBar ( )
virtual

Prints counters and bar.

Reimplemented in TGo4CondArray.

Definition at line 209 of file TGo4Condition.cxx.

References fiCounts, and fiTrueCounts.

Referenced by FixedResult(), Print(), and TGo4CondArray::PrintBar().

◆ PrintCondition()

void TGo4Condition::PrintCondition ( Bool_t  full = kTRUE)
virtual

Prints counters and boolean members.

Reimplemented in TGo4ShapedCond, TGo4CondArray, TGo4PolyCond, TGo4WinCond, TGo4ListCond, and TGo4CounterCond.

Definition at line 188 of file TGo4Condition.cxx.

References fbEnabled, fbHistogramLink, fbResult, fbTrue, fiCounts, fiTrueCounts, and fxHistoName.

Referenced by FixedResult(), TGo4CounterCond::PrintCondition(), TGo4ListCond::PrintCondition(), TGo4WinCond::PrintCondition(), TGo4PolyCond::PrintCondition(), and TGo4CondArray::PrintCondition().

◆ ResetCounts()

void TGo4Condition::ResetCounts ( )
virtual

Clear counters

Reimplemented in TGo4CondArray.

Definition at line 164 of file TGo4Condition.cxx.

References fiCounts, fiTrueCounts, and GO4TRACE.

Referenced by Clear(), TGo4Analysis::MakeEllipseCond(), TGo4Analysis::MakeListCond(), TGo4Analysis::MakePolyCond(), TGo4Analysis::MakeWinCond(), TGo4CondArray::ResetCounts(), UpdateFrom(), and UpdateFromUrl().

◆ ResetLabel()

void TGo4Condition::ResetLabel ( Option_t *  opt = "reset")

Will reset label position to defaults with other option than reset, just pop label to front

Definition at line 703 of file TGo4Condition.cxx.

References fxPainter, TGo4ConditionPainter::PaintLabel(), and TGo4LabelPainter::UnPaintLabel().

Referenced by TGo4PolyCondView::ExecuteEvent(), TGo4WinCondView::ExecuteEvent(), TGo4WinCondView::ResetLabel(), and TGo4PolyCondView::ResetLabel().

◆ SaveLabelStyle()

void TGo4Condition::SaveLabelStyle ( )

This will save draw flags into static default setup

Definition at line 638 of file TGo4Condition.cxx.

References fbCMaxDraw, fbIntDraw, fbLabelDraw, fbLimitsDraw, fbXMaxDraw, fbXMeanDraw, fbXRMSDraw, fbYMaxDraw, fbYMeanDraw, fbYRMSDraw, fgbCMAXDRAW, fgbINTDRAW, fgbLABELDRAW, fgbLIMITSDRAW, fgbXMAXDRAW, fgbXMEANDRAW, fgbXRMSDRAW, fgbYMAXDRAW, fgbYMEANDRAW, fgbYRMSDRAW, fgxNUMFORMAT, and fxNumFormat.

Referenced by TGo4WinCondView::SaveLabelStyle(), and TGo4PolyCondView::SaveLabelStyle().

◆ SetChanged()

virtual void TGo4Condition::SetChanged ( Bool_t  on = kTRUE)
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 289 of file TGo4Condition.h.

References fiIsChanged.

Referenced by TGo4WinCondView::ExecuteEvent(), TGo4ConditionEditor::linkedObjectUpdated(), TGo4ViewPanel::PadClickedSlot(), TGo4CondArray::SetChanged(), TGo4ViewPanel::SetConditionBtn_clicked(), TGo4PolyCondView::UpdateCondition(), and TGo4BrowserProxy::UpdateObjectContent().

◆ SetCMaxDraw()

virtual void TGo4Condition::SetCMaxDraw ( Bool_t  on)
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 283 of file TGo4Condition.h.

References fbCMaxDraw.

Referenced by TGo4ConditionEditor::ChangeConditionProperty(), TGo4WinCondView::SetCMaxDraw(), TGo4PolyCondView::SetCMaxDraw(), TGo4CondArray::SetCMaxDraw(), and UpdateFromUrl().

◆ SetCounts()

void TGo4Condition::SetCounts ( Int_t  truecounts,
Int_t  counts
)
virtual

Set counters

Definition at line 171 of file TGo4Condition.cxx.

References fiCounts, fiTrueCounts, and GO4TRACE.

◆ SetCurrentIndex()

virtual void TGo4Condition::SetCurrentIndex ( Int_t  )
inlinevirtual

set index for array type subclasses

Reimplemented in TGo4CondArray.

Definition at line 308 of file TGo4Condition.h.

◆ SetDimension()

void TGo4Condition::SetDimension ( Int_t  d)
inline

Definition at line 301 of file TGo4Condition.h.

References fiDim.

Referenced by TGo4WinCond::SetValues(), TGo4ListCond::TGo4ListCond(), TGo4PolyCond::TGo4PolyCond(), and TGo4WinCond::UpdateFrom().

◆ SetFlags()

void TGo4Condition::SetFlags ( Bool_t  enabled,
Bool_t  lastresult,
Bool_t  markreset,
Bool_t  result,
Bool_t  truevalue,
Bool_t  falsevalue
)
virtual

Sets values of external boolean flags to internal variables. Overwritten in TGo4CondArray.

Definition at line 536 of file TGo4Condition.cxx.

References fbEnabled, fbFalse, fbLastResult, fbMarkReset, fbResult, and fbTrue.

Referenced by GetActiveCondition().

◆ SetGlobalStyle()

void TGo4Condition::SetGlobalStyle ( Bool_t  LABELDRAW,
Bool_t  LIMITSDRAW,
Bool_t  INTDRAW,
Bool_t  XMEANDRAW,
Bool_t  YMEANDRAW,
Bool_t  XRMSDRAW,
Bool_t  YRMSDRAW,
Bool_t  XMAXDRAW,
Bool_t  YMAXDRAW,
Bool_t  CMAXDRAW,
const char *  NUMFORMAT
)
static

Definition at line 668 of file TGo4Condition.cxx.

References fgbCMAXDRAW, fgbINTDRAW, fgbLABELDRAW, fgbLIMITSDRAW, fgbXMAXDRAW, fgbXMEANDRAW, fgbXRMSDRAW, fgbYMAXDRAW, fgbYMEANDRAW, fgbYRMSDRAW, and fgxNUMFORMAT.

Referenced by TGo4QSettings::getBasicSettings(), and TGo4MarkerSettings::setFlags().

◆ SetHistogram()

void TGo4Condition::SetHistogram ( const char *  name)

Define the name of the associated histogram.

Definition at line 558 of file TGo4Condition.cxx.

References fbHistogramLink, and fxHistoName.

Referenced by IsHistogramLink(), TGo4Analysis::MakeEllipseCond(), TGo4Analysis::MakeListCond(), TGo4Analysis::MakeWinCond(), TGo4AnalysisObjectManager::MakeWindowCond(), and TXXXUnpackProc::TXXXUnpackProc().

◆ SetHistogramLink()

void TGo4Condition::SetHistogramLink ( Bool_t  on)
inline

Define if this condition has association with an analysis histogram

Definition at line 214 of file TGo4Condition.h.

References fbHistogramLink.

◆ SetIntDraw()

virtual void TGo4Condition::SetIntDraw ( Bool_t  on)
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 262 of file TGo4Condition.h.

References fbIntDraw.

Referenced by TGo4ConditionEditor::ChangeConditionProperty(), TGo4WinCondView::SetIntDraw(), TGo4PolyCondView::SetIntDraw(), TGo4CondArray::SetIntDraw(), and UpdateFromUrl().

◆ SetLabelDraw()

virtual void TGo4Condition::SetLabelDraw ( Bool_t  on)
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 256 of file TGo4Condition.h.

References fbLabelDraw.

Referenced by TGo4ConditionEditor::ChangeConditionProperty(), TGo4WinCondView::SetLabelDraw(), TGo4PolyCondView::SetLabelDraw(), TGo4CondArray::SetLabelDraw(), and UpdateFromUrl().

◆ SetLabelNumFormat()

virtual void TGo4Condition::SetLabelNumFormat ( const char *  fmt)
inlinevirtual

Definition at line 286 of file TGo4Condition.h.

References fxNumFormat.

Referenced by TGo4WinCondView::SetNumFormat().

◆ SetLast()

void TGo4Condition::SetLast ( Bool_t  value)
inline

Can be used in Test to store the result. Is retrieved by GetLast() without further test.

Definition at line 146 of file TGo4Condition.h.

References fbLastResult.

◆ SetLimitsDraw()

virtual void TGo4Condition::SetLimitsDraw ( Bool_t  on)
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 259 of file TGo4Condition.h.

References fbLimitsDraw.

Referenced by TGo4ConditionEditor::ChangeConditionProperty(), TGo4WinCondView::SetLimitsDraw(), TGo4PolyCondView::SetLimitsDraw(), TGo4CondArray::SetLimitsDraw(), and UpdateFromUrl().

◆ SetMultiEdit()

void TGo4Condition::SetMultiEdit ( Bool_t  on)
inline

Definition at line 298 of file TGo4Condition.h.

References fbMultiEdit.

Referenced by TGo4ConditionEditor::SelectedCondition().

◆ SetOwnedByEditor()

void TGo4Condition::SetOwnedByEditor ( Bool_t  on)
inline

Definition at line 304 of file TGo4Condition.h.

References fbOwnedByEditor.

Referenced by TGo4CondArrayPainter::PaintCondition().

◆ SetPainted()

void TGo4Condition::SetPainted ( Bool_t  on)
inlineprotected

Definition at line 421 of file TGo4Condition.h.

References fbIsPainted.

Referenced by TGo4CondArray::Draw(), Draw(), Paint(), and UnDraw().

◆ SetPainter()

void TGo4Condition::SetPainter ( TGo4ConditionPainter *  painter)
virtual

Replace default painter of this condition by external one. if different views of this condition shall exist for different TPads, the painter (i.e. view) can be exchanged before pad is updated.

Reimplemented in TGo4CondArray, TGo4PolyCond, and TGo4WinCond.

Definition at line 574 of file TGo4Condition.cxx.

Referenced by GetWorkHistogram().

◆ SetUpdateEpsilon()

void TGo4Condition::SetUpdateEpsilon ( Double_t  val)
inline

Configure graphical update tolerance for this condition individually. by default, update tolerance is set to static value fgdUPDATEEPSILON

Definition at line 239 of file TGo4Condition.h.

References fdUpdateEpsilon.

◆ SetValues() [1/5]

virtual void TGo4Condition::SetValues ( )
inlinevirtual

Set values needed, i.e. limits for windows or cuts for polygons

Reimplemented in TGo4CounterCond.

Definition at line 93 of file TGo4Condition.h.

Referenced by TGo4ShapedCond::ResetPolygon(), TGo4CondArray::SetValues(), TGo4ListCond::TGo4ListCond(), TGo4WinCond::UpdateFromUrl(), TGo4PolyCond::UpdateFromUrl(), and TGo4ConditionEditor::UpdateLimits().

◆ SetValues() [2/5]

virtual void TGo4Condition::SetValues ( Double_t  low1,
Double_t  up1
)
inlinevirtual

Reimplemented in TGo4CondArray, and TGo4WinCond.

Definition at line 94 of file TGo4Condition.h.

◆ SetValues() [3/5]

virtual void TGo4Condition::SetValues ( Double_t  low1,
Double_t  up1,
Double_t  low2,
Double_t  up2
)
inlinevirtual

Reimplemented in TGo4CondArray, and TGo4WinCond.

Definition at line 95 of file TGo4Condition.h.

◆ SetValues() [4/5]

virtual void TGo4Condition::SetValues ( TCutG *  newcut)
inlinevirtual

Reimplemented in TGo4CondArray, and TGo4PolyCond.

Definition at line 96 of file TGo4Condition.h.

◆ SetValues() [5/5]

virtual void TGo4Condition::SetValues ( Double_t *  x,
Double_t *  y,
Int_t  len
)
inlinevirtual

Reimplemented in TGo4PolyCond.

Definition at line 97 of file TGo4Condition.h.

References AddCondition(), IncCounts(), and IncTrueCounts().

◆ SetVisible()

virtual void TGo4Condition::SetVisible ( Bool_t  on)
inlinevirtual

Set/Unset visibility. Overloaded for subclasses!

Reimplemented in TGo4CondArray.

Definition at line 208 of file TGo4Condition.h.

References fbVisible.

Referenced by TGo4ConditionEditor::ChangeConditionProperty(), TGo4CondArray::SetVisible(), and UpdateFromUrl().

◆ SetWorkHistogram()

virtual void TGo4Condition::SetWorkHistogram ( TH1 *  histo)
inlinevirtual

Set reference to work histogram for statistics functions. Note that this method does not change the histogram link definitions!

Reimplemented in TGo4PolyCond.

Definition at line 227 of file TGo4Condition.h.

References fxHisto.

Referenced by TGo4ViewPanel::CheckObjectsAssigments(), TGo4RootBrowserProxy::DrawCondition(), TGo4RootBrowserProxy::DrawPicture(), TGo4ViewPanel::PadClickedSlot(), TGo4CondArrayPainter::PaintCondition(), TGo4ViewPanel::ProcessCanvasAdopt(), and TGo4PolyCond::SetWorkHistogram().

◆ SetXMaxDraw()

virtual void TGo4Condition::SetXMaxDraw ( Bool_t  on)
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 277 of file TGo4Condition.h.

References fbXMaxDraw.

Referenced by TGo4ConditionEditor::ChangeConditionProperty(), TGo4WinCondView::SetXMaxDraw(), TGo4PolyCondView::SetXMaxDraw(), TGo4CondArray::SetXMaxDraw(), and UpdateFromUrl().

◆ SetXMeanDraw()

virtual void TGo4Condition::SetXMeanDraw ( Bool_t  on)
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 265 of file TGo4Condition.h.

References fbXMeanDraw.

Referenced by TGo4ConditionEditor::ChangeConditionProperty(), TGo4WinCondView::SetXMeanDraw(), TGo4PolyCondView::SetXMeanDraw(), TGo4CondArray::SetXMeanDraw(), and UpdateFromUrl().

◆ SetXRMSDraw()

virtual void TGo4Condition::SetXRMSDraw ( Bool_t  on)
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 268 of file TGo4Condition.h.

References fbXRMSDraw.

Referenced by TGo4ConditionEditor::ChangeConditionProperty(), TGo4WinCondView::SetXRMSDraw(), TGo4PolyCondView::SetXRMSDraw(), TGo4CondArray::SetXRMSDraw(), and UpdateFromUrl().

◆ SetYMaxDraw()

virtual void TGo4Condition::SetYMaxDraw ( Bool_t  on)
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 280 of file TGo4Condition.h.

References fbYMaxDraw.

Referenced by TGo4ConditionEditor::ChangeConditionProperty(), TGo4ViewPanel::PadClickedSlot(), TGo4WinCondView::SetYMaxDraw(), TGo4PolyCondView::SetYMaxDraw(), TGo4CondArray::SetYMaxDraw(), and UpdateFromUrl().

◆ SetYMeanDraw()

virtual void TGo4Condition::SetYMeanDraw ( Bool_t  on)
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 271 of file TGo4Condition.h.

References fbYMeanDraw.

Referenced by TGo4ConditionEditor::ChangeConditionProperty(), TGo4ViewPanel::PadClickedSlot(), TGo4WinCondView::SetYMeanDraw(), TGo4PolyCondView::SetYMeanDraw(), TGo4CondArray::SetYMeanDraw(), and UpdateFromUrl().

◆ SetYRMSDraw()

virtual void TGo4Condition::SetYRMSDraw ( Bool_t  on)
inlinevirtual

Reimplemented in TGo4CondArray.

Definition at line 274 of file TGo4Condition.h.

References fbYRMSDraw.

Referenced by TGo4ConditionEditor::ChangeConditionProperty(), TGo4ViewPanel::PadClickedSlot(), TGo4WinCondView::SetYRMSDraw(), TGo4PolyCondView::SetYRMSDraw(), TGo4CondArray::SetYRMSDraw(), and UpdateFromUrl().

◆ Test() [1/3]

Bool_t TGo4Condition::Test ( )
virtual

Test if condition is true. Result is returned, the internal counters are set appropriately. Should return fbResult if condition is not enabled. the default is increment test counter and return true.

Definition at line 128 of file TGo4Condition.cxx.

References fiCounts.

Referenced by IsEnabled(), TGo4CounterCond::SetValues(), TGo4CondArray::Test(), and TGo4HistogramEntry::TestConditionNew().

◆ Test() [2/3]

virtual Bool_t TGo4Condition::Test ( Double_t  x,
Double_t  y
)
inlinevirtual

Reimplemented in TGo4CondArray, TGo4PolyCond, and TGo4WinCond.

Definition at line 88 of file TGo4Condition.h.

◆ Test() [3/3]

virtual Bool_t TGo4Condition::Test ( Double_t  x)
inlinevirtual

Reimplemented in TGo4CondArray, TGo4WinCond, and TGo4ListCond.

Definition at line 89 of file TGo4Condition.h.

◆ TrueCounts()

Int_t TGo4Condition::TrueCounts ( )
virtual

Return number of true results of the Test method call.

Reimplemented in TGo4CondArray.

Definition at line 158 of file TGo4Condition.cxx.

References fiTrueCounts, and GO4TRACE.

Referenced by MakeScript(), Print(), and TGo4ConditionInfo::RefreshWidget().

◆ UnDraw()

void TGo4Condition::UnDraw ( Option_t *  opt = "")
virtual

Erase view of this condition from the pad

Definition at line 615 of file TGo4Condition.cxx.

References CreatePainter(), fxPainter, SetPainted(), TGo4ConditionPainter::UnPaintCondition(), and TGo4LabelPainter::UnPaintLabel().

Referenced by Draw(), and TGo4CondArrayPainter::UnPaintCondition().

◆ UpdateFrom()

Bool_t TGo4Condition::UpdateFrom ( TGo4Condition *  cond,
Bool_t  counts
)
virtual

Copy values from cond to this. When counts is true, copy also counters.

Reimplemented in TGo4CondArray, TGo4ShapedCond, TGo4PolyCond, TGo4WinCond, TGo4ListCond, and TGo4CounterCond.

Definition at line 293 of file TGo4Condition.cxx.

References fbCMaxDraw, fbEnabled, fbFalse, fbHistogramLink, fbIntDraw, fbLabelDraw, fbLimitsDraw, fbMarkReset, fbMultiEdit, fbResult, fbTrue, fbVisible, fbXMaxDraw, fbXMeanDraw, fbXRMSDraw, fbYMaxDraw, fbYMeanDraw, fbYRMSDraw, fdUpdateEpsilon, fiCounts, fiDim, fiTrueCounts, fxHistoName, GetDimension(), and ResetCounts().

Referenced by GetLast(), TGo4AnalysisObjectManager::SetAnalysisCondition(), TGo4CounterCond::UpdateFrom(), TGo4ListCond::UpdateFrom(), TGo4WinCond::UpdateFrom(), TGo4PolyCond::UpdateFrom(), TGo4CondArray::UpdateFrom(), and TGo4BrowserProxy::UpdateObjectContent().

◆ UpdateFromUrl()

Bool_t TGo4Condition::UpdateFromUrl ( const char *  rest_url_opt)
virtual

Method used by HTTP server to update some fields, specified in URL syntax

Reimplemented in TGo4ShapedCond, TGo4PolyCond, and TGo4WinCond.

Definition at line 396 of file TGo4Condition.cxx.

References BuildUrlOptionArray(), Disable(), Enable(), fgxURL_CMAX, fgxURL_INTEGRAL, fgxURL_INVERT, fgxURL_LABEL, fgxURL_LIMITS, fgxURL_RESET, fgxURL_RESULT, fgxURL_VISIBLE, fgxURL_XMAX, fgxURL_XMEAN, fgxURL_XRMS, fgxURL_YMAX, fgxURL_YMEAN, fgxURL_YRMS, GetUrlOptionAsInt(), Invert(), TGo4Log::Message(), ResetCounts(), SetCMaxDraw(), SetIntDraw(), SetLabelDraw(), SetLimitsDraw(), SetVisible(), SetXMaxDraw(), SetXMeanDraw(), SetXRMSDraw(), SetYMaxDraw(), SetYMeanDraw(), and SetYRMSDraw().

Referenced by GetLast(), TGo4WinCond::UpdateFromUrl(), TGo4PolyCond::UpdateFromUrl(), and TGo4ShapedCond::UpdateFromUrl().

◆ UrlOptionHasKey()

Bool_t TGo4Condition::UrlOptionHasKey ( const char *  key)
protected

returns true if key is present in list of url options. Otherwise false

Definition at line 340 of file TGo4Condition.cxx.

References fxUrlOptionArray.

Referenced by TGo4WinCond::UpdateFromUrl(), and TGo4PolyCond::UpdateFromUrl().

Friends And Related Function Documentation

◆ TGo4CondArray

friend class TGo4CondArray
friend

Definition at line 38 of file TGo4Condition.h.

Member Data Documentation

◆ fbCMaxDraw

Bool_t TGo4Condition::fbCMaxDraw {kFALSE}
private

If true, draw corresponding value as label on working pad

Definition at line 502 of file TGo4Condition.h.

Referenced by InitLabelStyle(), IsCMaxDraw(), SaveLabelStyle(), SetCMaxDraw(), and UpdateFrom().

◆ fbEnabled

Bool_t TGo4Condition::fbEnabled {kFALSE}
private

Flag to enable/disable this condition. Disabled condition will always return fbResult. Counters are incremented even if disabled. After instantiation, fbEnabled will be false and fbResult true.

Definition at line 453 of file TGo4Condition.h.

Referenced by Disable(), Enable(), GetFlags(), IsEnabled(), Print(), PrintCondition(), SetFlags(), TGo4Condition(), and UpdateFrom().

◆ fbFalse

Bool_t TGo4Condition::fbFalse {kFALSE}
private

These are inverted by Invert(true), and restored by Invert(false).

Definition at line 441 of file TGo4Condition.h.

Referenced by GetFlags(), Invert(), IsFalse(), SetFlags(), TGo4Condition(), and UpdateFrom().

◆ fbHistogramLink

Bool_t TGo4Condition::fbHistogramLink {kFALSE}
private

is true if this condition has link to a histogram name

Definition at line 466 of file TGo4Condition.h.

Referenced by IsHistogramLink(), PrintCondition(), SetHistogram(), SetHistogramLink(), TGo4Condition(), and UpdateFrom().

◆ fbIntDraw

Bool_t TGo4Condition::fbIntDraw {kFALSE}
private

If true, draw corresponding value as label on working pad

Definition at line 481 of file TGo4Condition.h.

Referenced by InitLabelStyle(), IsIntDraw(), SaveLabelStyle(), SetIntDraw(), and UpdateFrom().

◆ fbIsPainted

Bool_t TGo4Condition::fbIsPainted {kFALSE}
private

Flag to prevent Paint() method to redraw condition views after UnDraw. Problem with Paint() called from ROOT event loop.

Definition at line 516 of file TGo4Condition.h.

Referenced by IsPainted(), SetPainted(), and TGo4Condition().

◆ fbLabelDraw

Bool_t TGo4Condition::fbLabelDraw {kFALSE}
private

If true, draw corresponding value as label on working pad

Definition at line 475 of file TGo4Condition.h.

Referenced by InitLabelStyle(), IsLabelDraw(), SaveLabelStyle(), SetLabelDraw(), and UpdateFrom().

◆ fbLastResult

Bool_t TGo4Condition::fbLastResult {kFALSE}
private

This can be used to store the last result by SetLast(bool). It can then be retrieved by GetLast() without new testing.

Definition at line 435 of file TGo4Condition.h.

Referenced by GetFlags(), GetLast(), SetFlags(), and SetLast().

◆ fbLimitsDraw

Bool_t TGo4Condition::fbLimitsDraw {kFALSE}
private

If true, draw corresponding value as label on working pad

Definition at line 478 of file TGo4Condition.h.

Referenced by InitLabelStyle(), IsLimitsDraw(), SaveLabelStyle(), SetLimitsDraw(), and UpdateFrom().

◆ fbMarkReset

Bool_t TGo4Condition::fbMarkReset {kFALSE}
private

Definition at line 431 of file TGo4Condition.h.

Referenced by GetFlags(), MarkReset(), SetFlags(), TGo4Condition(), and UpdateFrom().

◆ fbMultiEdit

Bool_t TGo4Condition::fbMultiEdit {kFALSE}
private

Flag to indicate that properties of all conditions in array are edited/used. for use in TGo4CondArray or other multi-condition implementations

Definition at line 460 of file TGo4Condition.h.

Referenced by IsMultiEdit(), SetMultiEdit(), TGo4Condition(), and UpdateFrom().

◆ fbOwnedByEditor

Bool_t TGo4Condition::fbOwnedByEditor {kFALSE}
private

Flag to suppress interactive deletion of condition.

Definition at line 519 of file TGo4Condition.h.

Referenced by IsOwnedByEditor(), SetOwnedByEditor(), and TGo4Condition().

◆ fbResult

Bool_t TGo4Condition::fbResult {kFALSE}
private

If fbEnabled is false, return this as result.

Definition at line 456 of file TGo4Condition.h.

Referenced by Disable(), FixedResult(), GetFlags(), Print(), PrintCondition(), SetFlags(), TGo4Condition(), and UpdateFrom().

◆ fbStreamedCondition

Bool_t TGo4Condition::fbStreamedCondition {kFALSE}
private

This allows to treat conditions streamed into pad

Definition at line 522 of file TGo4Condition.h.

Referenced by Paint(), and TGo4Condition().

◆ fbTrue

Bool_t TGo4Condition::fbTrue {kTRUE}
private

These are inverted by Invert(true), and restored by Invert(false)

Definition at line 438 of file TGo4Condition.h.

Referenced by GetFlags(), Invert(), IsTrue(), Print(), PrintCondition(), SetFlags(), TGo4Condition(), and UpdateFrom().

◆ fbVisible

Bool_t TGo4Condition::fbVisible {kFALSE}
private

Property to store visibility of condition on display

Definition at line 463 of file TGo4Condition.h.

Referenced by IsVisible(), SetVisible(), TGo4Condition(), and UpdateFrom().

◆ fbXMaxDraw

Bool_t TGo4Condition::fbXMaxDraw {kFALSE}
private

If true, draw corresponding value as label on working pad

Definition at line 496 of file TGo4Condition.h.

Referenced by InitLabelStyle(), IsXMaxDraw(), SaveLabelStyle(), SetXMaxDraw(), and UpdateFrom().

◆ fbXMeanDraw

Bool_t TGo4Condition::fbXMeanDraw {kFALSE}
private

If true, draw corresponding value as label on working pad

Definition at line 484 of file TGo4Condition.h.

Referenced by InitLabelStyle(), IsXMeanDraw(), SaveLabelStyle(), SetXMeanDraw(), and UpdateFrom().

◆ fbXRMSDraw

Bool_t TGo4Condition::fbXRMSDraw {kFALSE}
private

If true, draw corresponding value as label on working pad

Definition at line 487 of file TGo4Condition.h.

Referenced by InitLabelStyle(), IsXRMSDraw(), SaveLabelStyle(), SetXRMSDraw(), and UpdateFrom().

◆ fbYMaxDraw

Bool_t TGo4Condition::fbYMaxDraw {kFALSE}
private

If true, draw corresponding value as label on working pad

Definition at line 499 of file TGo4Condition.h.

Referenced by InitLabelStyle(), IsYMaxDraw(), SaveLabelStyle(), SetYMaxDraw(), and UpdateFrom().

◆ fbYMeanDraw

Bool_t TGo4Condition::fbYMeanDraw {kFALSE}
private

If true, draw corresponding value as label on working pad

Definition at line 490 of file TGo4Condition.h.

Referenced by InitLabelStyle(), IsYMeanDraw(), SaveLabelStyle(), SetYMeanDraw(), and UpdateFrom().

◆ fbYRMSDraw

Bool_t TGo4Condition::fbYRMSDraw {kFALSE}
private

If true, draw corresponding value as label on working pad

Definition at line 493 of file TGo4Condition.h.

Referenced by InitLabelStyle(), IsYRMSDraw(), SaveLabelStyle(), SetYRMSDraw(), and UpdateFrom().

◆ fdUpdateEpsilon

Double_t TGo4Condition::fdUpdateEpsilon {0}
private

Precision for the check if graphical representation change requires update

Definition at line 472 of file TGo4Condition.h.

Referenced by GetUpdateEpsilon(), SetUpdateEpsilon(), TGo4Condition(), and UpdateFrom().

◆ fgbCMAXDRAW

Bool_t TGo4Condition::fgbCMAXDRAW =kTRUE
static

default setting for all conditions for label draw cmax flag.

Definition at line 352 of file TGo4Condition.h.

Referenced by GetGlobalStyle(), InitLabelStyle(), SaveLabelStyle(), and SetGlobalStyle().

◆ fgbINTDRAW

Bool_t TGo4Condition::fgbINTDRAW =kTRUE
static

default setting for all conditions for label draw integral flag.

Definition at line 331 of file TGo4Condition.h.

Referenced by GetGlobalStyle(), InitLabelStyle(), SaveLabelStyle(), and SetGlobalStyle().

◆ fgbLABELDRAW

Bool_t TGo4Condition::fgbLABELDRAW =kTRUE
static

default setting for all conditions for label draw on/off flag.

Definition at line 325 of file TGo4Condition.h.

Referenced by GetGlobalStyle(), InitLabelStyle(), SaveLabelStyle(), and SetGlobalStyle().

◆ fgbLIMITSDRAW

Bool_t TGo4Condition::fgbLIMITSDRAW =kTRUE
static

default setting for all conditions for label draw limits flag.

Definition at line 328 of file TGo4Condition.h.

Referenced by GetGlobalStyle(), InitLabelStyle(), SaveLabelStyle(), and SetGlobalStyle().

◆ fgbXMAXDRAW

Bool_t TGo4Condition::fgbXMAXDRAW =kTRUE
static

default setting for all conditions for label draw xmax flag.

Definition at line 346 of file TGo4Condition.h.

Referenced by GetGlobalStyle(), InitLabelStyle(), SaveLabelStyle(), and SetGlobalStyle().

◆ fgbXMEANDRAW

Bool_t TGo4Condition::fgbXMEANDRAW =kTRUE
static

default setting for all conditions for label draw xmean flag.

Definition at line 334 of file TGo4Condition.h.

Referenced by GetGlobalStyle(), InitLabelStyle(), SaveLabelStyle(), and SetGlobalStyle().

◆ fgbXRMSDRAW

Bool_t TGo4Condition::fgbXRMSDRAW =kTRUE
static

default setting for all conditions for label draw xrms flag.

Definition at line 337 of file TGo4Condition.h.

Referenced by GetGlobalStyle(), InitLabelStyle(), SaveLabelStyle(), and SetGlobalStyle().

◆ fgbYMAXDRAW

Bool_t TGo4Condition::fgbYMAXDRAW =kFALSE
static

default setting for all conditions for label draw ymax flag.

Definition at line 349 of file TGo4Condition.h.

Referenced by GetGlobalStyle(), InitLabelStyle(), SaveLabelStyle(), and SetGlobalStyle().

◆ fgbYMEANDRAW

Bool_t TGo4Condition::fgbYMEANDRAW =kFALSE
static

default setting for all conditions for label draw ymean flag.

Definition at line 340 of file TGo4Condition.h.

Referenced by GetGlobalStyle(), InitLabelStyle(), SaveLabelStyle(), and SetGlobalStyle().

◆ fgbYRMSDRAW

Bool_t TGo4Condition::fgbYRMSDRAW =kFALSE
static

default setting for all conditions for label draw yrms flag.

Definition at line 343 of file TGo4Condition.h.

Referenced by GetGlobalStyle(), InitLabelStyle(), SaveLabelStyle(), and SetGlobalStyle().

◆ fgdUPDATEEPSILON

const Double_t TGo4Condition::fgdUPDATEEPSILON = 0.01
static

default value for graphical update tolerance.

Definition at line 244 of file TGo4Condition.h.

Referenced by TGo4Condition().

◆ fgxNUMFORMAT

TString TGo4Condition::fgxNUMFORMAT ="%.4E"
static

default setting for all conditions with format string for numbers.

Definition at line 355 of file TGo4Condition.h.

Referenced by GetGlobalStyle(), InitLabelStyle(), SaveLabelStyle(), and SetGlobalStyle().

◆ fgxURL_CMAX

TString TGo4Condition::fgxURL_CMAX ="cmaxdraw"
static

web condition editor keyword used in UpdateFromUrl.

Definition at line 383 of file TGo4Condition.h.

Referenced by UpdateFromUrl().

◆ fgxURL_INTEGRAL

TString TGo4Condition::fgxURL_INTEGRAL ="intdraw"
static

web condition editor keyword used in UpdateFromUrl.

Definition at line 369 of file TGo4Condition.h.

Referenced by UpdateFromUrl().

◆ fgxURL_INVERT

TString TGo4Condition::fgxURL_INVERT ="invertmode"
static

web condition editor keyword used in UpdateFromUrl.

Definition at line 361 of file TGo4Condition.h.

Referenced by UpdateFromUrl().

◆ fgxURL_LABEL

TString TGo4Condition::fgxURL_LABEL ="labeldraw"
static

web condition editor keyword used in UpdateFromUrl.

Definition at line 365 of file TGo4Condition.h.

Referenced by UpdateFromUrl().

◆ fgxURL_LIMITS

TString TGo4Condition::fgxURL_LIMITS ="limitsdraw"
static

web condition editor keyword used in UpdateFromUrl.

Definition at line 367 of file TGo4Condition.h.

Referenced by UpdateFromUrl().

◆ fgxURL_RESET

TString TGo4Condition::fgxURL_RESET ="resetcounters"
static

web condition editor keyword used in UpdateFromUrl.

Following keywords should be used by condition editor in web browser:

Definition at line 357 of file TGo4Condition.h.

Referenced by UpdateFromUrl().

◆ fgxURL_RESULT

TString TGo4Condition::fgxURL_RESULT ="resultmode"
static

web condition editor keyword used in UpdateFromUrl.

Definition at line 359 of file TGo4Condition.h.

Referenced by UpdateFromUrl().

◆ fgxURL_VISIBLE

TString TGo4Condition::fgxURL_VISIBLE ="visible"
static

web condition editor keyword used in UpdateFromUrl.

Definition at line 363 of file TGo4Condition.h.

Referenced by UpdateFromUrl().

◆ fgxURL_XMAX

TString TGo4Condition::fgxURL_XMAX ="xmaxdraw"
static

web condition editor keyword used in UpdateFromUrl.

Definition at line 379 of file TGo4Condition.h.

Referenced by UpdateFromUrl().

◆ fgxURL_XMEAN

TString TGo4Condition::fgxURL_XMEAN ="xmeandraw"
static

web condition editor keyword used in UpdateFromUrl.

Definition at line 371 of file TGo4Condition.h.

Referenced by UpdateFromUrl().

◆ fgxURL_XRMS

TString TGo4Condition::fgxURL_XRMS ="xrmsdraw"
static

web condition editor keyword used in UpdateFromUrl.

Definition at line 373 of file TGo4Condition.h.

Referenced by UpdateFromUrl().

◆ fgxURL_YMAX

TString TGo4Condition::fgxURL_YMAX ="ymaxdraw"
static

web condition editor keyword used in UpdateFromUrl.

Definition at line 381 of file TGo4Condition.h.

Referenced by UpdateFromUrl().

◆ fgxURL_YMEAN

TString TGo4Condition::fgxURL_YMEAN ="ymeandraw"
static

web condition editor keyword used in UpdateFromUrl.

Definition at line 375 of file TGo4Condition.h.

Referenced by UpdateFromUrl().

◆ fgxURL_YRMS

TString TGo4Condition::fgxURL_YRMS ="yrmsdraw"
static

web condition editor keyword used in UpdateFromUrl.

Definition at line 377 of file TGo4Condition.h.

Referenced by UpdateFromUrl().

◆ fiCounts

Int_t TGo4Condition::fiCounts {0}
private

Counts the number of calls of the Test method.

Definition at line 447 of file TGo4Condition.h.

Referenced by Counts(), IncCounts(), PrintBar(), PrintCondition(), ResetCounts(), SetCounts(), Test(), TGo4Condition(), and UpdateFrom().

◆ fiDim

Int_t TGo4Condition::fiDim {0}
private

Dimension (1 or 2).

Definition at line 429 of file TGo4Condition.h.

Referenced by GetDimension(), SetDimension(), TGo4Condition(), and UpdateFrom().

◆ fiIsChanged

Int_t TGo4Condition::fiIsChanged {0}
private

Counter indicate how many times condition was changed from graphical view

Definition at line 512 of file TGo4Condition.h.

Referenced by IsChanged(), and SetChanged().

◆ fiTrueCounts

Int_t TGo4Condition::fiTrueCounts {0}
private

Counts the number of calls of the Test method with true result.

Definition at line 444 of file TGo4Condition.h.

Referenced by IncTrueCounts(), PrintBar(), PrintCondition(), ResetCounts(), SetCounts(), TGo4Condition(), TrueCounts(), and UpdateFrom().

◆ fxHisto

TH1* TGo4Condition::fxHisto {nullptr}
private

Reference to currently used histogram (for statistics boxes). This is not necessarily the same histogram as specified in the linked histogram!

Definition at line 509 of file TGo4Condition.h.

Referenced by GetWorkHistogram(), and SetWorkHistogram().

◆ fxHistoName

TString TGo4Condition::fxHistoName
private

contains associated histogram name

Definition at line 469 of file TGo4Condition.h.

Referenced by GetLinkedHistogram(), PrintCondition(), SetHistogram(), and UpdateFrom().

◆ fxNumFormat

TString TGo4Condition::fxNumFormat
private

format string for all label numbers.

Definition at line 505 of file TGo4Condition.h.

Referenced by GetLabelNumFormat(), InitLabelStyle(), SaveLabelStyle(), and SetLabelNumFormat().

◆ fxPainter

TGo4ConditionPainter* TGo4Condition::fxPainter {nullptr}
protected

Painter instance to display the condition in root pad. To be used in Paint() which is called on TPad::Update automatically for all TObjects appended to the pad.

Definition at line 398 of file TGo4Condition.h.

Referenced by DeletePainter(), Paint(), Pop(), ResetLabel(), TGo4WinCond::SetPainter(), TGo4PolyCond::SetPainter(), TGo4CondArray::SetPainter(), UnDraw(), TGo4CondArray::~TGo4CondArray(), and ~TGo4Condition().

◆ fxUrlOptionArray

TObjArray* TGo4Condition::fxUrlOptionArray {nullptr}
protected

array with TObjStrings evaluated by UpdateFromUrl

Definition at line 401 of file TGo4Condition.h.

Referenced by BuildUrlOptionArray(), GetUrlOptionAsString(), UrlOptionHasKey(), and ~TGo4Condition().

The documentation for this class was generated from the following files:
Generated on Wed Jan 10 2024 15:04:55 for GSI Object Oriented Online Offline (Go4) by   doxygen 1.8.13
