#include <TGo4FitDataHistogram.h>

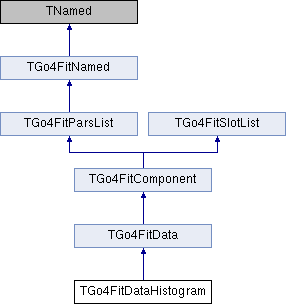

Inheritance diagram for TGo4FitDataHistogram:

Public Member Functions
	TGo4FitDataHistogram ()

	TGo4FitDataHistogram (const char iName, TH1 iHistogram=nullptr, Bool_t iHistogramOwned=kFALSE, Bool_t AddAmpl=kFALSE)

virtual	~TGo4FitDataHistogram ()

TH1 *	GetHistogram ()

void	SetHistogram (TH1 *iHistogram, Bool_t iHistogramOwned=kFALSE)

std::unique_ptr< TGo4FitDataIter >	MakeIter () override

void	FillSlotList (TSeqCollection *list) override

void	Print (Option_t *option="") const override

Public Member Functions inherited from TGo4FitData
	TGo4FitData ()

	TGo4FitData (const char iName, const char iTitle, Int_t iDataType=dtHistogram, Bool_t AddAmpl=kFALSE)

virtual	~TGo4FitData ()

Int_t	GetDataType () const

Bool_t	GetUseBinScale () const

void	SetUseBinScale (Bool_t iUseBinScale)

Bool_t	CanAmplTouch () override

Int_t	GetSigmaSource () const

Double_t	GetSigmaValue () const

void	SetSigmaSource (Int_t TakeFrom, Double_t SigmaValue=1.)

void	SetSigmaValue (Double_t SigmaValue)

void	SetExcludeLessThen (Double_t limit=0.)

Double_t	GetExcludeLessThen () const

Bool_t	SetNumberOfTransSlots (Int_t nslots)

Int_t	GetNumberOfTransSlots () const

TGo4FitSlot *	GetAxisTransSlot (Int_t nslot) const

TGo4FitAxisTrans *	GetAxisTrans (Int_t nslot) const

void	SetAxisTrans (Int_t nslot, TGo4FitAxisTrans *Trans, Bool_t TransOwned=kFALSE)

void	AddAxisTrans (TGo4FitAxisTrans *Trans, Bool_t TransOwned=kFALSE)

void	SetAxisTransNeeded (Int_t nslot, Bool_t iNeeded=kFALSE)

virtual Bool_t	IsAnyDataTransform () const

TObject *	CreateDrawObject (const char *ObjName)

Bool_t	DefineScaleMinMax (Int_t naxis, Double_t &min, Double_t &max)

Int_t	DefineDimensions ()

Int_t	DefineBinsSize ()

Bool_t	IsCompatibleData (TGo4FitData *data)

void	ApplyRangesForModelMask (TGo4FitComponent model, Char_t ModelMask)

void	Print (Option_t *option="") const override

Public Member Functions inherited from TGo4FitComponent
	TGo4FitComponent ()

	TGo4FitComponent (const char iName, const char iTitle)

virtual	~TGo4FitComponent ()

TGo4FitParameter *	GetAmplPar ()

const char *	GetAmplName ()

const char *	GetAmplFullName ()

Double_t	GetAmplValue ()

void	SetAmplValue (Double_t iAmpl)

Double_t	GetAmplError ()

void	SetAmplError (Double_t iError)

Bool_t	MakeAmpl (Bool_t isFixed=kFALSE)

Bool_t	RemoveAmpl ()

void	SetRange (Int_t naxis, Double_t min, Double_t max)

void	ExcludeRange (Int_t naxis, Double_t min, Double_t max)

void	SetRangeMin (Int_t naxis, Double_t value)

void	SetRangeMax (Int_t naxis, Double_t value)

void	AddRangeCut (TCutG *cut, Bool_t exclude=kFALSE)

void	ClearRanges (Int_t naxis=-1)

Bool_t	IsAnyRangeLimits () const

Bool_t	GetRangeMin (Int_t naxis, Double_t &value) const

Bool_t	GetRangeMax (Int_t naxis, Double_t &value) const

Int_t	GetNumRangeCondition () const

void	GetRangeCondition (Int_t n, Int_t &typ, Int_t &naxis, Double_t &left, Double_t &right) const

void	SetRangeCondition (Int_t n, Int_t typ, Int_t naxis, Double_t left, Double_t right)

void	AddRangeCondition (Int_t typ, Int_t naxis, Double_t left, Double_t right)

void	RemoveRangeCondition (Int_t n)

Int_t	GetNumRangeCut () const

TCutG *	GetRangeCut (Int_t n) const

Bool_t	IsRangeCutExcluding (Int_t n) const

void	SetRangeCutExcluding (Int_t n, Bool_t exclude=kTRUE)

void	RemoveRangeCut (Int_t n)

Bool_t	CheckRangeConditions (const Double_t *values, Int_t numaxis)

void	CollectParsTo (TGo4FitParsList &list) override

void	SetUseBuffers (Bool_t iUse)

Bool_t	GetUseBuffers () const

void	Print (Option_t *option="") const override

Public Member Functions inherited from TGo4FitParsList
	TGo4FitParsList ()

	TGo4FitParsList (Bool_t IsParsOwned)

	TGo4FitParsList (const char Name, const char Title, Bool_t IsParsOwned)

virtual	~TGo4FitParsList ()

virtual Int_t	NumPars ()

TGo4FitParameter *	GetPar (Int_t n)

Int_t	GetParIndex (const TGo4FitParameter *par)

TGo4FitParameter *	FindPar (const char *ParName)

TGo4FitParameter *	FindPar (const char OwnerFullName, const char ParName)

TGo4FitParameter *	FindPar (TGo4FitParameter *par)

Double_t	GetParValue (const char *ParName)

Bool_t	SetParValue (const char *ParName, Double_t iValue)

void	GetParsValues (Double_t *pars)

void	SetParsValues (Double_t *pars)

Double_t	GetParError (const char *ParName)

Bool_t	SetParError (const char *ParName, Double_t iError)

virtual Bool_t	SetParFixed (const char *ParName, Bool_t iFixed=kTRUE)

virtual Bool_t	GetParFixed (const char *ParName)

Int_t	NumFixedPars ()

Int_t	NumFreePars ()

virtual Bool_t	SetParRange (const char *ParName, Double_t RangeMin, Double_t RangeMax)

virtual Bool_t	GetParRange (const char *ParName, Double_t &RangeMin, Double_t &RangeMax)

virtual Bool_t	SetParEpsilon (const char *ParName, Double_t Epsilon)

virtual Bool_t	GetParEpsilon (const char *ParName, Double_t &Epsilon)

void	SetParName (Int_t n, const char *name)

const char *	GetParName (Int_t n)

const char *	GetParFullName (Int_t n)

void	SetParsNames (const char name0="Par0", const char name1="Par1", const char name2="Par2", const char name3="Par3", const char name4="Par4", const char name5="Par5", const char name6="Par6", const char name7="Par7", const char name8="Par8", const char name9="Par9")

void	SetParsValues (Double_t par0=0., Double_t par1=0., Double_t par2=0., Double_t par3=0., Double_t par4=0., Double_t par5=0., Double_t par6=0., Double_t par7=0., Double_t par8=0., Double_t par9=0.)

virtual void	MemorizePars ()

virtual bool	CanRollbackPars ()

virtual void	RememberPars ()

Bool_t	IsAllParsFixed ()

TGo4FitParameter *	CreatePar (const char ParName, const char Title, Double_t iValue=0)

Bool_t	RemovePar (const char *name)

Bool_t	RemovePar (TGo4FitParameter *par)

void	Print (Option_t *option="") const override

void	PrintPars () const

void	ClearPars ()

Public Member Functions inherited from TGo4FitNamed
	TGo4FitNamed ()

	TGo4FitNamed (const char Name, const char Title, TNamed *Owner=nullptr)

virtual	~TGo4FitNamed ()

const char *	GetFullName ()

const char *	GetOwnerFullName ()

void	SetOwner (TNamed *iOwner)

TNamed *	GetOwner ()

void	Print (Option_t *option="") const override

Public Member Functions inherited from TGo4FitSlotList
	TGo4FitSlotList ()

virtual	~TGo4FitSlotList ()

void	SetUpdateSlotList ()

const TObjArray *	GetSlotList (Bool_t ForceUpdate=kFALSE)

Int_t	NumSlots ()

TGo4FitSlot *	GetSlot (Int_t nslot)

TGo4FitSlot *	FindSlot (const char *FullSlotName)

Bool_t	ConnectSlots (TGo4FitSlot slot1, TGo4FitSlot slot2)

Bool_t	ConnectSlots (const char Slot1FullName, const char Slot2FullName)

TGo4FitSlot *	SetObject (TObject *obj, Bool_t iOwned=kFALSE)

TGo4FitSlot *	SetObject (const char PlaceName, TObject obj, Bool_t iOwned=kFALSE)

TGo4FitSlot *	IsObjectInSlots (TObject *obj)

Bool_t	CheckObjects (Bool_t MakeOut=kTRUE)

Bool_t	IsEmptySlots ()

void	ClearObjects (const char *PlaceName=nullptr, Bool_t NonOwned=kTRUE)

void	ClearSlot (TGo4FitSlot *slot, Bool_t NonOwned)

void	SetSaveFlagForObjects (Int_t iSaveFlag, const char *PlaceName=nullptr)

Protected Attributes
TGo4FitSlot	fxHistogram

Protected Attributes inherited from TGo4FitData
Int_t	fiDataType {0}

Bool_t	fbUseBinScale {kFALSE}

Int_t	fiTakeSigmasFrom {0}

Double_t	fdSigmaValue {0}

Double_t	fdExcludeLessThen {0}

TObjArray	fxAxisTrans

Protected Attributes inherited from TGo4FitSlotList
TObjArray *	fxSlotList {nullptr}

Bool_t	fbUpdateSlotList {kFALSE}

Additional Inherited Members
Public Types inherited from TGo4FitData
enum	{ dtHistogram = 1, dtGraph = 2 }

Protected Member Functions inherited from TGo4FitData
virtual Bool_t	Initialize (Int_t UseBuffers=-1)

virtual void	Finalize ()

Bool_t	BuffersAllocated () const

Int_t	GetBinsSize () const

Int_t	GetScalesSize () const

Double_t *	GetBinsValues () const

Double_t *	GetBinsDevs () const

Double_t *	GetBinsResult () const

const Double_t *	GetScaleValues (Int_t nbin) const

const Double_t *	GetWidthValues (Int_t nbin) const

const Int_t *	GetFullIndex (Int_t nbin) const

Int_t	GetIndexesSize () const

Protected Member Functions inherited from TGo4FitComponent
TGo4FitParameter *	NewParameter (const char Name, const char Title, Double_t iValue=0., Bool_t Fixed=kFALSE, Int_t AtIndx=-1)

TGo4FitParameter *	NewAmplitude (const char *Name=nullptr, Double_t iValue=0., Bool_t IsFixed=kFALSE, Int_t AtIndx=0)

Int_t	GetAmplIndex () const

void	SetAmplIndex (Int_t iAmplIndex=-1)

Protected Member Functions inherited from TGo4FitParsList
TGo4FitParameter *	AddPar (TGo4FitParameter *par)

TGo4FitParameter *	InsertPar (TGo4FitParameter *par, Int_t indx)

void	SetParsOwner (TGo4FitNamed *iOwner)

void	ClearParsBlocking ()

virtual TGo4FitParameter *	Get (Int_t n)

TGo4FitParameter *	Find (const char *ParName)

TGo4FitParameter *	Find (const char OwnerFullName, const char ParName)

TGo4FitParameter *	Find (TGo4FitParameter *par)

Bool_t	RemoveParByIndex (Int_t indx)

Protected Member Functions inherited from TGo4FitSlotList
void	CheckDuplicatesOnSlot ()

void	PrepareSlotsForWriting ()

	ClassDef (TGo4FitSlotList, 1)

Detailed Description

Data objects, which provides access to generic TH1 ROOT histogram.

There are several implementations of TH1 for one, two and three-dimensional histogram. All of them inherited from TH1 class and supported in TGo4FitDataHistogram object. The histogram can be assigned to TGo4FitDataHistogram object in constructor, in SetHistogram() method or in SetObject() method of fitter. Histogram may owned, or may not owned by data object. TGo4FitDataHistogram gets from histogram number of dimensions and number of bins on each axis. The first and last bins on each axis (0 and NBins+1 indexes) are excluded from data analysis. This means, that data object uses only bins, which has indexes from 1 to NBins. If no calibration objects are sets up, TGo4FitDataHistogram can uses axis values, taken from histogram itself. As axis values central position of each bin is using.

Definition at line 30 of file TGo4FitDataHistogram.h.

Constructor & Destructor Documentation

◆ TGo4FitDataHistogram() [1/2]

TGo4FitDataHistogram::TGo4FitDataHistogram ( )

Default constructor.

Definition at line 20 of file TGo4FitDataHistogram.cxx.

◆ TGo4FitDataHistogram() [2/2]

TGo4FitDataHistogram::TGo4FitDataHistogram	(	const char *	iName,
		TH1 *	iHistogram = `nullptr`,
		Bool_t	iHistogramOwned = `kFALSE`,
		Bool_t	AddAmpl = `kFALSE`
	)

Creates TGo4FitDataHistogram object with provided name. Pointer on histogram (derived from TH1 class) and ownership flag can be sets up in constructor. Scaling factor for bins (amplitude) can be added.

Definition at line 22 of file TGo4FitDataHistogram.cxx.

◆ ~TGo4FitDataHistogram()

TGo4FitDataHistogram::~TGo4FitDataHistogram ( )

virtual

Destroys TGo4FitDataHistogram object.

Definition at line 28 of file TGo4FitDataHistogram.cxx.

Member Function Documentation

◆ FillSlotList()

void TGo4FitDataHistogram::FillSlotList ( TSeqCollection * list )

overridevirtual

Add pointer on slot, which should contains histogram, to list.

Reimplemented from TGo4FitData.

Definition at line 41 of file TGo4FitDataHistogram.cxx.

References TGo4FitData::FillSlotList(), and fxHistogram.

Referenced by GetHistogram().

◆ GetHistogram()

TH1* TGo4FitDataHistogram::GetHistogram ( )

inline

Return pointer on assigned histogram.

Definition at line 53 of file TGo4FitDataHistogram.h.

References FillSlotList(), fxHistogram, TGo4FitSlot::GetObject(), MakeIter(), Print(), and SetHistogram().

Referenced by TGo4FitDataHistogramIter::ReadCurrentPoint(), and TGo4FitDataHistogramIter::StartReset().

◆ MakeIter()

std::unique_ptr< TGo4FitDataIter > TGo4FitDataHistogram::MakeIter ( )

overridevirtual

Create TGo4FitDataHistogramIter iterator, associated with given data object..

Reimplemented from TGo4FitData.

Definition at line 36 of file TGo4FitDataHistogram.cxx.

Referenced by GetHistogram().

◆ Print()

void TGo4FitDataHistogram::Print ( Option_t * option = "" ) const

override

Print information to standard output.

Definition at line 47 of file TGo4FitDataHistogram.cxx.

References fxHistogram, TGo4FitSlot::Print(), and TGo4FitData::Print().

Referenced by GetHistogram().

◆ SetHistogram()

void TGo4FitDataHistogram::SetHistogram	(	TH1 *	iHistogram,
		Bool_t	iHistogramOwned = `kFALSE`
	)

Set histogram to object. Ownership flag also can be sets up. By default histogram is not owned by object.

Definition at line 30 of file TGo4FitDataHistogram.cxx.

References TGo4FitSlot::ClearObject(), fxHistogram, and TGo4FitSlot::SetObject().

Referenced by Example5(), GetHistogram(), and TGo4Fitter::SetH1().

Member Data Documentation

◆ fxHistogram

TGo4FitSlot TGo4FitDataHistogram::fxHistogram

protected

Slot for storing pointer on TH1 object slot for TH1 *

Definition at line 82 of file TGo4FitDataHistogram.h.

Referenced by FillSlotList(), GetHistogram(), Print(), and SetHistogram().

The documentation for this class was generated from the following files:

Go4Fit/TGo4FitDataHistogram.h
Go4Fit/TGo4FitDataHistogram.cxx

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ TGo4FitDataHistogram() [1/2]

◆ TGo4FitDataHistogram() [2/2]

◆ ~TGo4FitDataHistogram()

Member Function Documentation

◆ FillSlotList()

◆ GetHistogram()

◆ MakeIter()

◆ Print()

◆ SetHistogram()

Member Data Documentation

◆ fxHistogram
