#include <TGo4FitModelFormula.h>

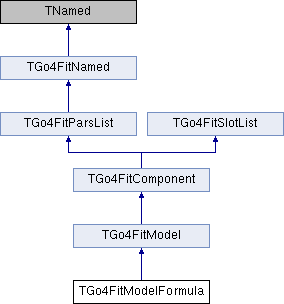

Inheritance diagram for TGo4FitModelFormula:

Public Member Functions
	TGo4FitModelFormula ()

	TGo4FitModelFormula (const char iName, const char iExpressionStr="", Int_t iNPars=0, Bool_t AddAmplitude=kFALSE)

virtual	~TGo4FitModelFormula ()

Bool_t	CanAmplTouch () override

const char *	GetExpression () const

void	SetExpression (const char *expr)

Int_t	GetNumberOfExprPar ()

Bool_t	SetNumberOfExprPar (Int_t num)

void	SetPosParIndex (Int_t naxis, Int_t indx=-1)

void	SetWidthParIndex (Int_t naxis, Int_t indx=-1)

Bool_t	BeforeEval (Int_t ndim) override

Double_t	EvalN (const Double_t *v) override

void	AfterEval () override

void	Print (Option_t *option="") const override

Public Member Functions inherited from TGo4FitModel
	TGo4FitModel ()

	TGo4FitModel (const char iName, const char iTitle, Bool_t MakeAmplitude=kFALSE)

virtual	~TGo4FitModel ()

void	SetGroupIndex (Int_t index=-1)

void	SetBackgroundGroupIndex ()

Int_t	GetGroupIndex () const

Int_t	NumAssigments () const

const char *	AssignmentName (Int_t n)

void	AssignToData (const char *DataName, Double_t RatioValue=1., Bool_t FixRatio=kFALSE)

Bool_t	IsAssignTo (const char *DataName) const

void	ChangeDataNameInAssignments (const char oldname, const char newname)

void	ClearAssignmentTo (const char *DataName)

void	ClearAssigmentTo (const char *DataName)

void	ClearAssignments ()

void	ConnectToDataIfAssigned (TGo4FitData *data)

Double_t	GetRatioValueFor (const char *DataName)

void	Print (Option_t *option="") const override

virtual Double_t	Evaluate (Double_t x)

virtual Double_t	Evaluate (Double_t x, Double_t y)

virtual Double_t	Evaluate (Double_t x, Double_t y, Double_t z)

virtual Double_t	Evaluate (Double_t *v, Int_t ndim)

virtual Double_t	Integral ()

virtual Bool_t	GetPosition (Int_t naxis, Double_t &pos)

virtual Bool_t	SetPosition (Int_t naxis, Double_t pos)

virtual Bool_t	GetWidth (Int_t naxis, Double_t &width)

virtual Bool_t	SetWidth (Int_t naxis, Double_t width)

void	SetIntegrationsProperty (Int_t iMinIntegrDepth, Int_t iMaxIntegrDepth=0, Double_t iIntegrEps=0., Bool_t iAbsoluteEps=kFALSE, Bool_t iIntegrScaling=kFALSE)

Bool_t	NeedIntegration () const

virtual Double_t	EvaluateAtPoint (TGo4FitData *data, Int_t nbin, Bool_t UseRanges=kTRUE)

virtual Double_t	EvaluateAtPoint (std::unique_ptr< TGo4FitDataIter > &iter, Bool_t UseRanges=kTRUE)

Bool_t	AddModelToDataResult (TGo4FitData *data)

Int_t	NumPars () override

Public Member Functions inherited from TGo4FitComponent
	TGo4FitComponent ()

	TGo4FitComponent (const char iName, const char iTitle)

virtual	~TGo4FitComponent ()

TGo4FitParameter *	GetAmplPar ()

const char *	GetAmplName ()

const char *	GetAmplFullName ()

Double_t	GetAmplValue ()

void	SetAmplValue (Double_t iAmpl)

Double_t	GetAmplError ()

void	SetAmplError (Double_t iError)

Bool_t	MakeAmpl (Bool_t isFixed=kFALSE)

Bool_t	RemoveAmpl ()

void	SetRange (Int_t naxis, Double_t min, Double_t max)

void	ExcludeRange (Int_t naxis, Double_t min, Double_t max)

void	SetRangeMin (Int_t naxis, Double_t value)

void	SetRangeMax (Int_t naxis, Double_t value)

void	AddRangeCut (TCutG *cut, Bool_t exclude=kFALSE)

void	ClearRanges (Int_t naxis=-1)

Bool_t	IsAnyRangeLimits () const

Bool_t	GetRangeMin (Int_t naxis, Double_t &value) const

Bool_t	GetRangeMax (Int_t naxis, Double_t &value) const

Int_t	GetNumRangeCondition () const

void	GetRangeCondition (Int_t n, Int_t &typ, Int_t &naxis, Double_t &left, Double_t &right) const

void	SetRangeCondition (Int_t n, Int_t typ, Int_t naxis, Double_t left, Double_t right)

void	AddRangeCondition (Int_t typ, Int_t naxis, Double_t left, Double_t right)

void	RemoveRangeCondition (Int_t n)

Int_t	GetNumRangeCut () const

TCutG *	GetRangeCut (Int_t n) const

Bool_t	IsRangeCutExcluding (Int_t n) const

void	SetRangeCutExcluding (Int_t n, Bool_t exclude=kTRUE)

void	RemoveRangeCut (Int_t n)

Bool_t	CheckRangeConditions (const Double_t *values, Int_t numaxis)

void	CollectParsTo (TGo4FitParsList &list) override

void	SetUseBuffers (Bool_t iUse)

Bool_t	GetUseBuffers () const

void	Print (Option_t *option="") const override

Public Member Functions inherited from TGo4FitParsList
	TGo4FitParsList ()

	TGo4FitParsList (Bool_t IsParsOwned)

	TGo4FitParsList (const char Name, const char Title, Bool_t IsParsOwned)

virtual	~TGo4FitParsList ()

TGo4FitParameter *	GetPar (Int_t n)

Int_t	GetParIndex (const TGo4FitParameter *par)

TGo4FitParameter *	FindPar (const char *ParName)

TGo4FitParameter *	FindPar (const char OwnerFullName, const char ParName)

TGo4FitParameter *	FindPar (TGo4FitParameter *par)

Double_t	GetParValue (const char *ParName)

Bool_t	SetParValue (const char *ParName, Double_t iValue)

void	GetParsValues (Double_t *pars)

void	SetParsValues (Double_t *pars)

Double_t	GetParError (const char *ParName)

Bool_t	SetParError (const char *ParName, Double_t iError)

virtual Bool_t	SetParFixed (const char *ParName, Bool_t iFixed=kTRUE)

virtual Bool_t	GetParFixed (const char *ParName)

Int_t	NumFixedPars ()

Int_t	NumFreePars ()

virtual Bool_t	SetParRange (const char *ParName, Double_t RangeMin, Double_t RangeMax)

virtual Bool_t	GetParRange (const char *ParName, Double_t &RangeMin, Double_t &RangeMax)

virtual Bool_t	SetParEpsilon (const char *ParName, Double_t Epsilon)

virtual Bool_t	GetParEpsilon (const char *ParName, Double_t &Epsilon)

void	SetParName (Int_t n, const char *name)

const char *	GetParName (Int_t n)

const char *	GetParFullName (Int_t n)

void	SetParsNames (const char name0="Par0", const char name1="Par1", const char name2="Par2", const char name3="Par3", const char name4="Par4", const char name5="Par5", const char name6="Par6", const char name7="Par7", const char name8="Par8", const char name9="Par9")

void	SetParsValues (Double_t par0=0., Double_t par1=0., Double_t par2=0., Double_t par3=0., Double_t par4=0., Double_t par5=0., Double_t par6=0., Double_t par7=0., Double_t par8=0., Double_t par9=0.)

virtual void	MemorizePars ()

virtual bool	CanRollbackPars ()

virtual void	RememberPars ()

Bool_t	IsAllParsFixed ()

TGo4FitParameter *	CreatePar (const char ParName, const char Title, Double_t iValue=0)

Bool_t	RemovePar (const char *name)

Bool_t	RemovePar (TGo4FitParameter *par)

void	Print (Option_t *option="") const override

void	PrintPars () const

void	ClearPars ()

Public Member Functions inherited from TGo4FitNamed
	TGo4FitNamed ()

	TGo4FitNamed (const char Name, const char Title, TNamed *Owner=nullptr)

virtual	~TGo4FitNamed ()

const char *	GetFullName ()

const char *	GetOwnerFullName ()

void	SetOwner (TNamed *iOwner)

TNamed *	GetOwner ()

void	Print (Option_t *option="") const override

Public Member Functions inherited from TGo4FitSlotList
	TGo4FitSlotList ()

virtual	~TGo4FitSlotList ()

virtual void	FillSlotList (TSeqCollection *lst)

void	SetUpdateSlotList ()

const TObjArray *	GetSlotList (Bool_t ForceUpdate=kFALSE)

Int_t	NumSlots ()

TGo4FitSlot *	GetSlot (Int_t nslot)

TGo4FitSlot *	FindSlot (const char *FullSlotName)

Bool_t	ConnectSlots (TGo4FitSlot slot1, TGo4FitSlot slot2)

Bool_t	ConnectSlots (const char Slot1FullName, const char Slot2FullName)

TGo4FitSlot *	SetObject (TObject *obj, Bool_t iOwned=kFALSE)

TGo4FitSlot *	SetObject (const char PlaceName, TObject obj, Bool_t iOwned=kFALSE)

TGo4FitSlot *	IsObjectInSlots (TObject *obj)

Bool_t	CheckObjects (Bool_t MakeOut=kTRUE)

Bool_t	IsEmptySlots ()

void	ClearObjects (const char *PlaceName=nullptr, Bool_t NonOwned=kTRUE)

void	ClearSlot (TGo4FitSlot *slot, Bool_t NonOwned)

void	SetSaveFlagForObjects (Int_t iSaveFlag, const char *PlaceName=nullptr)

Protected Member Functions
Bool_t	Initialize (Int_t UseBuffers=-1) override

void	Finalize () override

TGo4FitParameter *	GetExprPar (Int_t n)

TString	GetExprParName (Int_t n)

Bool_t	CompileFormula ()

void	CloseFormula ()

Int_t	GetPosParIndex (Int_t naxis) override

Int_t	GetWidthParIndex (Int_t naxis) override

Protected Member Functions inherited from TGo4FitModel
TGo4FitParameter *	Get (Int_t n) override

Double_t	EvaluateAndIntegrate (Int_t NumScales, const Double_t Scales, const Double_t Widths)

TGo4FitData *	GetAssignedConnection (Int_t n)

Bool_t	BuffersAllocated () const

void	RebuildShape (Bool_t ForceBuild=kFALSE)

Double_t *	GetModelBins (const char *DataName) const

void	SetNeedToRebuild ()

virtual Double_t	UserFunction (Double_t , Double_t )

virtual TGo4FitParameter *	GetPosPar (Int_t naxis=0)

virtual TGo4FitParameter *	GetWidthPar (Int_t naxis=0)

const Int_t *	GetDataFullIndex (TGo4FitData *data, Int_t nbin)

Int_t	GetDataIndexesSize (TGo4FitData *data)

Protected Member Functions inherited from TGo4FitComponent
TGo4FitParameter *	NewParameter (const char Name, const char Title, Double_t iValue=0., Bool_t Fixed=kFALSE, Int_t AtIndx=-1)

TGo4FitParameter *	NewAmplitude (const char *Name=nullptr, Double_t iValue=0., Bool_t IsFixed=kFALSE, Int_t AtIndx=0)

Int_t	GetAmplIndex () const

void	SetAmplIndex (Int_t iAmplIndex=-1)

Protected Member Functions inherited from TGo4FitParsList
TGo4FitParameter *	AddPar (TGo4FitParameter *par)

TGo4FitParameter *	InsertPar (TGo4FitParameter *par, Int_t indx)

void	SetParsOwner (TGo4FitNamed *iOwner)

void	ClearParsBlocking ()

TGo4FitParameter *	Find (const char *ParName)

TGo4FitParameter *	Find (const char OwnerFullName, const char ParName)

TGo4FitParameter *	Find (TGo4FitParameter *par)

Bool_t	RemoveParByIndex (Int_t indx)

Protected Member Functions inherited from TGo4FitSlotList
void	CheckDuplicatesOnSlot ()

void	PrepareSlotsForWriting ()

	ClassDef (TGo4FitSlotList, 1)

Protected Attributes
TString	fxExpression

TArrayI	fxPosIndex

TArrayI	fxWidthIndex

TFormula *	fxFormula {nullptr}

Protected Attributes inherited from TGo4FitModel
Int_t	fiMinIntegrDepth {0}

Int_t	fiMaxIntegrDepth {0}

Double_t	fdIntegrEps {0}

Bool_t	fbAbsoluteEps {kFALSE}

Bool_t	fbIntegrScaling {kFALSE}

Protected Attributes inherited from TGo4FitSlotList
TObjArray *	fxSlotList {nullptr}

Bool_t	fbUpdateSlotList {kFALSE}

Private Attributes
Int_t	Par_ndim {0}

Detailed Description

Model object, which uses ROOT TFormula class facility.

Any kind of one-line expression can be analyzed by TFormula object and evaluated for given set of axis values and set of parameters. TGo4FitModelFormula in constructor creates additional parameters with names "Par0", "Par1" and so on, which can be used in equation and can be optimized. Optionally amplitude parameters with name "Ampl" can be created. In constructor expression, number of additional parameters and using of amplitude parameter should be specified. Fort instance, equation with 3 parameters and amplitude:

TGo4FitModelFormula f = new TGo4FitModelFormula("Form","(x-Par0)</em>(y-Par1)*(z-Par2)", 3, kTRUE);

Definition at line 28 of file TGo4FitModelFormula.h.

Constructor & Destructor Documentation

◆ TGo4FitModelFormula() [1/2]

TGo4FitModelFormula::TGo4FitModelFormula ( )

Default constructor

Definition at line 21 of file TGo4FitModelFormula.cxx.

◆ TGo4FitModelFormula() [2/2]

TGo4FitModelFormula::TGo4FitModelFormula	(	const char *	iName,
		const char *	iExpressionStr = `""`,
		Int_t	iNPars = `0`,
		Bool_t	AddAmplitude = `kFALSE`
	)

Create TGo4FitModelFormula object with given names. Formula expression and number of parameters can be sets up. All using of amplitude parameter can be invoked.

Definition at line 26 of file TGo4FitModelFormula.cxx.

References GetExprParName(), and TGo4FitComponent::NewParameter().

◆ ~TGo4FitModelFormula()

TGo4FitModelFormula::~TGo4FitModelFormula ( )

virtual

Destroys TGo4FitModelFormula object.

Definition at line 36 of file TGo4FitModelFormula.cxx.

References CloseFormula().

Member Function Documentation

◆ AfterEval()

void TGo4FitModelFormula::AfterEval ( )

overridevirtual

Clear buffers, which were created by BeforeEval() method.

Reimplemented from TGo4FitModel.

Definition at line 149 of file TGo4FitModelFormula.cxx.

References CloseFormula().

Referenced by SetExpression().

◆ BeforeEval()

Bool_t TGo4FitModelFormula::BeforeEval ( Int_t ndim )

overridevirtual

Prepares (if necessary) some intermediate variables to be able calculate values of model via EvalN() function. Number of axis, which will be used in evaluations, should be specified.

Reimplemented from TGo4FitModel.

Definition at line 128 of file TGo4FitModelFormula.cxx.

References CompileFormula(), fxFormula, TGo4FitParsList::GetPar(), TGo4FitModel::NumPars(), and Par_ndim.

Referenced by SetExpression().

◆ CanAmplTouch()

Bool_t TGo4FitModelFormula::CanAmplTouch ( )

inlineoverridevirtual

Signals that amplitude parameter can be removed from or introduced to object.

Reimplemented from TGo4FitComponent.

Definition at line 50 of file TGo4FitModelFormula.h.

◆ CloseFormula()

void TGo4FitModelFormula::CloseFormula ( )

protected

Definition at line 198 of file TGo4FitModelFormula.cxx.

References fxFormula.

Referenced by AfterEval(), CompileFormula(), Finalize(), Initialize(), SetExpression(), and ~TGo4FitModelFormula().

◆ CompileFormula()

Bool_t TGo4FitModelFormula::CompileFormula ( )

protected

Definition at line 176 of file TGo4FitModelFormula.cxx.

References CloseFormula(), fxExpression, fxFormula, TGo4FitParsList::GetParName(), and TGo4FitModel::NumPars().

Referenced by BeforeEval(), Initialize(), and SetExpression().

◆ EvalN()

Double_t TGo4FitModelFormula::EvalN ( const Double_t * v )

overridevirtual

Calculates value of model according current parameters values and provided axes values. BeforeEval(), EvalN() & AfterEval() virtual methods provides general interface, where user-specific code should be situated.

Reimplemented from TGo4FitModel.

Definition at line 138 of file TGo4FitModelFormula.cxx.

References fxFormula, and Par_ndim.

Referenced by SetExpression().

◆ Finalize()

void TGo4FitModelFormula::Finalize ( )

overrideprotectedvirtual

Deletes all buffers, created during initialization.

Reimplemented from TGo4FitModel.

Definition at line 154 of file TGo4FitModelFormula.cxx.

References CloseFormula(), and TGo4FitModel::Finalize().

Referenced by SetExpression().

◆ GetExpression()

const char* TGo4FitModelFormula::GetExpression ( ) const

inline

Return formula expression.

Definition at line 55 of file TGo4FitModelFormula.h.

References fxExpression.

Referenced by TGo4FitPanel::Wiz_GetModelInfo().

◆ GetExprPar()

TGo4FitParameter * TGo4FitModelFormula::GetExprPar ( Int_t n )

protected

Definition at line 49 of file TGo4FitModelFormula.cxx.

References TGo4FitComponent::GetAmplIndex(), GetNumberOfExprPar(), and TGo4FitParsList::GetPar().

Referenced by GetPosParIndex(), GetWidthParIndex(), SetExpression(), and SetNumberOfExprPar().

◆ GetExprParName()

TString TGo4FitModelFormula::GetExprParName ( Int_t n )

protected

Definition at line 113 of file TGo4FitModelFormula.cxx.

Referenced by SetExpression(), SetNumberOfExprPar(), and TGo4FitModelFormula().

◆ GetNumberOfExprPar()

Int_t TGo4FitModelFormula::GetNumberOfExprPar ( )

Get number of parameters, which can be used in expression.

Definition at line 41 of file TGo4FitModelFormula.cxx.

References TGo4FitComponent::GetAmplPar(), and TGo4FitParsList::NumPars().

Referenced by GetExprPar(), SetExpression(), and SetNumberOfExprPar().

◆ GetPosParIndex()

Int_t TGo4FitModelFormula::GetPosParIndex ( Int_t )

overrideprotectedvirtual

Return index of parameter (if exist), which represent position of model for given axis.

Reimplemented from TGo4FitModel.

Definition at line 99 of file TGo4FitModelFormula.cxx.

References fxPosIndex, GetExprPar(), and TGo4FitParsList::GetParIndex().

Referenced by SetExpression().

◆ GetWidthParIndex()

Int_t TGo4FitModelFormula::GetWidthParIndex ( Int_t )

overrideprotectedvirtual

Return index of parameter (if exist), which represent width of model component for given axis.

Reimplemented from TGo4FitModel.

Definition at line 106 of file TGo4FitModelFormula.cxx.

References fxWidthIndex, GetExprPar(), and TGo4FitParsList::GetParIndex().

Referenced by SetExpression().

◆ Initialize()

Bool_t TGo4FitModelFormula::Initialize ( Int_t UseBuffers = -1 )

overrideprotectedvirtual

Initialize model object. If usage of buffers is specified (UseBuffers>0), method creates a number of buffers for representing model bins for each data, to which model was assign to.

Reimplemented from TGo4FitModel.

Definition at line 120 of file TGo4FitModelFormula.cxx.

References CloseFormula(), CompileFormula(), and TGo4FitModel::Initialize().

Referenced by SetExpression().
