#include <TGo4FitModelGauss1.h>

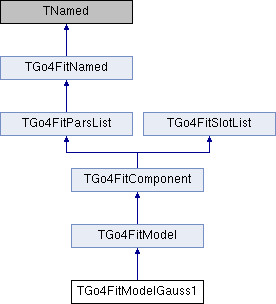

Inheritance diagram for TGo4FitModelGauss1:

Public Member Functions
	TGo4FitModelGauss1 ()

	TGo4FitModelGauss1 (const char *iName, Double_t iPosition=1., Double_t iWidth=1., Int_t iNaxis=0)

virtual	~TGo4FitModelGauss1 ()

Int_t	GetNumAxis () const

void	SetNumAxis (Int_t n)

void	Print (Option_t *option="") const override

Double_t	Integral () override

Bool_t	BeforeEval (Int_t ndim) override

Double_t	EvalN (const Double_t *v) override

Public Member Functions inherited from TGo4FitModel
	TGo4FitModel ()

	TGo4FitModel (const char iName, const char iTitle, Bool_t MakeAmplitude=kFALSE)

virtual	~TGo4FitModel ()

void	SetGroupIndex (Int_t index=-1)

void	SetBackgroundGroupIndex ()

Int_t	GetGroupIndex () const

Int_t	NumAssigments () const

const char *	AssignmentName (Int_t n)

void	AssignToData (const char *DataName, Double_t RatioValue=1., Bool_t FixRatio=kFALSE)

Bool_t	IsAssignTo (const char *DataName) const

void	ChangeDataNameInAssignments (const char oldname, const char newname)

void	ClearAssignmentTo (const char *DataName)

void	ClearAssigmentTo (const char *DataName)

void	ClearAssignments ()

void	ConnectToDataIfAssigned (TGo4FitData *data)

Double_t	GetRatioValueFor (const char *DataName)

void	Print (Option_t *option="") const override

virtual Double_t	Evaluate (Double_t x)

virtual Double_t	Evaluate (Double_t x, Double_t y)

virtual Double_t	Evaluate (Double_t x, Double_t y, Double_t z)

virtual Double_t	Evaluate (Double_t *v, Int_t ndim)

virtual Bool_t	GetPosition (Int_t naxis, Double_t &pos)

virtual Bool_t	SetPosition (Int_t naxis, Double_t pos)

virtual Bool_t	GetWidth (Int_t naxis, Double_t &width)

virtual Bool_t	SetWidth (Int_t naxis, Double_t width)

void	SetIntegrationsProperty (Int_t iMinIntegrDepth, Int_t iMaxIntegrDepth=0, Double_t iIntegrEps=0., Bool_t iAbsoluteEps=kFALSE, Bool_t iIntegrScaling=kFALSE)

Bool_t	NeedIntegration () const

virtual void	AfterEval ()

virtual Double_t	EvaluateAtPoint (TGo4FitData *data, Int_t nbin, Bool_t UseRanges=kTRUE)

virtual Double_t	EvaluateAtPoint (std::unique_ptr< TGo4FitDataIter > &iter, Bool_t UseRanges=kTRUE)

Bool_t	AddModelToDataResult (TGo4FitData *data)

Int_t	NumPars () override

Public Member Functions inherited from TGo4FitComponent
	TGo4FitComponent ()

	TGo4FitComponent (const char iName, const char iTitle)

virtual	~TGo4FitComponent ()

TGo4FitParameter *	GetAmplPar ()

const char *	GetAmplName ()

const char *	GetAmplFullName ()

Double_t	GetAmplValue ()

void	SetAmplValue (Double_t iAmpl)

Double_t	GetAmplError ()

void	SetAmplError (Double_t iError)

Bool_t	MakeAmpl (Bool_t isFixed=kFALSE)

Bool_t	RemoveAmpl ()

virtual Bool_t	CanAmplTouch ()

void	SetRange (Int_t naxis, Double_t min, Double_t max)

void	ExcludeRange (Int_t naxis, Double_t min, Double_t max)

void	SetRangeMin (Int_t naxis, Double_t value)

void	SetRangeMax (Int_t naxis, Double_t value)

void	AddRangeCut (TCutG *cut, Bool_t exclude=kFALSE)

void	ClearRanges (Int_t naxis=-1)

Bool_t	IsAnyRangeLimits () const

Bool_t	GetRangeMin (Int_t naxis, Double_t &value) const

Bool_t	GetRangeMax (Int_t naxis, Double_t &value) const

Int_t	GetNumRangeCondition () const

void	GetRangeCondition (Int_t n, Int_t &typ, Int_t &naxis, Double_t &left, Double_t &right) const

void	SetRangeCondition (Int_t n, Int_t typ, Int_t naxis, Double_t left, Double_t right)

void	AddRangeCondition (Int_t typ, Int_t naxis, Double_t left, Double_t right)

void	RemoveRangeCondition (Int_t n)

Int_t	GetNumRangeCut () const

TCutG *	GetRangeCut (Int_t n) const

Bool_t	IsRangeCutExcluding (Int_t n) const

void	SetRangeCutExcluding (Int_t n, Bool_t exclude=kTRUE)

void	RemoveRangeCut (Int_t n)

Bool_t	CheckRangeConditions (const Double_t *values, Int_t numaxis)

void	CollectParsTo (TGo4FitParsList &list) override

void	SetUseBuffers (Bool_t iUse)

Bool_t	GetUseBuffers () const

void	Print (Option_t *option="") const override

Public Member Functions inherited from TGo4FitParsList
	TGo4FitParsList ()

	TGo4FitParsList (Bool_t IsParsOwned)

	TGo4FitParsList (const char Name, const char Title, Bool_t IsParsOwned)

virtual	~TGo4FitParsList ()

TGo4FitParameter *	GetPar (Int_t n)

Int_t	GetParIndex (const TGo4FitParameter *par)

TGo4FitParameter *	FindPar (const char *ParName)

TGo4FitParameter *	FindPar (const char OwnerFullName, const char ParName)

TGo4FitParameter *	FindPar (TGo4FitParameter *par)

Double_t	GetParValue (const char *ParName)

Bool_t	SetParValue (const char *ParName, Double_t iValue)

void	GetParsValues (Double_t *pars)

void	SetParsValues (Double_t *pars)

Double_t	GetParError (const char *ParName)

Bool_t	SetParError (const char *ParName, Double_t iError)

virtual Bool_t	SetParFixed (const char *ParName, Bool_t iFixed=kTRUE)

virtual Bool_t	GetParFixed (const char *ParName)

Int_t	NumFixedPars ()

Int_t	NumFreePars ()

virtual Bool_t	SetParRange (const char *ParName, Double_t RangeMin, Double_t RangeMax)

virtual Bool_t	GetParRange (const char *ParName, Double_t &RangeMin, Double_t &RangeMax)

virtual Bool_t	SetParEpsilon (const char *ParName, Double_t Epsilon)

virtual Bool_t	GetParEpsilon (const char *ParName, Double_t &Epsilon)

void	SetParName (Int_t n, const char *name)

const char *	GetParName (Int_t n)

const char *	GetParFullName (Int_t n)

void	SetParsNames (const char name0="Par0", const char name1="Par1", const char name2="Par2", const char name3="Par3", const char name4="Par4", const char name5="Par5", const char name6="Par6", const char name7="Par7", const char name8="Par8", const char name9="Par9")

void	SetParsValues (Double_t par0=0., Double_t par1=0., Double_t par2=0., Double_t par3=0., Double_t par4=0., Double_t par5=0., Double_t par6=0., Double_t par7=0., Double_t par8=0., Double_t par9=0.)

virtual void	MemorizePars ()

virtual bool	CanRollbackPars ()

virtual void	RememberPars ()

Bool_t	IsAllParsFixed ()

TGo4FitParameter *	CreatePar (const char ParName, const char Title, Double_t iValue=0)

Bool_t	RemovePar (const char *name)

Bool_t	RemovePar (TGo4FitParameter *par)

void	Print (Option_t *option="") const override

void	PrintPars () const

void	ClearPars ()

Public Member Functions inherited from TGo4FitNamed
	TGo4FitNamed ()

	TGo4FitNamed (const char Name, const char Title, TNamed *Owner=nullptr)

virtual	~TGo4FitNamed ()

const char *	GetFullName ()

const char *	GetOwnerFullName ()

void	SetOwner (TNamed *iOwner)

TNamed *	GetOwner ()

void	Print (Option_t *option="") const override

Public Member Functions inherited from TGo4FitSlotList
	TGo4FitSlotList ()

virtual	~TGo4FitSlotList ()

virtual void	FillSlotList (TSeqCollection *lst)

void	SetUpdateSlotList ()

const TObjArray *	GetSlotList (Bool_t ForceUpdate=kFALSE)

Int_t	NumSlots ()

TGo4FitSlot *	GetSlot (Int_t nslot)

TGo4FitSlot *	FindSlot (const char *FullSlotName)

Bool_t	ConnectSlots (TGo4FitSlot slot1, TGo4FitSlot slot2)

Bool_t	ConnectSlots (const char Slot1FullName, const char Slot2FullName)

TGo4FitSlot *	SetObject (TObject *obj, Bool_t iOwned=kFALSE)

TGo4FitSlot *	SetObject (const char PlaceName, TObject obj, Bool_t iOwned=kFALSE)

TGo4FitSlot *	IsObjectInSlots (TObject *obj)

Bool_t	CheckObjects (Bool_t MakeOut=kTRUE)

Bool_t	IsEmptySlots ()

void	ClearObjects (const char *PlaceName=nullptr, Bool_t NonOwned=kTRUE)

void	ClearSlot (TGo4FitSlot *slot, Bool_t NonOwned)

void	SetSaveFlagForObjects (Int_t iSaveFlag, const char *PlaceName=nullptr)

Protected Member Functions
Int_t	GetPosParIndex (Int_t naxis) override

Int_t	GetWidthParIndex (Int_t naxis) override

Protected Member Functions inherited from TGo4FitModel
TGo4FitParameter *	Get (Int_t n) override

Double_t	EvaluateAndIntegrate (Int_t NumScales, const Double_t Scales, const Double_t Widths)

virtual Bool_t	Initialize (Int_t UseBuffers=-1)

virtual void	Finalize ()

TGo4FitData *	GetAssignedConnection (Int_t n)

Bool_t	BuffersAllocated () const

void	RebuildShape (Bool_t ForceBuild=kFALSE)

Double_t *	GetModelBins (const char *DataName) const

void	SetNeedToRebuild ()

virtual Double_t	UserFunction (Double_t , Double_t )

virtual TGo4FitParameter *	GetPosPar (Int_t naxis=0)

virtual TGo4FitParameter *	GetWidthPar (Int_t naxis=0)

const Int_t *	GetDataFullIndex (TGo4FitData *data, Int_t nbin)

Int_t	GetDataIndexesSize (TGo4FitData *data)

Protected Member Functions inherited from TGo4FitComponent
TGo4FitParameter *	NewParameter (const char Name, const char Title, Double_t iValue=0., Bool_t Fixed=kFALSE, Int_t AtIndx=-1)

TGo4FitParameter *	NewAmplitude (const char *Name=nullptr, Double_t iValue=0., Bool_t IsFixed=kFALSE, Int_t AtIndx=0)

Int_t	GetAmplIndex () const

void	SetAmplIndex (Int_t iAmplIndex=-1)

Protected Member Functions inherited from TGo4FitParsList
TGo4FitParameter *	AddPar (TGo4FitParameter *par)

TGo4FitParameter *	InsertPar (TGo4FitParameter *par, Int_t indx)

void	SetParsOwner (TGo4FitNamed *iOwner)

void	ClearParsBlocking ()

TGo4FitParameter *	Find (const char *ParName)

TGo4FitParameter *	Find (const char OwnerFullName, const char ParName)

TGo4FitParameter *	Find (TGo4FitParameter *par)

Bool_t	RemoveParByIndex (Int_t indx)

Protected Member Functions inherited from TGo4FitSlotList
void	CheckDuplicatesOnSlot ()

void	PrepareSlotsForWriting ()

	ClassDef (TGo4FitSlotList, 1)

Protected Attributes
Int_t	fiNaxis {0}

Protected Attributes inherited from TGo4FitModel
Int_t	fiMinIntegrDepth {0}

Int_t	fiMaxIntegrDepth {0}

Double_t	fdIntegrEps {0}

Bool_t	fbAbsoluteEps {kFALSE}

Bool_t	fbIntegrScaling {kFALSE}

Protected Attributes inherited from TGo4FitSlotList
TObjArray *	fxSlotList {nullptr}

Bool_t	fbUpdateSlotList {kFALSE}

Private Attributes
Double_t	Par_x0 {0.}

Double_t	Par_k {0.}

Detailed Description

One dimensional gaussian peak.

Has following parameters : "Ampl" - amplitude, "Pos" - position of gaussian peak, "Width" - width of gaussian. In constructor initial values of these parameter and number of selected axis (0 - x axis, 1 - y axis and so on) should be setup:

TGo4FitModelGauss1 *g = new TGo4FitModelGauss1("Gauss", 10., 5., 1);

where "Gauss" - name of model component, "10." - peak position, "5." - peak width, "1" - selected axis (here - y).

Definition at line 32 of file TGo4FitModelGauss1.h.

Constructor & Destructor Documentation

◆ TGo4FitModelGauss1() [1/2]

TGo4FitModelGauss1::TGo4FitModelGauss1 ( )

Default constructor.

Definition at line 22 of file TGo4FitModelGauss1.cxx.

◆ TGo4FitModelGauss1() [2/2]

TGo4FitModelGauss1::TGo4FitModelGauss1	(	const char *	iName,
		Double_t	iPosition = `1.`,
		Double_t	iWidth = `1.`,
		Int_t	iNaxis = `0`
	)

Creates TGo4FitModelGauss1 with given name. Position of gaussian, width and number of selected axis can be specified.

Definition at line 25 of file TGo4FitModelGauss1.cxx.

References TGo4FitComponent::NewParameter().

◆ ~TGo4FitModelGauss1()

TGo4FitModelGauss1::~TGo4FitModelGauss1 ( )

virtual

Destroys TGo4FitModelGauss1 object.

Definition at line 31 of file TGo4FitModelGauss1.cxx.

Member Function Documentation

◆ BeforeEval()

Bool_t TGo4FitModelGauss1::BeforeEval ( Int_t ndim )

overridevirtual

Prepares (if necessary) some intermediate variables to be able calculate values of model via EvalN() function. Number of axis, which will be used in evaluations, should be specified.

Reimplemented from TGo4FitModel.

Definition at line 34 of file TGo4FitModelGauss1.cxx.

References fiNaxis, TGo4FitParsList::GetPar(), TGo4FitParameter::GetValue(), Par_k, and Par_x0.

Referenced by SetNumAxis().

◆ EvalN()

Double_t TGo4FitModelGauss1::EvalN ( const Double_t * v )

overridevirtual

Calculates value of model according current parameters values and provided axes values. BeforeEval(), EvalN() & AfterEval() virtual methods provides general interface, where user-specific code should be situated.

Reimplemented from TGo4FitModel.

Definition at line 47 of file TGo4FitModelGauss1.cxx.

References fiNaxis, Par_k, and Par_x0.

Referenced by SetNumAxis().

◆ GetNumAxis()

Int_t TGo4FitModelGauss1::GetNumAxis ( ) const

inline

Return number of axis, where gauss will be build.

Definition at line 54 of file TGo4FitModelGauss1.h.

References fiNaxis.

◆ GetPosParIndex()

Int_t TGo4FitModelGauss1::GetPosParIndex ( Int_t )

inlineoverrideprotectedvirtual

Return index of parameter (if exist), which represent position of model for given axis.

Reimplemented from TGo4FitModel.

Definition at line 72 of file TGo4FitModelGauss1.h.

References fiNaxis.

◆ GetWidthParIndex()

Int_t TGo4FitModelGauss1::GetWidthParIndex ( Int_t )

inlineoverrideprotectedvirtual

Return index of parameter (if exist), which represent width of model component for given axis.

Reimplemented from TGo4FitModel.

Definition at line 73 of file TGo4FitModelGauss1.h.

References fiNaxis.

◆ Integral()

Double_t TGo4FitModelGauss1::Integral ( )

overridevirtual

Calculates integral of model component

Reimplemented from TGo4FitModel.

Definition at line 58 of file TGo4FitModelGauss1.cxx.

References TGo4FitComponent::GetAmplValue(), TGo4FitParsList::GetPar(), and TGo4FitParameter::GetValue().

Referenced by SetNumAxis().

◆ Print()

void TGo4FitModelGauss1::Print ( Option_t * option = "" ) const

override

Print information to standard output.

Definition at line 52 of file TGo4FitModelGauss1.cxx.

References fiNaxis, and TGo4FitModel::Print().

Referenced by SetNumAxis().

◆ SetNumAxis()

void TGo4FitModelGauss1::SetNumAxis ( Int_t n )

inline

Sets number of selected axis.

Definition at line 59 of file TGo4FitModelGauss1.h.

References BeforeEval(), EvalN(), fiNaxis, Integral(), and Print().

Referenced by QFitModelGauss1Widget::AxisNumSpin_valueChanged().

Member Data Documentation

◆ fiNaxis

Int_t TGo4FitModelGauss1::fiNaxis {0}

protected

Number of selected axis, where gaussian will be build.

Definition at line 78 of file TGo4FitModelGauss1.h.

Referenced by BeforeEval(), EvalN(), GetNumAxis(), GetPosParIndex(), GetWidthParIndex(), Print(), and SetNumAxis().

◆ Par_k

Double_t TGo4FitModelGauss1::Par_k {0.}

private

Temporary variable for EvalN() function.

Definition at line 90 of file TGo4FitModelGauss1.h.

Referenced by BeforeEval(), and EvalN().

◆ Par_x0

Double_t TGo4FitModelGauss1::Par_x0 {0.}

private

Temporary variable for EvalN() function.

Definition at line 85 of file TGo4FitModelGauss1.h.

Referenced by BeforeEval(), and EvalN().

The documentation for this class was generated from the following files:

Go4Fit/TGo4FitModelGauss1.h
Go4Fit/TGo4FitModelGauss1.cxx

Public Member Functions

Protected Member Functions

Protected Attributes

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ TGo4FitModelGauss1() [1/2]

◆ TGo4FitModelGauss1() [2/2]

◆ ~TGo4FitModelGauss1()

Member Function Documentation

◆ BeforeEval()

◆ EvalN()

◆ GetNumAxis()

◆ GetPosParIndex()

◆ GetWidthParIndex()

◆ Integral()

◆ Print()

◆ SetNumAxis()

Member Data Documentation

◆ fiNaxis

◆ Par_k

◆ Par_x0
