#include <TGo4HDF5DataHandle.h>

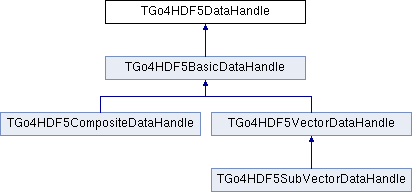

Inheritance diagram for TGo4HDF5DataHandle:

Public Member Functions
	TGo4HDF5DataHandle (const char *name, size_t datasize)

virtual	~TGo4HDF5DataHandle ()

H5::CompType *	GetType () const

const char *	GetTypeName () const

void *	Data () const

void	InsertTypeMember (const H5std_string &name, size_t offset, const H5::DataType &new_member)

void	SetParentOffset (size_t off)

virtual void	SetObjectPointer (void *memptr)

void	SetTopEvent (TGo4EventElement *eve)

void	SetTopEventClass (const char *classname)

void	SetMemberName (const char *name)

void	SetMemberClass (const char *clname)

virtual void	BuildReadDataset (H5::H5File file, TGo4HDF5Source parent)

virtual void	BuildWriteDataset (H5::H5File *file)

virtual void	Read (hsize_t sequencenum, H5::H5File *file)

virtual void	Write (hsize_t sequencenum, H5::H5File *file)

TGo4HDF5DataHandle *	AddSubMember (const char name, size_t datasize, const char collectiontype=nullptr)

TGo4HDF5DataHandle *	GetSubMember (UInt_t ix)

TGo4HDF5DataHandle *	FindSubMember (const char *name)

void	SetActive (Bool_t on)

void	SetAllSubMembersActive (Bool_t on)

Static Public Attributes
static TGo4HDF5DataHandleFactory	fxFactory

Protected Attributes
TString	fxTypeName

H5::CompType *	fxType {nullptr}

H5::DataSet	fxDataSet

H5::DataSpace *	fxDataSpace {nullptr}

H5::DataSpace	fxFileSpace

ULong_t	fiEntries {0}

void *	fxData {nullptr}

size_t	fiParentOffset {0}

size_t	fiDataSize {0}

size_t	fiReadOffset {0}

std::vector< TGo4HDF5DataHandle * >	fxSubcomponents

TString	fxMemberHandle

TString	fxMemberClass

TGo4EventElement *	fxEvent {nullptr}

TString	fxEventClass

TGo4HDF5Source *	fxParentSource {nullptr}

Bool_t	fbDataSetExists {kFALSE}

Bool_t	fbDataSetActive {kFALSE}

Detailed Description

The base class to access a datatype with substructures in hdf5. datahandle may contain other datahandles as direct subcomponents Each datahandle represents a single hdf5 dataset in the file

*
Author
J. Adamczewski-Musch

Since
6/2019

Definition at line 51 of file TGo4HDF5DataHandle.h.

Constructor & Destructor Documentation

◆ TGo4HDF5DataHandle()

TGo4HDF5DataHandle::TGo4HDF5DataHandle	(	const char *	name,
		size_t	datasize
	)

create new data handle

Definition at line 28 of file TGo4HDF5DataHandle.cxx.

References fxType, fxTypeName, and go4hdfdbg.

Referenced by TGo4HDF5DataHandleFactory::CreateDataHandle().

◆ ~TGo4HDF5DataHandle()

TGo4HDF5DataHandle::~TGo4HDF5DataHandle ( )

virtual

Definition at line 38 of file TGo4HDF5DataHandle.cxx.

References fxDataSet, fxDataSpace, fxSubcomponents, fxType, fxTypeName, and go4hdfdbg.

Member Function Documentation

◆ AddSubMember()

TGo4HDF5DataHandle * TGo4HDF5DataHandle::AddSubMember	(	const char *	name,
		size_t	datasize,
		const char *	collectiontype = `nullptr`
	)

create new subhandle for complex member component on heap. Each complex component has separate dataset in file. returns the currently added handle to submember. If submember is part of a collection like std::vector, the name of collection is also passed.

Definition at line 61 of file TGo4HDF5DataHandle.cxx.

References TGo4HDF5DataHandleFactory::CreateDataHandle(), fxFactory, and fxSubcomponents.

Referenced by TGo4HDF5Adapter::AddSubHandle(), TGo4HDF5Adapter::BuildDataType(), and TGo4HDF5SubVectorDataHandle::SetObjectPointer().

◆ BuildReadDataset()

void TGo4HDF5DataHandle::BuildReadDataset	(	H5::H5File *	file,
		TGo4HDF5Source *	parent
	)

virtual

create datasets and buffers for reading this structure from hdf5 file. parent pointer is given for error handling case

Reimplemented in TGo4HDF5SubVectorDataHandle, TGo4HDF5VectorDataHandle, TGo4HDF5CompositeDataHandle, and TGo4HDF5BasicDataHandle.

Definition at line 136 of file TGo4HDF5DataHandle.cxx.

References BuildReadDataset(), and fxSubcomponents.

Referenced by TGo4HDF5Source::BuildDataSet(), BuildReadDataset(), TGo4HDF5BasicDataHandle::BuildReadDataset(), TGo4HDF5SubVectorDataHandle::BuildReadDataset(), and TGo4HDF5SubVectorDataHandle::Read().

◆ BuildWriteDataset()

void TGo4HDF5DataHandle::BuildWriteDataset ( H5::H5File * file )

virtual

create datasets for writing memory structure of type into file.

Reimplemented in TGo4HDF5SubVectorDataHandle, TGo4HDF5VectorDataHandle, TGo4HDF5CompositeDataHandle, and TGo4HDF5BasicDataHandle.

Definition at line 146 of file TGo4HDF5DataHandle.cxx.

References BuildWriteDataset(), and fxSubcomponents.

Referenced by TGo4HDF5Store::BuildDataSet(), BuildWriteDataset(), TGo4HDF5BasicDataHandle::BuildWriteDataset(), and TGo4HDF5VectorDataHandle::BuildWriteDataset().

◆ Data()

void* TGo4HDF5DataHandle::Data ( ) const

inline

Definition at line 64 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5Adapter::AddSubHandle(), TGo4HDF5Adapter::BuildDataType(), TGo4HDF5Adapter::FillTypeInfo(), and TGo4HDF5SubVectorDataHandle::SetObjectPointer().

◆ FindSubMember()

TGo4HDF5DataHandle * TGo4HDF5DataHandle::FindSubMember ( const char * name )

lookup if subcomponent of name already is in list. returns 0 pointer if no match of name, otherwise th matching subhandle

Definition at line 68 of file TGo4HDF5DataHandle.cxx.

References FindSubMember(), fxSubcomponents, and GetTypeName().

Referenced by FindSubMember(), and TGo4HDF5SubVectorDataHandle::SetObjectPointer().

◆ GetSubMember()

TGo4HDF5DataHandle* TGo4HDF5DataHandle::GetSubMember ( UInt_t ix )

inline

Definition at line 109 of file TGo4HDF5DataHandle.h.

◆ GetType()

H5::CompType* TGo4HDF5DataHandle::GetType ( ) const

inline

return handle for type descriptor. Currently this is filled from external routine of adapter class

Definition at line 60 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5Adapter::FillTypeInfo().

◆ GetTypeName()

const char* TGo4HDF5DataHandle::GetTypeName ( ) const

inline

Definition at line 62 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5Adapter::BuildDataType(), FindSubMember(), and TGo4HDF5SubVectorDataHandle::SetObjectPointer().

◆ InsertTypeMember()

void TGo4HDF5DataHandle::InsertTypeMember	(	const H5std_string &	name,
		size_t	offset,
		const H5::DataType &	new_member
	)

wrapper function to define contained structure member. Will also keep the offset to first assigned member

Definition at line 53 of file TGo4HDF5DataHandle.cxx.

References fbDataSetActive, fiReadOffset, and fxType.

Referenced by TGo4HDF5Adapter::FillTypeInfo().

◆ Read()

void TGo4HDF5DataHandle::Read	(	hsize_t	sequencenum,
		H5::H5File *	file
	)

virtual

Read event of sequence number from file

Reimplemented in TGo4HDF5SubVectorDataHandle, TGo4HDF5VectorDataHandle, TGo4HDF5CompositeDataHandle, and TGo4HDF5BasicDataHandle.

Definition at line 156 of file TGo4HDF5DataHandle.cxx.

References fbDataSetExists, fiEntries, fxFileSpace, fxSubcomponents, fxTypeName, go4hdfdatahandlethrow, go4hdfdbg, and Read().

Referenced by TGo4HDF5Source::BuildEvent(), Read(), TGo4HDF5BasicDataHandle::Read(), TGo4HDF5VectorDataHandle::Read(), and TGo4HDF5SubVectorDataHandle::Read().

◆ SetActive()

void TGo4HDF5DataHandle::SetActive ( Bool_t on )

inline

Definition at line 115 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5SubVectorDataHandle::BuildReadDataset(), TGo4HDF5SubVectorDataHandle::BuildWriteDataset(), TGo4HDF5DataHandleFactory::CreateDataHandle(), SetAllSubMembersActive(), and TGo4HDF5VectorDataHandle::Write().

◆ SetAllSubMembersActive()

void TGo4HDF5DataHandle::SetAllSubMembersActive ( Bool_t on )

Definition at line 88 of file TGo4HDF5DataHandle.cxx.

References fxSubcomponents, SetActive(), and SetAllSubMembersActive().

Referenced by SetAllSubMembersActive(), and TGo4HDF5SubVectorDataHandle::SetObjectPointer().

◆ SetMemberClass()

void TGo4HDF5DataHandle::SetMemberClass ( const char * clname )

inline

type of the member to access from outside

Definition at line 89 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5Adapter::AddSubHandle().

◆ SetMemberName()

void TGo4HDF5DataHandle::SetMemberName ( const char * name )

inline

identifier for the member to access from outside using the top event handle

Definition at line 86 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5Adapter::AddSubHandle(), and TGo4HDF5SubVectorDataHandle::SetObjectPointer().

◆ SetObjectPointer()

void TGo4HDF5DataHandle::SetObjectPointer ( void * memptr )

virtual

define location of corresponding object in memory. This is base pointer for all member specific offsets.

Reimplemented in TGo4HDF5SubVectorDataHandle, and TGo4HDF5VectorDataHandle.

Definition at line 97 of file TGo4HDF5DataHandle.cxx.

References fiParentOffset, fxData, fxSubcomponents, fxTypeName, go4hdfdbg, and SetObjectPointer().

Referenced by TGo4HDF5Adapter::BuildDataType(), SetObjectPointer(), TGo4HDF5VectorDataHandle::SetObjectPointer(), and TGo4HDF5Store::Store().

◆ SetParentOffset()

void TGo4HDF5DataHandle::SetParentOffset ( size_t off )

inline

remember location of this object relative to upper level object.

Definition at line 70 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5Adapter::AddSubHandle(), and TGo4HDF5Adapter::BuildDataType().

◆ SetTopEvent()

void TGo4HDF5DataHandle::SetTopEvent ( TGo4EventElement * eve )

pass the top level event element down the member hierarchy. Note that this is the "local" top event, e.g. the current Go4 composite subevent that owns the member

Definition at line 111 of file TGo4HDF5DataHandle.cxx.

References fxEvent, fxSubcomponents, fxTypeName, go4hdfdbg, and SetTopEvent().

Referenced by TGo4HDF5Adapter::BuildDataType(), and SetTopEvent().

◆ SetTopEventClass()

void TGo4HDF5DataHandle::SetTopEventClass ( const char * classname )

pass the top level event element class down the member hierarchy. Note that this is the "local" top event, e.g. the current Go4 composite subevent that owns the member

Definition at line 124 of file TGo4HDF5DataHandle.cxx.

References fxEventClass, fxSubcomponents, and SetTopEventClass().

Referenced by TGo4HDF5Adapter::BuildDataType(), and SetTopEventClass().

◆ Write()

void TGo4HDF5DataHandle::Write	(	hsize_t	sequencenum,
		H5::H5File *	file
	)

virtual

Write event of sequence number from file

Reimplemented in TGo4HDF5SubVectorDataHandle, TGo4HDF5VectorDataHandle, TGo4HDF5CompositeDataHandle, and TGo4HDF5BasicDataHandle.

Definition at line 187 of file TGo4HDF5DataHandle.cxx.

References fbDataSetExists, fxDataSet, fxFileSpace, fxSubcomponents, fxTypeName, go4hdfdbg, and Write().

Referenced by TGo4HDF5Store::Store(), Write(), TGo4HDF5BasicDataHandle::Write(), TGo4HDF5VectorDataHandle::Write(), and TGo4HDF5SubVectorDataHandle::Write().

Member Data Documentation

◆ fbDataSetActive

Bool_t TGo4HDF5DataHandle::fbDataSetActive {kFALSE}

protected

we may disable this dataset temporarily from writing or reading useful for dynamic vector of vector components

Definition at line 183 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5BasicDataHandle::BuildWriteDataset(), InsertTypeMember(), TGo4HDF5BasicDataHandle::Read(), TGo4HDF5VectorDataHandle::Read(), TGo4HDF5VectorDataHandle::SetObjectPointer(), TGo4HDF5BasicDataHandle::Write(), and TGo4HDF5VectorDataHandle::Write().

◆ fbDataSetExists

Bool_t TGo4HDF5DataHandle::fbDataSetExists {kFALSE}

protected

check on the fly if this handle has already created a dataset

Definition at line 179 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5BasicDataHandle::BuildReadDataset(), TGo4HDF5BasicDataHandle::BuildWriteDataset(), TGo4HDF5VectorDataHandle::BuildWriteDataset(), Read(), and Write().

◆ fiDataSize

size_t TGo4HDF5DataHandle::fiDataSize {0}

protected

size of data structure in bytes, for redefining output dataset

Definition at line 153 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5BasicDataHandle::AllocReadBuffer(), TGo4HDF5BasicDataHandle::BuildReadDataset(), and TGo4HDF5BasicDataHandle::Read().

◆ fiEntries

ULong_t TGo4HDF5DataHandle::fiEntries {0}

protected

number of event entries found in file dataspace

Definition at line 141 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5BasicDataHandle::BuildReadDataset(), and Read().

◆ fiParentOffset

size_t TGo4HDF5DataHandle::fiParentOffset {0}

protected

offset of this data structure relative to top level event object

Definition at line 149 of file TGo4HDF5DataHandle.h.

Referenced by SetObjectPointer().

◆ fiReadOffset

size_t TGo4HDF5DataHandle::fiReadOffset {0}

protected

begin of real eventdata payload after event object pointer

Definition at line 157 of file TGo4HDF5DataHandle.h.

Referenced by InsertTypeMember(), and TGo4HDF5BasicDataHandle::Read().

◆ fxData

void* TGo4HDF5DataHandle::fxData {nullptr}

protected

pointer to begin of data in memory

Definition at line 146 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5BasicDataHandle::BuildWriteDataset(), TGo4HDF5BasicDataHandle::Read(), TGo4HDF5VectorDataHandle::Read(), SetObjectPointer(), TGo4HDF5VectorDataHandle::SetObjectPointer(), and TGo4HDF5BasicDataHandle::Write().

◆ fxDataSet

H5::DataSet TGo4HDF5DataHandle::fxDataSet

protected

dataset containing the structure

Definition at line 132 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5BasicDataHandle::BuildReadDataset(), TGo4HDF5BasicDataHandle::BuildWriteDataset(), TGo4HDF5VectorDataHandle::BuildWriteDataset(), TGo4HDF5BasicDataHandle::Read(), TGo4HDF5VectorDataHandle::Read(), Write(), TGo4HDF5BasicDataHandle::Write(), TGo4HDF5VectorDataHandle::Write(), and ~TGo4HDF5DataHandle().

◆ fxDataSpace

H5::DataSpace* TGo4HDF5DataHandle::fxDataSpace {nullptr}

protected

dataspace in memory

Definition at line 135 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5BasicDataHandle::BuildReadDataset(), TGo4HDF5BasicDataHandle::BuildWriteDataset(), TGo4HDF5VectorDataHandle::BuildWriteDataset(), TGo4HDF5BasicDataHandle::Read(), TGo4HDF5VectorDataHandle::Read(), TGo4HDF5BasicDataHandle::Write(), TGo4HDF5VectorDataHandle::Write(), and ~TGo4HDF5DataHandle().

◆ fxEvent

TGo4EventElement* TGo4HDF5DataHandle::fxEvent {nullptr}

protected

the top level event element to access the current data member from outside

Definition at line 170 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5VectorDataHandle::Read(), and SetTopEvent().

◆ fxEventClass

TString TGo4HDF5DataHandle::fxEventClass

protected

the top level event element classname to access the current data member from outside

Definition at line 173 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5VectorDataHandle::Read(), and SetTopEventClass().

◆ fxFactory

TGo4HDF5DataHandleFactory TGo4HDF5DataHandle::fxFactory

static

Definition at line 119 of file TGo4HDF5DataHandle.h.

Referenced by AddSubMember().

◆ fxFileSpace

H5::DataSpace TGo4HDF5DataHandle::fxFileSpace

protected

dataspace in file

Definition at line 138 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5BasicDataHandle::BuildReadDataset(), Read(), TGo4HDF5BasicDataHandle::Read(), TGo4HDF5VectorDataHandle::Read(), Write(), TGo4HDF5BasicDataHandle::Write(), and TGo4HDF5VectorDataHandle::Write().

◆ fxMemberClass

TString TGo4HDF5DataHandle::fxMemberClass

protected

classname of the entry for interpreter to operate e.g. on variable length collection

Definition at line 167 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5VectorDataHandle::Read().

◆ fxMemberHandle

TString TGo4HDF5DataHandle::fxMemberHandle

protected

predefined interpreter access command e.g. to operate e.g. on the variable length collection

Definition at line 164 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5VectorDataHandle::Read(), and TGo4HDF5SubVectorDataHandle::SetObjectPointer().

◆ fxParentSource

TGo4HDF5Source* TGo4HDF5DataHandle::fxParentSource {nullptr}

protected

backpointer to parent source for exceptions

Definition at line 176 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5BasicDataHandle::BuildReadDataset(), and TGo4HDF5SubVectorDataHandle::Read().

◆ fxSubcomponents

std::vector<TGo4HDF5DataHandle*> TGo4HDF5DataHandle::fxSubcomponents

protected

collect subcomponents of the referenced data object

Definition at line 161 of file TGo4HDF5DataHandle.h.

Referenced by AddSubMember(), BuildReadDataset(), BuildWriteDataset(), FindSubMember(), Read(), SetAllSubMembersActive(), SetObjectPointer(), SetTopEvent(), SetTopEventClass(), Write(), and ~TGo4HDF5DataHandle().

◆ fxType

H5::CompType* TGo4HDF5DataHandle::fxType {nullptr}

protected

component type representing the data structure

Definition at line 128 of file TGo4HDF5DataHandle.h.

Referenced by TGo4HDF5BasicDataHandle::BuildReadDataset(), TGo4HDF5BasicDataHandle::BuildWriteDataset(), TGo4HDF5VectorDataHandle::BuildWriteDataset(), InsertTypeMember(), TGo4HDF5BasicDataHandle::Read(), TGo4HDF5VectorDataHandle::Read(), TGo4HDF5DataHandle(), TGo4HDF5VectorDataHandle::TGo4HDF5VectorDataHandle(), TGo4HDF5BasicDataHandle::Write(), TGo4HDF5VectorDataHandle::Write(), and ~TGo4HDF5DataHandle().

◆ fxTypeName

TString TGo4HDF5DataHandle::fxTypeName

protected

The documentation for this class was generated from the following files:

Go4HDF5/TGo4HDF5DataHandle.h
Go4HDF5/TGo4HDF5DataHandle.cxx

Public Member Functions

Static Public Attributes

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ TGo4HDF5DataHandle()

◆ ~TGo4HDF5DataHandle()

Member Function Documentation

◆ AddSubMember()

◆ BuildReadDataset()

◆ BuildWriteDataset()

◆ Data()

◆ FindSubMember()

◆ GetSubMember()

◆ GetType()

◆ GetTypeName()

◆ InsertTypeMember()

◆ Read()

◆ SetActive()

◆ SetAllSubMembersActive()

◆ SetMemberClass()

◆ SetMemberName()

◆ SetObjectPointer()

◆ SetParentOffset()

◆ SetTopEvent()

◆ SetTopEventClass()

◆ Write()

Member Data Documentation

◆ fbDataSetActive

◆ fbDataSetExists

◆ fiDataSize

◆ fiEntries

◆ fiParentOffset

◆ fiReadOffset

◆ fxData

◆ fxDataSet

◆ fxDataSpace

◆ fxEvent

◆ fxEventClass

◆ fxFactory

◆ fxFileSpace

◆ fxMemberClass

◆ fxMemberHandle

◆ fxParentSource

◆ fxSubcomponents

◆ fxType

◆ fxTypeName
