TGo4ObjectStatus Class Reference

#include <TGo4ObjectStatus.h>

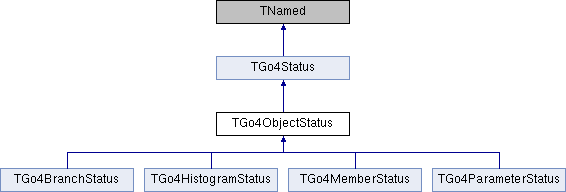

Inheritance diagram for TGo4ObjectStatus:

Public Member Functions
	TGo4ObjectStatus ()
	TGo4ObjectStatus (TObject *object, Bool_t withtime=kTRUE)
virtual	~TGo4ObjectStatus ()
const char *	GetObjectClass () const
Int_t	GetObjectSize () const
Bool_t	IsResetProtect () const
Bool_t	IsDeleteProtect () const
const char *	GetTimeString () const
void	Print (Option_t *opt="") const override
Public Member Functions inherited from TGo4Status
	TGo4Status ()
	TGo4Status (const char *name)
	TGo4Status (const char *name, const char *title)
virtual	~TGo4Status ()
virtual Int_t	PrintStatus (Text_t *buffer=nullptr, Int_t buflen=0)
void	Print (Option_t *opt="") const override

Protected Attributes
UInt_t	fiObjectSize {0}
Bool_t	fbResetProtect {kFALSE}
Bool_t	fbDeleteProtect {kTRUE}
TString	fxObjectClass
TString	fxStatusTime

Additional Inherited Members
Public Types inherited from TGo4Status
enum	{ kGo4NoReset = BIT(20), kGo4CanDelete = BIT(21), kGo4BackStoreReset = BIT(22) }
Static Public Member Functions inherited from TGo4Status
static Text_t *	PrintIndent (Text_t *buffer, Int_t &buflen)
static Text_t *	PrintBuffer (char *buffer, Int_t &buflen, const char *text,...)
static void	PrintLine (const char *text,...)

Detailed Description

One entry of the object names folder. Contains the go4 object structural information, such as name, title, classname, date, size. May be subclassed later to include further information on special objects, e.g. histogram dimensions and contents.

Since

7/2001

Author

J. Adamczewski

Definition at line 27 of file TGo4ObjectStatus.h.

Constructor & Destructor Documentation

TGo4ObjectStatus() [1/2]

TGo4ObjectStatus::TGo4ObjectStatus

(

)

default ctor for streamer.

Definition at line 22 of file TGo4ObjectStatus.cxx.

TGo4ObjectStatus() [2/2]

TGo4ObjectStatus::TGo4ObjectStatus	(	TObject *	object,
		Bool_t	withtime = kTRUE
	)

Create status information from given TObject. Flag withtime indicates if the status creation time shall be noted inside the status object.

Definition at line 27 of file TGo4ObjectStatus.cxx.

References fbDeleteProtect, fbResetProtect, fiObjectSize, fxObjectClass, fxStatusTime, GO4TRACE, TGo4Status::kGo4CanDelete, and TGo4Status::kGo4NoReset.

~TGo4ObjectStatus()

TGo4ObjectStatus::~TGo4ObjectStatus ( )

virtual

Definition at line 54 of file TGo4ObjectStatus.cxx.

References GO4TRACE.

Member Function Documentation

GetObjectClass()

const char* TGo4ObjectStatus::GetObjectClass ( ) const

inline

ClassName of the described object.

Definition at line 41 of file TGo4ObjectStatus.h.

References fxObjectClass.

Referenced by TGo4ParameterStatus::CreateParameter(), TGo4AnalysisLevelIter::EntryClassName(), Print(), TGo4HistogramInfo::RefreshHistogramInfo(), TGo4ParaEdit::RefreshWidget(), and TGo4ParameterStatus::UpdateParameterValues().

GetObjectSize()

Int_t TGo4ObjectStatus::GetObjectSize ( ) const

inline

Size of described object in byte.

Definition at line 44 of file TGo4ObjectStatus.h.

References fiObjectSize.

Referenced by Print(), TGo4AnalysisObjectManager::PrintFolder(), TGo4HistogramInfo::RefreshHistogramInfo(), and TGo4AnalysisLevelIter::sizeinfo().

GetTimeString()

const char* TGo4ObjectStatus::GetTimeString ( ) const

inline

Creation time string; sql format.

Definition at line 53 of file TGo4ObjectStatus.h.

References fxStatusTime, and Print().

Referenced by Print(), and TGo4HistogramInfo::RefreshHistogramInfo().

IsDeleteProtect()

Bool_t TGo4ObjectStatus::IsDeleteProtect ( ) const

inline

Object's delete protection state.

Definition at line 50 of file TGo4ObjectStatus.h.

References fbDeleteProtect.

Referenced by TGo4AnalysisLevelIter::getflag(), and Print().

IsResetProtect()

Bool_t TGo4ObjectStatus::IsResetProtect ( ) const

inline

Object's reset protection state.

Definition at line 47 of file TGo4ObjectStatus.h.

References fbResetProtect.

Referenced by TGo4AnalysisLevelIter::getflag(), and Print().

Print()

void TGo4ObjectStatus::Print ( Option_t *  opt = "" ) const

override

Definition at line 60 of file TGo4ObjectStatus.cxx.

References GetObjectClass(), GetObjectSize(), GetTimeString(), IsDeleteProtect(), IsResetProtect(), and TGo4Status::PrintLine().

Referenced by GetTimeString(), TGo4MemberStatus::Print(), TGo4BranchStatus::Print(), TGo4ParameterStatus::Print(), and TGo4HistogramStatus::Print().

Member Data Documentation

fbDeleteProtect

Bool_t TGo4ObjectStatus::fbDeleteProtect {kTRUE}

protected

If true, described object is protected against deletion from gui.

Definition at line 65 of file TGo4ObjectStatus.h.

Referenced by IsDeleteProtect(), and TGo4ObjectStatus().

fbResetProtect

Bool_t TGo4ObjectStatus::fbResetProtect {kFALSE}

protected

If true, described object is protected against reset (Clear()) from gui.

Definition at line 62 of file TGo4ObjectStatus.h.

Referenced by IsResetProtect(), and TGo4ObjectStatus().

fiObjectSize

UInt_t TGo4ObjectStatus::fiObjectSize {0}

protected

Size of the described object in byte.

Definition at line 59 of file TGo4ObjectStatus.h.

Referenced by GetObjectSize(), TGo4HistogramStatus::TGo4HistogramStatus(), and TGo4ObjectStatus().

fxObjectClass

TString TGo4ObjectStatus::fxObjectClass

protected

Classname of the described object.

Definition at line 68 of file TGo4ObjectStatus.h.

Referenced by GetObjectClass(), TGo4BranchStatus::TGo4BranchStatus(), TGo4MemberStatus::TGo4MemberStatus(), TGo4ObjectStatus(), and TGo4ParameterStatus::TGo4ParameterStatus().

fxStatusTime

TString TGo4ObjectStatus::fxStatusTime

protected

creation time of status object

Definition at line 71 of file TGo4ObjectStatus.h.

Referenced by GetTimeString(), and TGo4ObjectStatus().

---

The documentation for this class was generated from the following files:

• Go4StatusBase/TGo4ObjectStatus.h
• Go4StatusBase/TGo4ObjectStatus.cxx
